Ferrari LaFerrari - AC SYSTEM

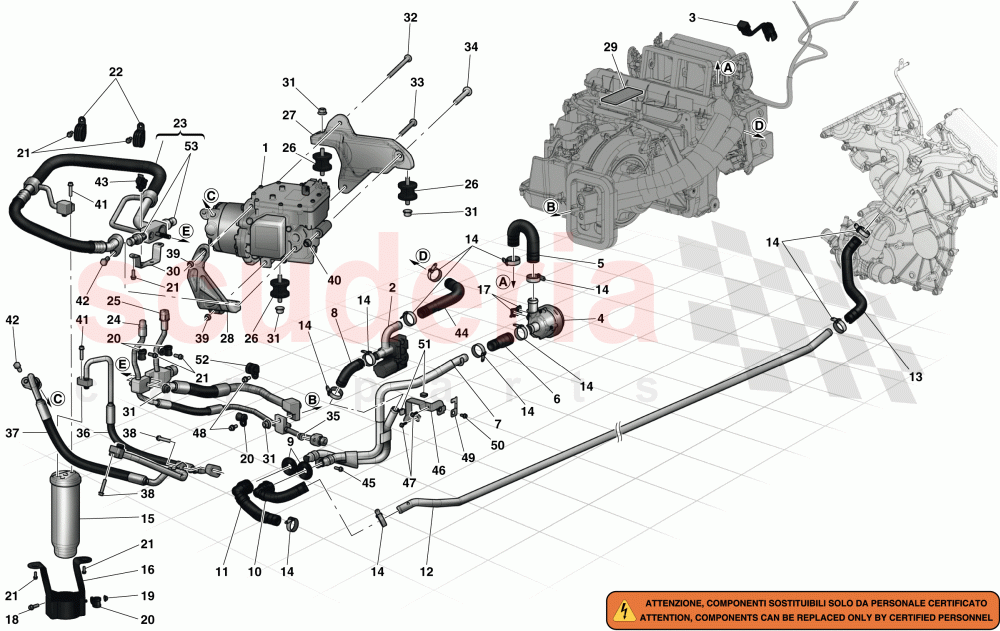

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
304675 AIR CONDITIONING COMPRESSOR $6,091.95 To Order
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $224.63 To Order
Photo Part No Description Price (each) Stock
236847 TEMPERATURE SENSOR $91.69 To Order
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP $3,679.96 To Order
Photo Part No Description Price (each) Stock
302805 U-PIPE FROM PUMP TO AC UNIT $286.67 To Order
Photo Part No Description Price (each) Stock
291332 IDLE PUMP INLET CONNECTOR PIPE $176.49 To Order
Photo Part No Description Price (each) Stock
302813 WATER PIPE FROM TGK TO IDLE PUMP $609.73 To Order
Photo Part No Description Price (each) Stock
240729 HOSE $186.33 To Order
Photo Part No Description Price (each) Stock
81895900 AC WATER PIPE SEAL $10.05 To Order
Photo Part No Description Price (each) Stock
284811 CONNECTOR ELBOW FROM HEATER TO RADIATOR PIPE $1,091.11 To Order
Photo Part No Description Price (each) Stock
284781 UNDERBODY WATER PIPE FOR AC HEATING $192.54 To Order
Photo Part No Description Price (each) Stock
291671 FLEXIBLE HOSE FROM THERMOSTAT TO UNDERBODY $258.00 To Order
Photo Part No Description Price (each) Stock
67085100 GAS FILTER $57.59 To Order
Photo Part No Description Price (each) Stock
294924 DEHYDRATOR FILTER BRACKET $93.05 To Order
Photo Part No Description Price (each) Stock
82268600 CLIP $2.06 To Order
Photo Part No Description Price (each) Stock
302655 SCREW $13.94 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
302394 BRACKET WITH SHEATH $46.52 To Order
Photo Part No Description Price (each) Stock
302574 ERGAL SCREW $5.67 To Order
Photo Part No Description Price (each) Stock
307048 BRACKET WITH SHEATH $54.46 To Order
Photo Part No Description Price (each) Stock
301137 COMPL. GAS PIPE $1,588.54 To Order
Photo Part No Description Price (each) Stock
304904 GAS DELIVERY PIPE $657.87 To Order
Photo Part No Description Price (each) Stock
303479 GAS RETURN PIPE $657.87 To Order
Photo Part No Description Price (each) Stock
303692 PLUG $36.89 To Order
Photo Part No Description Price (each) Stock
298659 MOUNTING SHELL WITH 3 HOLES $577.64 To Order
Photo Part No Description Price (each) Stock
298660 MOUNTING SHELL WITH 2 HOLES $593.69 To Order
Photo Part No Description Price (each) Stock
295279 BUSH $1.17 To Order
Photo Part No Description Price (each) Stock
296642 BRACKET FASTENING PIPES TO FRONT STRUT $80.21 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
298624 TITANIUM SCREW $117.12 To Order
Photo Part No Description Price (each) Stock
298626 TITANIUM SCREW $85.03 To Order
Photo Part No Description Price (each) Stock
298627 TITANIUM SCREW $112.31 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
304040 GAS DELIVERY PIPE FROM CONDENSER TO DEHYDRATOR FILTER $433.23 To Order
Photo Part No Description Price (each) Stock
304039 GAS RETURN PIPE FROM CONDENSER TO COMPRESSOR $641.82 To Order
Photo Part No Description Price (each) Stock
302657 ERGAL SCREW $9.11 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
133216 NUT $9.30 To Order
Photo Part No Description Price (each) Stock
302656 ERGAL SCREW $10.76 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.23 To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.26 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
294818 TGK VALVE FASTENER BRACKET $80.21 To Order
Photo Part No Description Price (each) Stock
62771900 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
302659 ERGAL SCREW $14.59 To Order
Photo Part No Description Price (each) Stock
82329200 ANTI-VIBRATION RUBBER BLOCK $1.26 To Order
Photo Part No Description Price (each) Stock
303122 BRACKET WITH SHEATH $48.12 To Order
Photo Part No Description Price (each) Stock
86249300 LOW PRESSURE TRANSDUCER $433.23 To Order
80552400 PRESSURE TRANSDUCER $88.72 To Order
View All
AC SYSTEM of Ferrari Ferrari LaFerrari Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 304675
AIR CONDITIONING COMPRESSOR 		$6,091.95 1
2 67635900
RH TGK VALVE 		$224.63 (21.7% off) 1
3 236847
TEMPERATURE SENSOR 		$91.69 (7.9% off) 1
4 291349
WATER RECIRCULATION PUMP 		$3,679.96 1
5 302805
U-PIPE FROM PUMP TO AC UNIT 		$286.67 1
6 291332
IDLE PUMP INLET CONNECTOR PIPE 		$176.49 1
7 302813
WATER PIPE FROM TGK TO IDLE PUMP 		$609.73 1
8 240729
HOSE 		$186.33 1
9 81895900
AC WATER PIPE SEAL 		$10.05 2
11 284811
CONNECTOR ELBOW FROM HEATER TO RADIATOR PIPE 		$1,091.11 1
12 284781
UNDERBODY WATER PIPE FOR AC HEATING 		$192.54 1
13 291671
FLEXIBLE HOSE FROM THERMOSTAT TO UNDERBODY 		$258.00 1
15 67085100
GAS FILTER 		$57.59 (19.9% off) 1
16 294924
DEHYDRATOR FILTER BRACKET 		$93.05 1
17 82268600
CLIP 		$2.06 2
18 302655
SCREW
M6 X 20 		$13.94 1
19 14059290
FLANGED NUT M6 		$1.51 1
20 302394
BRACKET WITH SHEATH 		$46.52 4
21 302574
ERGAL SCREW
M6 X 15 		$5.67 8
22 307048
BRACKET WITH SHEATH 		$54.46 2
23 301137
COMPL. GAS PIPE 		$1,588.54 1
24 304904
GAS DELIVERY PIPE 		$657.87 1
25 303479
GAS RETURN PIPE 		$657.87 1
26 303692
PLUG 		$36.89 3
27 298659
MOUNTING SHELL WITH 3 HOLES 		$577.64 1
28 298660
MOUNTING SHELL WITH 2 HOLES 		$593.69 1
29 295279
BUSH 		$1.17 1
30 296642
BRACKET FASTENING PIPES TO FRONT STRUT 		$80.21 1
31 14040711
NUT 		$0.41 5
32 298624
TITANIUM SCREW
M8 X 120 		$117.12 1
33 298626
TITANIUM SCREW
M8 X 80 		$85.03 1
34 298627
TITANIUM SCREW
M10 X 75 		$112.31 1
35 14059290
FLANGED NUT M6 		$1.51 1
36 304040
GAS DELIVERY PIPE FROM CONDENSER TO DEHYDRATOR FILTER 		$433.23 1
37 304039
GAS RETURN PIPE FROM CONDENSER TO COMPRESSOR 		$641.82 1
38 302657
ERGAL SCREW
M6 X 30 		$9.11 2
39 14040711
NUT 		$0.41 2
40 133216
NUT 		$9.30 (10.7% off) 1
41 302656
ERGAL SCREW
M6 X 25 		$10.76 2
42 16043634
SCREW
M8 X 25 		$0.23 2
43 250318
SNAP CLIP 		$0.26 1
44 302812
HOSE 		$272.34 1
45 85833900
SCREW
M5 X 15
ARRIVING SOON 		$0.36 1
46 294818
TGK VALVE FASTENER BRACKET 		$80.21 1
47 62771900
SCREW 		$0.28 2
48 248334
SCREW 		$0.68 2
49 162606
CLIP 		$1.36 (7.5% off) 1
50 302659
ERGAL SCREW
M5 X 10 		$14.59 1
51 82329200
ANTI-VIBRATION RUBBER BLOCK 		$1.26 2
52 303122
BRACKET WITH SHEATH 		$48.12 1
53 86249300
LOW PRESSURE TRANSDUCER 		$433.23 1
53 80552400
PRESSURE TRANSDUCER 		$88.72 (23.7% off) 1
