Name: DASHBOARD AIR DUCTS
Rating: 4.4 (1 reviews)

View All

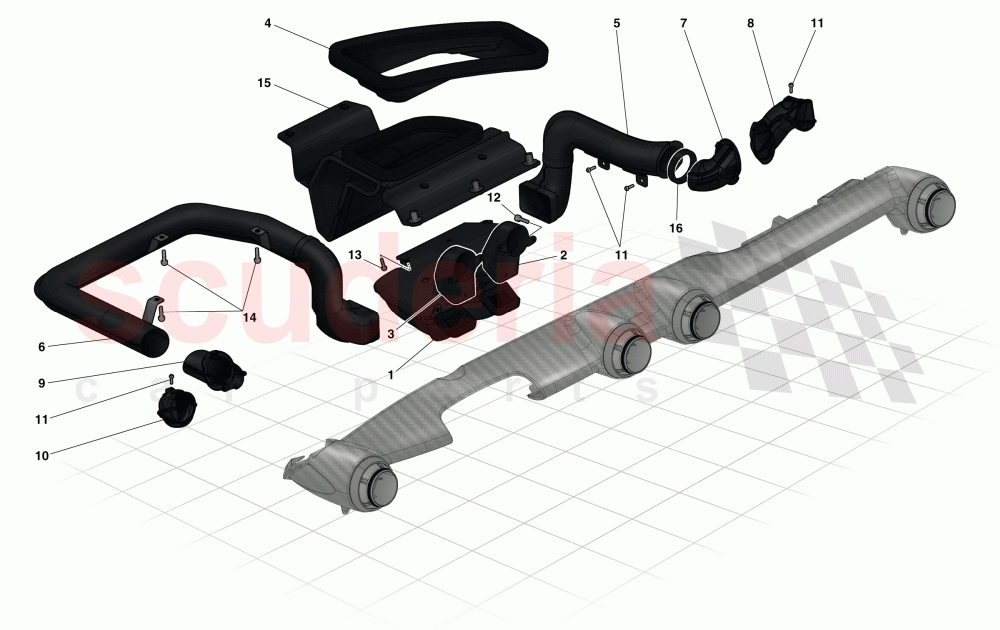

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85836600	COMPL. CENTRE VENT DUCT	$673.92	To Order

Photo	Part No	Description	Price (each)	Stock
	85691800	CENTRE RH DUCT IN DASHBOARD	$152.42	To Order

Photo	Part No	Description	Price (each)	Stock
	85691700	CENTRE LH DUCT IN DASHBOARD	$152.42	To Order

Photo	Part No	Description	Price (each)	Stock
	85829800	DEFROSTER AIR DUCT	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	84209800	RH LATERAL VENT DUCT	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	84209600	LH LATERAL VENT DUCT	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	85490200	RH REAR LATERAL DUCT IN DASHBOARD	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	85490000	RH FRONT LATERAL DUCT IN DASHBOARD	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	85490300	LH REAR LATERAL DUCT IN DASHBOARD	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	85490100	LH FRONT LATERAL DUCT IN DASHBOARD	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	85829500	COMPL. DEFROSTER DUCT	$573.36	To Order

Photo	Part No	Description	Price (each)	Stock
	84564200	GASKET	$7.54	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	85836600	COMPL. CENTRE VENT DUCT	85836600 COMPL. CENTRE VENT DUCT	$673.92	1
2	85691800	CENTRE RH DUCT IN DASHBOARD	85691800 CENTRE RH DUCT IN DASHBOARD	$152.42	1
3	85691700	CENTRE LH DUCT IN DASHBOARD	85691700 CENTRE LH DUCT IN DASHBOARD	$152.42	1
4	85829800	DEFROSTER AIR DUCT	85829800 DEFROSTER AIR DUCT	$433.23	1
5	84209800	RH LATERAL VENT DUCT	84209800 RH LATERAL VENT DUCT	$401.34	1
6	84209600	LH LATERAL VENT DUCT	84209600 LH LATERAL VENT DUCT	$465.32	1
7	85490200	RH REAR LATERAL DUCT IN DASHBOARD	85490200 RH REAR LATERAL DUCT IN DASHBOARD	$224.63	1
8	85490000	RH FRONT LATERAL DUCT IN DASHBOARD	85490000 RH FRONT LATERAL DUCT IN DASHBOARD	$272.34	1
9	85490300	LH REAR LATERAL DUCT IN DASHBOARD	85490300 LH REAR LATERAL DUCT IN DASHBOARD	$224.63	1
10	85490100	LH FRONT LATERAL DUCT IN DASHBOARD	85490100 LH FRONT LATERAL DUCT IN DASHBOARD	$272.34	1
11	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 12 ARRIVING SOON	$0.36	4
12	88822200	SCREW	88822200 SCREW M4 X 10	$0.70	4
13	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	3
14	915271	SCREW	915271 SCREW	$1.31	3
14	69717300	SCREW	69717300 SCREW No longer supplied; Replaced by 65864100	$4.12	3
15	85829500	COMPL. DEFROSTER DUCT	85829500 COMPL. DEFROSTER DUCT	$573.36	1
16	84564200	GASKET	84564200 GASKET	$7.54	1
