Name: HEAT SHIELDS AND INSULATION
Rating: 4.8 (1 reviews)

HEAT SHIELDS AND INSULATION of Ferrari Ferrari LaFerrari

View All

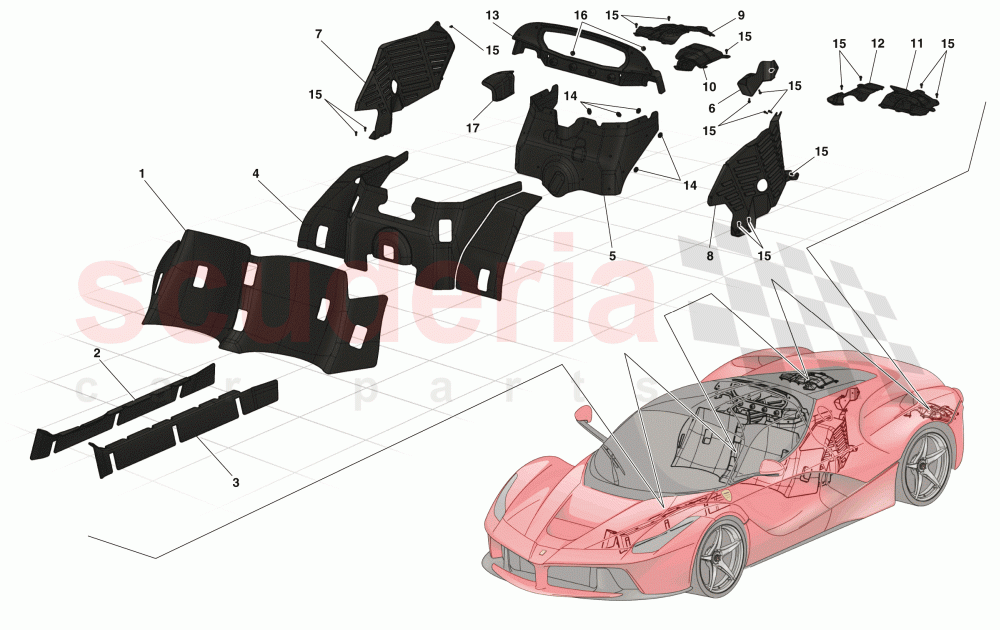

Ferrari LaFerrari - HEAT SHIELDS AND INSULATION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	306704	FRONT SOUNDPROOFING FOR FUEL TANK COMPARTMENT	$874.39	To Order

Photo	Part No	Description	Price (each)	Stock
	302881	RH TUNNEL HEAT SHIELD	$96.26	To Order

Photo	Part No	Description	Price (each)	Stock
	302882	LH TUNNEL HEAT SHIELD	$96.26	To Order

Photo	Part No	Description	Price (each)	Stock
	306705	REAR SOUNDPROOFING FOR FUEL TANK COMPARTMENT	$874.39	To Order

Photo	Part No	Description	Price (each)	Stock
	300577	CENTRAL ENGINE HEAT SHIELD	$3,594.28	To Order

Photo	Part No	Description	Price (each)	Stock
	299420	MOBILE WING ACTUATOR HEAT SHIELD	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	301273	EMBOSSED ENGINE HEAT SHIELD, RH SIDE	$914.60	To Order

Photo	Part No	Description	Price (each)	Stock
	306427	EMBOSSED ENGINE HEAT SHIELD, LH SIDE	$914.60	To Order

Photo	Part No	Description	Price (each)	Stock
	299287	EXTERNAL RH SILENCER HEAT SHIELD	$978.79	To Order

Photo	Part No	Description	Price (each)	Stock
	299288	INTERNAL RH SILENCER HEAT SHIELD	$882.51	To Order

Photo	Part No	Description	Price (each)	Stock
	299289	EXTERNAL LH SILENCER HEAT SHIELD	$978.79	To Order

Photo	Part No	Description	Price (each)	Stock
	299290	INTERNAL LH SILENCER HEAT SHIELD	$882.51	To Order

Photo	Part No	Description	Price (each)	Stock
	85610700	REAR SOUNDPROOFING FOR REAR SCREEN	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12578011	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	85897300	LH PUMP COVER	$1,761.83	To Order
	85897200	RH PUMP COVER	$1,761.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	306704	FRONT SOUNDPROOFING FOR FUEL TANK COMPARTMENT	306704 FRONT SOUNDPROOFING FOR FUEL TANK COMPARTMENT	$874.39	1
2	302881	RH TUNNEL HEAT SHIELD	302881 RH TUNNEL HEAT SHIELD	$96.26	1
3	302882	LH TUNNEL HEAT SHIELD	302882 LH TUNNEL HEAT SHIELD	$96.26	1
4	306705	REAR SOUNDPROOFING FOR FUEL TANK COMPARTMENT	306705 REAR SOUNDPROOFING FOR FUEL TANK COMPARTMENT	$874.39	1
5	300577	CENTRAL ENGINE HEAT SHIELD	300577 CENTRAL ENGINE HEAT SHIELD	$3,594.28	1
6	299420	MOBILE WING ACTUATOR HEAT SHIELD	299420 MOBILE WING ACTUATOR HEAT SHIELD	$272.34	1
7	301273	EMBOSSED ENGINE HEAT SHIELD, RH SIDE	301273 EMBOSSED ENGINE HEAT SHIELD, RH SIDE	$914.60	1
8	306427	EMBOSSED ENGINE HEAT SHIELD, LH SIDE	306427 EMBOSSED ENGINE HEAT SHIELD, LH SIDE	$914.60	1
9	299287	EXTERNAL RH SILENCER HEAT SHIELD	299287 EXTERNAL RH SILENCER HEAT SHIELD	$978.79	1
10	299288	INTERNAL RH SILENCER HEAT SHIELD	299288 INTERNAL RH SILENCER HEAT SHIELD	$882.51	1
11	299289	EXTERNAL LH SILENCER HEAT SHIELD	299289 EXTERNAL LH SILENCER HEAT SHIELD	$978.79	1
12	299290	INTERNAL LH SILENCER HEAT SHIELD	299290 INTERNAL LH SILENCER HEAT SHIELD	$882.51	1
13	85610700	REAR SOUNDPROOFING FOR REAR SCREEN	85610700 REAR SOUNDPROOFING FOR REAR SCREEN	$372.69	1
14	67315400	WASHER	67315400 WASHER	$0.44	16
15	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 15 ARRIVING SOON	$0.36	34
16	12578011	NUT	12578011 NUT	$0.16	8
17	85897300	LH PUMP COVER	85897300 LH PUMP COVER	$1,761.83	1
17	85897200	RH PUMP COVER	85897200 RH PUMP COVER	$1,761.83	1
