REAR SUSPENSION - ARMS

Find Your Part

Ferrari FF - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
259687 REAR UPPER ARM $449.27 To Order
Photo Part No Description Price (each) Stock
810463 RH Lower Rear Suspension Arm $1,347.85 To Order
810450 LH Rear Lower Arm $1,347.85 To Order
Photo Part No Description Price (each) Stock
343376 BALL JOINT $22.45 To Order
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW $25.85 To Order
Photo Part No Description Price (each) Stock
238063 NUT $4.17 To Order
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $192.54 To Order
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $17.63 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $33.39 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.28 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
245161 TIE ROD REAR SUSPENSION $336.95 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.28 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
262543 ADJUSTER SHIM $9.50 To Order
262546 ADJUSTER SHIM $9.50 To Order
262539 ADJUSTER SHIM $9.50 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 To Order
Photo Part No Description Price (each) Stock
299933 LH REAR HUB CARRIER $2,548.09 ARRIVING SOON
Photo Part No Description Price (each) Stock
251744 TRIPLE CLIP $1.46 To Order
View All

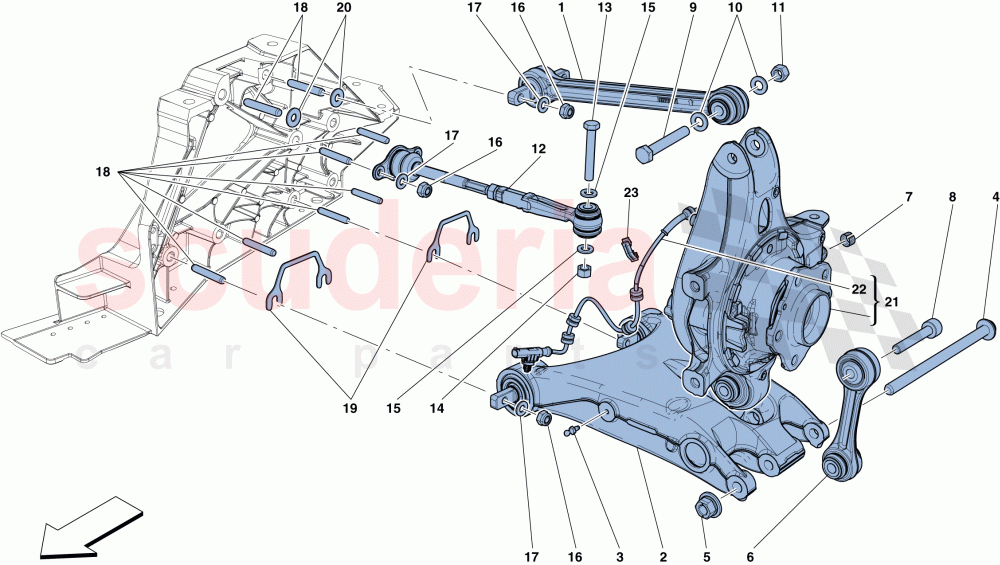

REAR SUSPENSION - ARMS of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 259687
REAR UPPER ARM 		$449.27 (27.4% off) 2
2 810463
RH Lower Rear Suspension Arm 		$1,347.85 1
2 810450
LH Rear Lower Arm 		$1,347.85 1
3 343376
BALL JOINT 		$22.45 2
4 238656
SPECIAL SCREW 		$25.85 (5.6% off) 2
5 238063
NUT 		$4.17 (24.2% off) 2
6 259688
ANTI-ROTATION LINKAGE 		$192.54 2
7 222956
COMPENSATOR RING 		$17.63 2
8 238258
SCREW
M12 X 1.25 X 75 		$33.39 2
9 15541434
SCREW
M12 X 1.25 X 80 		$2.12 (28.9% off) 2
10 12643778
BLACK WASHER D.6.45-18X1.5 		$0.28 (44% off) 4
11 203666
NUT 		$0.94 (53% off) 2
12 245161
TIE ROD REAR SUSPENSION 		$336.95 (25.1% off) 2
13 15541434
SCREW
M12 X 1.25 X 80 		$2.12 (28.9% off) 2
14 203666
NUT 		$0.94 (53% off) 2
15 12643778
BLACK WASHER D.6.45-18X1.5 		$0.28 (44% off) 4
16 12574521
Nyloc Nut 		$0.92 (54% off) 16
17 126648
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$1.91 16
18 264528
THREADED ROD 		$3.94 16
19 262543
ADJUSTER SHIM
Th. 4 mm 		$9.50 4
19 262546
ADJUSTER SHIM
Th. 1.5 mm 		$9.50 4
19 262539
ADJUSTER SHIM
Th. 2 mm 		$9.50 4
19 262540
ADJUSTER SHIM
Th. 2.5 mm 		$9.50 4
19 262541
ADJUSTER SHIM
Th. 3 mm 		$9.50 4
19 262542
ADJUSTER SHIM
Th. 3.5 mm 		$9.50 4
19 262544
ADJUSTER SHIM
Th. 0.5 mm 		$9.50 4
19 262545
ADJUSTER SHIM
Th. 1 mm 		$9.50 4
20 12646821
WASHER D.10 20-25 X 2 		$0.11 (78% off) 4
21 299933
LH REAR HUB CARRIER
Applicable from Ass. No. 107432
ARRIVING SOON 		$2,548.09 (23.9% off) 1
23 251744
TRIPLE CLIP
Applicable for sensor Part No. 252514, ref. 22; Applicable from Ass. No. 107432 		$1.46 (23.2% off) 4
