FUEL TANKS AND FILLER NECK

Find Your Part

Ferrari FF - FUEL TANKS AND FILLER NECK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
282718 FUEL TANK $6,314.08 To Order
Photo Part No Description Price (each) Stock
781834 INSPECTION CAP $44.43 To Order
Photo Part No Description Price (each) Stock
250480 INSPECTION CAP $30.47 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
260240 FILLER NECK FLANGE GASKET $12.89 To Order
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.92 To Order
Photo Part No Description Price (each) Stock
272714 COMPL. REAR INSPECTION COVER $27.26 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
262252 FUEL TANK VIBRATION DAMPER PAD KIT $516.03 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
13579101 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
View All

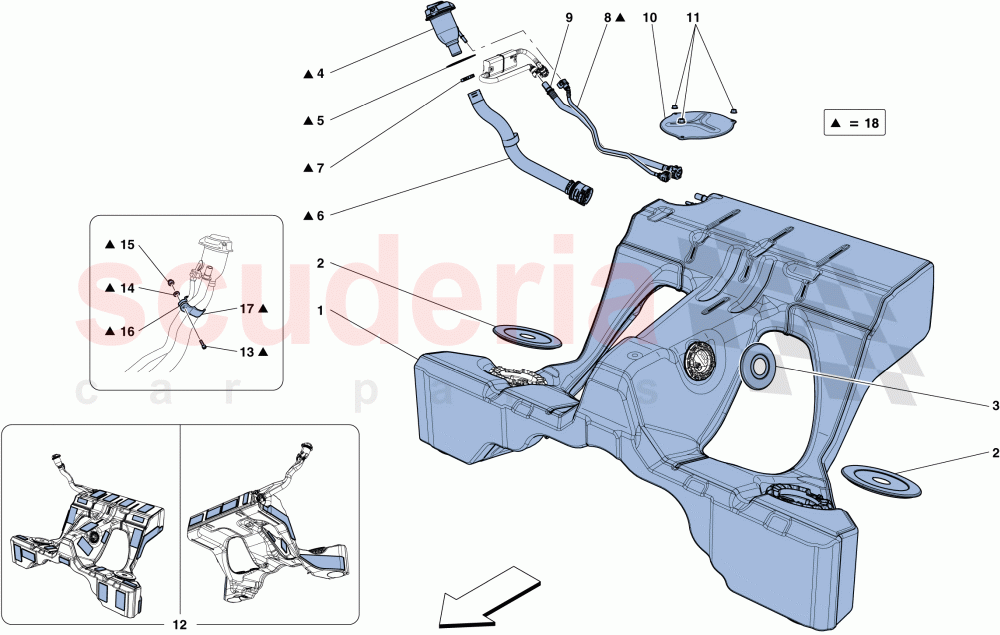

FUEL TANKS AND FILLER NECK of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 282718
FUEL TANK
For cars up to Ass.No. 102155, order also the ring 275998 tab.9 ref.4, screw 256323 tab.9 ref.29, stud-bolt 11001124 tab.9 ref.30, nut 14040514 tab.9 ref.31, level sensor 273540 tab.9 ref.1, ring 276001 tab.9 ref.28 		$6,314.08 1
2 781834
INSPECTION CAP 		$44.43 2
3 250480
INSPECTION CAP 		$30.47 1
4 319201
FUEL FILLER PIPE ASSEMBLY
No longer supplied; Replaced by 278323 		$770.19 1
5 260240
FILLER NECK FLANGE GASKET
After depletion order compl. pos. 18; Applicable until depletion 		$12.89 1
7 11449470
COLLAR
No longer supplied; Replaced by 278323 		$2.92 1
10 272714
COMPL. REAR INSPECTION COVER 		$27.26 1
11 13046011
NUT 		$0.39 3
12 262252
FUEL TANK VIBRATION DAMPER PAD KIT 		$516.03 1
13 319201
FUEL FILLER PIPE ASSEMBLY
No longer supplied; Replaced by 278323 		$770.19 1
14 13579101
WASHER
No longer supplied; Replaced by 278323 		$0.02 1
15 319201
FUEL FILLER PIPE ASSEMBLY
No longer supplied; Replaced by 278323 		$770.19 1
16 319201
FUEL FILLER PIPE ASSEMBLY
No longer supplied; Replaced by 278323 		$770.19 1
17 319201
FUEL FILLER PIPE ASSEMBLY
No longer supplied; Replaced by 278323 		$770.19 1
