Ferrari FF - WHEELS

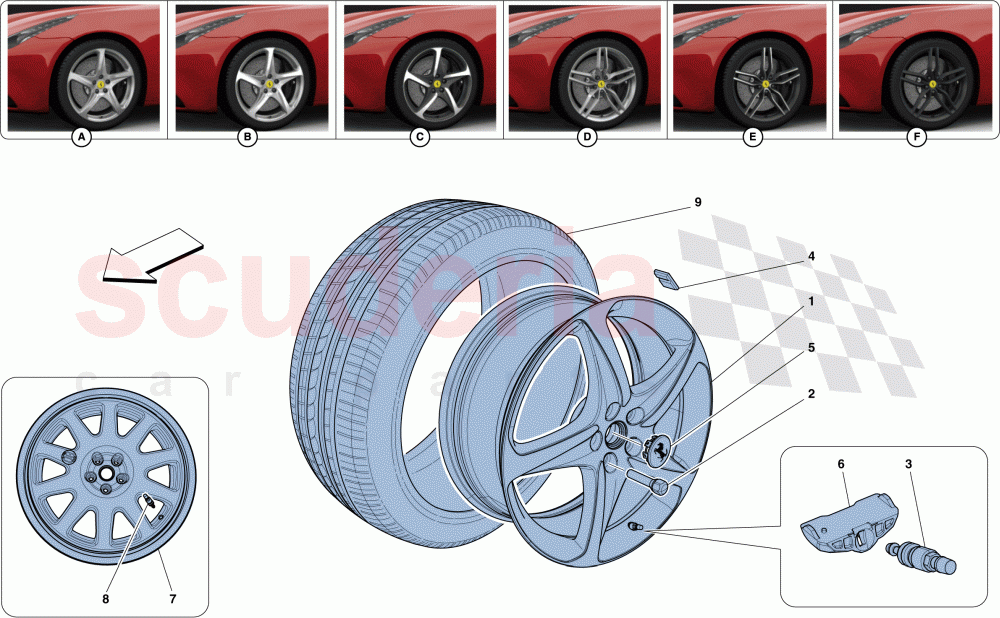

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	280506	REAR WHEEL	Enquire	To Order
	260698	20" REAR WHEEL RIM	Enquire	To Order
	274883	REAR WHEEL	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70006039	WHEEL STUD BOLT KIT	Enquire	To Order
	803384	WHEEL STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185328	Valve - Tyre Pressure Monitoring System	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11096693	ADHESIVE WHEEL BALANCER WEIGHT	Enquire	To Order
	212174	COUNTERWEIGHT	Enquire	To Order
	251393	COUNTERWEIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281089	HUB CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	To Order
	282189	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	240241	SPARE WHEEL RIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317250104	VALVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	280506	REAR WHEEL	280506 REAR WHEEL 10.5J X 20"; Forged painted silver; See box D; Modis code RMSV	-	2	Enquire
1	260698	20" REAR WHEEL RIM	260698 20" REAR WHEEL RIM 10.5J X 20"; Cast diamond cut silver; See box B; Modis code RMSD	-	2	Enquire
1	274883	REAR WHEEL	274883 REAR WHEEL 10.5J X 20"; Cast, painted; See box A; Modis code STANDARD	-	2	Enquire
1	275586	20" REAR WHEEL	275586 20" REAR WHEEL 10.5J X 20"; Forged, diamond cut; See box E; Modis code RSFD	-	2	Enquire
1	280505	FRONT WHEEL	280505 FRONT WHEEL 8.5J X 20"; Forged painted silver; See box D; Modis code RMSV	-	2	Enquire
1	272382	REAR WHEEL	272382 REAR WHEEL 10.5J X 20"; Forged, painted; See box F; Modis code RIFS	-	2	Enquire
1	273272	REAR WHEEL	273272 REAR WHEEL 10.5J X 20"; Cast, diamond cut; See box C; Modis code RMST	-	2	Enquire
1	275585	20" FRONT WHEEL	275585 20" FRONT WHEEL 8.5J X 20"; Forged, diamond cut; See box E; Modis code RSFD	-	2	Enquire
1	260697	20" FRONT WHEEL RIM	260697 20" FRONT WHEEL RIM 8.5J X 20"; Cast diamond cut silver; See box B; Modis code RMSD	-	2	Enquire
1	273270	FRONT WHEEL	273270 FRONT WHEEL 8.5J X 20"; Cast, diamond cut; See box C; Modis code RMST	-	2	Enquire
1	274882	FRONT WHEEL	274882 FRONT WHEEL 8.5J X 20"; Cast, painted; See box A; Modis code STANDARD	-	2	Enquire
1	272381	FRONT WHEEL	272381 FRONT WHEEL 8.5J X 20"; Forged, painted; See box F; Modis code RIFS	-	2	Enquire
2	70006039	WHEEL STUD BOLT KIT	70006039 WHEEL STUD BOLT KIT	-	1	Enquire
2	803384	WHEEL STUD BOLT	803384 WHEEL STUD BOLT After depletion, order Kit P/N 70006039 and replace all stud bolts; Applicable until depletion	-	20	Enquire
3	185328	Valve - Tyre Pressure Monitoring System	185328 Valve - Tyre Pressure Monitoring System	-	4	Enquire
4	11096693	ADHESIVE WHEEL BALANCER WEIGHT	11096693 ADHESIVE WHEEL BALANCER WEIGHT	-	-	Enquire
4	212174	COUNTERWEIGHT	212174 COUNTERWEIGHT 5 g; No longer supplied; Replaced by 11096693	-	-	Enquire
4	251393	COUNTERWEIGHT	251393 COUNTERWEIGHT 10 g; No longer supplied; Replaced by 11096693	-	-	Enquire
5	281089	HUB CAP	281089 HUB CAP Carbon	-	4	Enquire
6	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	314821 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Applicable for J	-	4	Enquire
6	282189	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR ARRIVING SOON	282189 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Not for J ARRIVING SOON	-	4	Enquire
7	240241	SPARE WHEEL RIM	240241 SPARE WHEEL RIM 4.5J X 20"	-	1	Enquire
8	317250104	VALVE	317250104 VALVE	-	1	Enquire
