Ferrari FF - STEERING CONTROL

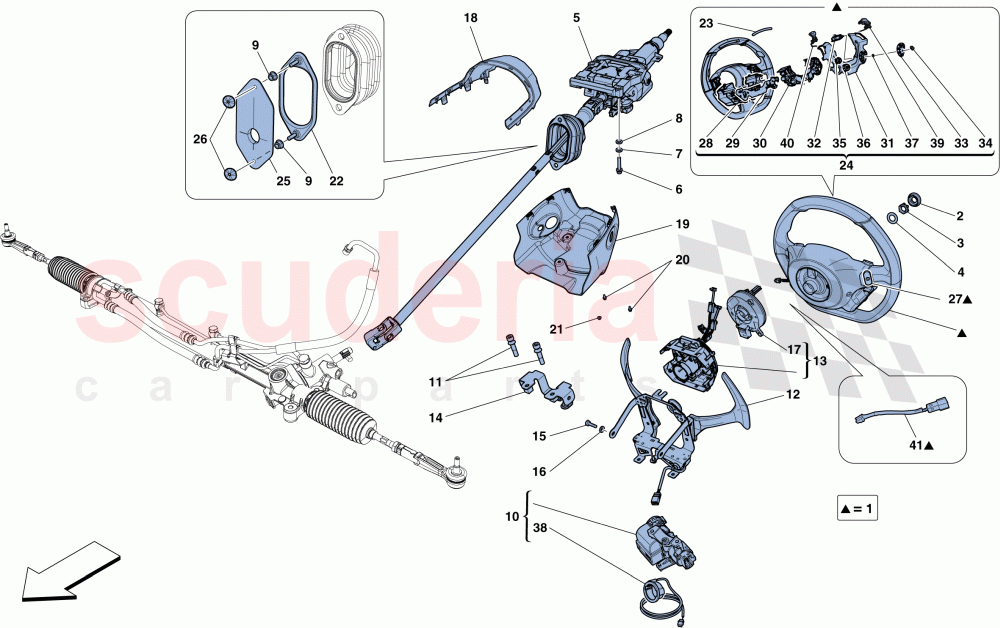

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87233500	COMPL. STEERING WHEEL	Enquire	To Order
	87233400	COMPL. STEERING WHEEL	Enquire	To Order
	87233300	COMPL. STEERING WHEEL	Enquire	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	299558	NUT CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299557	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152034	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261857	COMPL. STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247058	STEERING LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192053	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285436	SHIFT PADDLE ASSEMBLY	Enquire	To Order
	274984	GEAR SHIFT PADDLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252246	COMPL. STEERING SENSOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258616	BRACKET MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259914	CLOCK SPRING CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84705100	UPPER STEERING COLUMN TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84948400	LOWER STEERING COLUMN TRIM	Enquire	To Order
	84948400	LOWER STEERING COLUMN TRIM	Enquire	To Order
	82056700	LOWER STEERING COLUMN TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237433	STEERING COLUMN GAITER FASTENER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	214236	LED PLATE FOR STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308353	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order
	306479	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order
	308355	STEERING WHEEL MOUNTED CONTROLS	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	245266	STEERING COLUMN GAITER SOUNDPROOFING SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250645	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246475	RH NIT BUTTON	Enquire	To Order
	291692	RH NIT BUTTON	Enquire	To Order
	246476	LH NIT BUTTON	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	258336	MAIN SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308346	ELECTRONICS (HW05-SW11)	Enquire	To Order
	316618	ELECTRONICS (HW05-SW11)	Enquire	To Order
	316922	ELECTRONICS (HW05-SW10)	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	258338	MAIN MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274996	SURROUND	Enquire	To Order
	260514	SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212752	ROTARY SELECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263856	MANETTINO DECAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210986	MANETTINO LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257739	SHOCK ABSORBER HEIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257738	ENGINE START BUTTON	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	308717	WASHER FOR STEERING WHEEL MANETTINO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191664	ANTENNA IMMOBILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

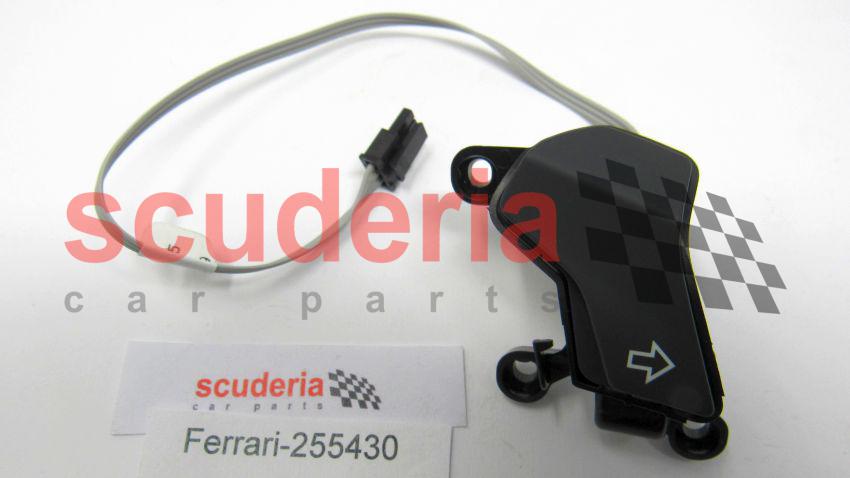

	255430	RH TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

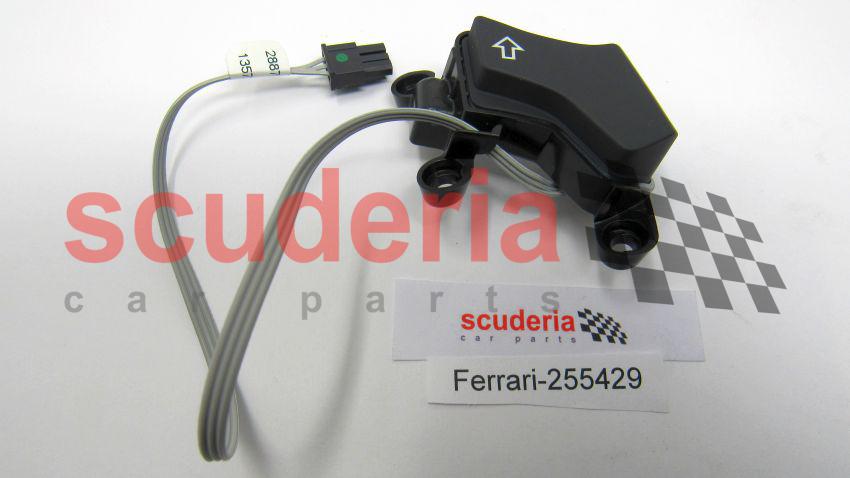

	255429	LH TURN INDICATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325936	CLOCK SPRING CONNECTOR HARNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87233500	COMPL. STEERING WHEEL	87233500 COMPL. STEERING WHEEL Leather; Alutex with rear screen wiper; STIC	-	1	Enquire
1	87233400	COMPL. STEERING WHEEL	87233400 COMPL. STEERING WHEEL Leather; Carbon with rear windscreen wiper and LED display; STIC; Applicable from Ass. No. 115596	-	1	Enquire
1	87233300	COMPL. STEERING WHEEL	87233300 COMPL. STEERING WHEEL Leather; With rear windscreen wiper; STIC; Applicable from Ass. No. 115596	-	1	Enquire
1	84844400	COMPL. STEERING WHEEL	84844400 COMPL. STEERING WHEEL Leather; Carbon with rear windscreen wiper and LED display; STIC; Applicable up to Ass. No. 115595	-	1	Enquire
1	86046400	COMPL. STEERING WHEEL	86046400 COMPL. STEERING WHEEL Leather; With rear windscreen wiper; STIC; Applicable from Ass. No. 115596; No longer supplied; Replaced by 872333..	-	1	Enquire
1	87233200	COMPL. STEERING WHEEL	87233200 COMPL. STEERING WHEEL Leather; Alutex; STIC	-	1	Enquire
1	84844300	COMPL. STEERING WHEEL	84844300 COMPL. STEERING WHEEL Leather; With rear windscreen wiper; STIC; Applicable up to Ass. No. 115595	-	1	Enquire
1	87233100	COMPL. STEERING WHEEL	87233100 COMPL. STEERING WHEEL Leather; Carbon fibre with LED display; STIC; Applicable from Ass. No. 115596	-	1	Enquire
1	84844200	COMPL. STEERING WHEEL	84844200 COMPL. STEERING WHEEL Leather; Carbon fibre with LED display; STIC; Applicable up to Ass. No. 115595	-	1	Enquire
1	86046300	COMPL. STEERING WHEEL	86046300 COMPL. STEERING WHEEL Leather; Carbon fibre with LED display; STIC; Applicable from Ass. No. 115596; No longer supplied; Replaced by 872331..	-	1	Enquire
1	86046200	COMPL. STEERING WHEEL	86046200 COMPL. STEERING WHEEL Leather; STIC; Applicable from Ass. No. 115596; No longer supplied; Replaced by 872330..	-	1	Enquire
1	87233000	COMPL. STEERING WHEEL	87233000 COMPL. STEERING WHEEL Leather; STIC; Applicable from Ass. No. 115596	-	1	Enquire
1	84844100	COMPL. STEERING WHEEL	84844100 COMPL. STEERING WHEEL Leather; STIC; Applicable up to Ass. No. 115595	-	1	Enquire
2	299558	NUT CAP	299558 NUT CAP	-	1	Enquire
3	299557	NUT	299557 NUT M16 X 1.5	-	1	Enquire
4	152034	WASHER	152034 WASHER	-	1	Enquire
5	261857	COMPL. STEERING COLUMN	261857 COMPL. STEERING COLUMN	-	1	Enquire
6	14306924	SCREW	14306924 SCREW M8 X 50	-	4	Enquire
7	84653800	WASHER	84653800 WASHER	-	4	Enquire
8	84653800	WASHER	84653800 WASHER	-	4	Enquire
9	14059211	NUT	14059211 NUT	-	2	Enquire
10	247058	STEERING LOCK	247058 STEERING LOCK	-	1	Enquire
11	192053	SCREW	192053 SCREW	-	2	Enquire
12	285436	SHIFT PADDLE ASSEMBLY	285436 SHIFT PADDLE ASSEMBLY Alutex	-	1	Enquire
12	274984	GEAR SHIFT PADDLE ASSEMBLY	274984 GEAR SHIFT PADDLE ASSEMBLY	-	1	Enquire
13	252246	COMPL. STEERING SENSOR MOUNTING	252246 COMPL. STEERING SENSOR MOUNTING	-	1	Enquire
14	258616	BRACKET MOUNTING	258616 BRACKET MOUNTING	-	1	Enquire
15	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 12 ARRIVING SOON	-	3	Enquire
16	12604178	Washer	12604178 Washer	-	3	Enquire
17	259914	CLOCK SPRING CONTACT	259914 CLOCK SPRING CONTACT	-	1	Enquire
18	84705100	UPPER STEERING COLUMN TRIM	84705100 UPPER STEERING COLUMN TRIM	-	1	Enquire
19	84948400	LOWER STEERING COLUMN TRIM	84948400 LOWER STEERING COLUMN TRIM Replaces 847048...; Painted Technicoat Black; Applicable from Ass. No. 104842	-	1	Enquire
19	84948400	LOWER STEERING COLUMN TRIM	84948400 LOWER STEERING COLUMN TRIM	-	1	Enquire
19	82056700	LOWER STEERING COLUMN TRIM	82056700 LOWER STEERING COLUMN TRIM Painted Lechler Black; Applicable up to Ass. No. 104841	-	1	Enquire
20	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
20	11566227	SCREW ARRIVING SOON	11566227 SCREW M5 X 14; No longer supplied; Replaced by 256323 ARRIVING SOON	-	2	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
22	237433	STEERING COLUMN GAITER FASTENER PLATE	237433 STEERING COLUMN GAITER FASTENER PLATE	-	1	Enquire
23	214236	LED PLATE FOR STEERING WHEEL	214236 LED PLATE FOR STEERING WHEEL Carbon	-	1	Enquire
24	308353	STEERING WHEEL MOUNTED CONTROLS	308353 STEERING WHEEL MOUNTED CONTROLS Alutex with rear screen wiper; Applicable from Ass. No. 119606	-	1	Enquire
24	306479	STEERING WHEEL MOUNTED CONTROLS	306479 STEERING WHEEL MOUNTED CONTROLS Alutex version; Applicable up to Ass. No. 119605	-	1	Enquire
24	308355	STEERING WHEEL MOUNTED CONTROLS	308355 STEERING WHEEL MOUNTED CONTROLS Alutex version; Applicable from Ass. No. 119606	-	1	Enquire
24	306478	STEERING WHEEL MOUNTED CONTROLS	306478 STEERING WHEEL MOUNTED CONTROLS Alutex with rear screen wiper; Applicable up to Ass. No. 119605	-	1	Enquire
24	308347	STEERING WHEEL MOUNTED CONTROLS	308347 STEERING WHEEL MOUNTED CONTROLS Carbon version with rear screen wiper; Applicable from Ass. No. 119606	-	1	Enquire
24	274784	STEERING WHEEL MOUNTED CONTROLS	274784 STEERING WHEEL MOUNTED CONTROLS Carbon version with rear screen wiper; Applicable up to Ass. No. 115595	-	1	Enquire
24	294758	STEERING WHEEL MOUNTED CONTROLS	294758 STEERING WHEEL MOUNTED CONTROLS Carbon version with rear screen wiper; Applicable from Ass. No. 115596 up to Ass. No. 119605	-	1	Enquire
24	308351	STEERING WHEEL MOUNTED CONTROLS	308351 STEERING WHEEL MOUNTED CONTROLS Standard version with rear screen wiper; Applicable from Ass. No. 119606	-	1	Enquire
24	308349	STEERING WHEEL MOUNTED CONTROLS	308349 STEERING WHEEL MOUNTED CONTROLS Carbon version; Applicable from Ass. No. 119606	-	1	Enquire
24	274787	STEERING WHEEL MOUNTED CONTROLS	274787 STEERING WHEEL MOUNTED CONTROLS Standard version with rear screen wiper; Applicable up to Ass. No. 115595	-	1	Enquire
24	294755	STEERING WHEEL MOUNTED CONTROLS	294755 STEERING WHEEL MOUNTED CONTROLS Standard version with rear screen wiper; Applicable from Ass. No. 115596 up to Ass. No. 119605	-	1	Enquire
24	274786	STEERING WHEEL MOUNTED CONTROLS	274786 STEERING WHEEL MOUNTED CONTROLS Carbon version; Applicable up to Ass. No. 115595	-	1	Enquire
24	294757	STEERING WHEEL MOUNTED CONTROLS	294757 STEERING WHEEL MOUNTED CONTROLS Carbon version; Applicable from Ass. No. 115596 up to Ass. No. 119605	-	1	Enquire
24	308358	STEERING WHEEL MOUNTED CONTROLS	308358 STEERING WHEEL MOUNTED CONTROLS Standard version; Applicable from Ass. No. 119606	-	1	Enquire
24	274783	STEERING WHEEL MOUNTED CONTROLS	274783 STEERING WHEEL MOUNTED CONTROLS Standard version; Applicable up to Ass. No. 115595	-	1	Enquire
24	294204	STEERING WHEEL MOUNTED CONTROLS	294204 STEERING WHEEL MOUNTED CONTROLS Standard version; Applicable from Ass. No. 115596 up to Ass. No. 119605	-	1	Enquire
25	245266	STEERING COLUMN GAITER SOUNDPROOFING SEAL	245266 STEERING COLUMN GAITER SOUNDPROOFING SEAL	-	1	Enquire
26	250645	RING NUT	250645 RING NUT	-	2	Enquire
27	246475	RH NIT BUTTON	246475 RH NIT BUTTON Applicable up to Ass. No. 115595	-	1	Enquire
27	291692	RH NIT BUTTON	291692 RH NIT BUTTON Applicable from Ass. No. 115596	-	1	Enquire
27	246476	LH NIT BUTTON	246476 LH NIT BUTTON Applicable up to Ass. No. 115595	-	1	Enquire
27	292879	LH NIT BUTTON	292879 LH NIT BUTTON Applicable from Ass. No. 115596	-	1	Enquire
28	258336	MAIN SHELL	258336 MAIN SHELL	-	1	Enquire
29	308346	ELECTRONICS (HW05-SW11)	308346 ELECTRONICS (HW05-SW11) Without rear screen wiper; Applicable from Ass. No. 119606	-	1	Enquire
29	316618	ELECTRONICS (HW05-SW11)	316618 ELECTRONICS (HW05-SW11) With rear windscreen wiper; Applicable from Ass. No. 119606	-	1	Enquire
29	316922	ELECTRONICS (HW05-SW10)	316922 ELECTRONICS (HW05-SW10) Without rear screen wiper; Applicable up to Ass. No. 115595	-	1	Enquire
29	249780	ELECTRONIC BOARD	249780 ELECTRONIC BOARD Without rear screen wiper; Applicable from Ass. No. 115596 up to Ass. No. 119605	-	1	Enquire
29	316646	ELECTRONICS (HW05-SW10)	316646 ELECTRONICS (HW05-SW10) With rear windscreen wiper; Applicable up to Ass. No. 115595	-	1	Enquire
29	316617	ELECTRONICS (HW05-SW11)	316617 ELECTRONICS (HW05-SW11) With rear windscreen wiper; Applicable from Ass. No. 115596 up to Ass. No. 119605	-	1	Enquire
30	258338	MAIN MOUNT	258338 MAIN MOUNT	-	1	Enquire
31	274996	SURROUND	274996 SURROUND	-	1	Enquire
31	260514	SURROUND	260514 SURROUND Carbon	-	1	Enquire
32	212752	ROTARY SELECTOR	212752 ROTARY SELECTOR	-	1	Enquire
33	263856	MANETTINO DECAL	263856 MANETTINO DECAL	-	1	Enquire
34	210986	MANETTINO LEVER	210986 MANETTINO LEVER	-	1	Enquire
35	257739	SHOCK ABSORBER HEIGHT BUTTON	257739 SHOCK ABSORBER HEIGHT BUTTON	-	1	Enquire
36	257738	ENGINE START BUTTON ARRIVING SOON	257738 ENGINE START BUTTON ARRIVING SOON	-	1	Enquire
37	308717	WASHER FOR STEERING WHEEL MANETTINO	308717 WASHER FOR STEERING WHEEL MANETTINO	-	1	Enquire
38	191664	ANTENNA IMMOBILIZER	191664 ANTENNA IMMOBILIZER	-	1	Enquire
39	255430	RH TURN INDICATOR	255430 RH TURN INDICATOR	-	1	Enquire
40	255429	LH TURN INDICATOR	255429 LH TURN INDICATOR	-	1	Enquire
41	325936	CLOCK SPRING CONNECTOR HARNESS	325936 CLOCK SPRING CONNECTOR HARNESS Only applicable for spare parts	-	1	Enquire
