WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

Find Your Part

Ferrari FF - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
84198200 WINDSCREEN WIPER WITH MOTOR AND LINKAGES $1,476.21 To Order
84108900 WINDSCREEN WIPER WITH MOTOR AND LINKAGES $978.79 To Order
Photo Part No Description Price (each) Stock
11612934 SCREW $2.74 To Order
10903034 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
83994400 DRIVER SIDE WINDSCREEN WIPER ARM $372.69 To Order
84142200 DRIVER SIDE WINDSCREEN WIPER ARM $258.00 To Order
Photo Part No Description Price (each) Stock
82196200 PASSENGER SIDE WINDSCREEN WIPER ARM $224.63 To Order
83994500 PASSENGER SIDE WINDSCREEN WIPER ARM $336.95 To Order
Photo Part No Description Price (each) Stock
83994600 DRIVER SIDE WINDSCREEN WIPER BLADE $73.65 To Order
82196700 DRIVER SIDE WINDSCREEN WIPER BLADE $119.60 To Order
Photo Part No Description Price (each) Stock
82196500 PASSENGER SIDE WINDSCREEN WIPER BLADE LHD $76.11 To Order
83994700 PASSENGER SIDE WINDSCREEN WIPER BLADE $136.80 To Order
Photo Part No Description Price (each) Stock
14501087 CLIP $0.60 To Order
Photo Part No Description Price (each) Stock
82197000 COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR $443.24 To Order
84028400 COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR $408.38 To Order
Photo Part No Description Price (each) Stock
81632900 WINDSCREEN WASHER PUMP $146.00 To Order
84028600 DUAL OUTLET SCREEN WASHER PUMP $86.63 To Order
Photo Part No Description Price (each) Stock
81633000 HEADLIGHT WASHER PUMP $192.54 To Order
Photo Part No Description Price (each) Stock
65511700 GASKET $6.74 To Order
Photo Part No Description Price (each) Stock
81633100 FLUID LEVEL SENSOR $150.73 To Order
Photo Part No Description Price (each) Stock
81633200 LEVEL SENSOR SEAL $26.31 To Order
Photo Part No Description Price (each) Stock
82198600 FILLER PIPE SEAL $28.66 To Order
Photo Part No Description Price (each) Stock
65775100 GASKET FOR WASHER PUMP $5.75 To Order
Photo Part No Description Price (each) Stock
82198700 FILLER PIPE $65.77 To Order
Photo Part No Description Price (each) Stock
10791011 NUT $0.71 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.22 To Order
303385 CLIP $0.31 To Order
Photo Part No Description Price (each) Stock
82199600 PIPE FROM ELECTRIC PUMP $43.31 To Order
Photo Part No Description Price (each) Stock
82199700 PIPE FROM VALVE TO RH NOZZLE $43.31 To Order
Photo Part No Description Price (each) Stock
82199800 PIPE FROM VALVE TO LH NOZZLE $44.07 To Order
Photo Part No Description Price (each) Stock
81061000 COMPLETE WINDSCREEN WASHER PIPE $172.00 To Order
Photo Part No Description Price (each) Stock
84019400 SPRAY NOZZLE $5.61 To Order
84019400 SPRAY NOZZLE $5.61 To Order
Photo Part No Description Price (each) Stock
308092 NITTO $22.45 To Order
Photo Part No Description Price (each) Stock
82751800 REAR SCREEN WIPER $401.34 To Order
Photo Part No Description Price (each) Stock
83629200 BRACKET $93.05 To Order
Photo Part No Description Price (each) Stock
84191500 REAR SCREEN WIPER ARM $258.00 To Order
Photo Part No Description Price (each) Stock
82322600 GASKET $7.73 To Order
Photo Part No Description Price (each) Stock
84176500 PIPE FROM RESERVOIR TO DISCONNECTOR UNION $141.19 To Order
Photo Part No Description Price (each) Stock
84176600 COMPL. PASSENGER COMPARTMENT REAR SCREEN WASHER PIPE $141.19 To Order
Photo Part No Description Price (each) Stock
81097300 CLIP $3.23 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
14447021 WASHER $0.47 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $6.18 To Order
Photo Part No Description Price (each) Stock
15811787 PROTECTIVE CAP $0.86 To Order
Photo Part No Description Price (each) Stock
251347 HORN COMPLETE WITH BRACKET $52.24 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
84307100 SPRAY NOZZLE COVER $3.61 To Order
Photo Part No Description Price (each) Stock
82197100 Complete Windscreen/Headlight Washer Resevoir $433.23 To Order
84028500 COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR $481.36 To Order
Photo Part No Description Price (each) Stock
80843800 PASSENGER SIDE WINDSCREEN WIPER BLADE $71.75 To Order
Photo Part No Description Price (each) Stock
13046112 NUT $0.24 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER $0.39 To Order
View All

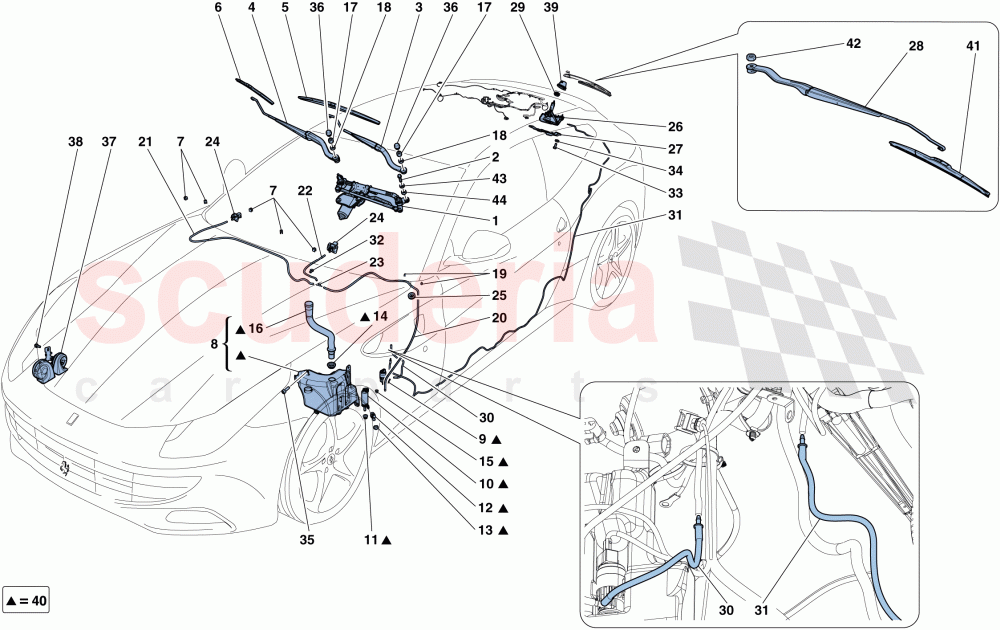

WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 84198200
WINDSCREEN WIPER WITH MOTOR AND LINKAGES
Applicable for GD 		$1,476.21 1
1 84108900
WINDSCREEN WIPER WITH MOTOR AND LINKAGES
Not for GD 		$978.79 1
2 11612934
SCREW
M6 X 28; No longer supplied; Replaced by 10903034 		$2.74 3
2 10903034
SCREW
M6 X 35 		$0.42 3
3 83994400
DRIVER SIDE WINDSCREEN WIPER ARM
Applicable for GD 		$372.69 1
3 84142200
DRIVER SIDE WINDSCREEN WIPER ARM
Not for GD 		$258.00 1
4 82196200
PASSENGER SIDE WINDSCREEN WIPER ARM
Not for GD 		$224.63 1
4 83994500
PASSENGER SIDE WINDSCREEN WIPER ARM
Applicable for GD 		$336.95 1
5 83994600
DRIVER SIDE WINDSCREEN WIPER BLADE
Applicable for GD 		$73.65 1

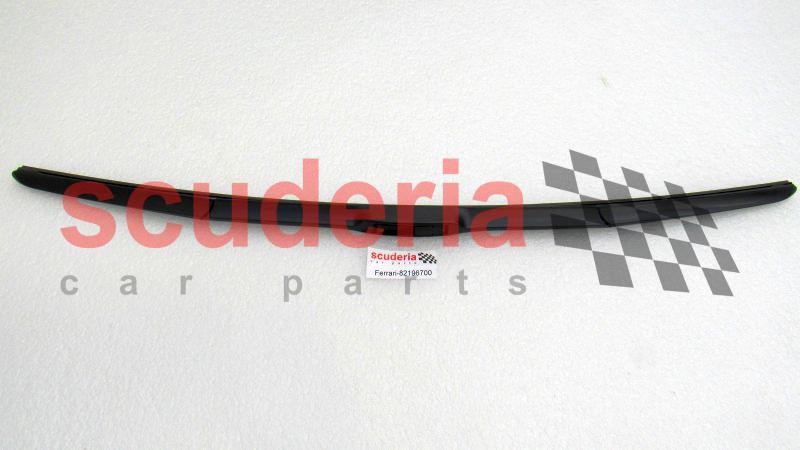

5 82196700
DRIVER SIDE WINDSCREEN WIPER BLADE
Not for GD 		$119.60 1

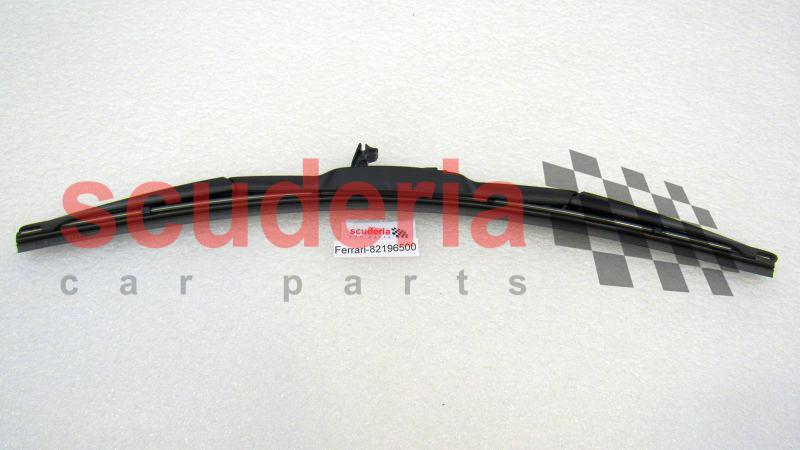

6 82196500
PASSENGER SIDE WINDSCREEN WIPER BLADE LHD
Not for GD 		$76.11 1
6 83994700
PASSENGER SIDE WINDSCREEN WIPER BLADE
Applicable for GD 		$136.80 1
7 14501087
CLIP 		$0.60 5
8 82197000
COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
Applicable until depletion 		$443.24 1
8 84028400
COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
Version with rear windscreen wiper; Applicable until depletion 		$408.38 1
9 81632900
WINDSCREEN WASHER PUMP 		$146.00 (23.8% off) 1
9 84028600
DUAL OUTLET SCREEN WASHER PUMP
Version with rear windscreen wiper 		$86.63 1
10 81633000
HEADLIGHT WASHER PUMP 		$192.54 1
11 65511700
GASKET 		$6.74 (21.4% off) 1
12 81633100
FLUID LEVEL SENSOR 		$150.73 (7.5% off) 1
13 81633200
LEVEL SENSOR SEAL
For sensor 		$26.31 1
14 82198600
FILLER PIPE SEAL 		$28.66 1
15 65775100
GASKET FOR WASHER PUMP 		$5.75 1
16 82198700
FILLER PIPE 		$65.77 1
17 10791011
NUT 		$0.71 2
18 12601474
WASHER 		$0.03 2
19 248061
CLIP 		$2.22 1
19 303385
CLIP 		$0.31 1
20 82199600
PIPE FROM ELECTRIC PUMP 		$43.31 1
21 82199700
PIPE FROM VALVE TO RH NOZZLE 		$43.31 1
22 82199800
PIPE FROM VALVE TO LH NOZZLE 		$44.07 1
23 81061000
COMPLETE WINDSCREEN WASHER PIPE 		$172.00 1
24 84019400
SPRAY NOZZLE
Heated nozzles 		$5.61 (21.6% off) 2
24 84019400
SPRAY NOZZLE 		$5.61 (21.6% off) 2
25 308092
NITTO 		$22.45 1
26 82751800
REAR SCREEN WIPER
Version with rear windscreen wiper 		$401.34 1
27 83629200
BRACKET
Version with rear windscreen wiper 		$93.05 1
28 84191500
REAR SCREEN WIPER ARM
Version with rear windscreen wiper 		$258.00 1
29 82322600
GASKET
Version with rear windscreen wiper 		$7.73 1
30 84176500
PIPE FROM RESERVOIR TO DISCONNECTOR UNION
Version with rear windscreen wiper 		$141.19 1
31 84176600
COMPL. PASSENGER COMPARTMENT REAR SCREEN WASHER PIPE
Version with rear windscreen wiper 		$141.19 1
32 81097300
CLIP 		$3.23 1
33 250657
SCREW
M6 X 16 		$7.60 3
34 14447021
WASHER 		$0.47 3
35 880041
Allen Head Bolt M6 X 26
M6 X 20 X 22; Fastening tank to chassis 		$6.18 3

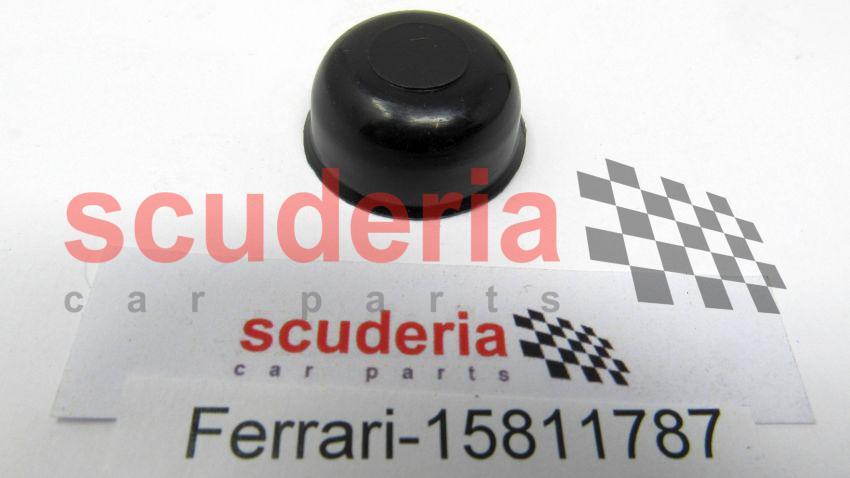

36 15811787
PROTECTIVE CAP 		$0.86 (14% off) 2
37 251347
HORN COMPLETE WITH BRACKET 		$52.24 1
38 13839224
SCREW
M8 X 25 		$2.79 1
39 84307100
SPRAY NOZZLE COVER 		$3.61 1
40 82197100
Complete Windscreen/Headlight Washer Resevoir 		$433.23 (22.3% off) 1
40 84028500
COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR
Version with rear windscreen wiper 		$481.36 1
41 80843800
PASSENGER SIDE WINDSCREEN WIPER BLADE
Version with rear windscreen wiper 		$71.75 1
42 13046112
NUT
Version with rear windscreen wiper 		$0.24 1
43 11197774
WASHER 		$0.06 (80% off) 3
44 12648925
WASHER 		$0.39 3
