Ferrari FF - INSULATION

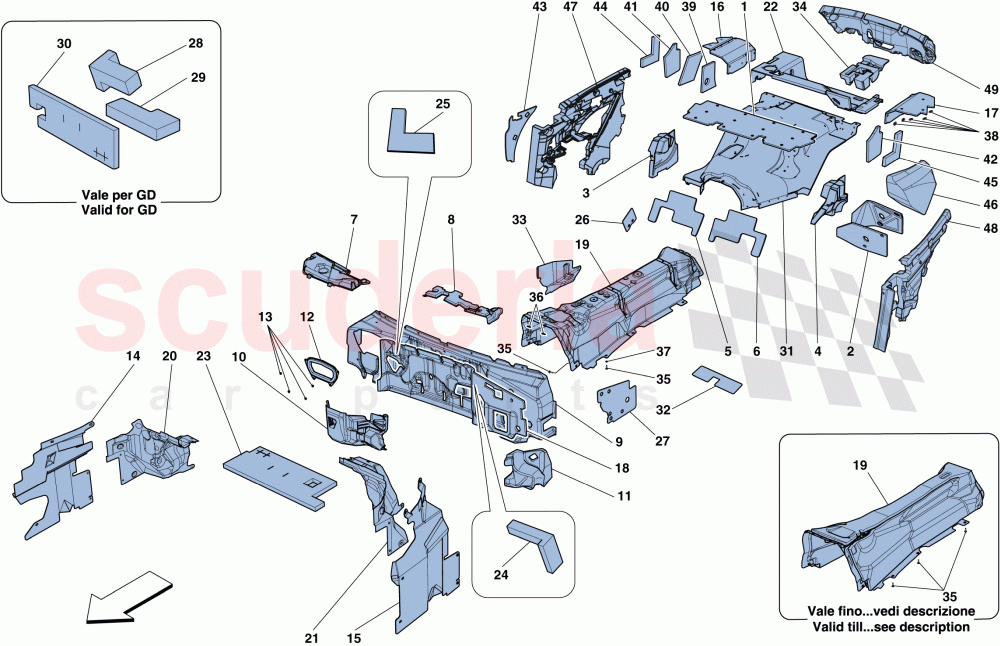

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86390200	TANK COVER INSULATION	Enquire	To Order
	82324100	TANK COVER INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83290400	INTERNAL REAR INSULATION, REAR LH PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82870300	RH REAR SUSPENSION MOUNT CASTING INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82870400	LH REAR SUSPENSION MOUNT CASTING INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82166300	RH REAR SEAT BASE INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82166400	LH REAR SEAT BASE INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81997400	RH UNDERDASHBOARD INSULATION	Enquire	To Order
	83940700	RH UNDERDASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81997600	LH UNDERDASHBOARD INSULATION	Enquire	To Order
	83940800	LH UNDERDASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84095200	FRONT FIREWALL	Enquire	To Order
	84097600	FRONT FIREWALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83996100	PASSENGER SIDE FOOTREST INSULATION	Enquire	To Order
	82298600	PASSENGER SIDE FOOTREST INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82298500	DRIVER SIDE FOOTREST INSULATION	Enquire	To Order
	83995900	DRIVER SIDE FOOTREST INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82971300	COMPL. HVAC UNIT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84086400	RH MANIFOLD HEAT SHIELD	Enquire	To Order
	83603300	RH MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83806800	LH MANIFOLD HEAT SHIELD	Enquire	To Order
	84086500	LH MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83665800	RH SILENCER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83665700	LH SILENCER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84001900	UPPER FIREWALL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83723800	COMPL. TUNNEL HEAT SHIELD	Enquire	To Order
	84428100	CENTRE CONSOLE HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83724300	RH CATALYTIC CONVERTER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83724100	LH CATALYTIC CONVERTER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83665600	SERVICES TUB HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83705600	CENTRAL DASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85154300	LH DASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83636400	RH DASHBOARD INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83918300	HEAT SHIELD UNDER REAR BUCKLE STALK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83918100	DRIVER SIDE TUNNEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82332200	L.H. INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82332300	R.H. INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82332100	CENTRAL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83918000	DRIVER SIDE UNDER-FOOTREST HEAT SHIELD	Enquire	To Order
	89351800	DRIVER SIDE UNDER-FOOTREST HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83918200	PASSENGER SIDE UNDER-FOOTREST HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85213300	TUB PULER	Enquire	To Order
	83995400	TUB PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86390700	FRONT PULER, RH REAR FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86390800	REAR PULER, RH REAR FLANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86391200	INSULATION BEHIND RH BELT RETRACTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86391300	INSULATION BEHIND LH BELT RETRACTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82869800	RH REAR FLANK CLOSURE INSULATION	Enquire	To Order
	82869900	RH REAR FLANK CLOSURE INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84069300	RH LUGGAGE COMPARTMENT SIDE NITTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84069400	LH LUGGAGE COMPARTMENT SIDE NITTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84057200	LH REAR FLANK PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84057300	RH REAR FLANK PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84057400	LH REAR FLANK PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83995200	TAILGATE PULER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86390200	TANK COVER INSULATION	86390200 TANK COVER INSULATION Applicable for Geneva version	-	1	Enquire
1	82324100	TANK COVER INSULATION	82324100 TANK COVER INSULATION Not for Geneva version	-	1	Enquire
2	83290400	INTERNAL REAR INSULATION, REAR LH PART	83290400 INTERNAL REAR INSULATION, REAR LH PART	-	1	Enquire
3	82870300	RH REAR SUSPENSION MOUNT CASTING INSULATION	82870300 RH REAR SUSPENSION MOUNT CASTING INSULATION	-	1	Enquire
4	82870400	LH REAR SUSPENSION MOUNT CASTING INSULATION	82870400 LH REAR SUSPENSION MOUNT CASTING INSULATION	-	1	Enquire
5	82166300	RH REAR SEAT BASE INSULATION	82166300 RH REAR SEAT BASE INSULATION	-	1	Enquire
6	82166400	LH REAR SEAT BASE INSULATION	82166400 LH REAR SEAT BASE INSULATION	-	1	Enquire
7	81997400	RH UNDERDASHBOARD INSULATION	81997400 RH UNDERDASHBOARD INSULATION Not for GD	-	1	Enquire
7	83940700	RH UNDERDASHBOARD INSULATION	83940700 RH UNDERDASHBOARD INSULATION Applicable for GD	-	1	Enquire
8	81997600	LH UNDERDASHBOARD INSULATION	81997600 LH UNDERDASHBOARD INSULATION Not for GD	-	1	Enquire
8	83940800	LH UNDERDASHBOARD INSULATION	83940800 LH UNDERDASHBOARD INSULATION Applicable for GD	-	1	Enquire
9	84095200	FRONT FIREWALL	84095200 FRONT FIREWALL Version with front camera with dual view; Not for GD	-	1	Enquire
9	84097600	FRONT FIREWALL	84097600 FRONT FIREWALL Applicable for GD	-	1	Enquire
10	83996100	PASSENGER SIDE FOOTREST INSULATION	83996100 PASSENGER SIDE FOOTREST INSULATION Applicable for GD	-	1	Enquire
10	82298600	PASSENGER SIDE FOOTREST INSULATION	82298600 PASSENGER SIDE FOOTREST INSULATION Not for GD	-	1	Enquire
11	82298500	DRIVER SIDE FOOTREST INSULATION	82298500 DRIVER SIDE FOOTREST INSULATION Not for GD	-	1	Enquire
11	83995900	DRIVER SIDE FOOTREST INSULATION	83995900 DRIVER SIDE FOOTREST INSULATION Applicable for GD	-	1	Enquire
12	82971300	COMPL. HVAC UNIT SHIM	82971300 COMPL. HVAC UNIT SHIM	-	1	Enquire
13	13046011	NUT	13046011 NUT	-	4	Enquire
14	84086400	RH MANIFOLD HEAT SHIELD	84086400 RH MANIFOLD HEAT SHIELD Applicable for GD	-	1	Enquire
14	83603300	RH MANIFOLD HEAT SHIELD	83603300 RH MANIFOLD HEAT SHIELD Not for GD	-	1	Enquire
15	83806800	LH MANIFOLD HEAT SHIELD	83806800 LH MANIFOLD HEAT SHIELD Not for GD	-	1	Enquire
15	84086500	LH MANIFOLD HEAT SHIELD	84086500 LH MANIFOLD HEAT SHIELD Applicable for GD	-	1	Enquire
16	83665800	RH SILENCER HEAT SHIELD	83665800 RH SILENCER HEAT SHIELD	-	1	Enquire
17	83665700	LH SILENCER HEAT SHIELD	83665700 LH SILENCER HEAT SHIELD	-	1	Enquire
18	84001900	UPPER FIREWALL INSULATION	84001900 UPPER FIREWALL INSULATION Applicable for GD	-	1	Enquire
19	83723800	COMPL. TUNNEL HEAT SHIELD	83723800 COMPL. TUNNEL HEAT SHIELD Applicable up to Ass. No. 111062	-	1	Enquire
19	84428100	CENTRE CONSOLE HEAT SHIELD	84428100 CENTRE CONSOLE HEAT SHIELD Applicable from Ass. No. 111063	-	1	Enquire
20	83724300	RH CATALYTIC CONVERTER HEAT SHIELD	83724300 RH CATALYTIC CONVERTER HEAT SHIELD	-	1	Enquire
21	83724100	LH CATALYTIC CONVERTER HEAT SHIELD	83724100 LH CATALYTIC CONVERTER HEAT SHIELD	-	1	Enquire
22	83665600	SERVICES TUB HEAT SHIELD	83665600 SERVICES TUB HEAT SHIELD	-	1	Enquire
23	83705600	CENTRAL DASHBOARD INSULATION	83705600 CENTRAL DASHBOARD INSULATION Not for GD	-	1	Enquire
24	85154300	LH DASHBOARD INSULATION	85154300 LH DASHBOARD INSULATION Not for GD	-	1	Enquire
25	83636400	RH DASHBOARD INSULATION	83636400 RH DASHBOARD INSULATION Not for GD	-	1	Enquire
26	83918300	HEAT SHIELD UNDER REAR BUCKLE STALK	83918300 HEAT SHIELD UNDER REAR BUCKLE STALK	-	2	Enquire
27	83918100	DRIVER SIDE TUNNEL HEAT SHIELD	83918100 DRIVER SIDE TUNNEL HEAT SHIELD	-	1	Enquire
28	82332200	L.H. INSULATION	82332200 L.H. INSULATION Applicable for GD	-	1	Enquire
29	82332300	R.H. INSULATION	82332300 R.H. INSULATION Applicable for GD	-	1	Enquire
30	82332100	CENTRAL INSULATION	82332100 CENTRAL INSULATION Applicable for GD	-	1	Enquire
32	83918000	DRIVER SIDE UNDER-FOOTREST HEAT SHIELD	83918000 DRIVER SIDE UNDER-FOOTREST HEAT SHIELD Not for GD	-	1	Enquire
32	89351800	DRIVER SIDE UNDER-FOOTREST HEAT SHIELD	89351800 DRIVER SIDE UNDER-FOOTREST HEAT SHIELD Applicable for GD	-	1	Enquire
33	83918200	PASSENGER SIDE UNDER-FOOTREST HEAT SHIELD	83918200 PASSENGER SIDE UNDER-FOOTREST HEAT SHIELD	-	1	Enquire
34	85213300	TUB PULER	85213300 TUB PULER Applicable from Ass. No. 111223	-	1	Enquire
34	83995400	TUB PULER	83995400 TUB PULER Applicable up to Ass. No. 111222	-	1	Enquire
35	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20 X 22; Applicable up to Ass. No. 111062	-	6	Enquire
35	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20 M6 X 25; Applicable from Ass. No. 111063	-	8	Enquire
36	67315400	WASHER	67315400 WASHER Applicable from Ass. No. 111063	-	2	Enquire
37	12642078	WASHER	12642078 WASHER	-	8	Enquire
38	67315400	WASHER	67315400 WASHER	-	11	Enquire
39	86390700	FRONT PULER, RH REAR FLANK	86390700 FRONT PULER, RH REAR FLANK Applicable for Geneva version	-	1	Enquire
40	86390800	REAR PULER, RH REAR FLANK	86390800 REAR PULER, RH REAR FLANK Applicable for Geneva version	-	1	Enquire
41	86391200	INSULATION BEHIND RH BELT RETRACTOR	86391200 INSULATION BEHIND RH BELT RETRACTOR Applicable for Geneva version	-	1	Enquire
42	86391300	INSULATION BEHIND LH BELT RETRACTOR	86391300 INSULATION BEHIND LH BELT RETRACTOR Applicable for Geneva version	-	1	Enquire
43	82869800	RH REAR FLANK CLOSURE INSULATION	82869800 RH REAR FLANK CLOSURE INSULATION Applicable for Geneva version	-	1	Enquire
43	82869900	RH REAR FLANK CLOSURE INSULATION	82869900 RH REAR FLANK CLOSURE INSULATION Applicable for Geneva version	-	1	Enquire
44	84069300	RH LUGGAGE COMPARTMENT SIDE NITTO	84069300 RH LUGGAGE COMPARTMENT SIDE NITTO	-	1	Enquire
45	84069400	LH LUGGAGE COMPARTMENT SIDE NITTO	84069400 LH LUGGAGE COMPARTMENT SIDE NITTO	-	1	Enquire
46	84057200	LH REAR FLANK PULER	84057200 LH REAR FLANK PULER Not for Geneva version; Not for GD	-	1	Enquire
47	84057300	RH REAR FLANK PULER	84057300 RH REAR FLANK PULER	-	1	Enquire
48	84057400	LH REAR FLANK PULER	84057400 LH REAR FLANK PULER	-	1	Enquire
49	83995200	TAILGATE PULER	83995200 TAILGATE PULER	-	1	Enquire
