AC SYSTEM - WATER AND FREON

Find Your Part

Ferrari FF - AC SYSTEM - WATER AND FREON

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $224.63 To Order
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $240.67 To Order
Photo Part No Description Price (each) Stock
84066200 TGK VALVE MOUNTING BRACKET $104.28 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
291283 CLIP $0.58 To Order
Photo Part No Description Price (each) Stock
252473 CLIP $1.77 To Order
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD $1.78 To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.56 To Order
Photo Part No Description Price (each) Stock
266390 PIPE FROM HEATER TO UPPER TGK VALVE $120.33 To Order
Photo Part No Description Price (each) Stock
266391 PIPE FROM HEATER TO LOWER TGK VALVE $123.54 To Order
Photo Part No Description Price (each) Stock
292150 CONNECTOR PIPE $46.52 To Order
Photo Part No Description Price (each) Stock
292151 PIPE FROM TGK TO ENGINE $258.00 To Order
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION $12.30 To Order
Photo Part No Description Price (each) Stock
276915 PIPE FROM PUMP TO AC UNIT $137.98 To Order
Photo Part No Description Price (each) Stock
271752 METAL PIPE TO PUMP $176.49 To Order
Photo Part No Description Price (each) Stock
267538 CONNECTOR PIPE $60.96 To Order
Photo Part No Description Price (each) Stock
65460300 COMPLETE WATER PUMP $465.32 To Order
Photo Part No Description Price (each) Stock
107002 BRACKET WITH SHEATH $27.42 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12620477 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
268073 PUMP MOUNTING BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
260083 HOSE $43.31 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
13097190 COLLAR $0.89 To Order
Photo Part No Description Price (each) Stock
266282 PIPE WITH JACKET $458.69 To Order
Photo Part No Description Price (each) Stock
266283 FILLER PIPE $706.01 To Order
Photo Part No Description Price (each) Stock
268518 PIPE FROM CONDENSER TO DISCONNECTOR UNION $240.67 To Order
Photo Part No Description Price (each) Stock
268369 PIPE FROM COMPRESSOR TO DISCONNECTOR UNION $336.95 To Order
Photo Part No Description Price (each) Stock
268519 PIPE FROM DISCONNECTOR UNION TO CONDENSER $702.38 To Order
Photo Part No Description Price (each) Stock
257933 PIPE BETWEEN DISCONNECTOR UNION-COMPRESSOR $336.95 To Order
Photo Part No Description Price (each) Stock
16044024 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.15 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
10441390 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
14066017 NUT $2.84 To Order
Photo Part No Description Price (each) Stock
268487 BRACKET $176.49 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $0.63 To Order
267177 CLIP $1.07 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
273206 CONNECTOR PIPE $54.46 To Order
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.91 To Order
Photo Part No Description Price (each) Stock
81970900 AC WATER PIPE SEAL $10.44 To Order
Photo Part No Description Price (each) Stock
81895900 AC WATER PIPE SEAL $10.05 To Order
Photo Part No Description Price (each) Stock
66309300 O-RING $1.60 To Order
Photo Part No Description Price (each) Stock
296778 SCREW COLLAR $7.15 To Order
Photo Part No Description Price (each) Stock
272548 BRACKET $27.21 To Order
Photo Part No Description Price (each) Stock
68392700 O-RING $5.66 To Order
Photo Part No Description Price (each) Stock
66309700 O-RING $11.73 To Order
Photo Part No Description Price (each) Stock
68392000 O-RING $13.14 To Order
Photo Part No Description Price (each) Stock
68392100 O-RING $6.68 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
67085400 O-RING $17.23 To Order
Photo Part No Description Price (each) Stock
268075 BRACKET ON PUMP MOUNTING FRAME $30.47 To Order
View All

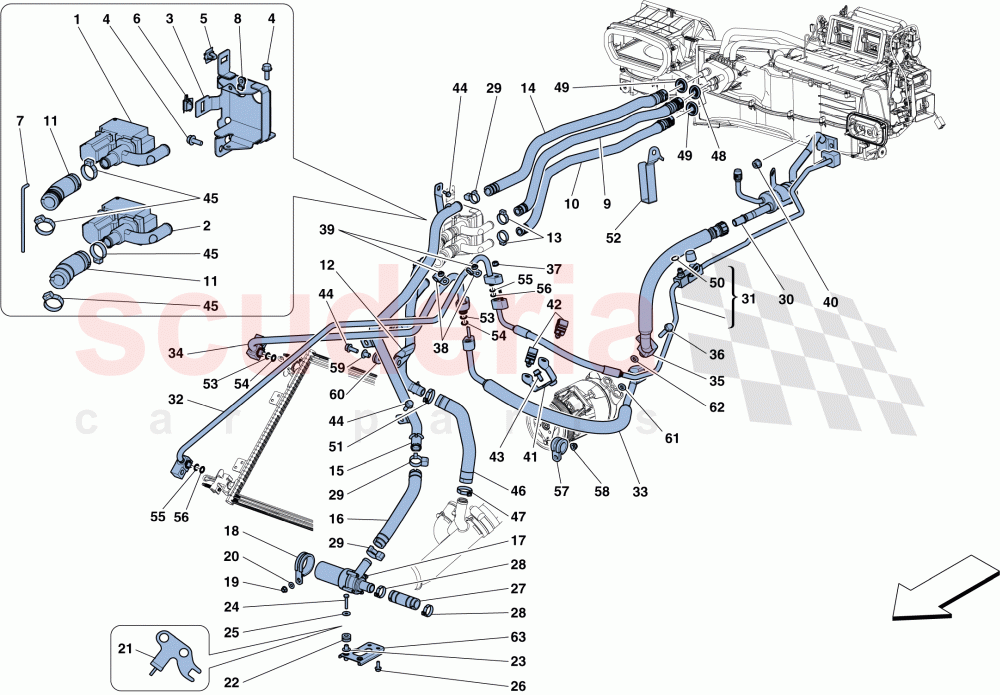

AC SYSTEM - WATER AND FREON of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67635900
RH TGK VALVE 		$224.63 (21.7% off) 1
2 67444900
LH TGK VALVE 		$240.67 (16.4% off) 1
3 84066200
TGK VALVE MOUNTING BRACKET 		$104.28 1
4 86574700
SCREW
M6 X 16 		$0.71 3
5 291283
CLIP 		$0.58 1
6 252473
CLIP 		$1.77 1
7 67933600
TGK VALVE FASTENER ROD 		$1.78 1
8 748925
RUBBER CABLE GROMMET 		$2.56 1
9 266390
PIPE FROM HEATER TO UPPER TGK VALVE 		$120.33 1
10 266391
PIPE FROM HEATER TO LOWER TGK VALVE 		$123.54 1
11 292150
CONNECTOR PIPE 		$46.52 2
12 292151
PIPE FROM TGK TO ENGINE 		$258.00 1
13 13432870
COLLAR FOR HOSE UNION
No longer supplied; Replaced by 10860270 		$12.30 2
14 276915
PIPE FROM PUMP TO AC UNIT 		$137.98 1
15 271752
METAL PIPE TO PUMP 		$176.49 1
16 267538
CONNECTOR PIPE 		$60.96 1
17 65460300
COMPLETE WATER PUMP 		$465.32 1
18 107002
BRACKET WITH SHEATH 		$27.42 (22.6% off) 1
19 14059290
FLANGED NUT M6 		$1.51 1
20 12620477
WASHER 		$0.06 1
21 268073
PUMP MOUNTING BRACKET 		$24.05 1
22 812273
CABLE GROMMET 		$1.65 2
23 149707
SPACER 		$1.17 (33.1% off) 2
24 231620
SCREW
M6 X 30 		$0.32 (8.6% off) 2
25 12643724
WASHER 		$0.06 (88% off) 2
26 86574700
SCREW
M6 X 16 		$0.71 2
27 260083
HOSE 		$43.31 1
28 262111
JUBILEE CLAMP 		$1.60 2
29 13097190
COLLAR 		$0.89 3
30 266282
PIPE WITH JACKET 		$458.69 1
31 266283
FILLER PIPE 		$706.01 1
32 268518
PIPE FROM CONDENSER TO DISCONNECTOR UNION 		$240.67 1
33 268369
PIPE FROM COMPRESSOR TO DISCONNECTOR UNION 		$336.95 1
34 268519
PIPE FROM DISCONNECTOR UNION TO CONDENSER 		$702.38 1
35 257933
PIPE BETWEEN DISCONNECTOR UNION-COMPRESSOR 		$336.95 1
36 16044024
SCREW
M8 X 40 		$0.37 (57.5% off) 1
37 14040614
NUT 		$0.15 2
38 10441290
BRACKET WITH SHEATH
D. 10 		$0.57 (66.1% off) 1
38 10441390
BRACKET WITH SHEATH
D. 12 		$0.57 1
39 13046011
NUT 		$0.39 2
40 14066017
NUT 		$2.84 1
41 268487
BRACKET
Fastening AC pipes to diagonal brace 		$176.49 1
42 259508
CLIP 		$0.63 1
42 267177
CLIP 		$1.07 1
43 248334
SCREW
M6 X 14 		$0.68 1
44 86574700
SCREW
M6 X 16 		$0.71 5
46 273206
CONNECTOR PIPE 		$54.46 1
47 13433370
Screw Collar
No longer supplied; Replaced by 10860270 		$0.91 1
48 81970900
AC WATER PIPE SEAL 		$10.44 1
49 81895900
AC WATER PIPE SEAL 		$10.05 2
50 66309300
O-RING
No longer supplied 		$1.60 (59% off) 1
51 296778
SCREW COLLAR
Applicable after depletion of 10860270 		$7.15 1
52 272548
BRACKET 		$27.21 1
53 68392700
O-RING 		$5.66 2
54 66309700
O-RING 		$11.73 (3.5% off) 2
55 68392000
O-RING 		$13.14 2
56 68392100
O-RING 		$6.68 (4.4% off) 2
57 10441290
BRACKET WITH SHEATH
D. 14 		$0.57 (66.1% off) 1
58 14059290
FLANGED NUT M6 		$1.51 1
59 149707
SPACER 		$1.17 (33.1% off) 2
60 812273
CABLE GROMMET 		$1.65 2
61 67085400
O-RING 		$17.23 (16% off) 1
63 268075
BRACKET ON PUMP MOUNTING FRAME 		$30.47 1
