DASHBOARD AIR DUCTS of Ferrari Ferrari FF

View All

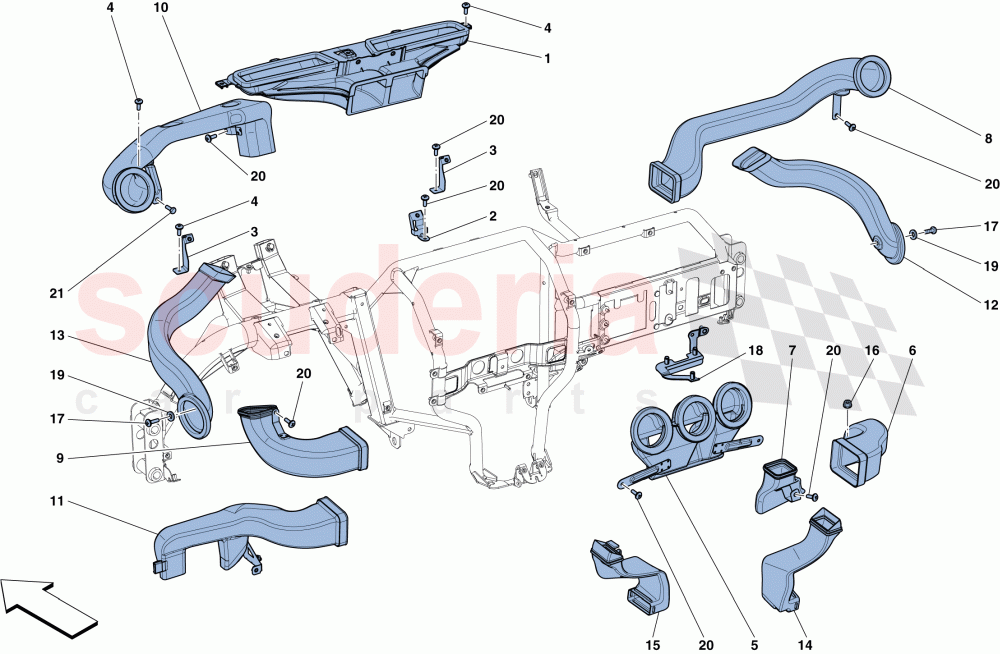

Ferrari FF - DASHBOARD AIR DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80809500	AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68176200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81996500	CENTRE DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83921700	PASSENGER SIDE UPPER FOOTWELL AIR DUCT	Enquire	To Order
	86518200	PASSENGER SIDE UPPER FOOTWELL AIR DUCT	Enquire	To Order
	82635200	PASSENGER SIDE UPPER FOOTWELL AIR DUCT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80812100	PASSENGER SIDE LOWER FOOTWELL AIR DUCT	Enquire	To Order
	84044700	PASSENGER SIDE LOWER FOOTWELL AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81996700	PASSENGER SIDE AIR DUCT	Enquire	To Order
	83922100	PASSENGER SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82402200	LOWER DASH AIR DUCT	Enquire	To Order
	83922500	LOWER DASH AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81996900	UPPER DRIVER SIDE AIR DUCT	Enquire	To Order
	83922700	UPPER DRIVER SIDE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83469200	DRIVER SIDE FOOTWELL AIR DUCT	Enquire	To Order
	83923100	DRIVER SIDE FOOTWELL AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83544300	DASH-RH DOOR AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83544400	DASH-LH DOOR AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83509300	UPPER PART OF RH REAR FOOT AIR DUCT	Enquire	To Order
	83924300	UPPER PART OF RH REAR FOOT AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83509600	UPPER PART OF LH REAR FOOT AIR DUCT	Enquire	To Order
	83924500	UPPER PART OF LH REAR FOOT AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83923900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80809500	AIR DUCT	80809500 AIR DUCT	-	1	Enquire
4	68176200	SCREW	68176200 SCREW M5 X 10	-	14	Enquire
5	81996500	CENTRE DUCT	81996500 CENTRE DUCT	-	1	Enquire
6	83921700	PASSENGER SIDE UPPER FOOTWELL AIR DUCT	83921700 PASSENGER SIDE UPPER FOOTWELL AIR DUCT Version without CD player; Applicable for GD	-	1	Enquire
6	86518200	PASSENGER SIDE UPPER FOOTWELL AIR DUCT	86518200 PASSENGER SIDE UPPER FOOTWELL AIR DUCT Applicable for Geneva version; Version with CD reader; Applicable for GD	-	1	Enquire
6	82635200	PASSENGER SIDE UPPER FOOTWELL AIR DUCT	82635200 PASSENGER SIDE UPPER FOOTWELL AIR DUCT Version without CD player; Not for GD	-	1	Enquire
6	86472600	PASSENGER SIDE UPPER FOOTWELL AIR DUCT	86472600 PASSENGER SIDE UPPER FOOTWELL AIR DUCT Applicable for Geneva version; Version with CD reader; Not for GD	-	1	Enquire
7	80812100	PASSENGER SIDE LOWER FOOTWELL AIR DUCT	80812100 PASSENGER SIDE LOWER FOOTWELL AIR DUCT Not for GD	-	1	Enquire
7	84044700	PASSENGER SIDE LOWER FOOTWELL AIR DUCT	84044700 PASSENGER SIDE LOWER FOOTWELL AIR DUCT Applicable for GD	-	1	Enquire
8	81996700	PASSENGER SIDE AIR DUCT	81996700 PASSENGER SIDE AIR DUCT Not for GD	-	1	Enquire
8	83922100	PASSENGER SIDE AIR DUCT	83922100 PASSENGER SIDE AIR DUCT Applicable for GD	-	1	Enquire
9	82402200	LOWER DASH AIR DUCT	82402200 LOWER DASH AIR DUCT Not for GD	-	1	Enquire
9	83922500	LOWER DASH AIR DUCT	83922500 LOWER DASH AIR DUCT Applicable for GD	-	1	Enquire
10	81996900	UPPER DRIVER SIDE AIR DUCT	81996900 UPPER DRIVER SIDE AIR DUCT Not for GD	-	1	Enquire
10	83922700	UPPER DRIVER SIDE AIR DUCT	83922700 UPPER DRIVER SIDE AIR DUCT Applicable for GD	-	1	Enquire
11	83469200	DRIVER SIDE FOOTWELL AIR DUCT	83469200 DRIVER SIDE FOOTWELL AIR DUCT Not for GD	-	1	Enquire
11	83923100	DRIVER SIDE FOOTWELL AIR DUCT	83923100 DRIVER SIDE FOOTWELL AIR DUCT Applicable for GD	-	1	Enquire
12	83544300	DASH-RH DOOR AIR DUCT	83544300 DASH-RH DOOR AIR DUCT	-	1	Enquire
13	83544400	DASH-LH DOOR AIR DUCT	83544400 DASH-LH DOOR AIR DUCT	-	1	Enquire
14	83509300	UPPER PART OF RH REAR FOOT AIR DUCT	83509300 UPPER PART OF RH REAR FOOT AIR DUCT Not for GD	-	1	Enquire
14	83924300	UPPER PART OF RH REAR FOOT AIR DUCT	83924300 UPPER PART OF RH REAR FOOT AIR DUCT Applicable for GD	-	1	Enquire
15	83509600	UPPER PART OF LH REAR FOOT AIR DUCT	83509600 UPPER PART OF LH REAR FOOT AIR DUCT Not for GD	-	1	Enquire
15	83924500	UPPER PART OF LH REAR FOOT AIR DUCT	83924500 UPPER PART OF LH REAR FOOT AIR DUCT Applicable for GD	-	1	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
17	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
18	83923900	BRACKET	83923900 BRACKET Applicable for GD	-	1	Enquire
19	62769800	WASHER	62769800 WASHER	-	2	Enquire
20	85833700	SCREW	85833700 SCREW M5 X 12	-	9	Enquire
21	86574700	SCREW	86574700 SCREW M6 X 16	-	1	Enquire
