CENTRE TUNNEL AND CONSOLE of Ferrari Ferrari F8 Spider USA

View All

Ferrari F8 Spider USA - CENTRE TUNNEL AND CONSOLE

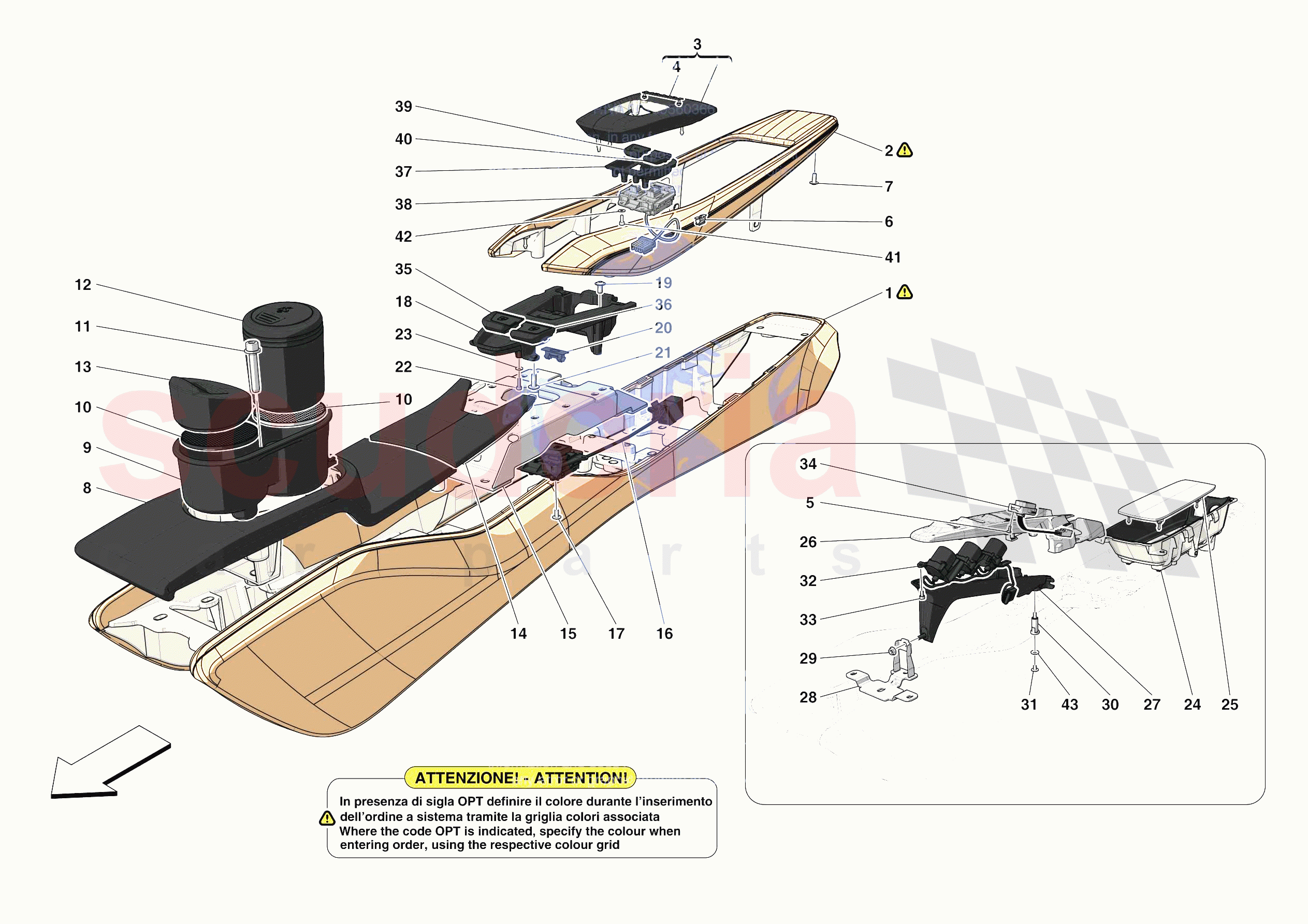

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	873703	COMPL. CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	891849	COMPL. CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	70006913	COMPL. CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	873710	COMPL. SURROUND FOR CENTRE TUNNEL UNIT	Enquire	To Order
	891885	COMPL. SURROUND FOR CENTRE TUNNEL UNIT	Enquire	To Order
	891932	SURROUND FOR CENTRE TUNNEL UNIT	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	898143	COMPL. WRIST REST	Enquire	To Order
	898124	COMPL. WRIST REST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86797300	FERRARI BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	829212	CLIP	Enquire	To Order
	829212	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	873698	COMPL. FRONT COVER TRIM FOR CENTRE CONSOLE UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86159700	COMPL. CUP HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86153200	CUP HOLDER BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83003500	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87399000	KEY HOLDER FOR CUP HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	912407	COMPL. UPHOLSTERED UNDER-BRIDGE TRIM PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	873707	BRIDGE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	879157	POWER WINDOW CONTROL MOUNT	Enquire	To Order
	879158	POWER WINDOW CONTROL MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	873699	BRIDGE CONSOLE STRUCTURE	Enquire	To Order
	874932	BRIDGE CONSOLE STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	SNAP FASTENING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898747	COMPL. REAR COMPARTMENT	Enquire	To Order
	898759	COMPL. REAR COMPARTMENT	Enquire	To Order
	898736	COMPL. REAR COMPARTMENT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	873679	COMPL. REAR COMPARTMENT COVER	Enquire	To Order
	873667	COMPL. REAR COMPARTMENT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	874865	UPPER BRIDGE SHELL	Enquire	To Order
	878158	UPPER BRIDGE SHELL	Enquire	To Order
	891949	UPPER BRIDGE SHELL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	874863	BRIDGE LOWER SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878535	CUP HOLDER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88508000	HANDLE BARREL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878579	F1 GEARBOX CONTROLS	Enquire	To Order
	881236	F1 GEARBOX CONTROLS	Enquire	To Order
	70006706	F1 GEARBOX CONTROLS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14418924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878662	HAZARD WARNING LIGHT BUTTON	Enquire	To Order
	881230	HAZARD WARNING LIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342935	RH POWER WINDOW BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342934	LH POWER WINDOW BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898129	CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	963445	CONTROL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	883045	ROOF BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	883044	REAR SCREEN BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12600474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	873703	COMPL. CENTRE CONSOLE UNIT STRUCTURE	873703 COMPL. CENTRE CONSOLE UNIT STRUCTURE Leather - STC1 - STC2; CTU4	-	1	Enquire
0001	891849	COMPL. CENTRE CONSOLE UNIT STRUCTURE	891849 COMPL. CENTRE CONSOLE UNIT STRUCTURE Alcantara - STC1 - STC2; CTUA	-	1	Enquire
0001	70006913	COMPL. CENTRE CONSOLE UNIT STRUCTURE	70006913 COMPL. CENTRE CONSOLE UNIT STRUCTURE Leather - CTU4- -ICTL- -ICTA- -STC1- -STC2 - CTU4 for leather colour selection - ICTL for colour selection of leather inserts - ICTA for colour selection of Alcantara inserts; Off-catalogue version	-	1	Enquire
0001	70007064	COMPL. CENTRE CONSOLE UNIT STRUCTURE	70007064 COMPL. CENTRE CONSOLE UNIT STRUCTURE Alcantara - CTUA- -ICTL- -ICTA- -STC1- -STC2 - CTUA for colour selection of Alcantara - ICTL for colour selection of leather inserts - ICTA for colour selection of Alcantara inserts; Off-catalogue version	-	1	Enquire
0002	873710	COMPL. SURROUND FOR CENTRE TUNNEL UNIT	873710 COMPL. SURROUND FOR CENTRE TUNNEL UNIT Leather - STC1 - STC2; CTU4	-	1	Enquire
0002	891885	COMPL. SURROUND FOR CENTRE TUNNEL UNIT	891885 COMPL. SURROUND FOR CENTRE TUNNEL UNIT Alcantara - STC1 - STC2; CTUA	-	1	Enquire
0002	891932	SURROUND FOR CENTRE TUNNEL UNIT	891932 SURROUND FOR CENTRE TUNNEL UNIT Gloss finish carbon version	-	1	Enquire
0002	891940	SURROUND FOR CENTRE TUNNEL UNIT	891940 SURROUND FOR CENTRE TUNNEL UNIT Matte finish carbon version	-	1	Enquire
0002	70006914	SURROUND FOR CENTRE TUNNEL UNIT	70006914 SURROUND FOR CENTRE TUNNEL UNIT Version in coloured naked weave carbon - CICM - CICM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0002	70006915	COMPL. SURROUND FOR CENTRE TUNNEL UNIT	70006915 COMPL. SURROUND FOR CENTRE TUNNEL UNIT Leather - CTU4- -PICT- -STC1- -STC2 - CTU4 for leather colour selection - PICT for colour selection of inserts; Off-catalogue version	-	1	Enquire
0002	70007065	COMPL. SURROUND FOR CENTRE TUNNEL UNIT	70007065 COMPL. SURROUND FOR CENTRE TUNNEL UNIT Alcantara - CTUA- -PICT- -STC1- -STC2 - CTUA for colour selection of Alcantara - PICT for colour selection of leather piping; Off-catalogue version	-	1	Enquire
0003	898143	COMPL. WRIST REST	898143 COMPL. WRIST REST Black leather - Not for Russia	-	1	Enquire
0003	898124	COMPL. WRIST REST	898124 COMPL. WRIST REST Black leather - Applicable for Russia	-	1	Enquire
0004	86797300	FERRARI BADGE	86797300 FERRARI BADGE	-	1	Enquire
0005	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M3 X 8	-	3	Enquire
0006	829212	CLIP	829212 CLIP Applicable for Russia	-	3	Enquire
0006	829212	CLIP	829212 CLIP	-	3	Enquire
0007	85833700	SCREW	85833700 SCREW M5 X 14	-	2	Enquire
0008	873698	COMPL. FRONT COVER TRIM FOR CENTRE CONSOLE UNIT	873698 COMPL. FRONT COVER TRIM FOR CENTRE CONSOLE UNIT Black Alcantara	-	1	Enquire
0009	86159700	COMPL. CUP HOLDER	86159700 COMPL. CUP HOLDER	-	1	Enquire
0010	86153200	CUP HOLDER BASE	86153200 CUP HOLDER BASE	-	2	Enquire
0011	231622	SCREW	231622 SCREW M6 X 35	-	13	Enquire
0012	83003500	ASHTRAY	83003500 ASHTRAY Applicable for smoker's kit	-	1	Enquire
0013	87399000	KEY HOLDER FOR CUP HOLDER	87399000 KEY HOLDER FOR CUP HOLDER	-	1	Enquire
0014	912407	COMPL. UPHOLSTERED UNDER-BRIDGE TRIM PANEL	912407 COMPL. UPHOLSTERED UNDER-BRIDGE TRIM PANEL Black Alcantara	-	1	Enquire
0015	873707	BRIDGE MOUNTING BRACKET	873707 BRIDGE MOUNTING BRACKET	-	1	Enquire
0016	879157	POWER WINDOW CONTROL MOUNT	879157 POWER WINDOW CONTROL MOUNT Not for Russia	-	1	Enquire
0016	879158	POWER WINDOW CONTROL MOUNT	879158 POWER WINDOW CONTROL MOUNT Applicable for Russia	-	1	Enquire
0017	795930	SCREW	795930 SCREW M4 X 8	-	2	Enquire
0018	873699	BRIDGE CONSOLE STRUCTURE	873699 BRIDGE CONSOLE STRUCTURE Not for Russia	-	1	Enquire
0018	874932	BRIDGE CONSOLE STRUCTURE	874932 BRIDGE CONSOLE STRUCTURE Applicable for Russia	-	1	Enquire
0019	85833700	SCREW	85833700 SCREW M5 X 10	-	5	Enquire
0020	68700200	SNAP FASTENING CLIP	68700200 SNAP FASTENING CLIP	-	1	Enquire
0021	85833700	SCREW	85833700 SCREW M5 X 14	-	2	Enquire
0022	14418074	SCREW	14418074 SCREW M3 X 8	-	8	Enquire
0023	12639901	WASHER	12639901 WASHER	-	4	Enquire
0024	898747	COMPL. REAR COMPARTMENT	898747 COMPL. REAR COMPARTMENT Not for Russia	-	1	Enquire
0024	898759	COMPL. REAR COMPARTMENT	898759 COMPL. REAR COMPARTMENT Applicable for Russia	-	1	Enquire
0024	898736	COMPL. REAR COMPARTMENT	898736 COMPL. REAR COMPARTMENT Not for Russia - Version with Apple Car Play	-	1	Enquire
0024	898762	COMPL. REAR COMPARTMENT	898762 COMPL. REAR COMPARTMENT Applicable for Russia - Version with Apple Car Play	-	1	Enquire
0024	898732	COMPL. REAR COMPARTMENT	898732 COMPL. REAR COMPARTMENT Not for Russia - Applicable for telemetry kit	-	1	Enquire
0024	898765	COMPL. REAR COMPARTMENT	898765 COMPL. REAR COMPARTMENT Applicable for Russia - Applicable for telemetry kit	-	1	Enquire
0024	873691	COMPL. REAR COMPARTMENT	873691 COMPL. REAR COMPARTMENT Not for Russia - Version with Apple Car Play and telemetry kit	-	1	Enquire
0024	874914	COMPL. REAR COMPARTMENT	874914 COMPL. REAR COMPARTMENT Applicable for Russia - Version with Apple Car Play and telemetry kit	-	1	Enquire
0025	873679	COMPL. REAR COMPARTMENT COVER	873679 COMPL. REAR COMPARTMENT COVER Not for Russia	-	1	Enquire
0025	873667	COMPL. REAR COMPARTMENT COVER	873667 COMPL. REAR COMPARTMENT COVER Applicable for Russia	-	1	Enquire
0026	874865	UPPER BRIDGE SHELL	874865 UPPER BRIDGE SHELL Aluminium version	-	1	Enquire
0026	878158	UPPER BRIDGE SHELL	878158 UPPER BRIDGE SHELL Gloss finish carbon version	-	1	Enquire
0026	891949	UPPER BRIDGE SHELL	891949 UPPER BRIDGE SHELL Matte finish carbon version	-	1	Enquire
0026	70006916	UPPER BRIDGE SHELL	70006916 UPPER BRIDGE SHELL Version in coloured naked weave carbon - CICM - CICM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0026	70006917	UPPER BRIDGE SHELL	70006917 UPPER BRIDGE SHELL Coloured aluminium version - AINP - AINP for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0027	874863	BRIDGE LOWER SHELL	874863 BRIDGE LOWER SHELL	-	1	Enquire
0028	878535	CUP HOLDER BRACKET	878535 CUP HOLDER BRACKET	-	1	Enquire
0029	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5	-	1	Enquire
0030	88508000	HANDLE BARREL	88508000 HANDLE BARREL	-	2	Enquire
0031	85833700	SCREW	85833700 SCREW M5 X 8	-	14	Enquire
0032	878579	F1 GEARBOX CONTROLS	878579 F1 GEARBOX CONTROLS	-	1	Enquire
0032	881236	F1 GEARBOX CONTROLS	881236 F1 GEARBOX CONTROLS	-	1	Enquire
0032	70006706	F1 GEARBOX CONTROLS	70006706 F1 GEARBOX CONTROLS Version with paint finish button bezels - F1PM - F1PM for colour selection of F1 button bezels - F1PT - F1PT for gloss finish painted Italian tricolour; Off-catalogue version	-	1	Enquire
0032	70006707	F1 GEARBOX CONTROLS	70006707 F1 GEARBOX CONTROLS Version with paint finish button bezels - F1PM - F1PM for colour selection of F1 button bezels - F1PT - F1PT for gloss finish painted Italian tricolour; Off-catalogue version	-	1	Enquire
0033	14418924	SCREW	14418924 SCREW M4 X 8	-	9	Enquire
0034	878662	HAZARD WARNING LIGHT BUTTON	878662 HAZARD WARNING LIGHT BUTTON	-	1	Enquire
0034	881230	HAZARD WARNING LIGHT BUTTON	881230 HAZARD WARNING LIGHT BUTTON Version for central carbon fibre bridge	-	1	Enquire
0035	342935	RH POWER WINDOW BUTTON	342935 RH POWER WINDOW BUTTON	-	1	Enquire
0036	342934	LH POWER WINDOW BUTTON	342934 LH POWER WINDOW BUTTON	-	1	Enquire
0037	898129	CONTROL PANEL	898129 CONTROL PANEL	-	1	Enquire
0038	963445	CONTROL SUPPORT	963445 CONTROL SUPPORT	-	1	Enquire
0039	883045	ROOF BUTTON	883045 ROOF BUTTON	-	1	Enquire
0040	883044	REAR SCREEN BUTTON	883044 REAR SCREEN BUTTON	-	1	Enquire
0041	14418074	SCREW	14418074 SCREW M3 X 8	-	8	Enquire
0042	12600474	WASHER	12600474 WASHER	-	8	Enquire
0043	62769800	WASHER	62769800 WASHER	-	2	Enquire
