Name: FRONT DOOR SUBSTRUCTURE
Rating: 5.0 (1 reviews)

View All

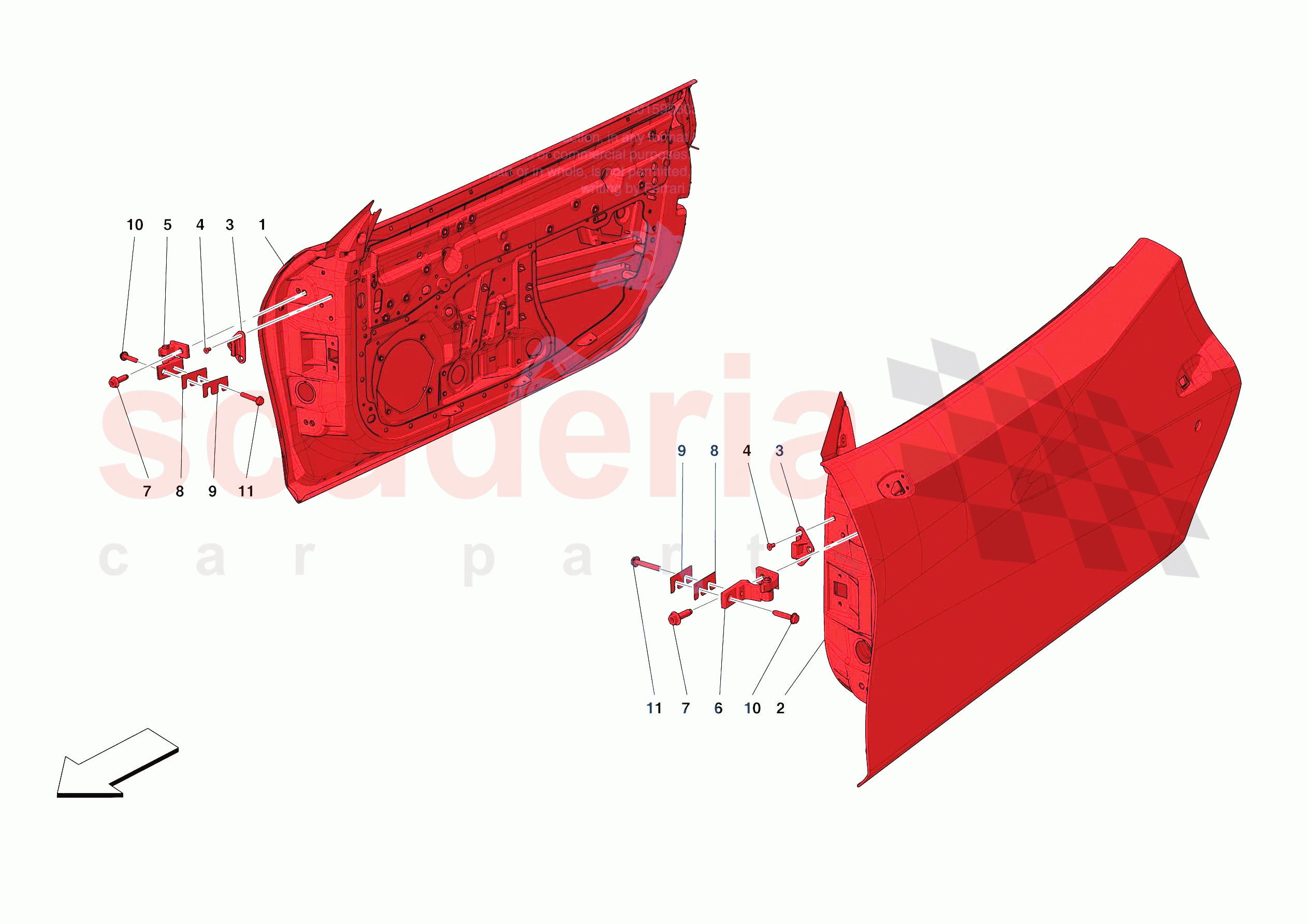

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81916400	DOOR SAFETY HOOK	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	69827100	RH DOOR HINGE	$131.56	To Order

Photo	Part No	Description	Price (each)	Stock
	69827200	LH DOOR HINGE	$131.56	To Order

Photo	Part No	Description	Price (each)	Stock
	81267100	SCREW	$5.19	To Order

Photo	Part No	Description	Price (each)	Stock
	80712500	SHIM	$6.08	To Order

Photo	Part No	Description	Price (each)	Stock
	80709900	SHIM	$5.30	To Order

Photo	Part No	Description	Price (each)	Stock
	18752934	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	18753134	SCREW	$1.17	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985824449	COMPL. RH DOOR STRUCTURE	985824449 COMPL. RH DOOR STRUCTURE Applicable for Brazil	$8,838.95	1
0001	985880965	COMPL. RH DOOR STRUCTURE	985880965 COMPL. RH DOOR STRUCTURE	$8,487.94	1
0001	985918988	COMPL. RH DOOR STRUCTURE	985918988 COMPL. RH DOOR STRUCTURE Not for Brazil	$8,066.72	1
0002	985824450	COMPL. LH DOOR STRUCTURE	985824450 COMPL. LH DOOR STRUCTURE Applicable for Brazil	$8,829.68	1
0002	985880962	COMPL. LH DOOR STRUCTURE	985880962 COMPL. LH DOOR STRUCTURE	$8,918.42	1
0002	985918989	COMPL. LH DOOR STRUCTURE	985918989 COMPL. LH DOOR STRUCTURE Not for Brazil	$8,057.45	1
0003	81916400	DOOR SAFETY HOOK	81916400 DOOR SAFETY HOOK	$59.35	2
0004	14441234	SCREW	14441234 SCREW M6 X 12	$0.18 MSRP: ~~0.30~~ (40% off)	6
0005	69827100	RH DOOR HINGE	69827100 RH DOOR HINGE	$131.56	2
0006	69827200	LH DOOR HINGE	69827200 LH DOOR HINGE	$131.56	2
0007	81267100	SCREW	81267100 SCREW M10 X 30	$5.19 MSRP: ~~5.35~~ (3% off)	4
0008	80712500	SHIM	80712500 SHIM Th. 1.5 mm	$6.08	4
0009	80709900	SHIM	80709900 SHIM Th. 1 mm	$5.30	4
0010	18752934	SCREW	18752934 SCREW M8 X 40	$0.76	6
0011	18753134	SCREW	18753134 SCREW M8 X 50	$1.17	2
