Name: LATERAL SUBSTRUCTURE
Rating: 5.0 (1 reviews)

View All

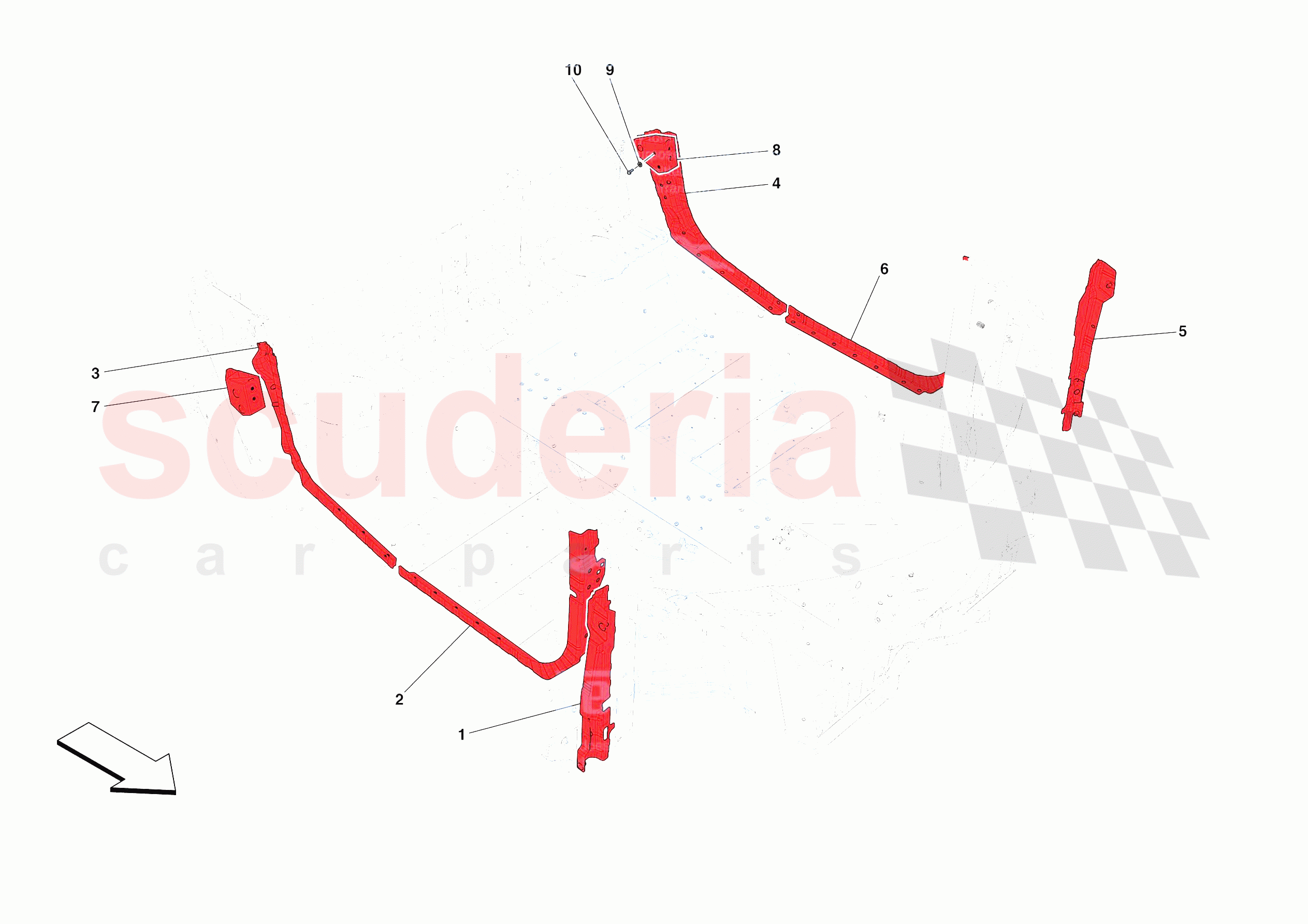

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86675911	A PILLAR FLANGE, FRONT RH ELEMENT	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	82992111	RH FRONT PANEL	$415.69	To Order

Photo	Part No	Description	Price (each)	Stock
	83815011	REAR RH ENDPIECE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	83814711	REAR LH ENDPIECE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	86675811	A PILLAR FLANGE, FRONT LH SECTION	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	82992211	LH FRONT PANEL	$415.69	To Order

Photo	Part No	Description	Price (each)	Stock
	86744411	RH LOCK STRIKER REINFORCEMENT	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	86744211	LH LOCK STRIKER REINFORCEMENT	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	12626021	WASHER	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	903295	SCREW	$0.66	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	86675911	A PILLAR FLANGE, FRONT RH ELEMENT	86675911 A PILLAR FLANGE, FRONT RH ELEMENT	$286.67	1
0002	82992111	RH FRONT PANEL	82992111 RH FRONT PANEL	$415.69	1
0003	83815011	REAR RH ENDPIECE	83815011 REAR RH ENDPIECE	$336.95	1
0004	83814711	REAR LH ENDPIECE	83814711 REAR LH ENDPIECE	$336.95	1
0005	86675811	A PILLAR FLANGE, FRONT LH SECTION	86675811 A PILLAR FLANGE, FRONT LH SECTION	$286.67	1
0006	82992211	LH FRONT PANEL	82992211 LH FRONT PANEL	$415.69	1
0007	86744411	RH LOCK STRIKER REINFORCEMENT	86744411 RH LOCK STRIKER REINFORCEMENT Request ASM authorisation	$433.23	1
0008	86744211	LH LOCK STRIKER REINFORCEMENT	86744211 LH LOCK STRIKER REINFORCEMENT Request ASM authorisation	$433.23	1
0009	12626021	WASHER	12626021 WASHER	$0.45	6
0010	903295	SCREW	903295 SCREW M8 X 1.25 X 25	$0.66	6
