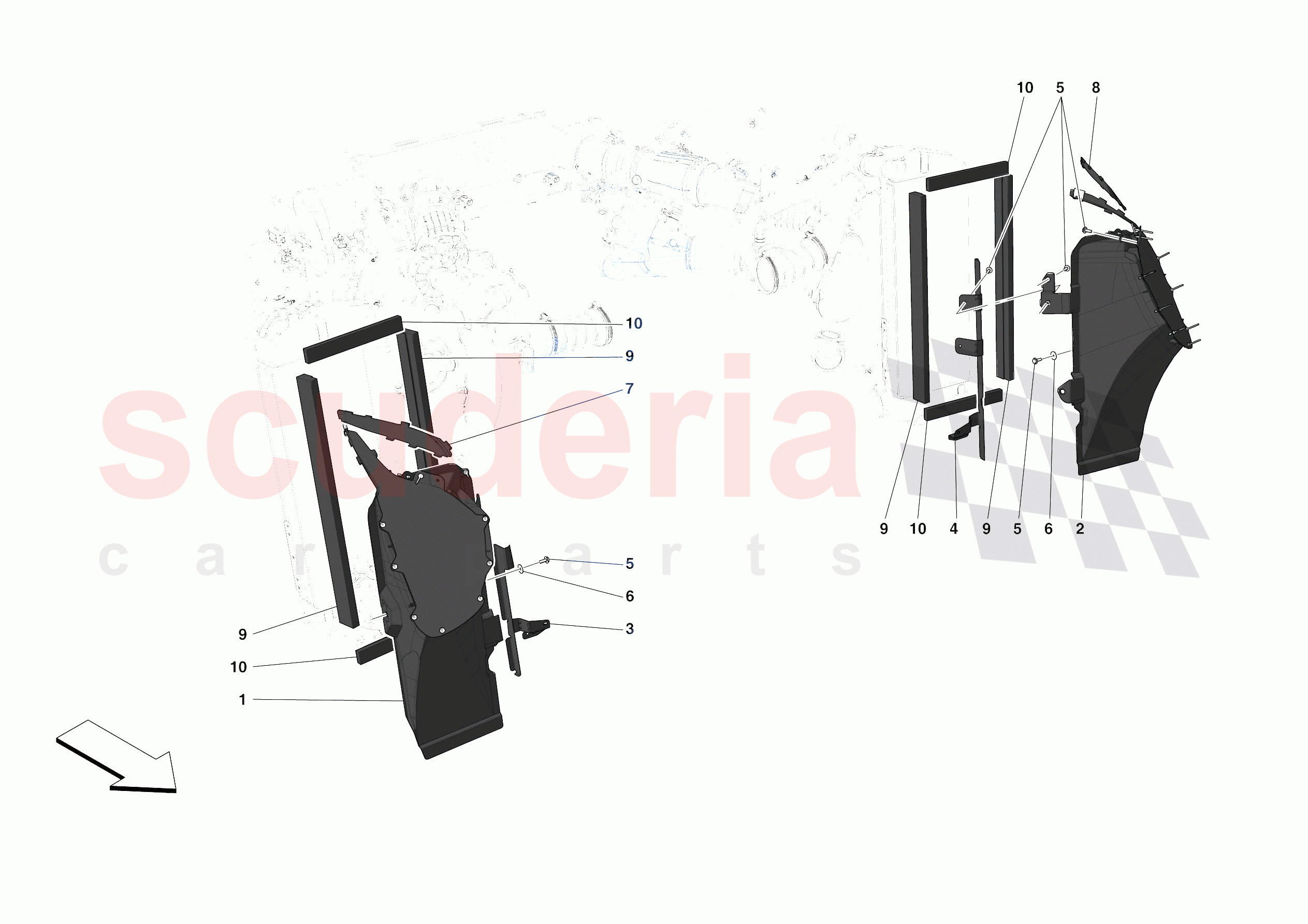

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	897388	COMPL. RH LATERAL AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	897391	COMPL. LH LATERAL AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768599	RH INTERCOOLER GASKET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768591	LH INTERCOOLER GASKET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	908268	COMPL. RH COIL MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	908266	COMPL. LH COIL MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89278300	LATERAL INTERCOOLER DUCT GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87646400	UPPER/LOWER DUCT GASKET	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	897388	COMPL. RH LATERAL AIR INTAKE	897388 COMPL. RH LATERAL AIR INTAKE	-	1	Enquire
0002	897391	COMPL. LH LATERAL AIR INTAKE	897391 COMPL. LH LATERAL AIR INTAKE	-	1	Enquire
0003	768599	RH INTERCOOLER GASKET SHIELD	768599 RH INTERCOOLER GASKET SHIELD	-	1	Enquire
0004	768591	LH INTERCOOLER GASKET SHIELD	768591 LH INTERCOOLER GASKET SHIELD	-	1	Enquire
0005	11625824	SCREW	11625824 SCREW M6 X 18	-	17	Enquire
0006	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	2	Enquire
0007	908268	COMPL. RH COIL MESH	908268 COMPL. RH COIL MESH	-	1	Enquire
0008	908266	COMPL. LH COIL MESH	908266 COMPL. LH COIL MESH	-	1	Enquire
0009	89278300	LATERAL INTERCOOLER DUCT GASKET	89278300 LATERAL INTERCOOLER DUCT GASKET	-	4	Enquire
0010	87646400	UPPER/LOWER DUCT GASKET	87646400 UPPER/LOWER DUCT GASKET	-	4	Enquire
