INJECTION CONTROL of Ferrari Ferrari F8 Spider Europe

View All

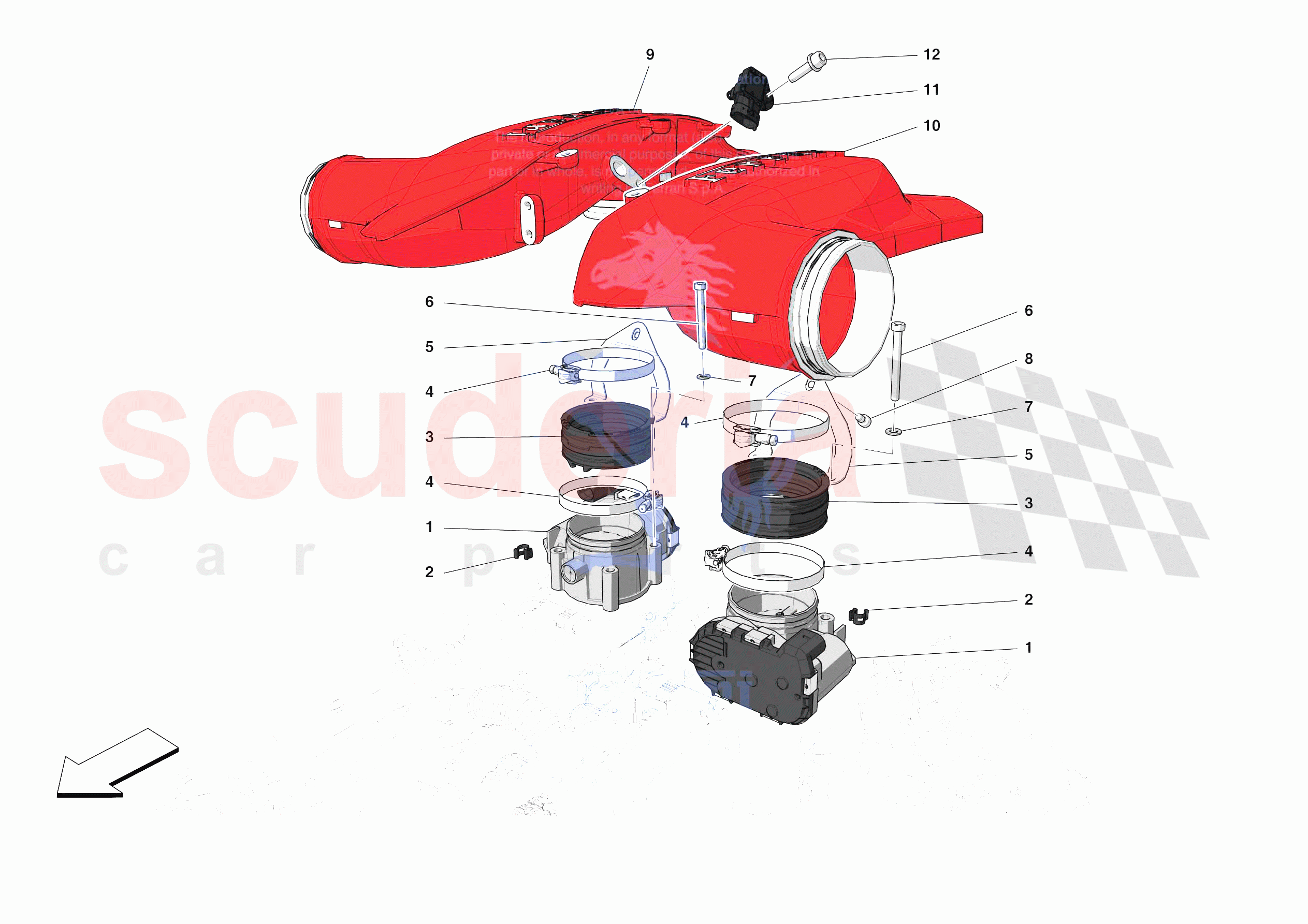

Ferrari F8 Spider Europe - INJECTION CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329966	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818494	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338560	THROTTLE BODY SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304446	SCREW COLLAR D.70 - D.90 X 9.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	767488	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769144	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282391	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801738	COMPL. RH INTAKE PLENUM	Enquire	To Order
	801738	COMPL. RH INTAKE PLENUM	Enquire	To Order
	801828	COMPL. RH INTAKE PLENUM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	801739	COMPL. LH INTAKE PLENUM	Enquire	To Order
	801739	COMPL. LH INTAKE PLENUM	Enquire	To Order
	801829	COMPL. LH INTAKE PLENUM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	329966	THROTTLE BODY	329966 THROTTLE BODY	-	2	Enquire
0002	818494	CLIP	818494 CLIP	-	2	Enquire
0003	338560	THROTTLE BODY SPACER	338560 THROTTLE BODY SPACER	-	2	Enquire
0004	304446	SCREW COLLAR D.70 - D.90 X 9.3	304446 SCREW COLLAR D.70 - D.90 X 9.3	-	4	Enquire
0005	767488	BRACKET	767488 BRACKET	-	2	Enquire
0006	769144	SCREW	769144 SCREW M6 X 55	-	8	Enquire
0007	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	8	Enquire
0008	282391	SCREW	282391 SCREW M6 X 12	-	4	Enquire
0009	801738	COMPL. RH INTAKE PLENUM	801738 COMPL. RH INTAKE PLENUM	-	1	Enquire
0009	801738	COMPL. RH INTAKE PLENUM	801738 COMPL. RH INTAKE PLENUM	-	1	Enquire
0009	801828	COMPL. RH INTAKE PLENUM	801828 COMPL. RH INTAKE PLENUM Carbon version	-	1	Enquire
0009	801828	COMPL. RH INTAKE PLENUM	801828 COMPL. RH INTAKE PLENUM	-	1	Enquire
0009	70006755	COMPL. RH INTAKE PLENUM	70006755 COMPL. RH INTAKE PLENUM Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0010	801739	COMPL. LH INTAKE PLENUM	801739 COMPL. LH INTAKE PLENUM	-	1	Enquire
0010	801739	COMPL. LH INTAKE PLENUM	801739 COMPL. LH INTAKE PLENUM	-	1	Enquire
0010	801829	COMPL. LH INTAKE PLENUM	801829 COMPL. LH INTAKE PLENUM Carbon version	-	1	Enquire
0010	801829	COMPL. LH INTAKE PLENUM	801829 COMPL. LH INTAKE PLENUM	-	1	Enquire
0010	70006756	COMPL. LH INTAKE PLENUM	70006756 COMPL. LH INTAKE PLENUM Version in coloured naked weave carbon - CECM - CECM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0011	272880	PRESSURE AND TEMPERATURE SENSOR	272880 PRESSURE AND TEMPERATURE SENSOR	-	2	Enquire
0012	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
