CYLINDER HEADS - LH HEAD of Ferrari Ferrari F8 Spider Europe

View All

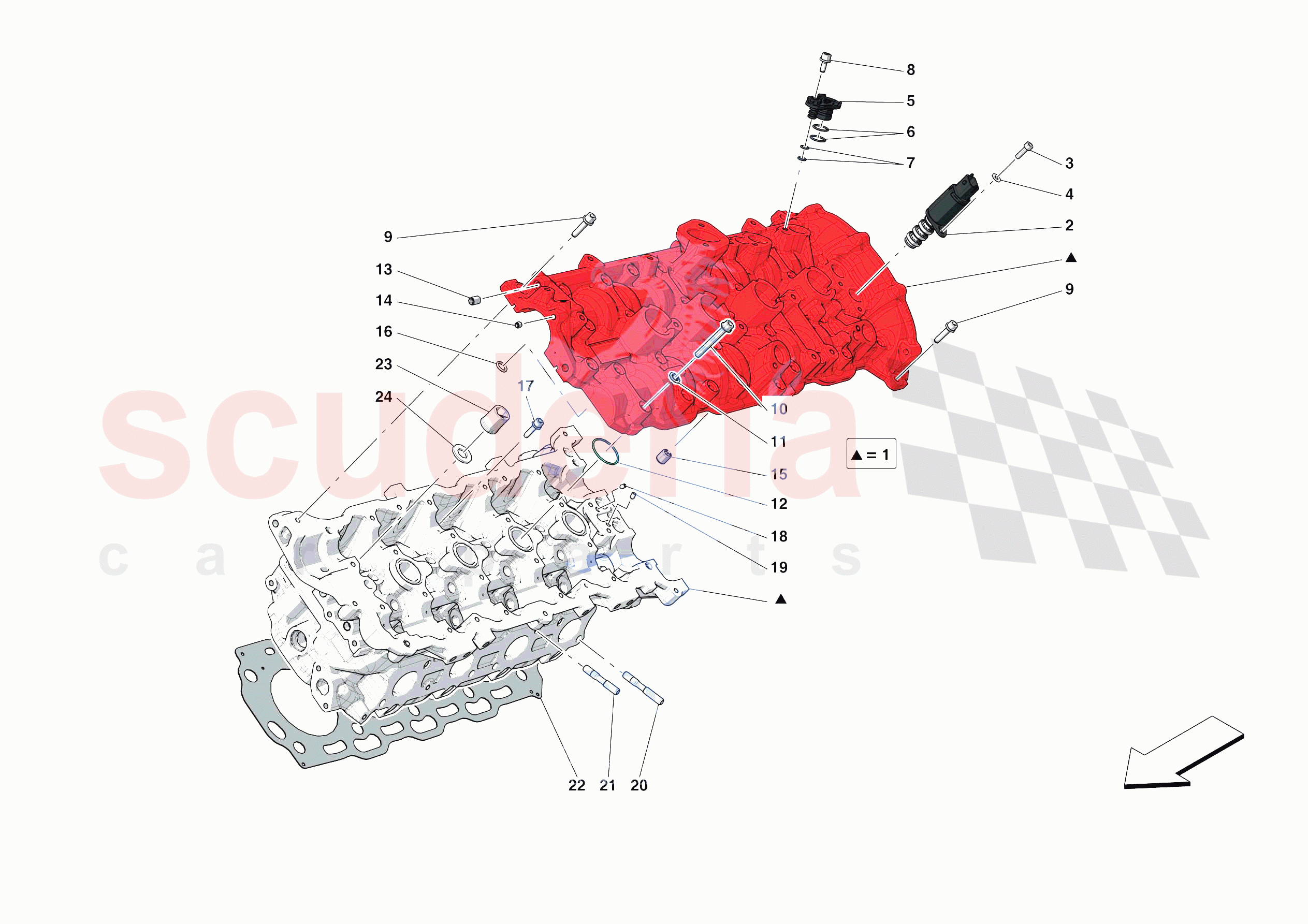

Ferrari F8 Spider Europe - CYLINDER HEADS - LH HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	979085	LH CYLINDER HEAD	Enquire	To Order
	742679	LH CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	To Order
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	806088	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14453281	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14452781	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296759	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166657	O-Ring D.29.87	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277903	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342272	CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307168	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306320	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319512	LH HEAD-CRANKCASE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271125	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271129	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	979085	LH CYLINDER HEAD	979085 LH CYLINDER HEAD Applies until depletion	-	1	Enquire
0001	742679	LH CYLINDER HEAD	742679 LH CYLINDER HEAD Applicable after depletion of 979085	-	1	Enquire
0002	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE Applicable after depletion of 296017	-	2	Enquire
0002	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	-	2	Enquire
0003	14304124	SCREW	14304124 SCREW M5 X 16	-	2	Enquire
0004	11181574	WASHER	11181574 WASHER	-	2	Enquire
0005	806088	PLUG	806088 PLUG	-	2	Enquire
0006	14453281	O-RING	14453281 O-RING Also included in engine gasket set	-	4	Enquire
0007	14452781	GASKET	14452781 GASKET Also included in engine gasket set	-	4	Enquire
0008	13026924	SCREW	13026924 SCREW M6 X 14	-	2	Enquire
0009	231620	SCREW	231620 SCREW M6 X 25	-	3	Enquire
0010	296759	SCREW	296759 SCREW M6 X 1 X 45	-	30	Enquire
0011	296075	WASHER 13 X 5.8	296075 WASHER 13 X 5.8	-	30	Enquire
0012	166657	O-Ring D.29.87	166657 O-Ring D.29.87	-	4	Enquire
0013	277903	PLUG	277903 PLUG	-	2	Enquire
0014	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	-	4	Enquire
0015	342272	CHECK VALVE	342272 CHECK VALVE	-	2	Enquire
0016	127816	O-RING	127816 O-RING	-	1	Enquire
0017	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	1	Enquire
0018	226414	GRUB SCREW	226414 GRUB SCREW	-	1	Enquire
0019	256827	GRUB SCREW	256827 GRUB SCREW	-	1	Enquire
0020	307168	STUD BOLT	307168 STUD BOLT M8 X 14	-	6	Enquire
0021	306320	STUD BOLT	306320 STUD BOLT M10 X 17	-	4	Enquire
0022	319512	LH HEAD-CRANKCASE GASKET	319512 LH HEAD-CRANKCASE GASKET	-	1	Enquire
0023	271125	NUT	271125 NUT	-	10	Enquire
0024	271129	WASHER	271129 WASHER	-	10	Enquire
