Name: PISTONS AND CONNECTING RODS
Rating: 5.0 (1 reviews)

View All

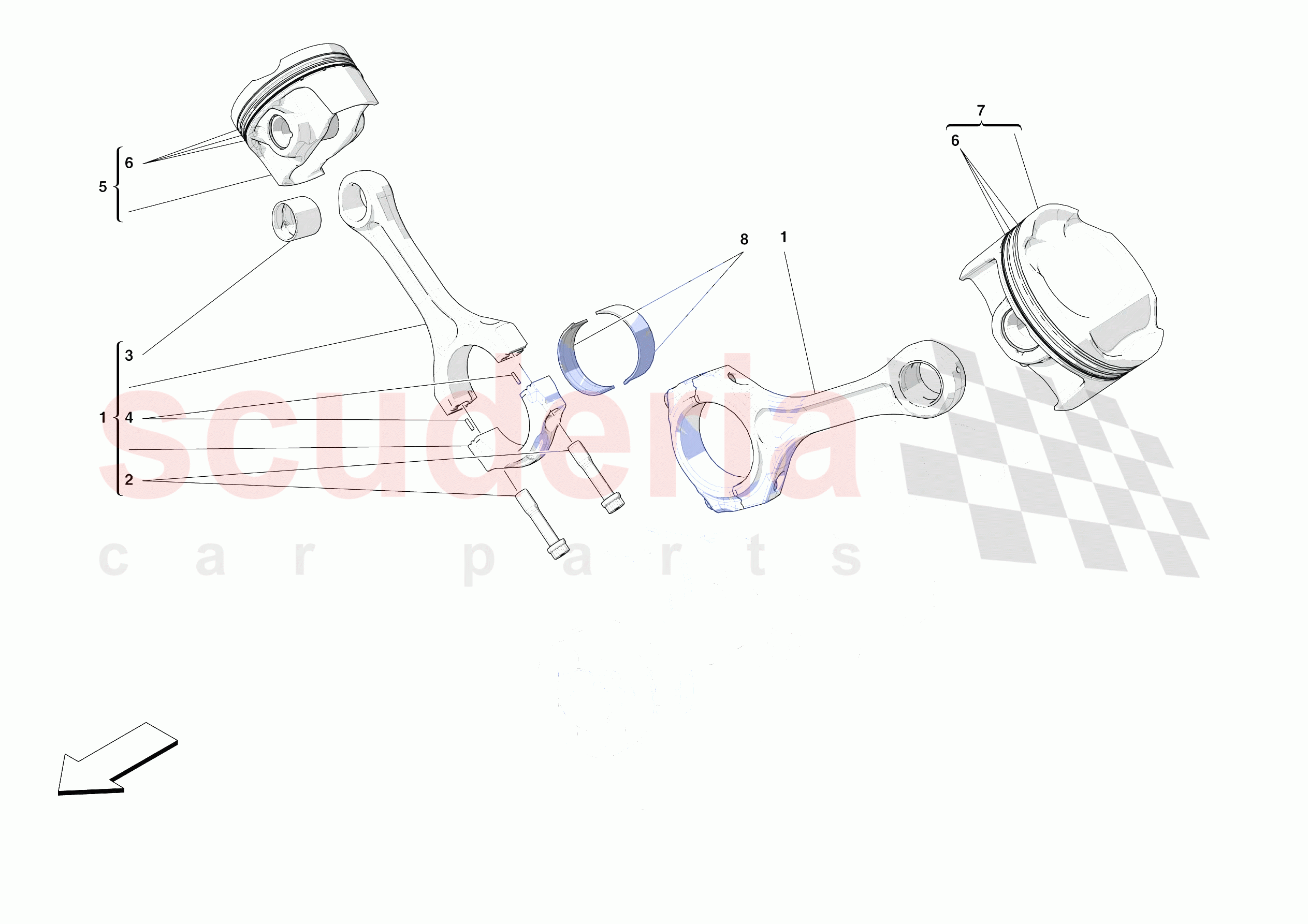

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	337446	COMPL. CONNECTING ROD AND CAP	$1,278.51	To Order

Photo	Part No	Description	Price (each)	Stock
	767760	CON. ROD FASTENER SCREW	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	301753	BUSH	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	337553	ALIGNMENT PIN	$6.86	To Order

Photo	Part No	Description	Price (each)	Stock
	334885	COMPL. RH PISTON	$738.10	To Order

Photo	Part No	Description	Price (each)	Stock
	343625	COMPL. PISTON RING SET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	334886	COMPL. LH PISTON	$738.10	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	337446	COMPL. CONNECTING ROD AND CAP	337446 COMPL. CONNECTING ROD AND CAP	$1,278.51	8
0002	767760	CON. ROD FASTENER SCREW	767760 CON. ROD FASTENER SCREW	$42.98	16
0003	301753	BUSH	301753 BUSH	$57.75	8
0004	337553	ALIGNMENT PIN	337553 ALIGNMENT PIN	$6.86	16
0005	334885	COMPL. RH PISTON	334885 COMPL. RH PISTON	$738.10	4
0006	343625	COMPL. PISTON RING SET	343625 COMPL. PISTON RING SET	$192.54	8
0007	334886	COMPL. LH PISTON	334886 COMPL. LH PISTON	$738.10	4
0008	312691	CONNECTING ROD HALF-BEARING	312691 CONNECTING ROD HALF-BEARING Black	$20.05	16
0008	312692	CONNECTING ROD HALF-BEARING	312692 CONNECTING ROD HALF-BEARING Blue	$20.05	16
0008	312693	CONNECTING ROD HALF-BEARING	312693 CONNECTING ROD HALF-BEARING Red	$20.05	16
