Device For Lifting The Head Lamps

Ferrari F40

Find Your Part

Ferrari F40 - Device for lifting the head lamps

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
62387510 Housing R.H. light Enquire To Order
Photo Part No Description Price (each) Stock
62458500 R.H. housing grille Enquire To Order
Photo Part No Description Price (each) Stock
62452400 R.H. support lifting motor Enquire To Order
Photo Part No Description Price (each) Stock
62453800 Spacer (Possible mounting) Enquire To Order
Photo Part No Description Price (each) Stock
62454000 Pin Enquire To Order
Photo Part No Description Price (each) Stock
62454100 Support Enquire To Order
Photo Part No Description Price (each) Stock
10444521 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10615274 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10721911 NUT Enquire To Order
Photo Part No Description Price (each) Stock
50087709 STOP BUFFER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
62454200 R.H. fixed hinge Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62482000 Bush Enquire To Order
Photo Part No Description Price (each) Stock
62454600 Mobile hinge R.H. light Enquire To Order
Photo Part No Description Price (each) Stock
62454800 Mobile hinge R.H. light Enquire To Order
Photo Part No Description Price (each) Stock
62455300 Plate Enquire To Order
Photo Part No Description Price (each) Stock
62455400 Shim mm. 1 Enquire To Order
Photo Part No Description Price (each) Stock
62455600 Conn. rod - crank assy Enquire To Order
Photo Part No Description Price (each) Stock
62455600 Conn. rod - crank assy Enquire To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
15908478 Screw Enquire To Order
Photo Part No Description Price (each) Stock
16160976 SNAP RING Enquire To Order
Photo Part No Description Price (each) Stock
172534 Lifting motor for R.H. headlamp Enquire To Order
Photo Part No Description Price (each) Stock
133080 R.H. HEADLIGHT LOW/HIGH BEAM Enquire To Order
Photo Part No Description Price (each) Stock
62536700 R.H. lower bracket Enquire To Order
Photo Part No Description Price (each) Stock
129544 Spring -For cars with Enquire To Order
Photo Part No Description Price (each) Stock
62550200 R.H. sheet Enquire To Order
Photo Part No Description Price (each) Stock
60174307 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
148086 FIXED POINT PIN Enquire To Order
Photo Part No Description Price (each) Stock
148088 HEADLIGHT ADJUSTING SCREW Enquire To Order
Photo Part No Description Price (each) Stock
60331402 UPPER GUARD FOR LIGHT LIFTING MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
60331204 LOWER GUARD FOR RH LIGHT LIFTING MOTOR Enquire To Order
View All

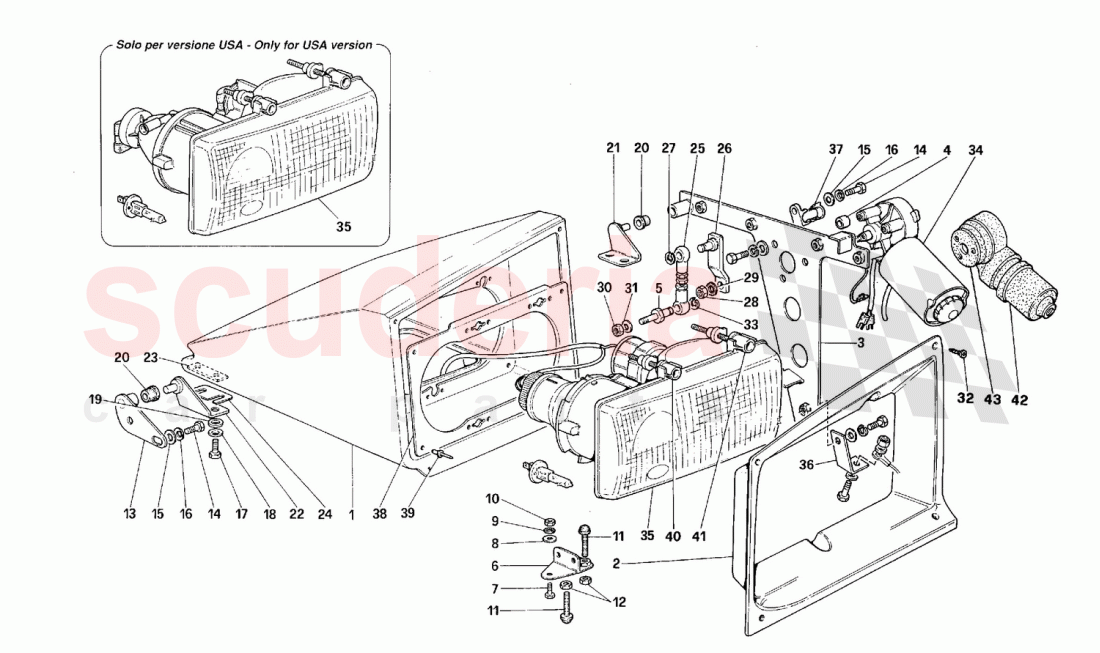

Device for lifting the head lamps of Ferrari Ferrari F40 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 60331303
LOWER GUARD FOR LH LIGHT LIFTING MOTOR 		- 1 Enquire
- 62550300
L.H. sheet 		- 1 Enquire
- 62536800
L.H. lower bracket 		- 1 Enquire
- 133086
RH HEADLIGHT LOW/HIGH BEAM
Valid for F 		- 1 Enquire
- 133087
LH HEADLIGHT LOW/HIGH BEAM
Valid for F 		- 1 Enquire
- 133084
R.H. HEADLIGHT LOW/HIGH BEAM
Valid for GB 		- 1 Enquire
- 133081
L.H. HEADLIGHT LOW/HIGH BEAM
Valid for GB 		- 1 Enquire
- 133081
L.H. HEADLIGHT LOW/HIGH BEAM
Not for USA, F and GB 		- 1 Enquire
- 133082
R.H. HEADLIGHT LOW/HIGH BEAM
Valid for USA 		- 1 Enquire
- 133083
L.H. HEADLIGHT LOW/HIGH BEAM
Valid for USA 		- 1 Enquire
- 172535
Lifting motor for L.H. headlamp 		- 1 Enquire
- 62455500
Shim mm. 1.5 (Possible mounting)
(Possible mounting) 		- 4 Enquire
- 62455600
Conn. rod - crank assy 		- 2 Enquire
- 62454700
Mobile hinge L.H. light 		- 1 Enquire
- 62454900
Mobile hinge L.H. light 		- 1 Enquire
- 62454300
L.H. fixed hinge 		- 1 Enquire
- 62458600
L.H. housing grille 		- 1 Enquire
- 62452500
L.H. support lifting motor 		- 1 Enquire
- 62387610
Housing L.H. light 		- 1 Enquire
1 62387510
Housing R.H. light 		- 1 Enquire
2 62458500
R.H. housing grille 		- 1 Enquire
3 62452400
R.H. support lifting motor 		- 1 Enquire
4 62453800
Spacer (Possible mounting) 		- 6 Enquire
5 62454000
Pin 		- 2 Enquire
6 62454100
Support 		- 2 Enquire
7 10444521
SCREW 		- 6 Enquire
8 62769800
WASHER 		- 6 Enquire
9 10615274
WASHER 		- 6 Enquire
10 10721911
NUT 		- 6 Enquire
11 50087709
STOP BUFFER 		- 4 Enquire
12 14059290
FLANGED NUT M6 		- 4 Enquire
13 62454200
R.H. fixed hinge 		- 1 Enquire
14 81591700
SCREW 		- 12 Enquire
15 12643724
WASHER 		- 12 Enquire
16 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 12 Enquire
17 81591700
SCREW 		- 8 Enquire
18 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 8 Enquire
19 12643724
WASHER 		- 8 Enquire
20 62482000
Bush 		- 4 Enquire
21 62454600
Mobile hinge R.H. light 		- 1 Enquire
22 62454800
Mobile hinge R.H. light 		- 1 Enquire
23 62455300
Plate 		- 4 Enquire
24 62455400
Shim mm. 1 		- 4 Enquire
25 62455600
Conn. rod - crank assy
With assembly 62455600 		- 2 Enquire
26 62455600
Conn. rod - crank assy
With assembly 62455600 		- 2 Enquire
27 11087974
SNAP RING 		- 2 Enquire
28 14059290
FLANGED NUT M6 		- 2 Enquire
29 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
30 14059290
FLANGED NUT M6 		- 2 Enquire
31 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
32 15908478
Screw 		- 8 Enquire
33 16160976
SNAP RING 		- 2 Enquire
34 172534
Lifting motor for R.H. headlamp 		- 1 Enquire
35 133080
R.H. HEADLIGHT LOW/HIGH BEAM
Not for USA, F and GB 		- 1 Enquire
36 62536700
R.H. lower bracket 		- 1 Enquire
37 129544
Spring -For cars with 		- 2 Enquire
38 62550200
R.H. sheet 		- 1 Enquire
39 60174307
RIVET 		- 18 Enquire
40 148086
FIXED POINT PIN 		- 2 Enquire
41 148088
HEADLIGHT ADJUSTING SCREW 		- 4 Enquire
42 60331402
UPPER GUARD FOR LIGHT LIFTING MOTOR 		- 2 Enquire
43 60331204
LOWER GUARD FOR RH LIGHT LIFTING MOTOR 		- 1 Enquire
