Name: Lifting systems (for equipped cars)
Rating: 5.0 (1 reviews)

Lifting systems (for equipped cars) of Ferrari Ferrari F40

View All

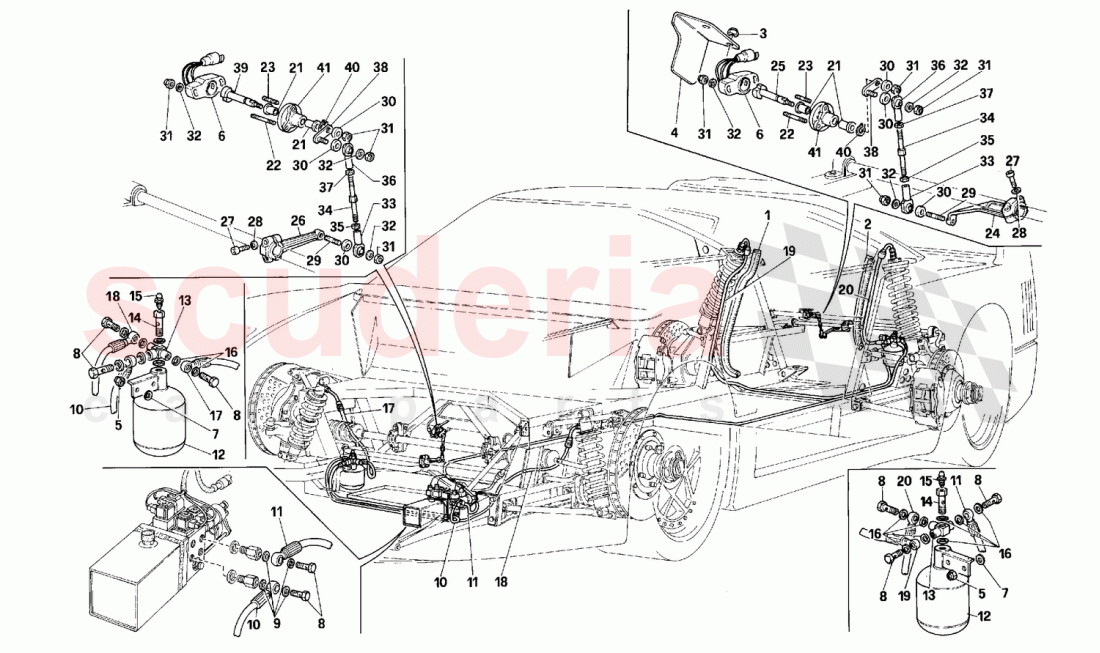

Ferrari F40 - Lifting systems (for equipped cars)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	142185	R.H. pipe protection	$115.51	To Order

Photo	Part No	Description	Price (each)	Stock
	142186	L.H. pipe protection	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	14058319	NUT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	143285	Screen	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	138138	Potentiometer	$1,643.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14496501	WASHER	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	113670	Screw	$60.73	To Order

Photo	Part No	Description	Price (each)	Stock
	118024	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137447	Tube	$625.42	To Order

Photo	Part No	Description	Price (each)	Stock
	137448	Tube	$730.87	To Order

Photo	Part No	Description	Price (each)	Stock
	137965	Accumulator	$1,070.69	To Order

Photo	Part No	Description	Price (each)	Stock
	137586	Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137582	Hose	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	137584	Screw	$20.24	To Order

Photo	Part No	Description	Price (each)	Stock
	118024	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137444	Tube/Shock abs front R.H.	$850.42	To Order

Photo	Part No	Description	Price (each)	Stock
	137449	Tube/Shock abs front L.H.	$637.33	To Order

Photo	Part No	Description	Price (each)	Stock
	137446	Tube/Shock abs rear R.H.	$946.70	To Order

Photo	Part No	Description	Price (each)	Stock
	137445	Tube/Shock abs rear L.H.	$882.80	To Order

Photo	Part No	Description	Price (each)	Stock
	138016	Bushing	$2.37	To Order

Photo	Part No	Description	Price (each)	Stock
	138053	Stud bolt	$10.83	To Order

Photo	Part No	Description	Price (each)	Stock
	138054	Stud bolt	$103.68	To Order

Photo	Part No	Description	Price (each)	Stock
	137975	Rear lever	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	138047	Pin	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	137974	Front lever	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	138040	Pin	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	138041	Washer	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14496204	WASHER	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	137999	Ball joint	$296.48	To Order

Photo	Part No	Description	Price (each)	Stock
	138001	Tie rod	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138000	Ball joint L.H.	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	136645	L.H. nut	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	138042	Lever	$157.23	To Order

Photo	Part No	Description	Price (each)	Stock
	138046	Pin	$304.86	To Order

Photo	Part No	Description	Price (each)	Stock
	11065474	CIRCLIP	$0.13	To Order

Photo	Part No	Description	Price (each)	Stock
	137998	Pin support	$46.52	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	70000706	Mounting set complete with lifting system (*)	70000706 Mounting set complete with lifting system () lifting system ()	$21,320.54	1
1	142185	R.H. pipe protection	142185 R.H. pipe protection	$115.51	1
2	142186	L.H. pipe protection	142186 L.H. pipe protection	$107.49	1
3	14058319	NUT	14058319 NUT	$0.34	2
4	143285	Screen	143285 Screen	$48.12	1
5	16104411	Selflocking nut	16104411 Selflocking nut	$0.21 MSRP: ~~0.92~~ (77.2% off)	4
6	138138	Potentiometer	138138 Potentiometer	$1,643.34	2
7	14496501	WASHER	14496501 WASHER	$0.16	4
8	113670	Screw	113670 Screw	$60.73	8
9	118024	Gasket	118024 Gasket	-	4	Enquire
10	137447	Tube	137447 Tube	$625.42	1
11	137448	Tube	137448 Tube	$730.87	1
12	137965	Accumulator	137965 Accumulator	$1,070.69	2
13	137586	Union	137586 Union	-	2	Enquire
14	137582	Hose	137582 Hose	$48.12	2
15	137584	Screw	137584 Screw	$20.24	2
16	118024	Gasket	118024 Gasket	-	16	Enquire
17	137444	Tube/Shock abs front R.H.	137444 Tube/Shock abs front R.H.	$850.42	1
18	137449	Tube/Shock abs front L.H.	137449 Tube/Shock abs front L.H.	$637.33	1
19	137446	Tube/Shock abs rear R.H.	137446 Tube/Shock abs rear R.H.	$946.70	1
20	137445	Tube/Shock abs rear L.H.	137445 Tube/Shock abs rear L.H.	$882.80	1
21	138016	Bushing	138016 Bushing	$2.37	4
22	138053	Stud bolt	138053 Stud bolt	$10.83	4
23	138054	Stud bolt	138054 Stud bolt	$103.68	2
24	137975	Rear lever	137975 Rear lever	$208.58	1
25	138047	Pin	138047 Pin	$320.90	1
26	137974	Front lever	137974 Front lever	$77.00	1
27	231620	SCREW	231620 SCREW	$0.32 MSRP: ~~0.35~~ (8.6% off)	4
28	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
29	138040	Pin	138040 Pin	$62.56	2
30	138041	Washer	138041 Washer	$1.65	6
31	62790300	NUT	62790300 NUT	$0.31 MSRP: ~~0.75~~ (58.7% off)	12
32	14496204	WASHER	14496204 WASHER	$0.18	10
33	137999	Ball joint	137999 Ball joint	$296.48	2
34	138001	Tie rod	138001 Tie rod	$49.73	2
35	16101714	NUT	16101714 NUT	-	2	Enquire
36	138000	Ball joint L.H.	138000 Ball joint L.H.	$320.90	2
37	136645	L.H. nut	136645 L.H. nut	$0.73	2
38	138042	Lever	138042 Lever	$157.23	2
39	138046	Pin	138046 Pin	$304.86	1
40	11065474	CIRCLIP	11065474 CIRCLIP	$0.13 MSRP: ~~0.95~~ (86.3% off)	2
41	137998	Pin support	137998 Pin support	$46.52	2
