Find Your Part

View All

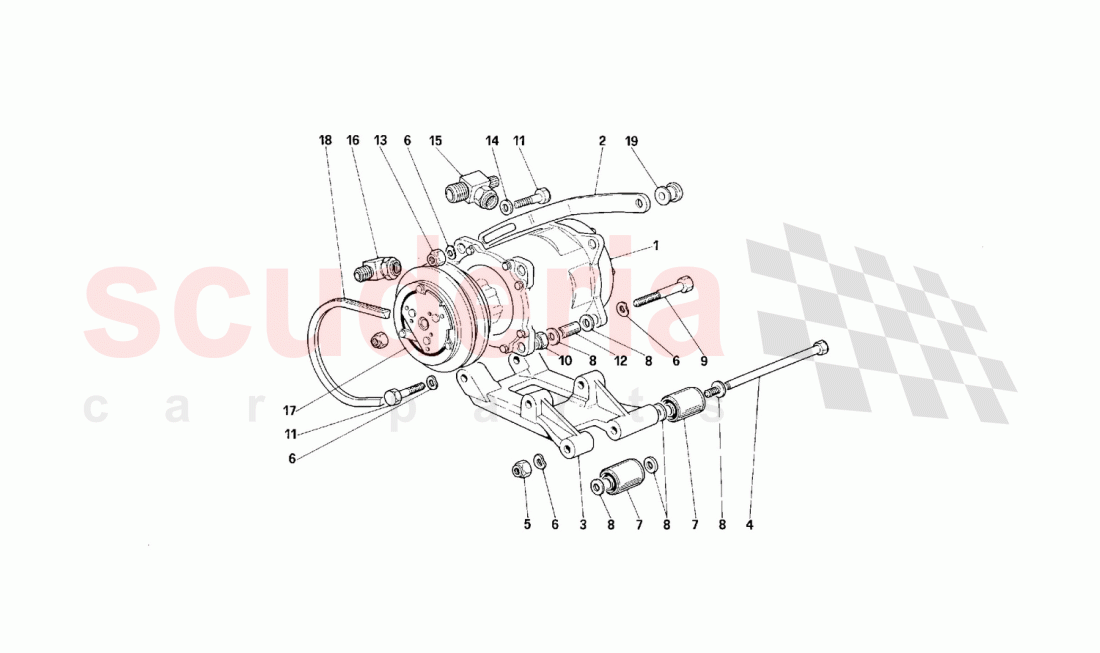

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	121966	Compressor (SANKYO 507)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122448	Lower bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	146914	Upper mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122418	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121928	Silentblock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102695	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11343821	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15970921	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122947	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124333	Fitting for intake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124334	Fitting for outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122422	Clutch - clock wise rotation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122973A	A.C. compressor control belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122449	Spacer	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	121966	Compressor (SANKYO 507)	121966 Compressor (SANKYO 507)	-	1	Enquire
2	122448	Lower bracket	122448 Lower bracket	-	1	Enquire
3	146914	Upper mounting	146914 Upper mounting	-	1	Enquire
4	122418	SCREW	122418 SCREW	-	1	Enquire
5	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	-	1	Enquire
6	12601474	WAVY WASHER 10MM IN STOCK	12601474 WAVY WASHER 10MM IN STOCK	-	6	Enquire
7	121928	Silentblock	121928 Silentblock	-	2	Enquire
8	102695	WASHER	102695 WASHER	-	8	Enquire
9	11343821	SCREW IN STOCK	11343821 SCREW IN STOCK	-	2	Enquire
10	102742	Nyloc Nut M10 x 1.25 x 10mm IN STOCK	102742 Nyloc Nut M10 x 1.25 x 10mm IN STOCK	-	2	Enquire
11	15970921	SCREW IN STOCK	15970921 SCREW IN STOCK	-	3	Enquire
12	122947	Bush	122947 Bush	-	2	Enquire
13	12574521	Nyloc Nut IN STOCK	12574521 Nyloc Nut IN STOCK	-	1	Enquire
14	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	-	1	Enquire
15	124333	Fitting for intake	124333 Fitting for intake	-	1	Enquire
16	124334	Fitting for outlet	124334 Fitting for outlet	-	1	Enquire
17	122422	Clutch - clock wise rotation	122422 Clutch - clock wise rotation	-	1	Enquire
18	122973A	A.C. compressor control belt	122973A A.C. compressor control belt	-	1	Enquire
19	122449	Spacer	122449 Spacer	-	1	Enquire
