Windshield wiper and horns of Ferrari Ferrari F40

View All

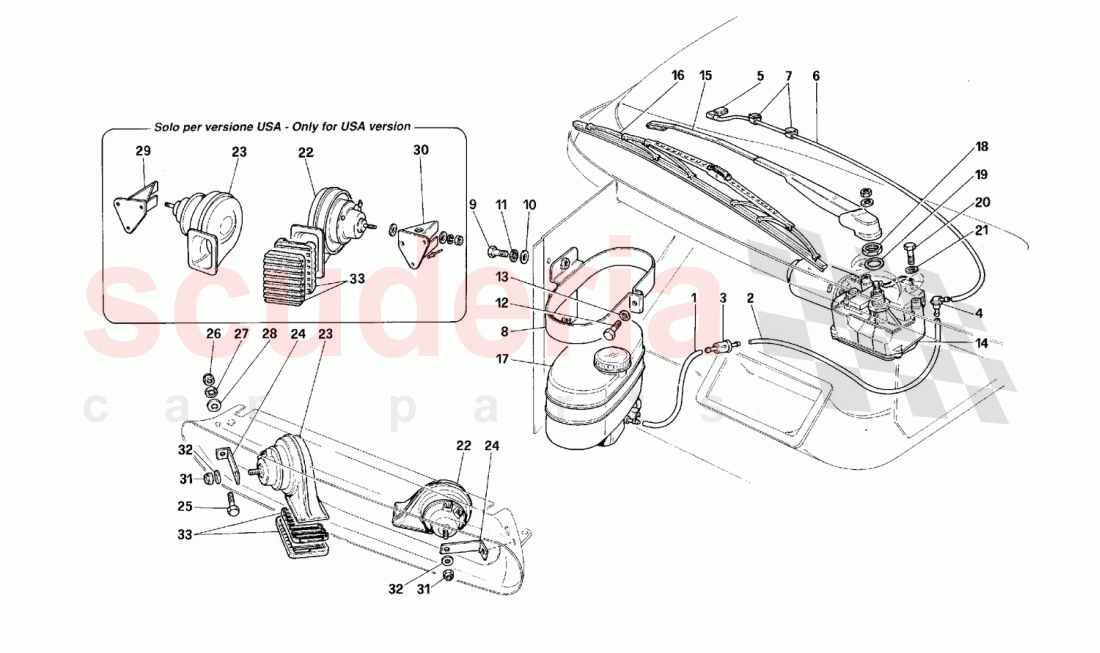

Ferrari F40 - Windshield wiper and horns

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	62530800	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62530900	GLASS WASHER PIPE FROM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50332402	NON-RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61648000	UNION ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61537500	R.H. AND L.H. JET FOR WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62488800	GLASS WASHER PIPE FROM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61559400	Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62496700	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10445711	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173913	WINDSHIELD WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62424400	wiper arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62424500	Wiper blade	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60375706	Washer bag	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16103928	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138183	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62464000	Horn (lower tone)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62463900	Horn (high tone)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62506400	Horns fixing bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043221	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136904	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62903900	R.H. horn fixing bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62904000	L.H. horn fixing bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70000550	Protection horns grille	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	62530800	Pipe	62530800 Pipe	-	1	Enquire
2	62530900	GLASS WASHER PIPE FROM PUMP	62530900 GLASS WASHER PIPE FROM PUMP	-	1	Enquire
3	50332402	NON-RETURN VALVE	50332402 NON-RETURN VALVE	-	1	Enquire
4	61648000	UNION ASSEMBLY	61648000 UNION ASSEMBLY	-	1	Enquire
5	61537500	R.H. AND L.H. JET FOR WINDOW	61537500 R.H. AND L.H. JET FOR WINDOW	-	1	Enquire
6	62488800	GLASS WASHER PIPE FROM	62488800 GLASS WASHER PIPE FROM	-	1	Enquire
7	61559400	Spring	61559400 Spring	-	2	Enquire
8	62496700	Clip	62496700 Clip	-	1	Enquire
9	10977524	SCREW	10977524 SCREW	-	2	Enquire
10	12643724	WASHER	12643724 WASHER	-	2	Enquire
11	12601374	WASHER	12601374 WASHER	-	2	Enquire
12	10445711	Screw	10445711 Screw	-	1	Enquire
13	10615274	WASHER	10615274 WASHER	-	1	Enquire
14	173913	WINDSHIELD WIPER MOTOR	173913 WINDSHIELD WIPER MOTOR	-	1	Enquire
15	62424400	wiper arm	62424400 wiper arm	-	1	Enquire
16	62424500	Wiper blade	62424500 Wiper blade	-	1	Enquire
17	60375706	Washer bag	60375706 Washer bag	-	1	Enquire
18	16103928	Nut	16103928 Nut	-	1	Enquire
19	138183	Washer	138183 Washer	-	1	Enquire
20	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714-	-	2	Enquire
21	12643724	WASHER	12643724 WASHER	-	2	Enquire
22	62464000	Horn (lower tone)	62464000 Horn (lower tone)	-	1	Enquire
23	62463900	Horn (high tone)	62463900 Horn (high tone)	-	1	Enquire
24	62506400	Horns fixing bracket	62506400 Horns fixing bracket Not for USA	-	2	Enquire
25	16043221	SCREW	16043221 SCREW	-	2	Enquire
26	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
27	12601374	WASHER	12601374 WASHER	-	2	Enquire
28	136904	Washer	136904 Washer	-	2	Enquire
29	62903900	R.H. horn fixing bracket	62903900 R.H. horn fixing bracket Valid for USA	-	1	Enquire
30	62904000	L.H. horn fixing bracket	62904000 L.H. horn fixing bracket Valid for USA	-	1	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
32	10519424	WASHER	10519424 WASHER	-	2	Enquire
33	70000550	Protection horns grille	70000550 Protection horns grille	-	2	Enquire
