PASSENGER COMPARTMENT MATS

Find Your Part

Ferrari F12 Berlinetta - PASSENGER COMPARTMENT MATS

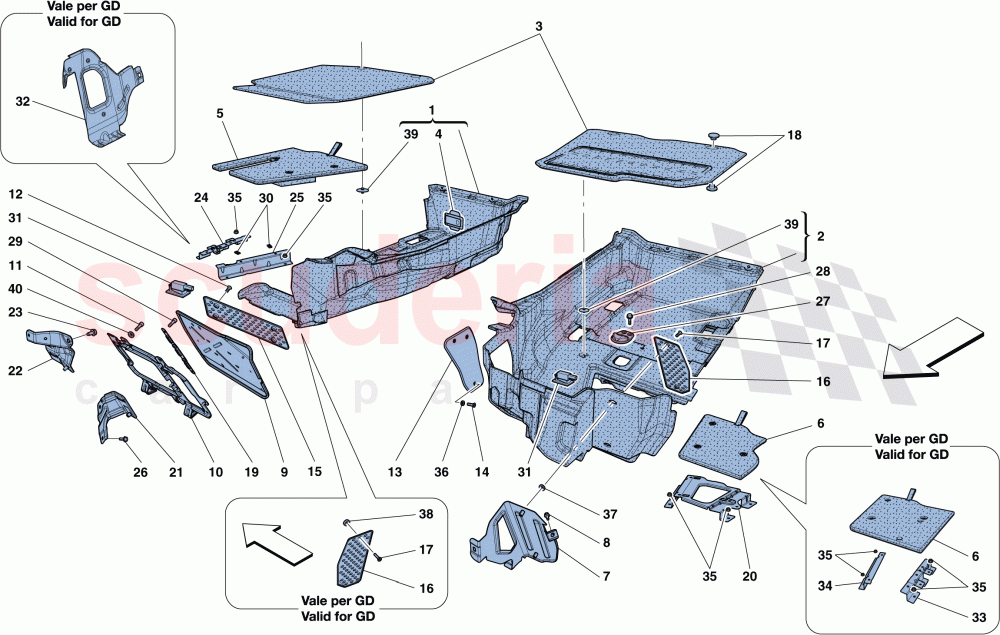

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
84988100 COMPL. RH MAT Enquire To Order
85959900 COMPL. RH MAT Enquire To Order
85960000 COMPL. RH MAT Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85610100 COMPL. LH MAT Enquire To Order
85960300 COMPL. LH MAT Enquire To Order
85960200 COMPL. LH MAT Enquire To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85643500 REMOVABLE MAT KIT Enquire To Order
87655000 REMOVABLE MAT KIT Enquire To Order
85970800 REMOVABLE MAT KIT $688.05 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83706000 INSPECTION CAP $24.47 To Order
Photo Part No Description Price (each) Stock
85483600 COMPL. RH FRONT CENTRAL COMPARTMENT LID Enquire To Order
85482800 COMPL. RH FRONT CENTRAL COMPARTMENT LID Enquire To Order
84232000 COMPL. RH FRONT CENTRAL COMPARTMENT LID Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85483700 COMPL. LH FRONT CENTRAL COMPARTMENT LID Enquire To Order
85483800 COMPL. LH FRONT CENTRAL COMPARTMENT LID Enquire To Order
83942700 COMPL. LH FRONT CENTRAL COMPARTMENT LID Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83388800 COMPL. DRIVER SIDE FOOTREST $147.61 To Order
85462600 COMPL. DRIVER SIDE FOOTREST $286.67 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
915271 SCREW $1.31 To Order
81911600 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
83224200 MPL. PASSENGER SIDE FOOTREST Enquire To Order
83549000 PASSENGER SIDE FOOT REST Enquire To Order
83133500 MPL. PASSENGER SIDE FOOTREST Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85459700 COMPL. PASSENGER FOOTREST STRUCTURE $172.00 To Order
84558900 FOOTREST STRUCTURE $415.69 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
62797600 Allen Bolt Countersunk M6 x 20 $1.10 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $1.10 To Order
Photo Part No Description Price (each) Stock
85305600 COMPL. ACCELERATOR PEDAL SHIELD $121.93 To Order
81243100 ACCELERATOR PEDAL PLATE $91.45 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $1.10 To Order
62797600 Allen Bolt Countersunk M6 x 20 $1.10 To Order
Photo Part No Description Price (each) Stock
66122200 FOOTREST TRIM $110.70 To Order
Photo Part No Description Price (each) Stock
82388200 LH FOOT REST ALUMINIUM $176.49 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $1.10 To Order
Photo Part No Description Price (each) Stock
85970400 FASTENER BUTTON Enquire To Order
82549900 STENER BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
84558600 BRACKET FOR FOOTREST TRIM $64.17 To Order
Photo Part No Description Price (each) Stock
84207900 LH FRONT COVER BRACKET $40.11 To Order
Photo Part No Description Price (each) Stock
81004400 COMPL. UPPER BRACKET $24.05 To Order
84562500 COMPL. UPPER BRACKET $51.59 To Order
Photo Part No Description Price (each) Stock
84044600 COMPL. INNER UPPER BRACKET $65.77 To Order
82277800 COMPL. INNER UPPER BRACKET $30.47 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
83944000 COMPL. OUTER RH HATCH LID BRACKET $56.14 To Order
82287800 COMPL. OUTER RH HATCH LID BRACKET $46.52 To Order
Photo Part No Description Price (each) Stock
82288000 COMPL. INNER RH HATCH LID BRACKET $40.10 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.47 To Order
Photo Part No Description Price (each) Stock
89024000 INERTIA SWITCH SHIELD $12.03 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
81911600 SCREW $0.50 To Order
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
14371279 BRACKET $2.54 To Order
Photo Part No Description Price (each) Stock
188250 DOME LAMP UNIT $5.28 To Order
Photo Part No Description Price (each) Stock
81264200 ACCELERATOR PEDAL SHIELD MOUNTING BRACKET $96.26 To Order
Photo Part No Description Price (each) Stock
82288100 COMPL. INNER LH HATCH LID BRACKET $40.10 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
84738000 WASHER $1.15 To Order
Photo Part No Description Price (each) Stock
85430300 CERAMIC WASHER $4.10 To Order
65708600 SPACER BUSHING $7.52 To Order
Photo Part No Description Price (each) Stock
85617800 WASHER $2.67 To Order
Photo Part No Description Price (each) Stock
85149700 CARPET PROTECTOR FASTENER BUTTON $4.85 To Order
Photo Part No Description Price (each) Stock
65708600 SPACER BUSHING $7.52 To Order
View All
PASSENGER COMPARTMENT MATS of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 84988100
COMPL. RH MAT
Alcantara; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
1 85959900
COMPL. RH MAT
Alcantara; Applicable for GD; Applicable from Ass. No. 117019 		- 1 Enquire
1 85960000
COMPL. RH MAT
Mat; Applicable for GD; Applicable from Ass. No. 117019 		- 1 Enquire
1 84979200
COMPL. RH MAT
Alcantara; Not for GD; Applicable up to Ass. No. 113509 		- 1 Enquire
1 85150000
COMPL. RH MAT
Alcantara; Not for GD; Applicable from Ass. No. 113510 		- 1 Enquire
1 85149600
COMPL. RH MAT
Mat; Not for GD; Applicable from Ass. No. 113510 		- 1 Enquire
1 84987900
COMPL. RH MAT
Mat; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
1 83387800
COMPL. RH MAT
Mat; Not for GD; Applicable up to Ass. No. 113509 		- 1 Enquire
2 85610100
COMPL. LH MAT
Alcantara; Version with telemetry; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
2 85960300
COMPL. LH MAT
Alcantara; Version with telemetry; Applicable for GD; Applicable from Ass. No. 117019 		- 1 Enquire
2 85960200
COMPL. LH MAT
Mat; Version with telemetry; Applicable for GD; Applicable from Ass. No. 117019 		- 1 Enquire
2 85609700
COMPL. LH MAT
Alcantara; Version with telemetry; Not for GD 		- 1 Enquire
2 85559500
COMPL. LH MAT
Mat; Version with telemetry; Not for GD 		- 1 Enquire
2 85609900
COMPL. LH MAT
Mat; Version with telemetry; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
2 84988500
COMPL. LH MAT
Alcantara; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
2 85960100
COMPL. LH MAT
Alcantara; Applicable for GD; Applicable from Ass. No. 117019 		- 1 Enquire
2 84979400
COMPL. LH MAT
Alcantara; Not for GD; Applicable up to Ass. No. 113509 		- 1 Enquire
2 85150200
COMPL. LH MAT
Alcantara; Not for GD; Applicable from Ass. No. 113510 		- 1 Enquire
2 84988300
COMPL. LH MAT
Mat; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
2 85960400
COMPL. LH MAT
Mat; Applicable for GD; Applicable from Ass. No. 117019 		- 1 Enquire
2 83387900
COMPL. LH MAT
Mat; Not for GD; Applicable up to Ass. No. 113509 		- 1 Enquire
2 85150100
COMPL. LH MAT
Mat; Not for GD; Applicable from Ass. No. 113510 		- 1 Enquire
3 85643500
REMOVABLE MAT KIT
Alcantara; Version with fire extinguisher; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
3 87655000
REMOVABLE MAT KIT
Alcantara; Version with fire extinguisher; Applicable for GD; Applicable from Ass. No. 117019 		- 1 Enquire
3 85970800
REMOVABLE MAT KIT
Alcantara; Version with fire extinguisher; Not for GD; Applicable from Ass. No. 113510 		$688.05 1
3 85099800
REMOVABLE MAT KIT
Alcantara; Version with fire extinguisher; Not for GD; Applicable up to Ass. No. 113509 		- 1 Enquire
3 823825
REMOVABLE MAT KIT
1MAT; Mat; Version with fire extinguisher; Consisting of 809209 and 85960600; Applicable for GD; Applicable from Ass. No. 150669; Applicable after depletion of 876549.. 		$802.28 1
3 87654900
REMOVABLE MAT KIT
Mat; Version with fire extinguisher; Consisting of 85961200 and 85960600; Applicable for GD; Applicable from Ass. No. 117019 up to Ass. No. 150668; Applicable until depletion 		- 1 Enquire
3 85643400
REMOVABLE MAT KIT
Mat; Version with fire extinguisher; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
3 823823
REMOVABLE MAT KIT
1MAT; Mat; Version with fire extinguisher; Consisting of 809207 and 85150700; Not for GD; Applicable from Ass. No. 150669; Applicable after depletion of 859707.. 		$802.28 1
3 85099400
REMOVABLE MAT KIT
Mat; Version with fire extinguisher; Not for GD; Applicable up to Ass. No. 113509 		- 1 Enquire
3 85970700
REMOVABLE MAT KIT
Mat; Version with fire extinguisher; Consisting of 85150900 and 85150700; Not for GD; Applicable from Ass. No. 113510 up to Ass. No. 150668; Applicable until depletion 		- 1 Enquire
3 85643300
REMOVABLE MAT KIT
Alcantara; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
3 87654700
REMOVABLE MAT KIT
Alcantara; Applicable for GD; Applicable from Ass. No. 117019 		$1,508.31 1
3 85099600
REMOVABLE MAT KIT
Alcantara; Not for GD; Applicable up to Ass. No. 113509 		$673.92 1
3 85970600
REMOVABLE MAT KIT
Alcantara; Not for GD; Applicable from Ass. No. 113510 		$1,363.89 1
3 823824
REMOVABLE MAT KIT
1MAT; Mat; Consisting of 809209 and 85961000; Applicable for GD; Applicable from Ass. No. 150669; Applicable after depletion of 876548.. 		$802.28 1
3 87654800
REMOVABLE MAT KIT
Mat; Consisting of 85961200 and 85961000; Applicable for GD; Applicable from Ass. No. 117019 up to Ass. No. 150668; Applicable until depletion 		- 1 Enquire
3 85643200
REMOVABLE MAT KIT
Mat; Applicable for GD; Applicable up to Ass. No. 117018 		- 1 Enquire
3 823822
Removeable Mat Kit
1MAT; Mat; Consisting of 809207 and 85150300; Not for GD; Applicable from Ass. No. 150669; Applicable after depletion of 859705.. 		$786.24 1
3 85099000
REMOVABLE MAT KIT
Mat; Not for GD; Applicable up to Ass. No. 113509 		- 1 Enquire
3 85970500
REMOVABLE MAT KIT
Mat; Consisting of 85150300 and 85150900; Not for GD; Applicable from Ass. No. 113510 up to Ass. No. 150668; Applicable until depletion 		- 1 Enquire
4 83706000
INSPECTION CAP
Black 		$24.47 1
5 85483600
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Alcantara; Version with fire extinguisher; Applicable from Ass. No. 111060 		- 1 Enquire
5 85482800
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Mat; Version with fire extinguisher; Applicable from Ass. No. 111060 		- 1 Enquire
5 84232000
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Alcantara; Version with fire extinguisher; Applicable up to Ass. No. 111059 		- 1 Enquire
5 84990000
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Alcantara; Applicable for GD 		- 1 Enquire
5 83992100
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Mat; Version with fire extinguisher; Applicable up to Ass. No. 111059 		- 1 Enquire
5 84281700
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Mat; Not for GD 		- 1 Enquire
5 84989900
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Mat; Applicable for GD 		- 1 Enquire
5 84232100
COMPL. RH FRONT CENTRAL COMPARTMENT LID
Alcantara; Not for GD 		$650.93 1
6 85483700
COMPL. LH FRONT CENTRAL COMPARTMENT LID
Mat; Version with fire extinguisher; Applicable for GD 		- 1 Enquire
6 85483800
COMPL. LH FRONT CENTRAL COMPARTMENT LID
Alcantara; Version with fire extinguisher; Applicable for GD 		- 1 Enquire
6 83942700
COMPL. LH FRONT CENTRAL COMPARTMENT LID
Mat; Applicable for GD 		- 1 Enquire
6 84981400
COMPL. LH FRONT CENTRAL COMPARTMENT LID
Alcantara; Not for GD 		$1,729.74 1
6 84277000
COMPL. LH FRONT CENTRAL COMPARTMENT LID
Alcantara; Applicable for GD 		- 1 Enquire
6 83388500
COMPL. LH FRONT CENTRAL COMPARTMENT LID
Mat; Not for GD 		- 1 Enquire
7 83388800
COMPL. DRIVER SIDE FOOTREST
Not for GD 		$147.61 1
7 85462600
COMPL. DRIVER SIDE FOOTREST
Applicable for GD 		$286.67 1
8 16286124
SCREW
M8 X 18; Not for GD 		$0.37 3
8 915271
SCREW
M6 X 15; Applicable for GD; No longer supplied; Replaced by 269959 		$1.31 3
8 81911600
SCREW
M6 X 18; Applicable for GD 		$0.50 3
9 83224200
MPL. PASSENGER SIDE FOOTREST
Alcantara; Not for GD 		- 1 Enquire
9 83549000
PASSENGER SIDE FOOT REST
Alcantara; Applicable for GD 		- 1 Enquire
9 83133500
MPL. PASSENGER SIDE FOOTREST
Mat; Not for GD 		- 1 Enquire
9 83479500
PASSENGER SIDE FOOT REST
Mat; Applicable for GD 		- 1 Enquire
9 84291690
COMPL.PASSENGER SIDE FOOTREST
Mat; Not for GD; No longer supplied; Replaced by 831335.. 		$2,073.12 1
10 85459700
COMPL. PASSENGER FOOTREST STRUCTURE
Not for GD 		$172.00 1
10 84558900
FOOTREST STRUCTURE
Applicable for GD 		$415.69 1
11 248334
SCREW
M6 X 16; Not for GD 		$0.68 4
11 62797600
Allen Bolt Countersunk M6 x 20
M6 X 25; Applicable for GD 		$1.10 (24.1% off) 4
12 62797600
Allen Bolt Countersunk M6 x 20
M6 X 20 		$1.10 (24.1% off) 4
13 85305600
COMPL. ACCELERATOR PEDAL SHIELD
Not for GD 		$121.93 1
13 81243100
ACCELERATOR PEDAL PLATE
Applicable for GD 		$91.45 1
14 62797600
Allen Bolt Countersunk M6 x 20
M6 X 20; Not for GD 		$1.10 (24.1% off) 3
14 62797600
Allen Bolt Countersunk M6 x 20
M6 X 22; Applicable for GD 		$1.10 (24.1% off) 3
15 66122200
FOOTREST TRIM 		$110.70 1
16 82388200
LH FOOT REST ALUMINIUM 		$176.49 1
17 62797600
Allen Bolt Countersunk M6 x 20
M6 X 20 		$1.10 (24.1% off) 2
18 85970400
FASTENER BUTTON
Panted in same colour as mats; Applicable from Ass. No. 113510 		- 4 Enquire
18 82549900
STENER BUTTON
Panted in same colour as mats; Applicable up to Ass. No. 113509 		- 4 Enquire
19 84558600
BRACKET FOR FOOTREST TRIM 		$64.17 1
20 84207900
LH FRONT COVER BRACKET 		$40.11 1
21 81004400
COMPL. UPPER BRACKET
Not for GD 		$24.05 1
21 84562500
COMPL. UPPER BRACKET
Applicable for GD 		$51.59 1
22 84044600
COMPL. INNER UPPER BRACKET
Applicable for GD 		$65.77 1
22 82277800
COMPL. INNER UPPER BRACKET
Not for GD 		$30.47 1
23 16286124
SCREW
M8 X 18 		$0.37 1
24 83944000
COMPL. OUTER RH HATCH LID BRACKET
Applicable for GD 		$56.14 1
24 82287800
COMPL. OUTER RH HATCH LID BRACKET
Not for GD 		$46.52 1
25 82288000
COMPL. INNER RH HATCH LID BRACKET 		$40.10 1
26 16296934
SCREW 6 X 14MM
M6 X 14 		$0.47 2
27 89024000
INERTIA SWITCH SHIELD 		$12.03 1
28 11568124
SCREW
M5 X 16 		$0.94 2
29 81911600
SCREW
M6 X 18 		$0.50 2
29 248334
SCREW
M6 X 16; No longer supplied; Replaced by 269959 		$0.68 2
30 14371279
BRACKET 		$2.54 9
31 188250
DOME LAMP UNIT 		$5.28 (29.6% off) 2
32 81264200
ACCELERATOR PEDAL SHIELD MOUNTING BRACKET
Applicable for GD 		$96.26 1
34 82288100
COMPL. INNER LH HATCH LID BRACKET
Applicable for GD 		$40.10 1
35 14059211
NUT 		$0.06 8
36 84738000
WASHER 		$1.15 3
37 85430300
CERAMIC WASHER
Applicable for GD 		$4.10 2
37 65708600
SPACER BUSHING
Not for GD 		$7.52 (23.7% off) 2
38 85617800
WASHER
Applicable for GD 		$2.67 2
39 85149700
CARPET PROTECTOR FASTENER BUTTON 		$4.85 (24.8% off) 4
40 65708600
SPACER BUSHING
Applicable for GD 		$7.52 (23.7% off) 4

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
