FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT

Find Your Part

Ferrari F12 Berlinetta - FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT

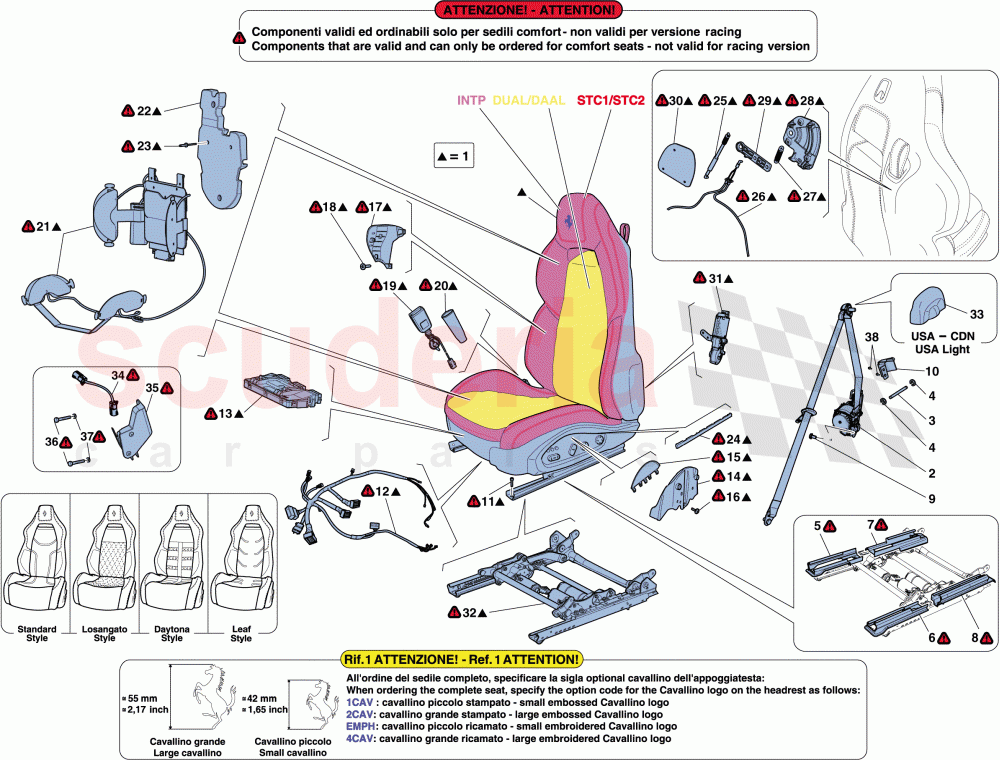

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
85073800 LH SEAT COMPLETE WITH GUIDE RAILS Enquire To Order
85073700 LH SEAT COMPLETE WITH GUIDE RAILS Enquire To Order
85072700 LH SEAT COMPLETE WITH GUIDE RAILS Enquire To Order
...and 47 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85041900 FRONT LH RETRACTOR SECTION Enquire To Order
83410000 FRONT LH RETRACTOR SECTION $850.42 To Order
85041800 FRONT LH RETRACTOR SECTION $850.42 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69129500 BELT LOOP $6.24 To Order
Photo Part No Description Price (each) Stock
11087776 SNAP RING $0.06 To Order
Photo Part No Description Price (each) Stock
83957400 FRONT RH GUIDE RAIL COVER $12.66 To Order
Photo Part No Description Price (each) Stock
83957300 FRONT LH GUIDE RAIL COVER $12.66 To Order
Photo Part No Description Price (each) Stock
83957800 REAR RH GUIDE RAIL COVER, LH SEAT $12.66 To Order
87373800 REAR RH GUIDE RAIL COVER, RH SEAT $12.66 To Order
Photo Part No Description Price (each) Stock
87373700 REAR LH GUIDE RAIL COVER, LH SEAT $12.66 To Order
83957900 REAR LH GUIDE RAIL COVER, RH SEAT $12.66 To Order
Photo Part No Description Price (each) Stock
83911900 SCREW $1.77 To Order
Photo Part No Description Price (each) Stock
84716100 LH RETRACTOR TRIM $27.21 To Order
84716000 RH RETRACTOR TRIM $27.21 To Order
Photo Part No Description Price (each) Stock
82140000 SCREW $3.23 To Order
Photo Part No Description Price (each) Stock
83248100 PASSENGER SIDE WIRING HARNESS $786.24 To Order
85515700 PASSENGER SIDE WIRING HARNESS $372.69 To Order
85515500 DRIVER SIDE WIRING HARNESS $573.36 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85377400 NAG/NAP ECU $2,267.28 To Order
85516400 NAG/NAP ECU $2,127.68 To Order
Photo Part No Description Price (each) Stock
85377700 RH LATERAL RETAINER MOUNT $72.19 To Order
85377800 LH LATERAL RETAINER MOUNT $72.19 To Order
Photo Part No Description Price (each) Stock
83472000 RH BOLSTER SUPPORT $286.67 To Order
83472100 LH BOLSTER SUPPORT $286.67 To Order
Photo Part No Description Price (each) Stock
82588000 SCREW $2.43 To Order
Photo Part No Description Price (each) Stock
85378400 SCREW $12.72 To Order
Photo Part No Description Price (each) Stock
85379500 SEAT BELT SECTION $286.67 To Order
Photo Part No Description Price (each) Stock
85385300 SEAT BELT BUCKLE SECTION SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
85382600 LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT $1,267.62 To Order
Photo Part No Description Price (each) Stock
85382800 LUMBAR SUPPORT AND HEADREST $372.69 To Order
Photo Part No Description Price (each) Stock
82588300 RIVET $19.24 To Order
Photo Part No Description Price (each) Stock
83472500 LH MOULDING $43.31 To Order
83472600 RH MOULDING $43.31 To Order
Photo Part No Description Price (each) Stock
85382900 RELEASE TIE-ROD $85.03 To Order
Photo Part No Description Price (each) Stock
85383000 LH RELEASE CABLE $97.86 To Order
85383100 RH RELEASE CABLE $97.86 To Order
Photo Part No Description Price (each) Stock
85383200 SPRING $5.58 To Order
Photo Part No Description Price (each) Stock
85383600 RH LEVER MOUNTING BRACKET $28.66 To Order
85383300 LH LEVER MOUNTING BRACKET $28.66 To Order
Photo Part No Description Price (each) Stock
85383900 RELEASE LEVER $22.45 To Order
Photo Part No Description Price (each) Stock
82589000 ADJUSTMENT MOTOR $802.28 To Order
82588900 ADJUSTMENT MOTOR $759.72 To Order
Photo Part No Description Price (each) Stock
85384400 UNDERSEAT FRAME $4,221.68 To Order
85384600 UNDERSEAT FRAME $2,766.15 To Order
82586000 UNDER BASE ELEMENT $2,910.16 To Order
Photo Part No Description Price (each) Stock
85515900 WIRING HARNESS $126.75 To Order
Photo Part No Description Price (each) Stock
85516000 COMPLETE MICROSWITCH BRACKET $28.66 To Order
Photo Part No Description Price (each) Stock
85516100 SCREW $7.83 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
View All
FRONT SEAT - SEAT BELTS, GUIDES AND ADJUSTMENT of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 85073800
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; "Leaf" Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85073700
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Mechanical steering column for LHD; Leaf Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV 		- 1 Enquire
1 85072700
LH SEAT COMPLETE WITH GUIDE RAILS
Base; "Leaf" Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		- 1 Enquire
1 85072800
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; "Leaf" Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		$19,750.98 1
1 85040100
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Mechanical steering column for LHD; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV 		- 1 Enquire
1 85039700
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Mechanical steering column for LHD; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV 		- 1 Enquire
1 85039900
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Mechanical steering column for LHD; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV 		$16,659.62 1
1 85039500
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Mechanical steering column for LHD; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV 		$44,871.49 1
1 84753100
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		- 1 Enquire
1 85040200
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85040000
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 84753000
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		$27,143.92 1
1 84752400
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		- 1 Enquire
1 84752500
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		$16,659.62 1
1 85039800
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 84751800
LH SEAT COMPLETE WITH GUIDE RAILS
Base; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		- 1 Enquire
1 84751900
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		$16,328.38 1
1 84641100
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		$25,174.53 1
1 85039600
LH SEAT COMPLETE WITH GUIDE RAILS
Full house; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		$17,161.16 1
1 83384700
LH SEAT COMPLETE WITH GUIDE RAILS
Base; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD 		$18,667.88 1
1 85076700
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; "Leaf" Style; Cpod; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		- 1 Enquire
1 85072600
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; "Leaf" Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		- 1 Enquire
1 85073600
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; "Leaf" Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85076600
RH SEAT COMPLETE WITH GUIDE RAILS
Base; "Leaf" Style; Cpod; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		- 1 Enquire
1 85072500
RH SEAT COMPLETE WITH GUIDE RAILS
Base; "Leaf" Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		- 1 Enquire
1 85073500
RH SEAT COMPLETE WITH GUIDE RAILS
Base; "Leaf" Style; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85077400
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Cpod; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		- 1 Enquire
1 84752800
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		- 1 Enquire
1 85039400
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85039300
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85077300
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Cpod; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		- 1 Enquire
1 84752700
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Seat piping; INTP; DUAL; Daal; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		$27,143.92 1
1 85077200
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Cpod; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		$16,659.62 1
1 84752200
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		$16,659.62 1
1 85039200
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85077100
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Cpod; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		$16,659.62 1
1 85039100
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85077000
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Cpod; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		$16,659.62 1
1 84752100
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Diamond style pattern; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		- 1 Enquire
1 85039000
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		$17,161.16 1
1 84751600
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		$17,161.16 1
1 85038900
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85076900
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Cpod; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		$17,161.16 1
1 84751500
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Daytona; INTP; DUAL; Daal; STC1; STC2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		- 1 Enquire
1 85038800
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		$17,161.16 1
1 85076800
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; Cpod; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		- 1 Enquire
1 84641200
RH SEAT COMPLETE WITH GUIDE RAILS
Full house; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		$26,172.59 1
1 85038700
RH SEAT COMPLETE WITH GUIDE RAILS
Base; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD 		- 1 Enquire
1 85076400
RH SEAT COMPLETE WITH GUIDE RAILS
Base; Cpod; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN 		- 1 Enquire
1 83384600
RH SEAT COMPLETE WITH GUIDE RAILS
Base; INTP; DUAL; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD 		$18,667.88 1
2 85041900
FRONT LH RETRACTOR SECTION
Coloured; Order 85041800 for black; Applicable for GD 		- 1 Enquire
2 83410000
FRONT LH RETRACTOR SECTION
Standard; Black; Not for GD 		$850.42 1
2 85041800
FRONT LH RETRACTOR SECTION
Standard; Black; Applicable for GD 		$850.42 1
2 84791600
FRONT LH RETRACTOR SECTION
Coloured; Order 83410000 for black; Not for GD 		- 1 Enquire
2 84791500
FRONT RH RETRACTOR SECTION
Coloured; Order 83409900 for black; Not for GD 		$650.93 1
2 85041700
FRONT RH RETRACTOR SECTION
Coloured; Order 85041600 for black; Applicable for GD 		- 1 Enquire
2 83409900
FRONT RH RETRACTOR SECTION
Standard; Black; Not for GD 		$850.42 1
2 85041600
FRONT RH RETRACTOR SECTION
Standard; Black; Applicable for GD 		$850.42 1
3 69129500
BELT LOOP 		$6.24 2
4 11087776
SNAP RING 		$0.06 4
5 83957400
FRONT RH GUIDE RAIL COVER 		$12.66 2
6 83957300
FRONT LH GUIDE RAIL COVER 		$12.66 2
7 83957800
REAR RH GUIDE RAIL COVER, LH SEAT 		$12.66 1
7 87373800
REAR RH GUIDE RAIL COVER, RH SEAT 		$12.66 1
8 87373700
REAR LH GUIDE RAIL COVER, LH SEAT 		$12.66 1
8 83957900
REAR LH GUIDE RAIL COVER, RH SEAT 		$12.66 1
9 83911900
SCREW 		$1.77 2
10 84716100
LH RETRACTOR TRIM 		$27.21 1
10 84716000
RH RETRACTOR TRIM 		$27.21 1
11 82140000
SCREW
M10 X 1.25 X 25; Fastening seat 		$3.23 (23.1% off) 8
12 83248100
PASSENGER SIDE WIRING HARNESS
Full house; No memory 		$786.24 1
12 85515700
PASSENGER SIDE WIRING HARNESS
Base; Also applicable for driver side with mechanical steering column; Applicable from Ass. No. 109417 		$372.69 1
12 85515500
DRIVER SIDE WIRING HARNESS
Electric, base; Applicable from Ass. No. 109417 		$573.36 1
12 82586900
DRIVER SIDE WIRING HARNESS
Full house 		$914.60 1
12 83248300
DRIVER/PASSENGER SIDE WIRING HARNESS
Base; Also applicable for driver side with mechanical steering column; Applicable up to Ass. No. 109416 		$722.05 1
12 83247900
DRIVER SIDE WIRING HARNESS
Electric, base; Applicable up to Ass. No. 109416 		$444.36 1
13 85377400
NAG/NAP ECU
Applicable up to Ass. No. 109416 		$2,267.28 1
13 85516400
NAG/NAP ECU
Applicable from Ass. No. 109417 		$2,127.68 1
14 85377700
RH LATERAL RETAINER MOUNT 		$72.19 2
14 85377800
LH LATERAL RETAINER MOUNT 		$72.19 2
15 83472000
RH BOLSTER SUPPORT
Full house 		$286.67 1
15 83472100
LH BOLSTER SUPPORT
Full house 		$286.67 1
16 82588000
SCREW 		$2.43 2
17 85378200
RH BACKREST LATERAL RETAINER MOUNT 		$72.19 1
17 85378300
LH BACKREST LATERAL RETAINER MOUNT 		$72.19 1
18 85378400
SCREW 		$12.72 2
19 85379500
SEAT BELT SECTION 		$286.67 2
20 85385300
SEAT BELT BUCKLE SECTION SLEEVE
Leather 		- 2 Enquire
21 85382600
LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT 		$1,267.62 2
22 85382800
LUMBAR SUPPORT AND HEADREST 		$372.69 2
23 82588300
RIVET 		$19.24 8
24 83472500
LH MOULDING 		$43.31 2
24 83472600
RH MOULDING 		$43.31 2
25 85382900
RELEASE TIE-ROD 		$85.03 2
26 85383000
LH RELEASE CABLE 		$97.86 1
26 85383100
RH RELEASE CABLE 		$97.86 1
27 85383200
SPRING 		$5.58 1
28 85383600
RH LEVER MOUNTING BRACKET 		$28.66 1
28 85383300
LH LEVER MOUNTING BRACKET 		$28.66 1
29 85383900
RELEASE LEVER 		$22.45 2
30 85384100
PROTECTIVE COVER FOR MOUNT 		$25.66 2
31 82589000
ADJUSTMENT MOTOR
Full house 		$802.28 (23.3% off) 1
31 82588900
ADJUSTMENT MOTOR
Base 		$759.72 1
32 85384400
UNDERSEAT FRAME
Base 		$4,221.68 1
32 85384600
UNDERSEAT FRAME
Full house; Passenger side 		$2,766.15 1
32 82586000
UNDER BASE ELEMENT
Full house; Driver side 		$2,910.16 1
34 85515900
WIRING HARNESS
Applicable from Ass. No. 109417 		$126.75 2
35 85516000
COMPLETE MICROSWITCH BRACKET
Applicable from Ass. No. 109417 		$28.66 2
36 85516100
SCREW
Applicable from Ass. No. 109417 		$7.83 4
37 85516200
SHIM
Applicable from Ass. No. 109417 		$3.91 4
38 85833900
SCREW
M5 X 10
ARRIVING SOON 		$0.36 4

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
