Find Your Part

FRONT SEAT - TRIM AND ACCESSORIES of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - FRONT SEAT - TRIM AND ACCESSORIES

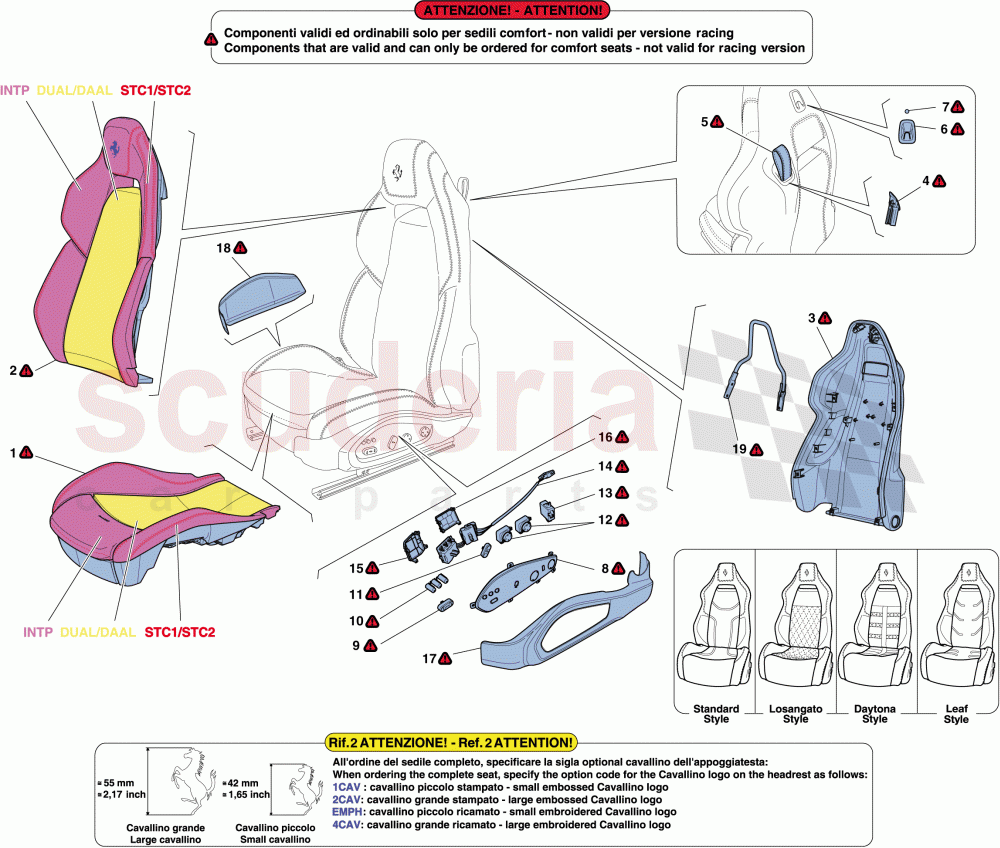

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	788090	CUSHION UPHOLSTERY WITH PADDING	Enquire	To Order
	788091	CUSHION UPHOLSTERY WITH PADDING	Enquire	To Order
	788088	CUSHION UPHOLSTERY WITH PADDING	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85388600	BACKREST UPHOLSTERY WITH PADDING	Enquire	To Order
	85388500	BACKREST UPHOLSTERY WITH PADDING	Enquire	To Order
	85388300	BACKREST UPHOLSTERY WITH PADDING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85388900	LH BACKREST BACKING SHELL	Enquire	To Order
	85388800	RH BACKREST BACKING SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85389000	LH RELEASE LEVER SURROUND	Enquire	To Order
	85389300	RH RELEASE LEVER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85389600	RELEASE STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84852200	GARMENT HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84852300	GARMENT HOOK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82593200	RH BUTTON FIXING PLATE	Enquire	To Order
	80862600	LH BUTTON PANEL	Enquire	To Order
	80862500	RH BUTTON FIXING PLATE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980145096	SEAT CUSHION ADJUSTMENT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81040600	LH MEMORY BUTTON	Enquire	To Order
	81040700	RH MEMORY BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82593500	ADJUSTMENT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82593700	RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	Enquire	To Order
	82593600	LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145109	LH Heated Seat Adjustment Switch	Enquire	To Order
	980145108	RH HEATED SEAT ADJUSTMENT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145092	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	Enquire	To Order
	980145091	RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	Enquire	To Order
	980145094	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980145099	RH CUSHION JOYSTICK HOUSING	Enquire	To Order
	980145101	LH CUSHION JOYSTICK HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145097	RH BACKREST JOYSTICK HOUSING	Enquire	To Order
	980145098	LH BACKREST JOYSTICK HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85389800	OUTER LATERAL RH SEAT COVER PANEL	Enquire	To Order
	85389900	OUTER LATERAL LH SEAT COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85390100	INNER LATERAL RH SEAT COVER PANEL	Enquire	To Order
	85390200	INNER LATERAL LH SEAT COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85389700	UPPER STRUCTURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	788090	CUSHION UPHOLSTERY WITH PADDING	788090 CUSHION UPHOLSTERY WITH PADDING Daytona; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; STP1; STP2; Cpod; Applicable for USA, CDN	-	2	Enquire
1	788091	CUSHION UPHOLSTERY WITH PADDING	788091 CUSHION UPHOLSTERY WITH PADDING Diamond style pattern; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; Cpod; Applicable for USA, CDN	-	2	Enquire
1	788088	CUSHION UPHOLSTERY WITH PADDING	788088 CUSHION UPHOLSTERY WITH PADDING Standard; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; Cpod; Applicable for USA, CDN	-	2	Enquire
1	788089	CUSHION UPHOLSTERY WITH PADDING	788089 CUSHION UPHOLSTERY WITH PADDING Leaf Style; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; Cpod; Applicable for USA, CDN	-	2	Enquire
1	788086	CUSHION UPHOLSTERY WITH PADDING	788086 CUSHION UPHOLSTERY WITH PADDING Daytona; INTP; DUAL; DAAL; STC1; STC2; PIP1; STP1; STP2; Cpod; Applicable for USA, CDN	-	2	Enquire
1	788087	CUSHION UPHOLSTERY WITH PADDING	788087 CUSHION UPHOLSTERY WITH PADDING Diamond style pattern; INTP; DUAL; DAAL; STC1; STC2; PIP1; Cpod; Applicable for USA, CDN	-	2	Enquire
1	788085	CUSHION UPHOLSTERY WITH PADDING	788085 CUSHION UPHOLSTERY WITH PADDING Leaf Style; INTP; DUAL; DAAL; STC1; STC2; PIP1; Cpod; Applicable for USA, CDN	-	2	Enquire
1	85386200	CUSHION UPHOLSTERY WITH PADDING	85386200 CUSHION UPHOLSTERY WITH PADDING Diamond style pattern; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; Not for USA, CDN	-	2	Enquire
1	788084	CUSHION UPHOLSTERY WITH PADDING	788084 CUSHION UPHOLSTERY WITH PADDING Standard; INTP; DUAL; DAAL; STC1; STC2; PIP1; Cpod; Applicable for USA, CDN	-	2	Enquire
1	85386000	CUSHION UPHOLSTERY WITH PADDING	85386000 CUSHION UPHOLSTERY WITH PADDING Leaf Style; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; Not for USA, CDN	-	2	Enquire
1	85386100	CUSHION UPHOLSTERY WITH PADDING	85386100 CUSHION UPHOLSTERY WITH PADDING Daytona; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; STP1; STP2; Not for USA, CDN	-	2	Enquire
1	85385900	CUSHION UPHOLSTERY WITH PADDING	85385900 CUSHION UPHOLSTERY WITH PADDING Standard; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; Not for USA, CDN	-	2	Enquire
1	85385700	CUSHION UPHOLSTERY WITH PADDING	85385700 CUSHION UPHOLSTERY WITH PADDING Daytona; INTP; DUAL; DAAL; STC1; STC2; PIP1; STP1; STP2; Not for USA, CDN	-	2	Enquire
1	85385800	CUSHION UPHOLSTERY WITH PADDING	85385800 CUSHION UPHOLSTERY WITH PADDING Diamond style pattern; INTP; DUAL; DAAL; STC1; STC2; PIP1; Not for USA, CDN	-	2	Enquire
1	85385400	CUSHION UPHOLSTERY WITH PADDING	85385400 CUSHION UPHOLSTERY WITH PADDING Standard; INTP; DUAL; DAAL; STC1; STC2; PIP1; Not for USA, CDN	-	2	Enquire
1	85385600	CUSHION UPHOLSTERY WITH PADDING	85385600 CUSHION UPHOLSTERY WITH PADDING Leaf Style; INTP; DUAL; DAAL; STC1; STC2; PIP1; Not for USA, CDN	-	2	Enquire
2	85388600	BACKREST UPHOLSTERY WITH PADDING	85388600 BACKREST UPHOLSTERY WITH PADDING Diamond style pattern; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
2	85388500	BACKREST UPHOLSTERY WITH PADDING	85388500 BACKREST UPHOLSTERY WITH PADDING Daytona; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
2	85388300	BACKREST UPHOLSTERY WITH PADDING	85388300 BACKREST UPHOLSTERY WITH PADDING Standard; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
2	85388400	BACKREST UPHOLSTERY WITH PADDING	85388400 BACKREST UPHOLSTERY WITH PADDING Leaf Style; Heated; INTP; DUAL; DAAL; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
2	85388100	BACKREST UPHOLSTERY WITH PADDING	85388100 BACKREST UPHOLSTERY WITH PADDING Daytona; INTP; DUAL; DAAL; STC1; STC2; PIP1; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
2	85388200	BACKREST UPHOLSTERY WITH PADDING	85388200 BACKREST UPHOLSTERY WITH PADDING Diamond style pattern; INTP; DUAL; DAAL; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
2	85387900	BACKREST UPHOLSTERY WITH PADDING	85387900 BACKREST UPHOLSTERY WITH PADDING Standard; INTP; DUAL; DAAL; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
2	85388000	BACKREST UPHOLSTERY WITH PADDING	85388000 BACKREST UPHOLSTERY WITH PADDING Leaf Style; INTP; DUAL; DAAL; STC1; STC2; PIP1; 1CAV; 2CAV; EMPH; 4CAV	-	2	Enquire
3	85388900	LH BACKREST BACKING SHELL	85388900 LH BACKREST BACKING SHELL Leather	-	1	Enquire
3	85388800	RH BACKREST BACKING SHELL	85388800 RH BACKREST BACKING SHELL Leather	-	1	Enquire
4	85389000	LH RELEASE LEVER SURROUND	85389000 LH RELEASE LEVER SURROUND Black	-	1	Enquire
4	85389300	RH RELEASE LEVER SURROUND	85389300 RH RELEASE LEVER SURROUND Black	-	1	Enquire
5	85389600	RELEASE STRAP	85389600 RELEASE STRAP Leather	-	2	Enquire
6	84852200	GARMENT HOOK	84852200 GARMENT HOOK Black	-	2	Enquire
7	84852300	GARMENT HOOK PLUG	84852300 GARMENT HOOK PLUG Black	-	2	Enquire
8	82593200	RH BUTTON FIXING PLATE	82593200 RH BUTTON FIXING PLATE Base; Applicable for GD	-	1	Enquire
8	80862600	LH BUTTON PANEL	80862600 LH BUTTON PANEL Full house; Driver side	-	1	Enquire
8	80862500	RH BUTTON FIXING PLATE	80862500 RH BUTTON FIXING PLATE Full house; No memory; Passenger side	-	1	Enquire
8	82593100	LH BUTTON FIXING PLATE	82593100 LH BUTTON FIXING PLATE Base; Not for GD	-	1	Enquire
9	980145096	SEAT CUSHION ADJUSTMENT BUTTON	980145096 SEAT CUSHION ADJUSTMENT BUTTON 8W	-	1	Enquire
10	81040600	LH MEMORY BUTTON	81040600 LH MEMORY BUTTON Full house; Driver side	-	1	Enquire
10	81040700	RH MEMORY BUTTON	81040700 RH MEMORY BUTTON Full house; Driver side	-	1	Enquire
11	82593500	ADJUSTMENT BUTTON	82593500 ADJUSTMENT BUTTON	-	1	Enquire
12	82593700	RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	82593700 RH LUMBAR SUPPORT ADJUSTMENT JOYSTICK Full house	-	1	Enquire
12	82593600	LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK	82593600 LH LUMBAR SUPPORT ADJUSTMENT JOYSTICK Full house	-	1	Enquire
13	980145109	LH Heated Seat Adjustment Switch	980145109 LH Heated Seat Adjustment Switch Full house	-	1	Enquire
13	980145108	RH HEATED SEAT ADJUSTMENT SWITCH	980145108 RH HEATED SEAT ADJUSTMENT SWITCH Full house	-	1	Enquire
14	980145092	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145092 LH CUSHION/BACKREST ADJUSTMENT JOYSTICK Base	-	1	Enquire
14	980145091	RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145091 RH CUSHION/BACKREST ADJUSTMENT JOYSTICK Base	-	1	Enquire
14	980145094	LH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145094 LH CUSHION/BACKREST ADJUSTMENT JOYSTICK Full house	-	1	Enquire
14	980145093	RH CUSHION/BACKREST ADJUSTMENT JOYSTICK	980145093 RH CUSHION/BACKREST ADJUSTMENT JOYSTICK Full house	-	1	Enquire
15	980145099	RH CUSHION JOYSTICK HOUSING	980145099 RH CUSHION JOYSTICK HOUSING	-	1	Enquire
15	980145101	LH CUSHION JOYSTICK HOUSING	980145101 LH CUSHION JOYSTICK HOUSING	-	1	Enquire
16	980145097	RH BACKREST JOYSTICK HOUSING	980145097 RH BACKREST JOYSTICK HOUSING	-	1	Enquire
16	980145098	LH BACKREST JOYSTICK HOUSING	980145098 LH BACKREST JOYSTICK HOUSING	-	1	Enquire
17	85389800	OUTER LATERAL RH SEAT COVER PANEL	85389800 OUTER LATERAL RH SEAT COVER PANEL Leather	-	1	Enquire
17	85389900	OUTER LATERAL LH SEAT COVER PANEL	85389900 OUTER LATERAL LH SEAT COVER PANEL Leather	-	1	Enquire
18	85390100	INNER LATERAL RH SEAT COVER PANEL	85390100 INNER LATERAL RH SEAT COVER PANEL Leather	-	1	Enquire
18	85390200	INNER LATERAL LH SEAT COVER PANEL	85390200 INNER LATERAL LH SEAT COVER PANEL Leather	-	1	Enquire
19	85389700	UPPER STRUCTURE	85389700 UPPER STRUCTURE	-	2	Enquire
