FRONT SEAT - RACING

Find Your Part

Ferrari California (2012-2014) - FRONT SEAT - RACING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
71860000 LH RACING SEAT Enquire To Order
84410800 LH RACING SEAT $22,544.59 To Order
71840000 LH RACING SEAT Enquire To Order
...and 33 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82996700 FRONT RH SPACER COVER FOR RH SEAT $43.31 To Order
82996600 FRONT LH SPACER COVER FOR RH SEAT $43.31 To Order
82996500 FRONT RH SPACER COVER FOR LH SEAT $81.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82997500 REAR RH SPACER COVER FOR RH SEAT $43.31 To Order
82997400 REAR LH SPACER COVER FOR RH SEAT $43.31 To Order
82997200 REAR LH SPACER COVER FOR LH SEAT $43.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83000300 LOWER RH SHELL FOR RH SEAT $372.69 To Order
83000500 LOWER LH SHELL FOR LH SEAT $372.69 To Order
82997700 LOWER RH SHELL FOR RH SEAT $208.58 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82998100 R.H. UPPER MOULDING FOR R.H. SEAT $372.69 To Order
82998000 L.H. UPPER MOULDING FOR R.H. SEAT $387.02 To Order
82997900 R.H. UPPER MOULDING FOR L.H. SEAT $387.02 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82998200 ENGINE COVER $430.02 To Order
Photo Part No Description Price (each) Stock
82664200 BUCKLE SECTION $417.18 To Order
Photo Part No Description Price (each) Stock
82998300 BUCKLE BRANCH COVER Enquire To Order
Photo Part No Description Price (each) Stock
82998500 RH SEAT BUTTON SURROUND $192.54 To Order
82998400 LH SEAT BUTTON SURROUND $192.54 To Order
Photo Part No Description Price (each) Stock
82998600 SWITCH $208.58 To Order
Photo Part No Description Price (each) Stock
82999100 RH SEAT BOW $372.69 To Order
82999000 LH SEAT BOW $372.69 To Order
Photo Part No Description Price (each) Stock
82999500 RH GUIDE RAIL FOR RH SEAT $1,251.57 To Order
82999400 LH GUIDE RAIL FOR RH SEAT $1,251.57 To Order
82999300 RH GUIDE RAIL FOR LH SEAT $1,315.75 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67606400 CAP $49.22 To Order
Photo Part No Description Price (each) Stock
82999600 SCREW $36.24 To Order
Photo Part No Description Price (each) Stock
82999700 SCREW $27.42 To Order
Photo Part No Description Price (each) Stock
82999800 EXTERNAL TRAVEL LIMIT BRACKET FOR LH/RH SEAT $88.85 To Order
Photo Part No Description Price (each) Stock
83000000 INTERNAL TRAVEL LIMIT BRACKET FOR RH SEAT $115.51 To Order
82999900 INTERNAL TRAVEL LIMIT BRACKET FOR LH SEAT $115.51 To Order
Photo Part No Description Price (each) Stock
83000200 EASY ENTRY SYSTEM BOWDEN CABLE FOR RH SEAT $286.67 To Order
83000100 EASY ENTRY SYSTEM BOWDEN CABLE FOR LH SEAT $286.67 To Order
View All

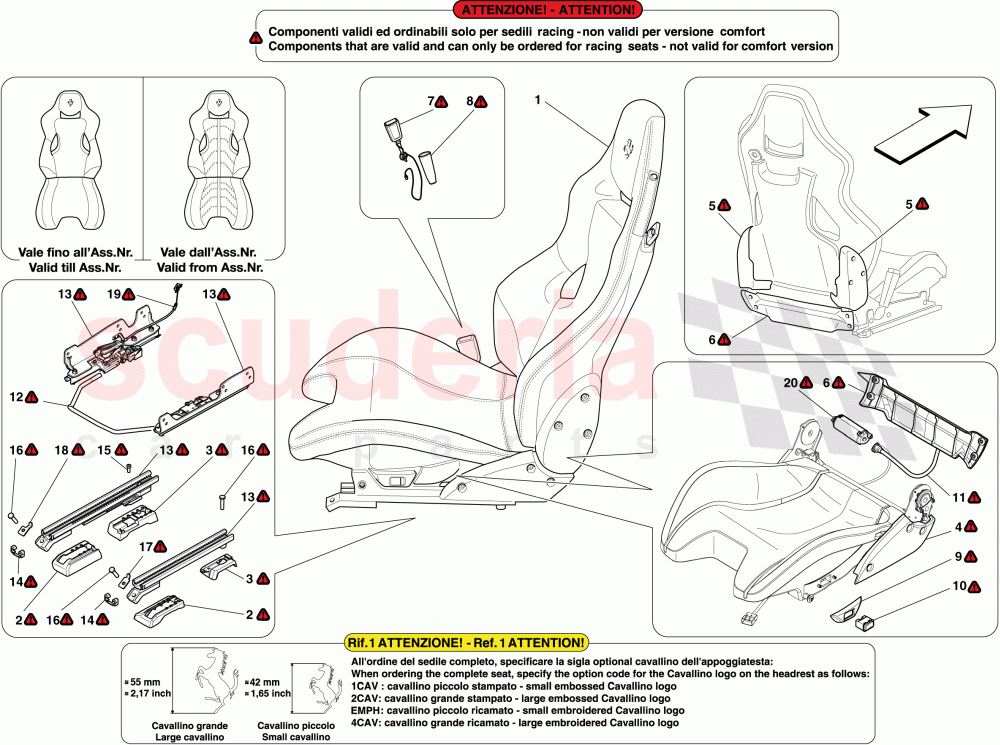

FRONT SEAT - RACING of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 71860000
LH RACING SEAT
Small; Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84410800
LH RACING SEAT
Large; Leather; Alcantara; INTP; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable from Ass. No. 101559 		$22,544.59 1
1 71840000
LH RACING SEAT
Medium; Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84410500
LH RACING SEAT
Small; Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71830000
LH RACING SEAT
Small; Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84410700
LH RACING SEAT
Large; Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable from Ass. No. 101559 		$10,275.52 1
1 71820000
LH RACING SEAT
Large; Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable up to Ass. No. 101558 		$14,815.24 1
1 84410300
LH RACING SEAT
Medium; Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable from Ass. No. 101559 		$22,544.59 1
1 71810000
LH RACING SEAT
Medium; Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 71850000
LH RACING SEAT
Large; Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable up to Ass. No. 101558 		$22,544.59 1
1 84410400
LH RACING SEAT
Medium; Leather; Alcantara; INTP; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 84411800
RH RACING SEAT
Leather; Alcantara; Cpod; INTP; DAAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 101559 		- 1 Enquire
1 71900000
RH RACING SEAT
Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84411700
RH RACING SEAT
Leather; Leather; Cpod; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 101559 		- 1 Enquire
1 71890000
RH RACING SEAT
Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 101558 		$15,293.41 1
1 84410200
RH RACING SEAT
Leather; Alcantara; INTP; DAAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 101559 		$22,544.59 1
1 71880000
RH RACING SEAT
Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD, USA LIGHT; Applicable up to Ass. No. 101558 		$22,544.59 1
1 84410100
RH RACING SEAT
Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 101559 		$10,275.52 1
1 71870000
RH RACING SEAT
Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD, USA LIGHT; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84410600
LH RACING SEAT
Small; Leather; Alcantara; INTP; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD; Applicable from Ass. No. 101559 		$22,544.59 1
1 84410900
RH RACING SEAT
Medium; Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71930000
RH RACING SEAT
Medium; Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84411600
LH RACING SEAT
Leather; Alcantara; INTP; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71920000
LH RACING SEAT
Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84411500
LH RACING SEAT
Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71910000
LH RACING SEAT
Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84411400
RH RACING SEAT
Large; Leather; Alcantara; INTP; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		$22,544.59 1
1 71970000
RH RACING SEAT
Large; Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84411000
RH RACING SEAT
Medium; Leather; Alcantara; INTP; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71960000
RH RACING SEAT
Medium; Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84411100
RH RACING SEAT
Small; Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71950000
RH RACING SEAT
Small; Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
1 84411300
RH RACING SEAT
Large; Leather; Leather; INTP; DUAL; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71940000
RH RACING SEAT
Large; Leather; Leather; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		$30,646.21 1
1 84411200
RH RACING SEAT
Small; Leather; Alcantara; INTP; Daal; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable from Ass. No. 101559 		- 1 Enquire
1 71980000
RH RACING SEAT
Small; Leather; Alcantara; STC1; STC2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD; Applicable up to Ass. No. 101558 		- 1 Enquire
2 82996700
FRONT RH SPACER COVER FOR RH SEAT 		$43.31 1
2 82996600
FRONT LH SPACER COVER FOR RH SEAT 		$43.31 1
2 82996500
FRONT RH SPACER COVER FOR LH SEAT 		$81.82 1
2 82996400
FRONT LH SPACER COVER FOR LH SEAT 		$81.82 1
3 82997500
REAR RH SPACER COVER FOR RH SEAT 		$43.31 1
3 82997400
REAR LH SPACER COVER FOR RH SEAT 		$43.31 1
3 82997200
REAR LH SPACER COVER FOR LH SEAT 		$43.31 1
3 82997300
REAR RH SPACER COVER FOR LH SEAT 		$43.31 1
4 83000300
LOWER RH SHELL FOR RH SEAT
Applicable for GD 		$372.69 1
4 83000500
LOWER LH SHELL FOR LH SEAT
Applicable for GD 		$372.69 1
4 82997700
LOWER RH SHELL FOR RH SEAT
Not for GD 		$208.58 1
4 82997600
LOWER LH SHELL FOR LH SEAT
Not for GD 		$208.58 1
5 82998100
R.H. UPPER MOULDING FOR R.H. SEAT 		$372.69 1
5 82998000
L.H. UPPER MOULDING FOR R.H. SEAT 		$387.02 1
5 82997900
R.H. UPPER MOULDING FOR L.H. SEAT 		$387.02 1
5 82997800
L.H. UPPER MOULDING FOR L.H. SEAT 		$372.69 1
6 82998200
ENGINE COVER 		$430.02 1
7 82664200
BUCKLE SECTION 		$417.18 1
8 82998300
BUCKLE BRANCH COVER
Leather 		- 1 Enquire
9 82998500
RH SEAT BUTTON SURROUND 		$192.54 1
9 82998400
LH SEAT BUTTON SURROUND 		$192.54 1
10 82998600
SWITCH 		$208.58 1
12 82999100
RH SEAT BOW 		$372.69 1
12 82999000
LH SEAT BOW 		$372.69 1
13 82999500
RH GUIDE RAIL FOR RH SEAT 		$1,251.57 1
13 82999400
LH GUIDE RAIL FOR RH SEAT 		$1,251.57 1
13 82999300
RH GUIDE RAIL FOR LH SEAT 		$1,315.75 1
13 82999200
LH GUIDE RAIL FOR LH SEAT 		$1,315.75 1
14 67606400
CAP 		$49.22 4
15 82999600
SCREW 		$36.24 1
16 82999700
SCREW 		$27.42 3
17 82999800
EXTERNAL TRAVEL LIMIT BRACKET FOR LH/RH SEAT 		$88.85 1
18 83000000
INTERNAL TRAVEL LIMIT BRACKET FOR RH SEAT 		$115.51 1
18 82999900
INTERNAL TRAVEL LIMIT BRACKET FOR LH SEAT 		$115.51 1
19 83000200
EASY ENTRY SYSTEM BOWDEN CABLE FOR RH SEAT 		$286.67 1
19 83000100
EASY ENTRY SYSTEM BOWDEN CABLE FOR LH SEAT 		$286.67 1
