Name: AIRBAG SYSTEM
Rating: 4.6 (1 reviews)

AIRBAG SYSTEM of Ferrari Ferrari California (2012-2014)

View All

Ferrari California (2012-2014) - AIRBAG SYSTEM

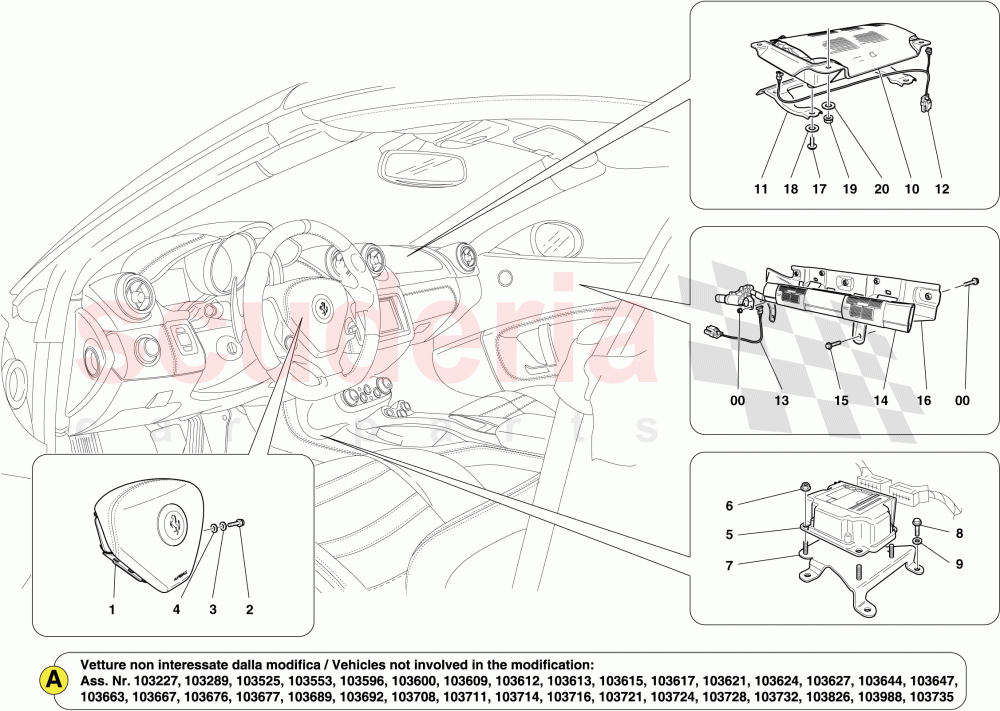

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82023800	DRIVER SIDE AIRBAG MODULE	$4,163.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	279750	ROLL-OVER PROTECTION SYSTEM ECU	$930.65	To Order
	236543	ROLL OVER CONTROL UNIT	$1,010.88	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	236373	CONTROL UNIT FIXING BRACKET	$449.27	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	89207500	PASSENGER AIRBAG	$978.79	To Order

Photo	Part No	Description	Price (each)	Stock
	761622	BRACKET	$72.19	To Order
	761617	BRACKET	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	250998	PASSENGER AIR-BAG CABLE	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	254953	DOOR AIR-BAG CABLE	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	80314900	LH Head Airbag	$1,604.58	To Order
	80315000	RH HEAD AIRBAG	$1,604.58	To Order

Photo	Part No	Description	Price (each)	Stock
	69230200	SCREW	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	80632500	LH BRACKET	$152.42	To Order
	80632600	RH BRACKET	$152.42	To Order

Photo	Part No	Description	Price (each)	Stock
	10902028	SCREW	$0.49	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	82023800	DRIVER SIDE AIRBAG MODULE	82023800 DRIVER SIDE AIRBAG MODULE	$4,163.92	1
2	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
3	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
4	127494	WASHER	127494 WASHER	$0.08 MSRP: ~~0.68~~ (88.2% off)	2
5	279750	ROLL-OVER PROTECTION SYSTEM ECU	279750 ROLL-OVER PROTECTION SYSTEM ECU not affected by modification; Applicable from Ass. No. 103179	$930.65	1
5	236543	ROLL OVER CONTROL UNIT	236543 ROLL OVER CONTROL UNIT Applicable up to Ass. No. 103178	$1,010.88	1
6	14059211	NUT	14059211 NUT	$0.06	3
7	236373	CONTROL UNIT FIXING BRACKET	236373 CONTROL UNIT FIXING BRACKET	$449.27	1
8	14305324	SCREW	14305324 SCREW	$0.08	4
9	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
10	89207500	PASSENGER AIRBAG	89207500 PASSENGER AIRBAG Also order bracket 761617 for LHD or 761622 for RHD ref.11	$978.79	1
11	761622	BRACKET	761622 BRACKET Applicable for airbag 89207500 ref.10; Applicable for GD	$72.19	1
11	761617	BRACKET	761617 BRACKET Applicable for airbag 89207500 ref.10; Not for GD	$72.19	1
12	250998	PASSENGER AIR-BAG CABLE	250998 PASSENGER AIR-BAG CABLE	$55.89	1
13	254953	DOOR AIR-BAG CABLE	254953 DOOR AIR-BAG CABLE	$60.96 MSRP: ~~72.85~~ (16.3% off)	2
14	80314900	LH Head Airbag	80314900 LH Head Airbag	$1,604.58	1
14	80315000	RH HEAD AIRBAG	80315000 RH HEAD AIRBAG	$1,604.58	1
15	69230200	SCREW	69230200 SCREW	$2.14	18
16	80632500	LH BRACKET	80632500 LH BRACKET	$152.42	1
16	80632600	RH BRACKET	80632600 RH BRACKET	$152.42	1
17	10902028	SCREW	10902028 SCREW M6 X 12	$0.49	4
18	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
20	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
