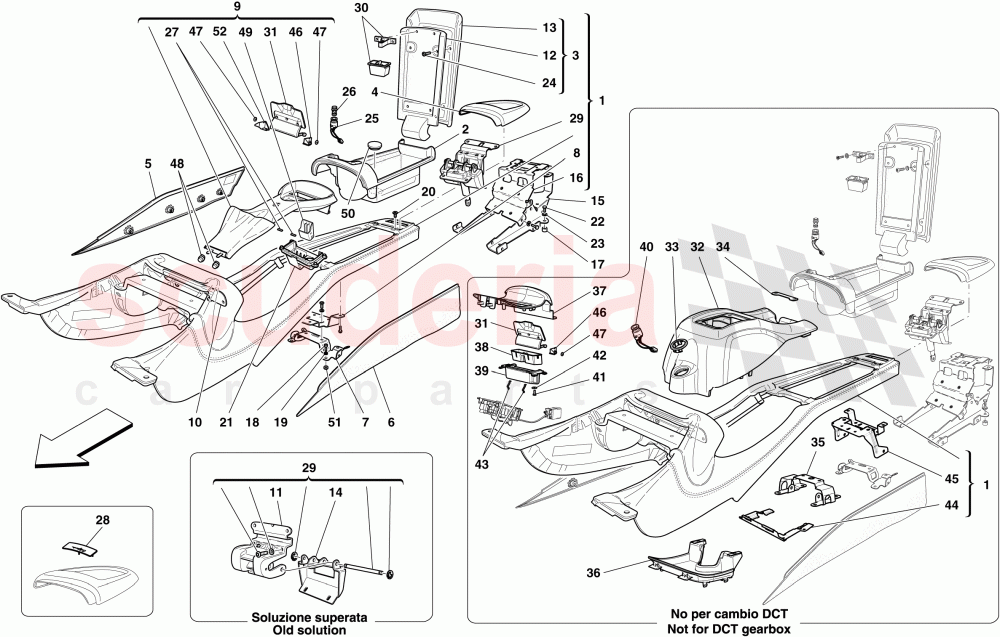

Ferrari California (2012-2014) - CENTRE TUNNEL AND ACCESSORY UNIT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81302300	TUNNEL STRUCTURE	Enquire	To Order
	83133000	TUNNEL STRUCTURE	Enquire	To Order
	82367600	TUNNEL STRUCTURE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	81077500	ODDMENTS STORAGE COMPARTMENT ON TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80803900	COMPL. TUNNEL LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82067100	R.H. CARPET	Enquire	To Order
	80679400	R.H. CARPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82067000	LH MAT	Enquire	To Order
	80679300	LH MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80829400	CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80700000	UPPER CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83442600	UPPER PART OF TUNNEL	Enquire	To Order
	81908800	UPPER PART OF TUNNEL	Enquire	To Order
	83442800	UPPER PART OF TUNNEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80717100	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82272000	COMPLETE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82271800	INTERNAL LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82271600	GLOVE COMPARTMENT LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82272000	COMPLETE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83132900	FUSE BOX BRACKET	Enquire	To Order
	81525100	FUSE BOX BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83133100	UPPER BRACKET FOR FUSE BOX	Enquire	To Order
	82276600	UPPER BRACKET FOR FUSE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81078300	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order
	68176500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82465800	ASHTRAY	Enquire	To Order
	80582000	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	68176200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215406	12 V SOCKET	Enquire	To Order
	183271	CIGARETTE LIGHTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82268900	RUBBER PAD FOR ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81988510	CENTRE CONSOLE DEDICATION PLAQUE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82272000	COMPLETE HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67004800	LID LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81360100	COMPL. ASHTRAY LID	Enquire	To Order
	81072100	COMPL. ASHTRAY LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81302400	MANUAL GEARBOX TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80843600	12 VOLT SOCKET MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81303000	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81579900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83326700	OPEN COMPARTMENT ON TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81302500	UPPER PART OF TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82243500	ASHTRAY TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80829100	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197158	12 V SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83996600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14446821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81072300	FLEXIBLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81302900	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81580000	TUNNEL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81070300	LH ASHTRAY HINGE MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81173400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82248200	RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68807900	ASHTRAY TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81077600	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84413200	RH ASHTRAY HINGE MOUNT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81302300	TUNNEL STRUCTURE	81302300 TUNNEL STRUCTURE STC1; STC2; Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
1	83133000	TUNNEL STRUCTURE	83133000 TUNNEL STRUCTURE Applicable for HELE; Applicable for Stop & Start; STC1; STC2; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
1	82367600	TUNNEL STRUCTURE	82367600 TUNNEL STRUCTURE Not for HELE; Not for Stop & Start; STC1; STC2; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
1	80803800	TUNNEL STRUCTURE	80803800 TUNNEL STRUCTURE STC1; STC2; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); No longer supplied; Replaced by 823676..	-	1	Enquire
2	81077500	ODDMENTS STORAGE COMPARTMENT ON TUNNEL	81077500 ODDMENTS STORAGE COMPARTMENT ON TUNNEL	-	1	Enquire
3	80803900	COMPL. TUNNEL LID	80803900 COMPL. TUNNEL LID No longer supplied	-	1	Enquire
5	82067100	R.H. CARPET	82067100 R.H. CARPET Alcantara	-	1	Enquire
5	80679400	R.H. CARPET	80679400 R.H. CARPET Standard	-	1	Enquire
6	82067000	LH MAT	82067000 LH MAT Alcantara	-	1	Enquire
6	80679300	LH MAT	80679300 LH MAT Standard	-	1	Enquire
7	80829400	CENTRAL BRACKET	80829400 CENTRAL BRACKET	-	1	Enquire
8	80700000	UPPER CENTRAL BRACKET	80700000 UPPER CENTRAL BRACKET Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
9	83442600	UPPER PART OF TUNNEL	83442600 UPPER PART OF TUNNEL Carbon; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 95816; Applicable after depletion of 81908800	-	1	Enquire
9	81908800	UPPER PART OF TUNNEL	81908800 UPPER PART OF TUNNEL Carbon; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
9	83442800	UPPER PART OF TUNNEL	83442800 UPPER PART OF TUNNEL Standard; From Ass. No. 109857, supplied without Cavallino badge; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 94156; Applicable after depletion of 80804000	-	1	Enquire
9	80804000	UPPER PART OF TUNNEL	80804000 UPPER PART OF TUNNEL Standard; From Ass. No. 109857, supplied without Cavallino badge; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD	-	1	Enquire
9	82732800	UPPER PART OF TUNNEL	82732800 UPPER PART OF TUNNEL Carbon; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for USA, CDN, USA LIGHT	-	1	Enquire
9	82732700	UPPER PART OF TUNNEL	82732700 UPPER PART OF TUNNEL Standard; From Ass. No. 109857, supplied without Cavallino badge; Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for USA, CDN, USA LIGHT	-	1	Enquire
10	80717100	BRACKET	80717100 BRACKET	-	1	Enquire
11	82272000	COMPLETE HINGE	82272000 COMPLETE HINGE See ref. 29; No longer supplied; Replaced by 82272000	-	1	Enquire
12	82271800	INTERNAL LID	82271800 INTERNAL LID	-	1	Enquire
13	82271600	GLOVE COMPARTMENT LID	82271600 GLOVE COMPARTMENT LID	-	1	Enquire
14	82272000	COMPLETE HINGE	82272000 COMPLETE HINGE See ref. 29; No longer supplied; Replaced by 82272000	-	1	Enquire
15	83132900	FUSE BOX BRACKET	83132900 FUSE BOX BRACKET Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
15	81525100	FUSE BOX BRACKET	81525100 FUSE BOX BRACKET Not for HELE; Not for Stop & Start	-	1	Enquire
16	83133100	UPPER BRACKET FOR FUSE BOX	83133100 UPPER BRACKET FOR FUSE BOX Applicable for HELE; Applicable for Stop & Start	-	1	Enquire
16	82276600	UPPER BRACKET FOR FUSE BOX	82276600 UPPER BRACKET FOR FUSE BOX Not for HELE; Not for Stop & Start	-	1	Enquire
17	81078300	SHIM	81078300 SHIM	-	4	Enquire
18	14305324	SCREW	14305324 SCREW	-	4	Enquire
19	12643724	WASHER	12643724 WASHER	-	4	Enquire
20	81591700	SCREW	81591700 SCREW	-	2	Enquire
20	68176500	SCREW	68176500 SCREW No longer supplied; Replaced by 85692300	-	2	Enquire
21	82465800	ASHTRAY	82465800 ASHTRAY Applicable for version in carbon fibre; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
21	80582000	ASHTRAY	80582000 ASHTRAY Not for version in carbon fibre; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
22	14305324	SCREW	14305324 SCREW	-	4	Enquire
23	12643724	WASHER	12643724 WASHER	-	2	Enquire
24	85833700	SCREW	85833700 SCREW	-	4	Enquire
24	68176200	SCREW	68176200 SCREW No longer supplied; Replaced by 85692000	-	4	Enquire
25	215406	12 V SOCKET	215406 12 V SOCKET Not for smoker's kit	-	1	Enquire
25	183271	CIGARETTE LIGHTER SOCKET	183271 CIGARETTE LIGHTER SOCKET Applicable for smoker's kit	-	1	Enquire
26	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER	-	1	Enquire
27	82268900	RUBBER PAD FOR ASHTRAY	82268900 RUBBER PAD FOR ASHTRAY Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	2	Enquire
28	81988510	CENTRE CONSOLE DEDICATION PLAQUE	81988510 CENTRE CONSOLE DEDICATION PLAQUE	-	1	Enquire
29	82272000	COMPLETE HINGE	82272000 COMPLETE HINGE	-	1	Enquire
30	67004800	LID LATCH	67004800 LID LATCH	-	1	Enquire
31	81360100	COMPL. ASHTRAY LID	81360100 COMPL. ASHTRAY LID Carbon; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
31	81072100	COMPL. ASHTRAY LID	81072100 COMPL. ASHTRAY LID Standard	-	1	Enquire
32	81302400	MANUAL GEARBOX TRIM	81302400 MANUAL GEARBOX TRIM Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
33	80843600	12 VOLT SOCKET MOUNTING	80843600 12 VOLT SOCKET MOUNTING Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
34	81303000	UPPER BRACKET	81303000 UPPER BRACKET Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
35	81579900	BRACKET	81579900 BRACKET Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
36	83326700	OPEN COMPARTMENT ON TUNNEL	83326700 OPEN COMPARTMENT ON TUNNEL Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
37	81302500	UPPER PART OF TUNNEL	81302500 UPPER PART OF TUNNEL Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
38	82243500	ASHTRAY TRAY	82243500 ASHTRAY TRAY Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
39	80829100	ASHTRAY	80829100 ASHTRAY Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
40	197158	12 V SOCKET	197158 12 V SOCKET Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
41	83996600	SCREW	83996600 SCREW Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	4	Enquire
42	14446821	WASHER	14446821 WASHER Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	4	Enquire
43	81072300	FLEXIBLE BRACKET	81072300 FLEXIBLE BRACKET Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	2	Enquire
44	81302900	LOWER BRACKET	81302900 LOWER BRACKET Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
45	81580000	TUNNEL BRACKET	81580000 TUNNEL BRACKET Not for DCT-F1 gearbox (Applicable for mechanical gearbox)	-	1	Enquire
46	81070300	LH ASHTRAY HINGE MOUNT	81070300 LH ASHTRAY HINGE MOUNT	-	1	Enquire
47	81173400	WASHER	81173400 WASHER	-	2	Enquire
48	82248200	RUBBER	82248200 RUBBER Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	2	Enquire
49	68807900	ASHTRAY TRAY	68807900 ASHTRAY TRAY Applicable for DCT-F1 gearbox (Not for mechanical gearbox)	-	1	Enquire
50	81077600	CAP	81077600 CAP	-	1	Enquire
51	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	2	Enquire
52	84413200	RH ASHTRAY HINGE MOUNT	84413200 RH ASHTRAY HINGE MOUNT	-	1	Enquire
