Name: LEFT HAND CYLINDER HEAD
Rating: 4.2 (1 reviews)

LEFT HAND CYLINDER HEAD of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - LEFT HAND CYLINDER HEAD

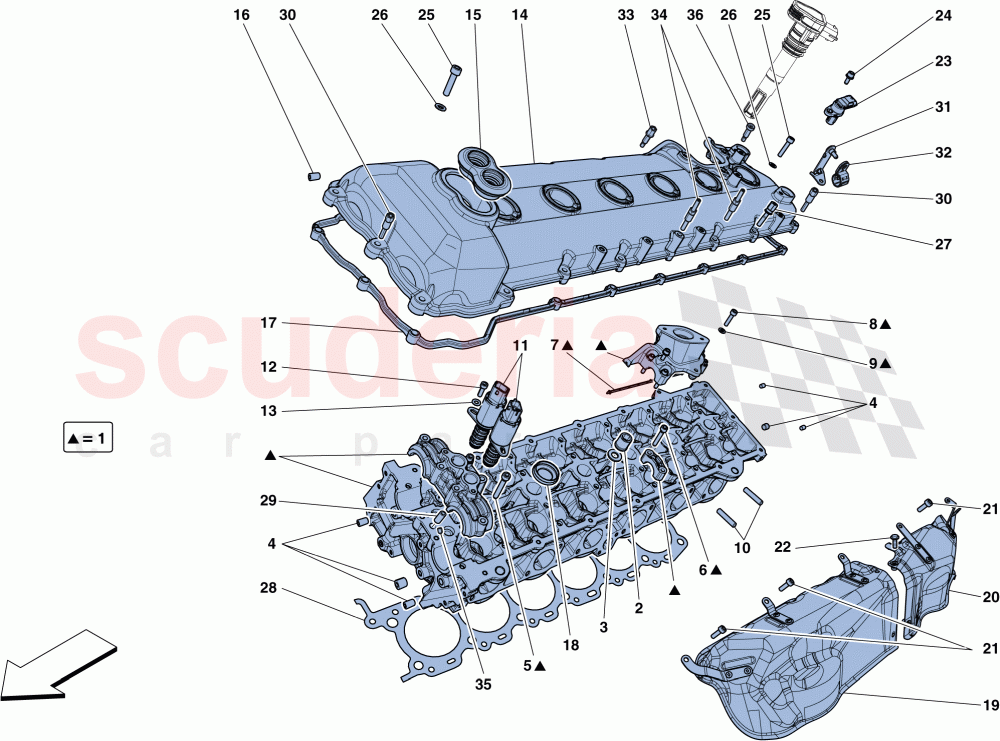

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	767788	LH HEAD	$3,285.83	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order
	282400	THREADED PLUG	$3.91	To Order
	127635	THREADED PLUG	$3.32	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	243721	SCREW WITH WASHER	$0.50	To Order
	243720	SCREW	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	$0.58	To Order
	239502	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	816000	LH CYLINDER HEAD COVER	$1,187.39	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	235754	THREADED PLUG	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	243802	LH HEAD COVER GASKET	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	337669	FRONT LH HEAD HEAT SHIELD	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	337670	REAR LH HEAD HEAT SHIELD	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	11628424	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	343280	TIMING SENSOR	$46.18	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$20.84	To Order
	328484	STUD BOLT	$87.43	To Order

Photo	Part No	Description	Price (each)	Stock
	324014	LH HEAD-CRANKCASE GASKET	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	CHECK VALVE	$9.77	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	324096	CABLE FASTENER BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	320598	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	333779	CALIBRATED STUD BOLT	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	269228	STUD BOLT	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	GRUB SCREW	$7.03	To Order
	342290	GRUB SCREW	$12.89	To Order

Photo	Part No	Description	Price (each)	Stock
	293278	SCREW	$14.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	767788	LH HEAD	767788 LH HEAD	$3,285.83	1
2	321187	NUT	321187 NUT Fastening head to crankcase	-	28	Enquire
3	151117	WASHER	151117 WASHER Fastening head to crankcase	$1.20	28
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; Inspection hole cover	$3.32 MSRP: ~~4.17~~ (20.4% off)	12
4	282400	THREADED PLUG	282400 THREADED PLUG M12 X 11	$3.91	2
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; For rear water orifice cover	$3.32 MSRP: ~~4.17~~ (20.4% off)	1
4	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	$0.31	6
5	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER M6 X 45	$0.50	4
5	243720	SCREW	243720 SCREW M6 X 40	$0.60	2
6	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	$0.58	20
7	239614	GASKET	239614 GASKET Also comes with engine gasket set	$6.73	1
8	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	$0.58	4
8	239502	SCREW	239502 SCREW M6 X 25	$0.63	1
9	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
10	211641	STUD BOLT	211641 STUD BOLT M8 X 16; Shaft length 24 mm	$1.04	12
11	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$240.67	2
12	14304221	SCREW	14304221 SCREW M5 X 16	$0.10	2
13	11181574	WASHER	11181574 WASHER	$0.02	2
14	816000	LH CYLINDER HEAD COVER	816000 LH CYLINDER HEAD COVER	$1,187.39	1
15	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET Also comes with engine gasket set	$19.24 MSRP: ~~29.29~~ (34.3% off)	1
16	235754	THREADED PLUG	235754 THREADED PLUG	$8.33	1
17	243802	LH HEAD COVER GASKET	243802 LH HEAD COVER GASKET Also comes with engine gasket set	$85.03 MSRP: ~~111.59~~ (23.8% off)	1
18	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL Also comes with engine gasket set	$2.54 MSRP: ~~3.97~~ (36% off)	6
19	337669	FRONT LH HEAD HEAT SHIELD	337669 FRONT LH HEAD HEAT SHIELD	$301.00	1
20	337670	REAR LH HEAD HEAT SHIELD	337670 REAR LH HEAD HEAT SHIELD	$301.00	1
21	11628424	SCREW	11628424 SCREW	$0.65	3
22	11625524	SCREW	11625524 SCREW	$0.79	2
23	343280	TIMING SENSOR	343280 TIMING SENSOR	$46.18	2
24	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
25	214412	STUD BOLT	214412 STUD BOLT M6 X 25	$13.14	17
26	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	20
27	339948	STUD BOLT	339948 STUD BOLT	$20.84	2
27	328484	STUD BOLT	328484 STUD BOLT	$87.43	1
28	324014	LH HEAD-CRANKCASE GASKET	324014 LH HEAD-CRANKCASE GASKET Also comes with engine gasket set	$288.81	1
29	200458	CHECK VALVE	200458 CHECK VALVE	$9.77	2
30	214412	STUD BOLT	214412 STUD BOLT	$13.14	2
31	324096	CABLE FASTENER BRACKET	324096 CABLE FASTENER BRACKET No longer supplied	$18.62	1
32	320598	CLIP	320598 CLIP No longer supplied	$1.85	1
33	333779	CALIBRATED STUD BOLT	333779 CALIBRATED STUD BOLT	$17.63	1
34	269228	STUD BOLT	269228 STUD BOLT	$6.66	2
35	226414	GRUB SCREW	226414 GRUB SCREW	$7.03	1
35	342290	GRUB SCREW	342290 GRUB SCREW	$12.89	1
36	293278	SCREW	293278 SCREW M6 X 1	$14.68	1
