Find Your Part

View All

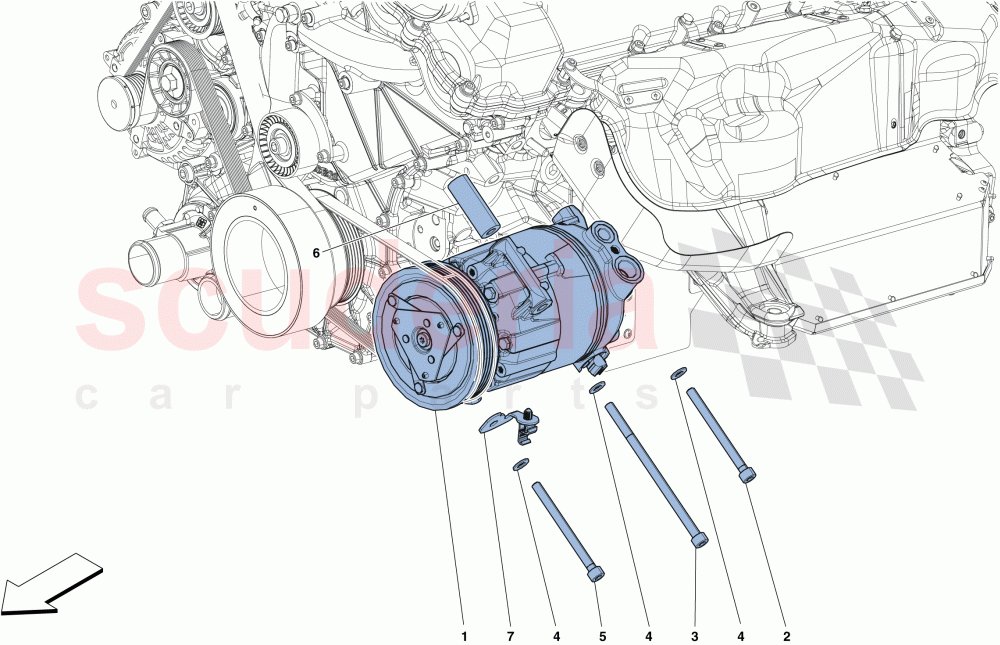

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	287339	AC SYSTEM COMPRESSOR	$1,355.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	268409	SCREW	$15.85	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14302024	SCREW	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	268408	SPACER	$11.88	To Order

Photo	Part No	Description	Price (each)	Stock
	284481	BRACKET COMPL. WITH CLIP	$49.73	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	287339	AC SYSTEM COMPRESSOR	287339 AC SYSTEM COMPRESSOR	$1,355.56	1
2	14307224	SCREW IN STOCK	14307224 SCREW M8 X 90 IN STOCK	$0.63	1
3	268409	SCREW	268409 SCREW M8 X 145	$15.85	1
4	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	3
5	14302024	SCREW	14302024 SCREW M8 X 95	$1.78	1
6	268408	SPACER	268408 SPACER	$11.88	1
7	284481	BRACKET COMPL. WITH CLIP	284481 BRACKET COMPL. WITH CLIP	$49.73	1
