Name: CRANKSHAFT - CONNECTING RODS AND PISTONS
Rating: 5.0 (1 reviews)

CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - CRANKSHAFT - CONNECTING RODS AND PISTONS

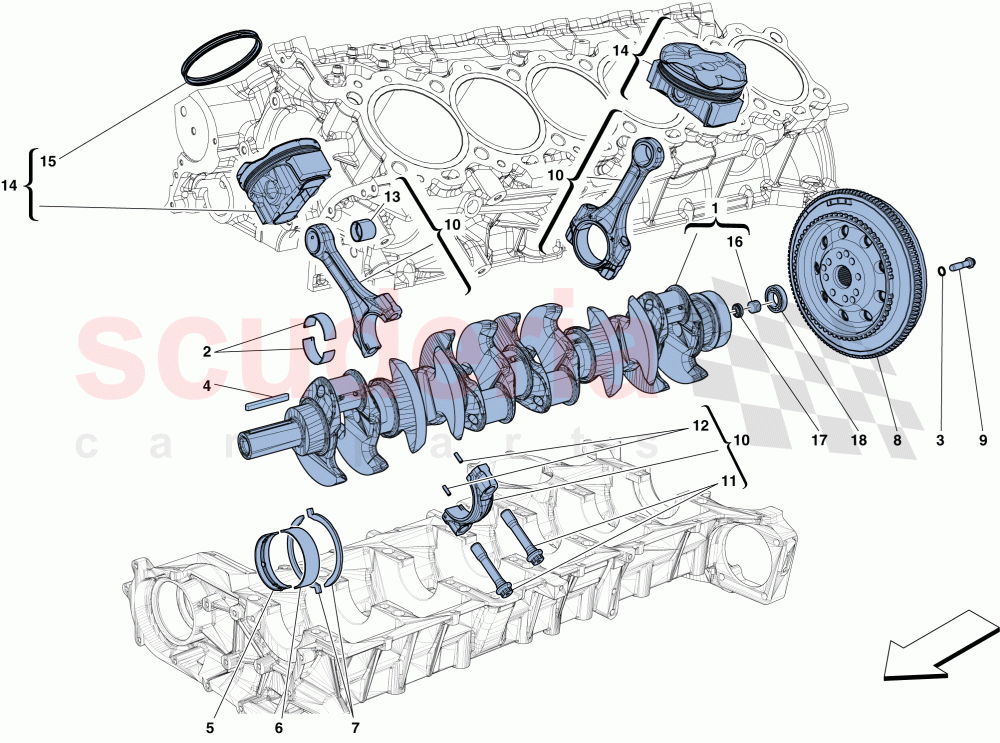

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	332068	CRANKSHAFT	$3,448.18	To Order

Photo	Part No	Description	Price (each)	Stock
	304681	CONNECTING ROD HALF-BEARING	$20.29	To Order
	304682	CONNECTING ROD HALF-BEARING	$20.29	To Order
	304683	CONNECTING ROD HALF-BEARING	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	282966	GASKET	$4.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	190981	TAB	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	271028	UPPER HALF-BEARING	$32.08	To Order
	271029	UPPER HALF-BEARING	$36.89	To Order
	271030	UPPER HALF-BEARING	$35.28	To Order

Photo	Part No	Description	Price (each)	Stock
	271023	LOWER HALF-BEARING	$32.08	To Order
	271024	LOWER HALF-BEARING	$36.89	To Order
	271025	LOWER HALF-BEARING	$35.28	To Order

Photo	Part No	Description	Price (each)	Stock
	261727	SHIM RING	$10.26	To Order

Photo	Part No	Description	Price (each)	Stock
	323539	ENGINE FLYWHEEL	$3,873.48	To Order

Photo	Part No	Description	Price (each)	Stock
	229907	SCREW	$8.82	To Order

Photo	Part No	Description	Price (each)	Stock

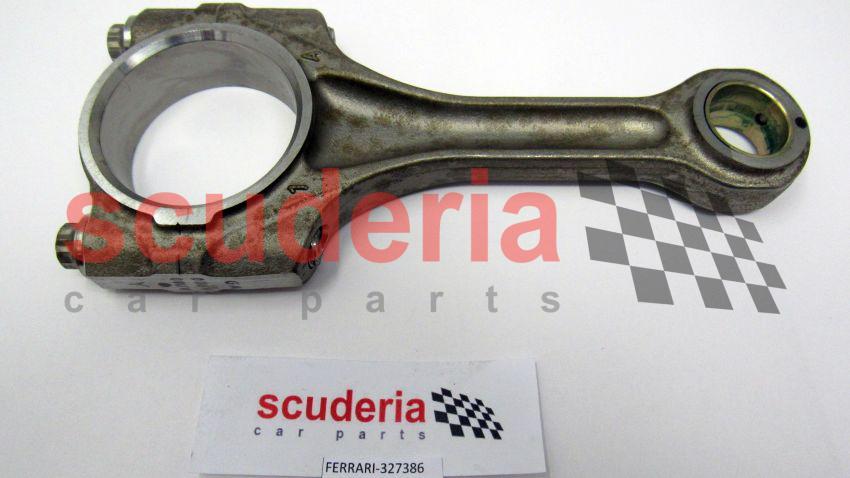

	327386	COMPL. CONNECTING ROD AND CAP	$308.00	To Order

Photo	Part No	Description	Price (each)	Stock
	281320	SCREW	$188.53	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	300758	BUSH	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	336530	COMPL. PISTON, LH CYLINDER BANK	$513.46	To Order
	803900	COMPL. PISTON, LH CYLINDER BANK	$545.55	To Order
	336529	COMPL. PISTON, RH CYLINDER BANK	$513.46	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	329062	COMPL. PISTON RING SET	$115.51	To Order
	863119	COMPL. PISTON RING SET	$353.00	To Order

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	$5.35	To Order

Photo	Part No	Description	Price (each)	Stock
	14328801	PLUG	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	BEARING	$30.39	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	332068	CRANKSHAFT	332068 CRANKSHAFT	$3,448.18	1
2	304681	CONNECTING ROD HALF-BEARING	304681 CONNECTING ROD HALF-BEARING Blue	$20.29	24
2	304682	CONNECTING ROD HALF-BEARING	304682 CONNECTING ROD HALF-BEARING Red	$20.29	24
2	304683	CONNECTING ROD HALF-BEARING	304683 CONNECTING ROD HALF-BEARING Pink	$20.29	24
3	282966	GASKET IN STOCK	282966 GASKET IN STOCK	$4.34	2
4	190981	TAB	190981 TAB	$1.07	1
5	271028	UPPER HALF-BEARING	271028 UPPER HALF-BEARING Blue	$32.08	7
5	271029	UPPER HALF-BEARING	271029 UPPER HALF-BEARING Yellow	$36.89	7
5	271030	UPPER HALF-BEARING	271030 UPPER HALF-BEARING Green	$35.28	7
6	271023	LOWER HALF-BEARING	271023 LOWER HALF-BEARING Blue	$32.08	7
6	271024	LOWER HALF-BEARING	271024 LOWER HALF-BEARING Yellow	$36.89	7
6	271025	LOWER HALF-BEARING	271025 LOWER HALF-BEARING Green	$35.28	7
7	261727	SHIM RING	261727 SHIM RING	$10.26	4
8	323539	ENGINE FLYWHEEL	323539 ENGINE FLYWHEEL	$3,873.48	1
9	229907	SCREW	229907 SCREW M10 X 1.25 X 41.5	$8.82	8
10	327386	COMPL. CONNECTING ROD AND CAP	327386 COMPL. CONNECTING ROD AND CAP	$308.00	12
11	281320	SCREW	281320 SCREW	$188.53	24
12	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$27.26	24
13	300758	BUSH	300758 BUSH	$40.10	12
14	336530	COMPL. PISTON, LH CYLINDER BANK	336530 COMPL. PISTON, LH CYLINDER BANK Applicable up to engine No. 409315	$513.46	6
14	803900	COMPL. PISTON, LH CYLINDER BANK	803900 COMPL. PISTON, LH CYLINDER BANK Applicable from engine No. 409316	$545.55	6
14	336529	COMPL. PISTON, RH CYLINDER BANK	336529 COMPL. PISTON, RH CYLINDER BANK Applicable up to engine No. 409315	$513.46	6
14	803899	COMPL. PISTON, RH CYLINDER BANK	803899 COMPL. PISTON, RH CYLINDER BANK Applicable from engine No. 409316	$545.55	6
15	329062	COMPL. PISTON RING SET	329062 COMPL. PISTON RING SET Applicable up to engine No. 409315	$115.51	12
15	863119	COMPL. PISTON RING SET	863119 COMPL. PISTON RING SET Applicable from engine No. 409316	$353.00	12
16	176396	THREADED PLUG	176396 THREADED PLUG	$5.35	1
17	14328801	PLUG	14328801 PLUG	$0.32	1
18	103877	BEARING IN STOCK	103877 BEARING IN STOCK	$30.39	1

Crankshaft - Connecting Rods And Pistons

Ferrari 812 Superfast/GTS

Ferrari 812 Superfast/GTS - CRANKSHAFT - CONNECTING RODS AND PISTONS
