Name: INTAKE MANIFOLD
Rating: 4.8 (1 reviews)

INTAKE MANIFOLD of Ferrari Ferrari 812 Superfast/GTS

View All

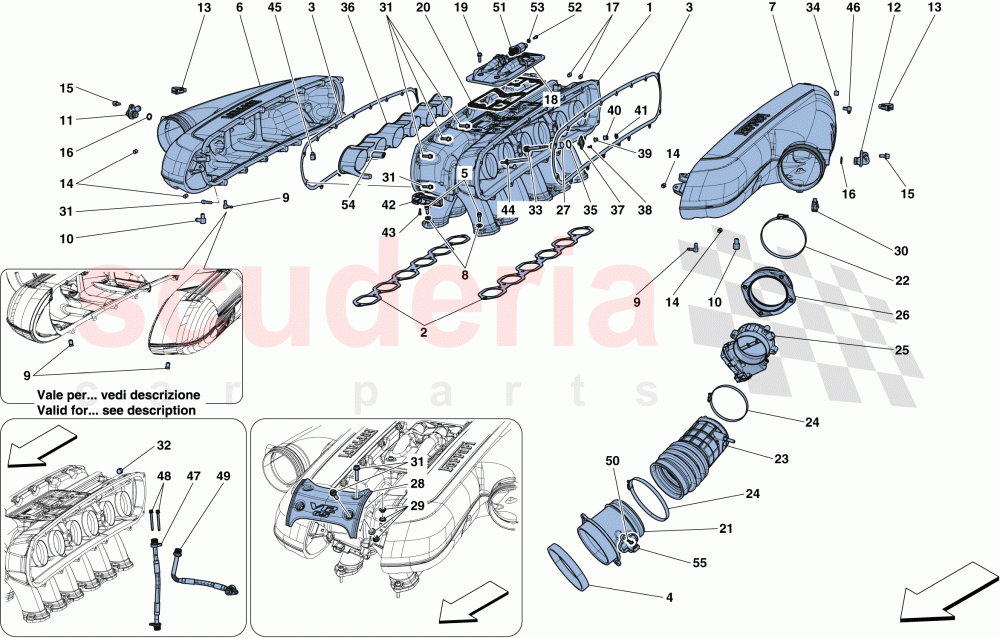

Ferrari 812 Superfast/GTS - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	752419	INTAKE MANIFOLD	$8,268.48	To Order

Photo	Part No	Description	Price (each)	Stock
	316503	GASKET	$22.21	To Order

Photo	Part No	Description	Price (each)	Stock
	900099	LH GASKET	$126.75	To Order
	900098	RH GASKET	$126.75	To Order

Photo	Part No	Description	Price (each)	Stock
	327132	ADHESIVE FOAM	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	14305574	SCREW	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	816017	RH INTAKE PLENUM	$4,082.08	To Order

Photo	Part No	Description	Price (each)	Stock
	816018	LH INTAKE PLENUM	$3,947.72	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	219786	THREADED PLUG	$16.65	To Order
	219786	THREADED PLUG	$16.65	To Order
	268875	CONNECTOR	$39.17	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	268877	CONNECTOR	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	243208	CONNECTOR	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	243207	CONNECTOR	$22.45	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	123475	GASKET	$4.07	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	752491	SOLENOID VALVE HOLDER COVER	$786.24	To Order

Photo	Part No	Description	Price (each)	Stock
	323489	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	313960	GASKET	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	325485	AIR FLOW METER BODY	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	268661	SCREW COLLAR	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	332671	COMPL. RH HOSE UNION	$286.67	To Order
	332671	COMPL. RH HOSE UNION	$286.67	To Order
	332672	COMPL. LH HOSE UNION	$286.67	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	900284	HOSE SCREW COLLAR D.80-100 X 9	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	326909	MOTORISED THROTTLE BODY	$1,333.10	To Order

Photo	Part No	Description	Price (each)	Stock
	316680	SPACER	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	314498	ACTUATOR SLEEVE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	752492	PLENUM COSMETIC COVER	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	340224	BUSH	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	222072	CLIP	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	323493	SCREW	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$3.81	To Order

Photo	Part No	Description	Price (each)	Stock
	314467	COMPLETE PISTON	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	314350	O-RING	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	329115	ASSEMBLED INTAKE TRUMPETS	$383.79	To Order

Photo	Part No	Description	Price (each)	Stock
	314468	COMPL. PLUG	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	80365900	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	325432	BUSH	$6.84	To Order

Photo	Part No	Description	Price (each)	Stock
	325535	RUBBER CABLE GROMMET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	313930	POSITION SENSOR	$303.92	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	330293	INTAKE TRUMPET GUIDE ROD	$144.40	To Order

Photo	Part No	Description	Price (each)	Stock
	199589	CLIP	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	319271	CONNECTOR	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	318994	OIL DELIVERY PIPE FROM CRANKCASE TO MANIFOLD	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	319473	SCREW	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	315930	OIL RETURN PIPE FROM MANIFOLD TO HEAD	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	319613	RECIRCULATING BALL BEARING	$44.12	To Order

Photo	Part No	Description	Price (each)	Stock
	297280	AIR FLOW SENSOR	$163.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	752419	INTAKE MANIFOLD	752419 INTAKE MANIFOLD	$8,268.48	1
2	316503	GASKET	316503 GASKET Also comes with engine gasket set	$22.21	2
3	900099	LH GASKET	900099 LH GASKET Also comes with engine gasket set	$126.75	1
3	900098	RH GASKET	900098 RH GASKET Also comes with engine gasket set	$126.75	1
4	327132	ADHESIVE FOAM	327132 ADHESIVE FOAM	$25.79	2
5	14305574	SCREW	14305574 SCREW M6 X 30	$0.36	24
6	816017	RH INTAKE PLENUM	816017 RH INTAKE PLENUM	$4,082.08	1
7	816018	LH INTAKE PLENUM	816018 LH INTAKE PLENUM	$3,947.72	1
8	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	24
9	219786	THREADED PLUG	219786 THREADED PLUG Applicable for EU GS, AUS, UK; Applicable from engine No. 394354	$16.65	2
9	219786	THREADED PLUG	219786 THREADED PLUG Applicable for USA, CDN, USA LIGHT	$16.65	2
9	268875	CONNECTOR	268875 CONNECTOR Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	$39.17	2
9	268875	CONNECTOR	268875 CONNECTOR Applicable for EU GS, AUS, UK; Applicable up to engine No. 394353	$39.17	2
10	268877	CONNECTOR	268877 CONNECTOR	$72.19	2
11	243208	CONNECTOR	243208 CONNECTOR On RH plenum	$25.66	1
12	243207	CONNECTOR	243207 CONNECTOR On LH plenum	$22.45	1
13	198253	CLIP	198253 CLIP	$3.71 MSRP: ~~3.85~~ (3.6% off)	2
14	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.17 MSRP: ~~2.25~~ (48% off)	4
15	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
16	123475	GASKET	123475 GASKET	$4.07 MSRP: ~~4.18~~ (2.6% off)	2
17	282755	THREADED PLUG	282755 THREADED PLUG	$2.14	6
18	752491	SOLENOID VALVE HOLDER COVER	752491 SOLENOID VALVE HOLDER COVER	$786.24	1
19	323489	SCREW	323489 SCREW	$6.26	5
20	313960	GASKET	313960 GASKET	$72.19	1
21	325485	AIR FLOW METER BODY	325485 AIR FLOW METER BODY	$64.17	2
22	268661	SCREW COLLAR	268661 SCREW COLLAR	$4.10	2
23	332671	COMPL. RH HOSE UNION	332671 COMPL. RH HOSE UNION Applicable for EU GS, AUS, UK; Applicable from engine No. 394354	$286.67	1
23	332671	COMPL. RH HOSE UNION	332671 COMPL. RH HOSE UNION Applicable for USA, CDN, USA LIGHT	$286.67	1
23	332672	COMPL. LH HOSE UNION	332672 COMPL. LH HOSE UNION Applicable for USA, CDN, USA LIGHT	$286.67	1
23	332678	COMPL. RH HOSE UNION	332678 COMPL. RH HOSE UNION Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	$155.63	1
23	332678	COMPL. RH HOSE UNION	332678 COMPL. RH HOSE UNION Applicable for EU GS, AUS, UK; Applicable up to engine No. 394353	$155.63	1
23	332679	COMPL. LH HOSE UNION	332679 COMPL. LH HOSE UNION Applicable for EU GS, AUS, UK; Applicable up to engine No. 394353	$155.63	1
23	332672	COMPL. LH HOSE UNION	332672 COMPL. LH HOSE UNION Applicable for EU GS, AUS, UK; Applicable from engine No. 394354	$286.67	1
23	332679	COMPL. LH HOSE UNION	332679 COMPL. LH HOSE UNION Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	$155.63	1
24	900284	HOSE SCREW COLLAR D.80-100 X 9	900284 HOSE SCREW COLLAR D.80-100 X 9	$6.06	4
25	326909	MOTORISED THROTTLE BODY	326909 MOTORISED THROTTLE BODY	$1,333.10	2
26	316680	SPACER	316680 SPACER	$172.00	2
27	314498	ACTUATOR SLEEVE	314498 ACTUATOR SLEEVE	$72.19	4
28	752492	PLENUM COSMETIC COVER	752492 PLENUM COSMETIC COVER	$258.00	1
29	340224	BUSH	340224 BUSH	$2.43	8
30	222072	CLIP	222072 CLIP	$3.52	1
31	323493	SCREW	323493 SCREW M6 X 26 X 1	$1.17	36
32	164400	THREADED PLUG	164400 THREADED PLUG	$3.81	1
33	314467	COMPLETE PISTON	314467 COMPLETE PISTON	$224.63	4
34	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.17 MSRP: ~~2.25~~ (48% off)	4
35	314350	O-RING	314350 O-RING	$0.55	4
36	329115	ASSEMBLED INTAKE TRUMPETS	329115 ASSEMBLED INTAKE TRUMPETS	$383.79	2
37	314468	COMPL. PLUG	314468 COMPL. PLUG	$272.34	4
38	80365900	SCREW	80365900 SCREW M4 X 10	$0.16 MSRP: ~~0.50~~ (68% off)	8
39	325432	BUSH	325432 BUSH	$6.84	4
40	325535	RUBBER CABLE GROMMET	325535 RUBBER CABLE GROMMET	$18.62	4
41	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
42	313930	POSITION SENSOR	313930 POSITION SENSOR	$303.92	2
43	14303123	SCREW	14303123 SCREW M4 X 12	$0.06	4
44	330293	INTAKE TRUMPET GUIDE ROD	330293 INTAKE TRUMPET GUIDE ROD	$144.40	4
45	199589	CLIP	199589 CLIP	$1.56	1
46	319271	CONNECTOR	319271 CONNECTOR	$59.35	1
47	318994	OIL DELIVERY PIPE FROM CRANKCASE TO MANIFOLD	318994 OIL DELIVERY PIPE FROM CRANKCASE TO MANIFOLD	$286.67	1
48	319473	SCREW	319473 SCREW	$10.76	2
49	315930	OIL RETURN PIPE FROM MANIFOLD TO HEAD	315930 OIL RETURN PIPE FROM MANIFOLD TO HEAD	$286.67	1
50	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 15 ARRIVING SOON	$0.36	4
51	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$240.67	2
52	14304124	SCREW	14304124 SCREW M5 X 16	$0.16 MSRP: ~~0.75~~ (78.7% off)	2
53	11181574	WASHER	11181574 WASHER	$0.02	2
54	319613	RECIRCULATING BALL BEARING	319613 RECIRCULATING BALL BEARING	$44.12	4
55	297280	AIR FLOW SENSOR	297280 AIR FLOW SENSOR	$163.30	2
