FRONT BRAKE CALLIPER of Ferrari Ferrari 612 Sessanta

View All

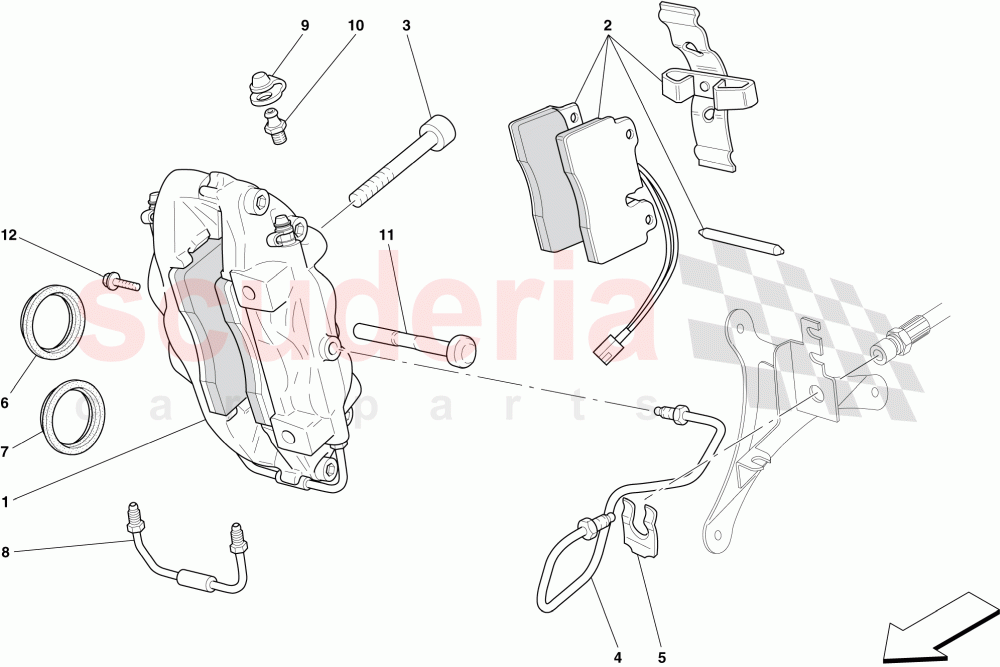

Ferrari 612 Sessanta - FRONT BRAKE CALLIPER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	229556	FRONT RH CALLIPER WITH PADS	Enquire	To Order
	246104	FRONT RH CALLIPER WITH PADS	Enquire	To Order
	246108	FRONT RH CALLIPER WITH PADS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

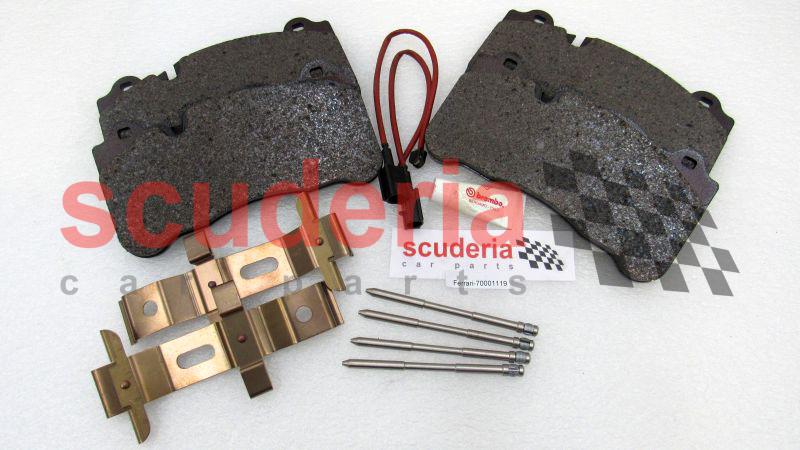

	70001057	FRONT PAD SET WITH SPRING	Enquire	To Order
	70001119	FRONT PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217652	SCREW	Enquire	To Order
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186478	PIPE TO RH FRONT CALLIPER	Enquire	To Order
	220694	PIPE TO RH FRONT CALLIPER	Enquire	To Order
	186477	PIPE TO LH FRONT CALLIPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182121	GAITER FOR CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182122	GAITER FOR CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203993	RH CONNECTOR PIPE	Enquire	To Order
	203992	LH CONNECTOR PIPE	Enquire	To Order
	198012	CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152955	PROTECTIVE CAP	Enquire	To Order
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198015	TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198014	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	229556	FRONT RH CALLIPER WITH PADS	229556 FRONT RH CALLIPER WITH PADS Blue; Optional JPNS; CCM version without chromium VI; Applicable for J	-	1	Enquire
1	246104	FRONT RH CALLIPER WITH PADS	246104 FRONT RH CALLIPER WITH PADS Scuderia Red; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
1	246108	FRONT RH CALLIPER WITH PADS	246108 FRONT RH CALLIPER WITH PADS Gold; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
1	229555	FRONT LH CALLIPER WITH PADS	229555 FRONT LH CALLIPER WITH PADS Blue; Optional JPNS; CCM version without chromium VI; Applicable for J	-	1	Enquire
1	246103	FRONT LH CALLIPER WITH PADS	246103 FRONT LH CALLIPER WITH PADS Scuderia Red; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
1	246107	FRONT LH CALLIPER WITH PADS	246107 FRONT LH CALLIPER WITH PADS Gold; Applicable for "OTO"; Version with CCM brakes	-	1	Enquire
2	70001057	FRONT PAD SET WITH SPRING	70001057 FRONT PAD SET WITH SPRING Standard	-	1	Enquire
2	70001119	FRONT PAD SET WITH SPRING	70001119 FRONT PAD SET WITH SPRING Optional; Version with CCM brakes	-	1	Enquire
3	217652	SCREW	217652 SCREW Standard	-	4	Enquire
3	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 Optional; Version with CCM brakes	-	4	Enquire
4	186478	PIPE TO RH FRONT CALLIPER	186478 PIPE TO RH FRONT CALLIPER	-	1	Enquire
4	220694	PIPE TO RH FRONT CALLIPER	220694 PIPE TO RH FRONT CALLIPER Optional; Version with CCM brakes	-	1	Enquire
4	186477	PIPE TO LH FRONT CALLIPER	186477 PIPE TO LH FRONT CALLIPER	-	1	Enquire
4	220452	PIPE TO LH FRONT CALLIPER	220452 PIPE TO LH FRONT CALLIPER Optional; Version with CCM brakes	-	1	Enquire
5	116374	CLIP	116374 CLIP	-	1	Enquire
6	182121	GAITER FOR CYLINDER	182121 GAITER FOR CYLINDER D. 38	-	2	Enquire
7	182122	GAITER FOR CYLINDER	182122 GAITER FOR CYLINDER D. 42	-	2	Enquire
8	203993	RH CONNECTOR PIPE	203993 RH CONNECTOR PIPE	-	1	Enquire
8	203992	LH CONNECTOR PIPE	203992 LH CONNECTOR PIPE	-	1	Enquire
8	198012	CONNECTOR PIPE	198012 CONNECTOR PIPE Optional; Version with CCM brakes	-	2	Enquire
9	152955	PROTECTIVE CAP	152955 PROTECTIVE CAP	-	2	Enquire
9	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP Optional; Version with CCM brakes	-	2	Enquire
10	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	-	2	Enquire
11	198015	TIE-ROD	198015 TIE-ROD Optional; Version with CCM brakes	-	2	Enquire
12	198014	SCREW	198014 SCREW Optional; Version with CCM brakes	-	2	Enquire
