Internal Gearbox Controls -Not For F1-

Ferrari 612 Sessanta

Find Your Part

Ferrari 612 Sessanta - INTERNAL GEARBOX CONTROLS -Not for F1-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
239582 GEARBOX CONTROL ROD Enquire To Order
Photo Part No Description Price (each) Stock
153697 INTERNAL GEARBOX CONTROL COVER $248.99 To Order
Photo Part No Description Price (each) Stock
146306 GEARBOX SHAFT GASKET $2.54 IN STOCK
Photo Part No Description Price (each) Stock
149907 BUSHING $33.70 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
193890 ROCKER $219.57 To Order
Photo Part No Description Price (each) Stock
193914 LEVER $103.33 To Order
Photo Part No Description Price (each) Stock
11306930 SCREW $0.78 To Order
Photo Part No Description Price (each) Stock
10571879 WASHER $0.39 To Order
Photo Part No Description Price (each) Stock
147346 WASHER $5.35 To Order
Photo Part No Description Price (each) Stock
150737 SPRING $35.14 To Order
Photo Part No Description Price (each) Stock
103226 BUSHING $10.29 To Order
Photo Part No Description Price (each) Stock
147572 BELLOW $133.17 To Order
Photo Part No Description Price (each) Stock
154714 PIN $82.42 To Order
Photo Part No Description Price (each) Stock
132934 GASKET $0.15 To Order
Photo Part No Description Price (each) Stock
193894 PIN $31.64 To Order
Photo Part No Description Price (each) Stock
10297760 GASKET $0.41 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
11194379 WASHER $0.32 IN STOCK
Photo Part No Description Price (each) Stock
14453381 O-RING $1.28 To Order
Photo Part No Description Price (each) Stock
153719 ROD $18.95 To Order
Photo Part No Description Price (each) Stock
154698 PAD $6.34 To Order
Photo Part No Description Price (each) Stock
11057476 SEEGER RING $0.08 To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT $157.75 To Order
Photo Part No Description Price (each) Stock
13541524 STUD BOLT $0.66 To Order
Photo Part No Description Price (each) Stock
13541624 STUD BOLT $0.53 To Order
Photo Part No Description Price (each) Stock
13542024 STUD BOLT $26.74 To Order
Photo Part No Description Price (each) Stock
125717 CENTRING DOWEL $3.19 IN STOCK
Photo Part No Description Price (each) Stock
189527 REVERSE CONTROL ROD $199.25 To Order
Photo Part No Description Price (each) Stock
189528 REVERSE CONTROL FORK $1,820.34 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
189531 1st AND 2nd GEAR CONTROL ROD $108.71 To Order
Photo Part No Description Price (each) Stock
189530 1st AND 2nd GEAR CONTROL FORK $1,689.43 To Order
Photo Part No Description Price (each) Stock
101612 BALL $1.30 IN STOCK
Photo Part No Description Price (each) Stock
100750 SPRING $1.73 To Order
Photo Part No Description Price (each) Stock
193901 REVERSE CONTROL FORK $199.25 To Order
Photo Part No Description Price (each) Stock
142245 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
158051 3rd AND 4th GEAR CONTROL ROD $199.25 To Order
Photo Part No Description Price (each) Stock
171829 3rd AND 4th GEAR CONTROL ROD FORK $92.08 To Order
Photo Part No Description Price (each) Stock
261486 3rd AND 4th GEAR CONTROL FORK $1,340.49 To Order
Photo Part No Description Price (each) Stock
189533 5th AND 6th GEAR CONTROL ROD $261.79 To Order
Photo Part No Description Price (each) Stock
193902 5th AND 6th GEAR CONTROL ROD FORK $120.10 To Order
Photo Part No Description Price (each) Stock
189534 5th AND 6th GEAR CONTROL FORK $1,724.86 To Order
Photo Part No Description Price (each) Stock
150173 SHIM $17.83 To Order
Photo Part No Description Price (each) Stock
106500 BUSHING $8.22 To Order
Photo Part No Description Price (each) Stock
150093 BUSHING $19.81 To Order
Photo Part No Description Price (each) Stock
185566 SELF-LUBRICATING BUSHING $7.37 To Order
Photo Part No Description Price (each) Stock
11194379 WASHER $0.32 IN STOCK
Photo Part No Description Price (each) Stock
189536 COMPLETE INTERNAL GEARBOX CONTROL COVER $1,393.89 To Order
View All

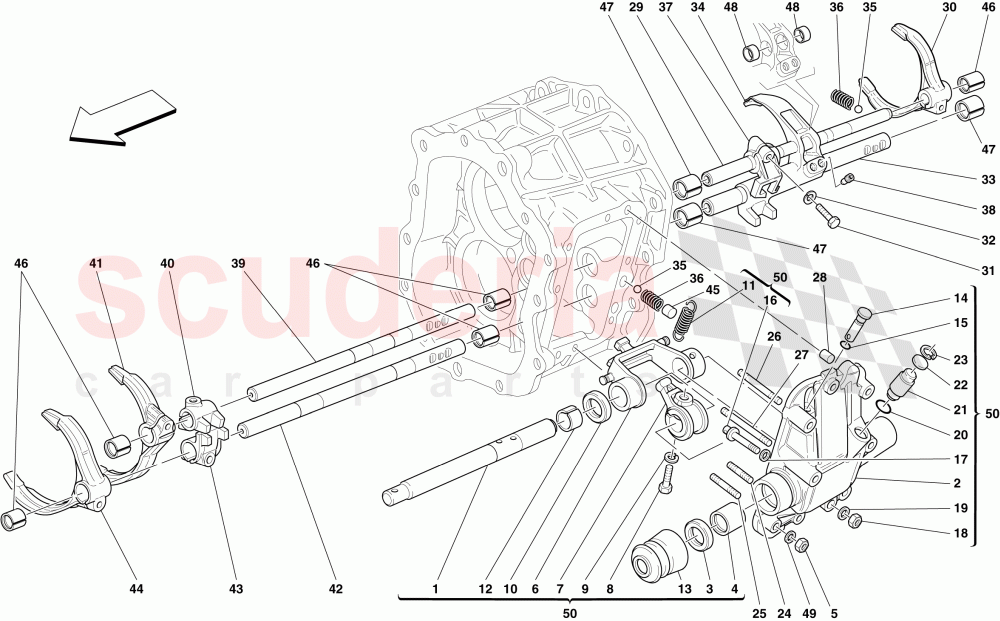

INTERNAL GEARBOX CONTROLS -Not for F1- of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 239582
GEARBOX CONTROL ROD
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		- 1 Enquire
2 153697
INTERNAL GEARBOX CONTROL COVER
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$248.99 1
3 146306
GEARBOX SHAFT GASKET
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied
IN STOCK 		$2.54 (48.2% off) 1
4 149907
BUSHING
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$33.70 2
5 14059290
FLANGED NUT M6
Not for F1 gearbox
IN STOCK 		$1.43 8
6 193890
ROCKER
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$219.57 1
7 193914
LEVER
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$103.33 1
8 11306930
SCREW
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$0.78 1
9 10571879
WASHER
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$0.39 1
10 147346
WASHER
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$5.35 2
11 150737
SPRING
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$35.14 2
12 103226
BUSHING
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$10.29 (6% off) 2
13 147572
BELLOW
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$133.17 (26.3% off) 1
14 154714
PIN
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$82.42 1
15 132934
GASKET
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$0.15 1
16 193894
PIN
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$31.64 1
17 10297760
GASKET
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied
IN STOCK 		$0.41 (59% off) 1
18 14059290
FLANGED NUT M6
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied
IN STOCK 		$1.43 1
19 11194379
WASHER
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied
IN STOCK 		$0.32 (69.5% off) 1
20 14453381
O-RING
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$1.28 (45.1% off) 1
21 153719
ROD
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$18.95 1
22 154698
PAD
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$6.34 1
23 11057476
SEEGER RING
Supplied with compl. cover ref. 50; Not for F1 gearbox; No longer supplied 		$0.08 1
24 13541224
STUD BOLT
Not for F1 gearbox 		$157.75 2
25 13541524
STUD BOLT
Not for F1 gearbox 		$0.66 2
26 13541624
STUD BOLT
Not for F1 gearbox 		$0.53 (64.4% off) 2
27 13542024
STUD BOLT
Not for F1 gearbox 		$26.74 2
28 125717
CENTRING DOWEL
Not for F1 gearbox
IN STOCK 		$3.19 2
29 189527
REVERSE CONTROL ROD
Not for F1 gearbox 		$199.25 1
30 189528
REVERSE CONTROL FORK
Not for F1 gearbox 		$1,820.34 1
31 16043634
SCREW
Not for F1 gearbox 		$0.21 6
32 84653800
WASHER
Not for F1 gearbox
IN STOCK 		$5.53 6
33 189531
1st AND 2nd GEAR CONTROL ROD
Not for F1 gearbox 		$108.71 1
34 189530
1st AND 2nd GEAR CONTROL FORK
Not for F1 gearbox 		$1,689.43 1
35 101612
BALL
Not for F1 gearbox
IN STOCK 		$1.30 (21.2% off) 3
36 100750
SPRING
Not for F1 gearbox 		$1.73 3
37 193901
REVERSE CONTROL FORK
Not for F1 gearbox 		$199.25 1
38 142245
SCREW
Not for F1 gearbox 		$1.05 2
39 158051
3rd AND 4th GEAR CONTROL ROD
Not for F1 gearbox 		$199.25 1
40 171829
3rd AND 4th GEAR CONTROL ROD FORK
Not for F1 gearbox 		$92.08 1
41 261486
3rd AND 4th GEAR CONTROL FORK
Not for F1 gearbox 		$1,340.49 1
42 189533
5th AND 6th GEAR CONTROL ROD
Not for F1 gearbox 		$261.79 1
43 193902
5th AND 6th GEAR CONTROL ROD FORK
Not for F1 gearbox 		$120.10 1
44 189534
5th AND 6th GEAR CONTROL FORK
Not for F1 gearbox 		$1,724.86 1
45 150173
SHIM
Not for F1 gearbox 		$17.83 1
46 106500
BUSHING
Not for F1 gearbox 		$8.22 6
47 150093
BUSHING
Not for F1 gearbox 		$19.81 2
48 185566
SELF-LUBRICATING BUSHING
Not for F1 gearbox 		$7.37 2
49 11194379
WASHER
Not for F1 gearbox
IN STOCK 		$0.32 (69.5% off) 8
50 189536
COMPLETE INTERNAL GEARBOX CONTROL COVER
Not for F1 gearbox 		$1,393.89 1
