REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

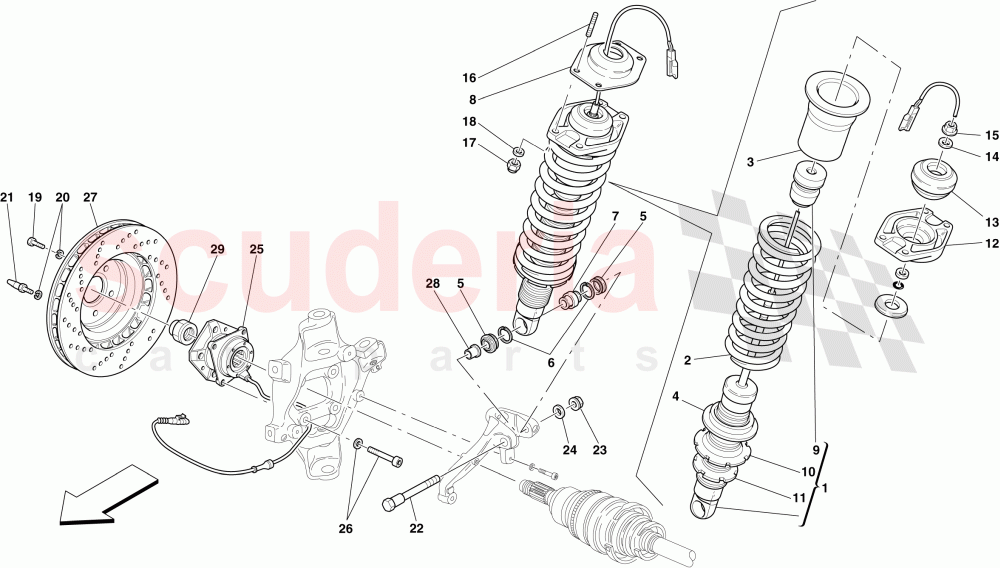

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	214591	REAR SHOCK ABSORBER	Enquire	To Order
	235585	REAR SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186570	SPRING	Enquire	To Order

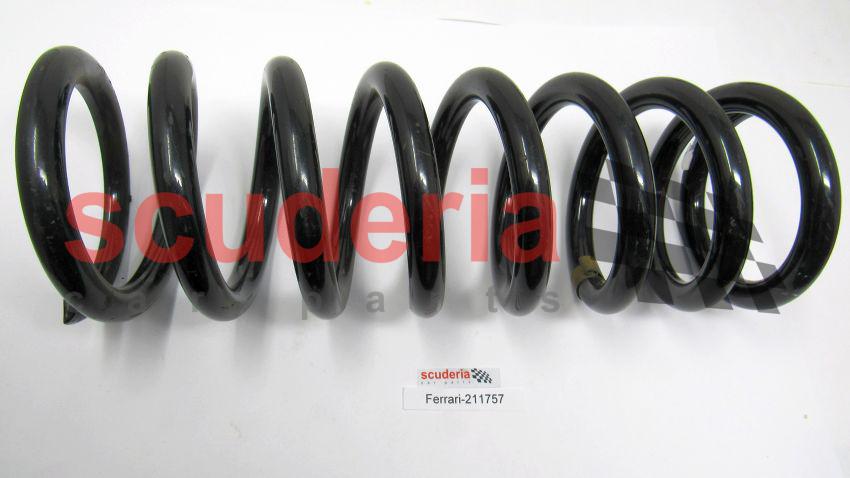

	211757	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186489	UPPER SPACER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	186487	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153286	Rubber Pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145478	Snap Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153285	Ball-Joint	Enquire	To Order
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	279627	UPPER STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189997	SHOCK ABSORBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186486	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174726	THREADED RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

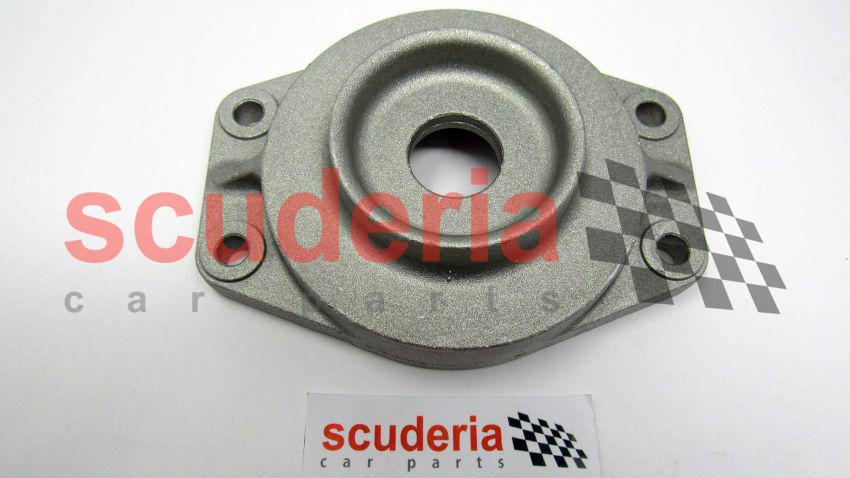

	190330	Lower Stop Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204606	Bush for Front Upper Shock Absorber	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10520124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13543634	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190530	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155002	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197232	WHEEL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190723	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

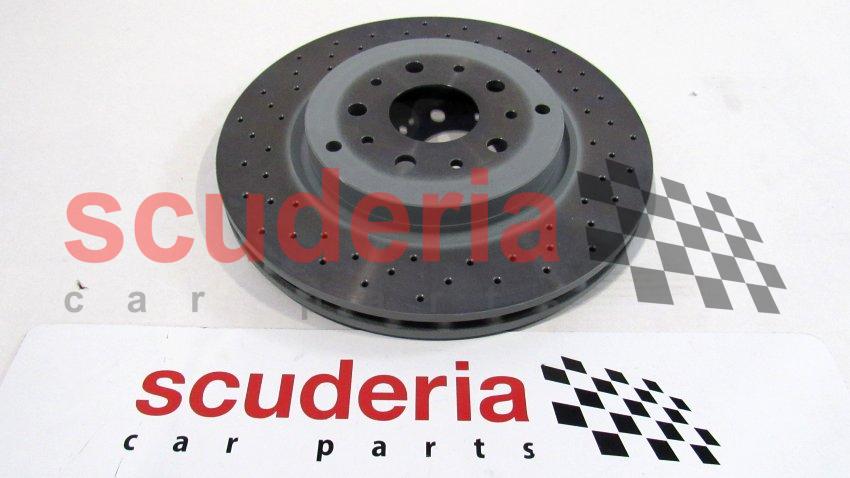

	198488	Rear Brake Disc	Enquire	To Order

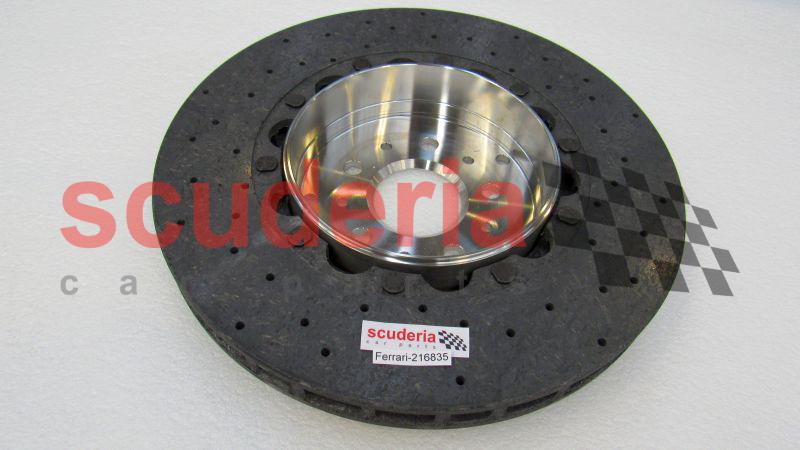

	216835	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190702	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	214591	REAR SHOCK ABSORBER	214591 REAR SHOCK ABSORBER Replace as a pair	-	2	Enquire
1	235585	REAR SHOCK ABSORBER	235585 REAR SHOCK ABSORBER Enhanced version; Replace as a pair	-	2	Enquire
2	186570	SPRING	186570 SPRING	-	2	Enquire
2	211757	SPRING	211757 SPRING Enhanced version	-	2	Enquire
3	186489	UPPER SPACER ARRIVING SOON	186489 UPPER SPACER ARRIVING SOON	-	2	Enquire
4	186487	LOWER SPACER	186487 LOWER SPACER	-	2	Enquire
5	153286	Rubber Pad	153286 Rubber Pad	-	4	Enquire
6	145478	Snap Ring	145478 Snap Ring	-	4	Enquire
7	153285	Ball-Joint	153285 Ball-Joint Applicable for shock absorber 190366, ref. 1	-	2	Enquire
7	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT Applicable for shock absorber 214591 and 235585, ref. 1 ARRIVING SOON	-	2	Enquire
8	279627	UPPER STOP CAP	279627 UPPER STOP CAP	-	2	Enquire
9	189997	SHOCK ABSORBER BUSHING	189997 SHOCK ABSORBER BUSHING	-	2	Enquire
10	186486	CAP	186486 CAP	-	2	Enquire
11	174726	THREADED RING NUT	174726 THREADED RING NUT	-	2	Enquire
12	190330	Lower Stop Cap	190330 Lower Stop Cap	-	2	Enquire
13	204606	Bush for Front Upper Shock Absorber ARRIVING SOON	204606 Bush for Front Upper Shock Absorber ARRIVING SOON	-	2	Enquire
14	10520124	WASHER	10520124 WASHER	-	2	Enquire
15	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
16	13543634	STUD BOLT	13543634 STUD BOLT	-	8	Enquire
17	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
18	14496524	WASHER	14496524 WASHER	-	8	Enquire
19	14306924	SCREW	14306924 SCREW	-	2	Enquire
20	127496	WASHER	127496 WASHER	-	4	Enquire
21	104370	SCREW	104370 SCREW	-	2	Enquire
22	190530	SCREW	190530 SCREW	-	2	Enquire
23	255271	NUT	255271 NUT	-	2	Enquire
24	155002	Washer	155002 Washer	-	2	Enquire
25	197232	WHEEL BEARING	197232 WHEEL BEARING	-	2	Enquire
26	190723	SCREW WITH WASHER	190723 SCREW WITH WASHER	-	8	Enquire
27	198488	Rear Brake Disc	198488 Rear Brake Disc	-	2	Enquire
27	216835	REAR BRAKE DISC	216835 REAR BRAKE DISC Version with CCM brakes; Optional	-	2	Enquire
28	190702	SHIM	190702 SHIM	-	2	Enquire
29	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
