WATER PUMP of Ferrari Ferrari 612 Scaglietti

View All

Ferrari 612 Scaglietti - WATER PUMP

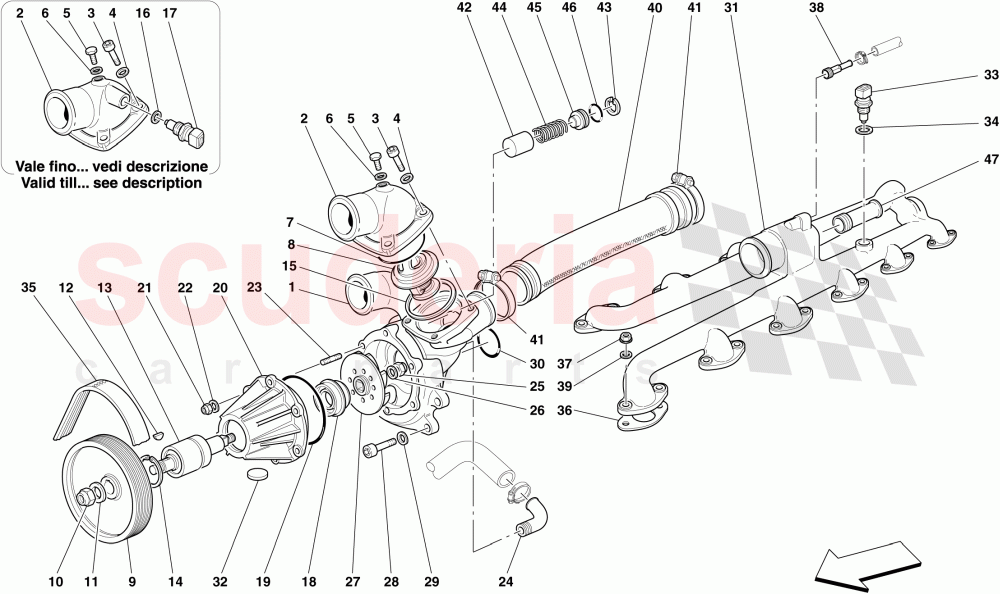

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	182693	WATER PUMP BODY COMPLETED WITH STUDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183681	THERMOSTAT VALVE COVER	Enquire	To Order
	183681	THERMOSTAT VALVE COVER	Enquire	To Order
	163952	THERMOSTAT VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132349	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10297760	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149279	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	950840	WATER THERMOSTAT	Enquire	To Order
	226484	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169924	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10202320	Woodruff Key	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143742	BEARING WITH SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11059976	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183759	Water Pump Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137868	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	176173	WATER PUMP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13540924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194675	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100436	BLIND NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176045	WATER PUMP ROTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141250	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194679	CYLINDER HEAD WATER MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201456	WATER PUMP BELT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	141332	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155093	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176046	BUSHING FOR BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11058376	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176047	SPRING FOR BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176048	CAP FOR BYPASS SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147278	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195496	CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	194677	COMPLETE WATER PUMP	194677 COMPLETE WATER PUMP Applicable for USA, CDN; Applicable up to engine No. 104650	-	1	Enquire
-	194677	COMPLETE WATER PUMP	194677 COMPLETE WATER PUMP Not for USA, CDN; Applicable up to Ass. No. 55824	-	1	Enquire
-	209929	COMPLETE WATER PUMP	209929 COMPLETE WATER PUMP Not for USA, CDN; Applicable from Ass. No. 55825; Applicable up to engine No. 104650	-	1	Enquire
-	227568	COMPLETE WATER PUMP	227568 COMPLETE WATER PUMP Not for USA, CDN; Applicable from engine No. 104651	-	1	Enquire
-	227569	COMPLETE WATER PUMP	227569 COMPLETE WATER PUMP Applicable for USA, CDN; Applicable from engine No. 104651	-	1	Enquire
1	182693	WATER PUMP BODY COMPLETED WITH STUDS	182693 WATER PUMP BODY COMPLETED WITH STUDS	-	1	Enquire
2	183681	THERMOSTAT VALVE COVER	183681 THERMOSTAT VALVE COVER Applicable for USA, CDN	-	1	Enquire
2	183681	THERMOSTAT VALVE COVER	183681 THERMOSTAT VALVE COVER Not for USA, CDN; Applicable up to Ass. No. 55824	-	1	Enquire
2	163952	THERMOSTAT VALVE COVER	163952 THERMOSTAT VALVE COVER Not for USA, CDN; Applicable from Ass. No. 55825	-	1	Enquire
3	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	4	Enquire
4	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
5	132349	CONNECTOR	132349 CONNECTOR	-	1	Enquire
6	10297760	GASKET	10297760 GASKET	-	1	Enquire
7	149279	O-Ring	149279 O-Ring	-	1	Enquire
8	950840	WATER THERMOSTAT	950840 WATER THERMOSTAT Applicable up to engine No. 104650	-	1	Enquire
8	226484	THERMOSTAT	226484 THERMOSTAT Applicable from engine No. 104651	-	1	Enquire
9	169924	PULLEY	169924 PULLEY	-	1	Enquire
10	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	1	Enquire
11	12647021	WASHER	12647021 WASHER	-	1	Enquire
12	10202320	Woodruff Key	10202320 Woodruff Key	-	1	Enquire
13	143742	BEARING WITH SHAFT	143742 BEARING WITH SHAFT	-	1	Enquire
14	11059976	SEEGER RING	11059976 SEEGER RING	-	1	Enquire
15	137873	O-Ring	137873 O-Ring	-	1	Enquire
16	10298460	GASKET	10298460 GASKET Applicable for USA, CDN	-	1	Enquire
16	10298460	GASKET	10298460 GASKET Not for USA, CDN; Applicable up to Ass. No. 55824	-	1	Enquire
17	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Applicable for USA, CDN	-	1	Enquire
17	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Not for USA, CDN; Applicable up to Ass. No. 55824	-	1	Enquire
18	183759	Water Pump Seal	183759 Water Pump Seal	-	1	Enquire
19	137868	O-Ring ARRIVING SOON	137868 O-Ring ARRIVING SOON	-	1	Enquire
20	176173	WATER PUMP COVER	176173 WATER PUMP COVER	-	1	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
23	13540924	STUD BOLT	13540924 STUD BOLT	-	6	Enquire
24	194675	CONNECTOR	194675 CONNECTOR	-	1	Enquire
25	100436	BLIND NUT	100436 BLIND NUT	-	1	Enquire
26	84653800	WASHER	84653800 WASHER	-	1	Enquire
27	176045	WATER PUMP ROTOR	176045 WATER PUMP ROTOR	-	1	Enquire
28	14306424	SCREW	14306424 SCREW	-	4	Enquire
29	11193874	WASHER	11193874 WASHER	-	4	Enquire
30	141250	O-Ring	141250 O-Ring	-	1	Enquire
31	194679	CYLINDER HEAD WATER MANIFOLD	194679 CYLINDER HEAD WATER MANIFOLD	-	1	Enquire
32	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
33	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	1	Enquire
34	10298460	GASKET	10298460 GASKET	-	1	Enquire
35	201456	WATER PUMP BELT ARRIVING SOON	201456 WATER PUMP BELT ARRIVING SOON	-	1	Enquire
36	141332	GASKET	141332 GASKET	-	12	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	24	Enquire
38	155093	CONNECTOR	155093 CONNECTOR	-	1	Enquire
39	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	24	Enquire
40	181599	WATER HOSE BETWEEN MANIFOLD AND WATER PUMP	181599 WATER HOSE BETWEEN MANIFOLD AND WATER PUMP	-	1	Enquire
41	13000790	SCREW COLLAR	13000790 SCREW COLLAR	-	2	Enquire
42	176046	BUSHING FOR BYPASS	176046 BUSHING FOR BYPASS	-	1	Enquire
43	11058376	SEEGER RING	11058376 SEEGER RING	-	1	Enquire
44	176047	SPRING FOR BYPASS	176047 SPRING FOR BYPASS	-	1	Enquire
45	176048	CAP FOR BYPASS SPRING	176048 CAP FOR BYPASS SPRING	-	1	Enquire
46	147278	O-Ring	147278 O-Ring	-	1	Enquire
47	195496	CONNECTOR	195496 CONNECTOR	-	1	Enquire
