PNEUMATIC ACTUATOR SYSTEM of Ferrari Ferrari 612 Scaglietti

View All

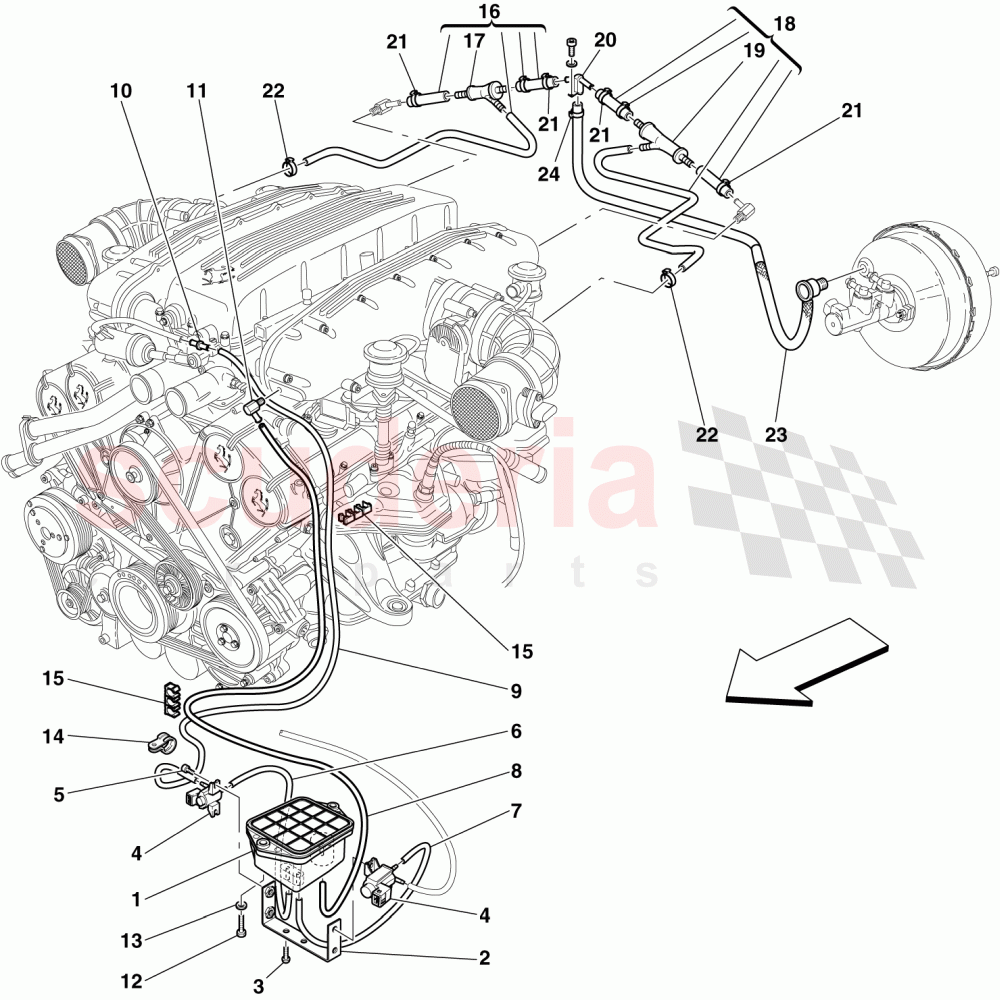

Ferrari 612 Scaglietti - PNEUMATIC ACTUATOR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199675	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	131042	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169456	R.H. PIPE VALVE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124406	PIPE FROM TANK TO CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239478	OIL BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199696	BRAIDED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441690	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141546	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204135	RH PIPE COMPLETE WITH KAISER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293058	KAISER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204136	LH PIPE COMPLETE WITH KAISER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293058	KAISER VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201912	THREE-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205949	PIPE TO BRAKE SERVO	Enquire	To Order
	252478	PIPE TO BRAKE SERVO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK	-	1	Enquire
2	199675	BRACKET	199675 BRACKET	-	1	Enquire
3	15689501	SCREW	15689501 SCREW	-	2	Enquire
5	11566227	SCREW ARRIVING SOON	11566227 SCREW ARRIVING SOON	-	4	Enquire
6	131042	RUBBER PIPE	131042 RUBBER PIPE	-	1	Enquire
7	169456	R.H. PIPE VALVE TUBE	169456 R.H. PIPE VALVE TUBE	-	1	Enquire
8	124406	PIPE FROM TANK TO CONNECTOR	124406 PIPE FROM TANK TO CONNECTOR	-	1	Enquire
9	239478	OIL BREATHER PIPE	239478 OIL BREATHER PIPE	-	1	Enquire
10	199696	BRAIDED CONNECTOR	199696 BRAIDED CONNECTOR	-	1	Enquire
11	128016	CONNECTOR	128016 CONNECTOR	-	1	Enquire
12	231620	SCREW	231620 SCREW	-	2	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
14	10441690	BRACKET WITH SHEATH	10441690 BRACKET WITH SHEATH	-	1	Enquire
15	141546	CLIP	141546 CLIP	-	9	Enquire
16	204135	RH PIPE COMPLETE WITH KAISER VALVE	204135 RH PIPE COMPLETE WITH KAISER VALVE	-	1	Enquire
17	293058	KAISER VALVE	293058 KAISER VALVE	-	1	Enquire
18	204136	LH PIPE COMPLETE WITH KAISER VALVE	204136 LH PIPE COMPLETE WITH KAISER VALVE	-	1	Enquire
19	293058	KAISER VALVE	293058 KAISER VALVE	-	1	Enquire
20	201912	THREE-WAY UNION	201912 THREE-WAY UNION	-	1	Enquire
21	13432270	HOSE COLLAR	13432270 HOSE COLLAR	-	4	Enquire
22	13433570	HOSE COLLAR	13433570 HOSE COLLAR	-	2	Enquire
23	205949	PIPE TO BRAKE SERVO	205949 PIPE TO BRAKE SERVO Not for GD	-	1	Enquire
23	252478	PIPE TO BRAKE SERVO	252478 PIPE TO BRAKE SERVO Applicable for GD	-	1	Enquire
24	13432270	HOSE COLLAR	13432270 HOSE COLLAR	-	1	Enquire
