Ferrari 612 Scaglietti - ELECTRIC FRONT SEAT - SEAT BELTS AND DEVICES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68450900 CUSHION MEMBRANE Enquire To Order
Photo Part No Description Price (each) Stock
68448600 LUMBAR SUPPORT ADJUSTMENT Enquire To Order
Photo Part No Description Price (each) Stock
68451000 BELT RETRACTOR FASTENER PIN COVER Enquire To Order
Photo Part No Description Price (each) Stock
68451100 RH RELEASE LEVER SURROUND MOUNT Enquire To Order
68451200 LH RELEASE LEVER SURROUND MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
68451300 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
68451400 RH OUTER REAR PROTECTION Enquire To Order
68451500 LH OUTER REAR PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
68451600 RH INNER REAR PROTECTION Enquire To Order
68451700 LH INNER REAR PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
198087 RH SEAT WIRING HARNESS Enquire To Order
198087 RH SEAT WIRING HARNESS Enquire To Order
221510 RH SEAT WIRING HARNESS Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
221681 ECU Enquire To Order
221681 ECU Enquire To Order
221681 ECU Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68451800 ECU MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
68451900 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
67585800 RH EASY ENTRY SYSTEM Enquire To Order
67585900 LH EASY ENTRY SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
68452000 PRE-TENSIONED CABLE Enquire To Order
Photo Part No Description Price (each) Stock
68452100 CONNECTOR COVER Enquire To Order
Photo Part No Description Price (each) Stock
68452200 CONNECTOR FASTENER CLIP Enquire To Order
Photo Part No Description Price (each) Stock
191544 CUSHION HEATING PAD Enquire To Order
Photo Part No Description Price (each) Stock
191545 BACKREST HEATING PAD Enquire To Order
Photo Part No Description Price (each) Stock
68455600 HEATING PAD WIRING HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
67736200 RH SEAT BELT Enquire To Order
68071500 RH SEAT BELT Enquire To Order
67736400 LH SEAT BELT Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68452300 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
68075500 RH BELT RETRACTOR MOUNTING BRACKET Enquire To Order
68075600 LH BELT RETRACTOR MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
68075700 RH COMPENSATOR SHIM Enquire To Order
68075800 LH COMPENSATOR SHIM Enquire To Order
Photo Part No Description Price (each) Stock
68452400 NUT Enquire To Order
Photo Part No Description Price (each) Stock
68452500 CABLE RETAINER FOR RH BELT RETRACTOR Enquire To Order
68452600 CABLE RETAINER FOR LH BELT RETRACTOR Enquire To Order
Photo Part No Description Price (each) Stock
68452700 WHITE CLIP, TUNNEL SIDE Enquire To Order
Photo Part No Description Price (each) Stock
68452800 ADJUSTER FASTENER PIN Enquire To Order
Photo Part No Description Price (each) Stock
68152600 RH BUCKLE STALK Enquire To Order
68152500 LH BUCKLE STALK Enquire To Order
Photo Part No Description Price (each) Stock
68452900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
68453000 MOUNT FOR PRE-TENSIONED CABLES Enquire To Order
Photo Part No Description Price (each) Stock
68159200 CONNECTOR FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
69186000 COMPLETE RH SEAT STRUCTURE Enquire To Order
69186100 COMPLETE LH SEAT STRUCTURE Enquire To Order
Photo Part No Description Price (each) Stock
203086 ECU Enquire To Order
Photo Part No Description Price (each) Stock
68984500 SCREW Enquire To Order
68984400 SCREW Enquire To Order
68984300 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
70001261 KIT OF FASTENERS FOR WEIGHT SENSOR FRAME Enquire To Order
Photo Part No Description Price (each) Stock
205286 SENSOR WIRING HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
205285 SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
67808100 SENSOR MOUNTING FRAME Enquire To Order
View All

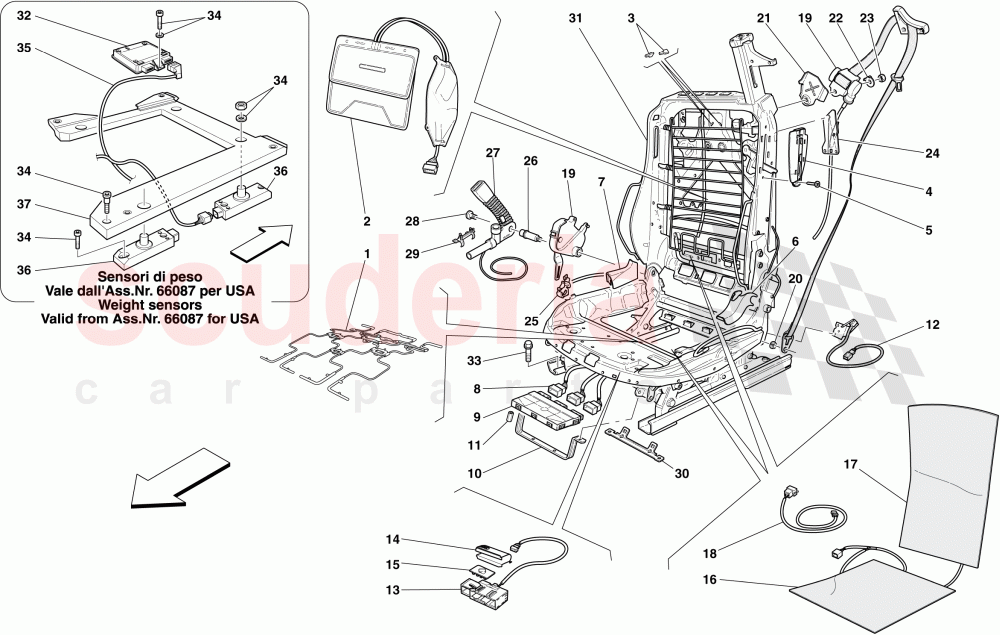

ELECTRIC FRONT SEAT - SEAT BELTS AND DEVICES of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 68450900
CUSHION MEMBRANE 		- 2 Enquire
2 68448600
LUMBAR SUPPORT ADJUSTMENT 		- 2 Enquire
3 68451000
BELT RETRACTOR FASTENER PIN COVER 		- 4 Enquire
4 68451100
RH RELEASE LEVER SURROUND MOUNT 		- 1 Enquire
4 68451200
LH RELEASE LEVER SURROUND MOUNT 		- 1 Enquire
5 68451300
SCREW 		- 4 Enquire
6 68451400
RH OUTER REAR PROTECTION 		- 1 Enquire
6 68451500
LH OUTER REAR PROTECTION 		- 1 Enquire
7 68451600
RH INNER REAR PROTECTION 		- 1 Enquire
7 68451700
LH INNER REAR PROTECTION 		- 1 Enquire
8 198087
RH SEAT WIRING HARNESS
Not for USA, CDN, GD 		- 1 Enquire
8 198087
RH SEAT WIRING HARNESS
Applicable for USA, CDN; Applicable up to Ass. No. 66086 		- 1 Enquire
8 221510
RH SEAT WIRING HARNESS
Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 1 Enquire
8 213163
RH SEAT WIRING HARNESS
Applicable for GD 		- 1 Enquire
8 198088
LH SEAT WIRING HARNESS
Not for GD 		- 1 Enquire
8 213164
LH SEAT WIRING HARNESS
Applicable for GD 		- 1 Enquire
9 221681
ECU
Not for USA, CDN 		- 2 Enquire
9 221681
ECU
Applicable for USA, CDN; Applicable up to Ass. No. 66086 		- 2 Enquire
9 221681
ECU
Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 2 Enquire
9 230748
ECU
Weight sensors; Applicable for RH seat; Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 1 Enquire
10 68451800
ECU MOUNTING BRACKET 		- 2 Enquire
11 68451900
SHIM 		- 4 Enquire
12 67585800
RH EASY ENTRY SYSTEM 		- 1 Enquire
12 67585900
LH EASY ENTRY SYSTEM 		- 1 Enquire
13 68452000
PRE-TENSIONED CABLE 		- 2 Enquire
14 68452100
CONNECTOR COVER 		- 2 Enquire
15 68452200
CONNECTOR FASTENER CLIP 		- 2 Enquire
16 191544
CUSHION HEATING PAD
Heated; Optional 		- 2 Enquire
17 191545
BACKREST HEATING PAD
Heated; Optional 		- 2 Enquire
18 68455600
HEATING PAD WIRING HARNESS
Heated; Optional 		- 2 Enquire
19 67736200
RH SEAT BELT
Not for GD 		- 1 Enquire
19 68071500
RH SEAT BELT
Applicable for GD 		- 1 Enquire
19 67736400
LH SEAT BELT 		- 1 Enquire
19 80592600
LH SEAT BELT
Enhanced version 		- 1 Enquire
19 80592400
RH SEAT BELT
Enhanced version; Applicable for GD 		- 1 Enquire
19 80592300
RH SEAT BELT
Enhanced version; Not for GD 		- 1 Enquire
20 68452300
BUSHING 		- 2 Enquire
21 68075500
RH BELT RETRACTOR MOUNTING BRACKET 		- 1 Enquire
21 68075600
LH BELT RETRACTOR MOUNTING BRACKET 		- 1 Enquire
22 68075700
RH COMPENSATOR SHIM 		- 1 Enquire
22 68075800
LH COMPENSATOR SHIM 		- 1 Enquire
23 68452400
NUT 		- 2 Enquire
24 68452500
CABLE RETAINER FOR RH BELT RETRACTOR 		- 1 Enquire
24 68452600
CABLE RETAINER FOR LH BELT RETRACTOR 		- 1 Enquire
25 68452700
WHITE CLIP, TUNNEL SIDE 		- 2 Enquire
26 68452800
ADJUSTER FASTENER PIN 		- 2 Enquire
27 68152600
RH BUCKLE STALK 		- 1 Enquire
27 68152500
LH BUCKLE STALK 		- 1 Enquire
28 68452900
SCREW 		- 2 Enquire
29 68453000
MOUNT FOR PRE-TENSIONED CABLES 		- 2 Enquire
30 68159200
CONNECTOR FASTENER BRACKET 		- 2 Enquire
31 69186000
COMPLETE RH SEAT STRUCTURE 		- 1 Enquire
31 69186100
COMPLETE LH SEAT STRUCTURE 		- 1 Enquire
32 203086
ECU
Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 1 Enquire
33 68984500
SCREW
M10 X 30 X 1.25; Q.ty 2 for version with weight sensors 		- 4 Enquire
33 68984400
SCREW
M10 X 1.25 X 40; Q.ty 2 for version with weight sensors 		- 4 Enquire
33 68984300
SCREW
M10 X 1.25 X 29; Q.ty 5 for version with weight sensors 		- 2 Enquire
34 70001261
KIT OF FASTENERS FOR WEIGHT SENSOR FRAME
Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 1 Enquire
35 205286
SENSOR WIRING HARNESS
Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 1 Enquire
36 205285
SENSOR
Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 4 Enquire
37 67808100
SENSOR MOUNTING FRAME
Weight sensors; Applicable for USA, CDN; Applicable from Ass. No. 66087 		- 1 Enquire
