ELECTRICAL SYSTEM of Ferrari Ferrari 612 Scaglietti

View All

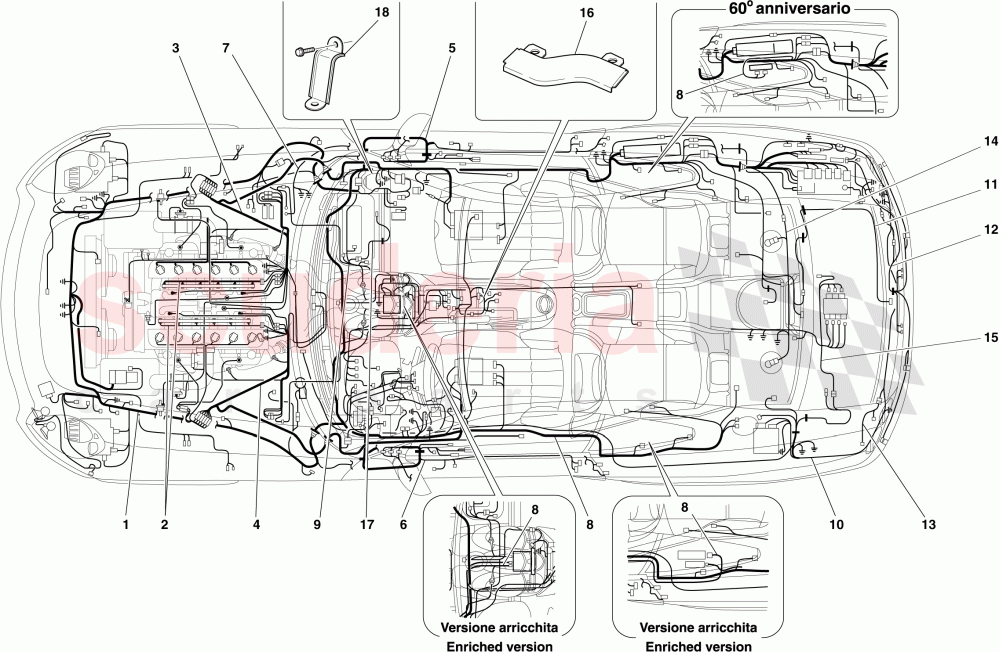

Ferrari 612 Scaglietti - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	220363	ENGINE COMPARTMENT CABLE	Enquire	To Order
	224465	ENGINE COMPARTMENT CABLE	Enquire	To Order
	220364	ENGINE COMPARTMENT CABLE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	201332	INJECTOR CONNECTOR CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192557	RH CYLINDER BANK CONNECTOR CABLES	Enquire	To Order
	244075	RH CYLINDER BANK CONNECTOR CABLES	Enquire	To Order
	244075	RH CYLINDER BANK CONNECTOR CABLES	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	244079	LH CYLINDER BANK CONNECTOR CABLES	Enquire	To Order
	244080	LH CYLINDER BANK CONNECTOR CABLES	Enquire	To Order
	244079	LH CYLINDER BANK CONNECTOR CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205258	PASSENGER SIDE DOOR CONNECTOR CABLES	Enquire	To Order
	191598	PASSENGER SIDE DOOR CONNECTOR CABLES	Enquire	To Order
	201109	PASSENGER SIDE DOOR CONNECTOR CABLES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	205259	DRIVER SIDE DOOR CONNECTOR CABLES	Enquire	To Order
	191597	DRIVER SIDE DOOR CONNECTOR CABLES	Enquire	To Order
	201108	DRIVER SIDE DOOR CONNECTOR CABLES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	194335	BATTERY POSITIVE CABLE	Enquire	To Order
	205689	BATTERY POSITIVE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205778	PASSENGER COMPARTMENT CABLE	Enquire	To Order
	191559	PASSENGER COMPARTMENT CABLE	Enquire	To Order
	191592	PASSENGER COMPARTMENT CABLE	Enquire	To Order

...and 20 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	205715	DASHBOARD CABLE	Enquire	To Order
	191560	DASHBOARD CABLE	Enquire	To Order
	206650	DASHBOARD CABLE	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	213891	LUGGAGE COMPARTMENT CABLE	Enquire	To Order
	213178	LUGGAGE COMPARTMENT CABLE	Enquire	To Order
	191596	LUGGAGE COMPARTMENT CABLE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	192549	TAILGATE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192553	PLATE LIGHT CABLES	Enquire	To Order
	193985	PLATE LIGHT CABLES	Enquire	To Order
	193984	BUMPER CABLE WITH PARKING SENSORS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	193988	TAILLIGHT CABLE	Enquire	To Order
	193989	TAILLIGHT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194334	FUEL TANK CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192556	ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES	Enquire	To Order
	225790	ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191541	CHANNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786406	GLOVE COMPARTMENT WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221557	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	220363	ENGINE COMPARTMENT CABLE	220363 ENGINE COMPARTMENT CABLE Optional; HGTC version; Not for GD	-	1	Enquire
1	224465	ENGINE COMPARTMENT CABLE	224465 ENGINE COMPARTMENT CABLE Not for GD; Applicable up to Ass. No. 66617	-	1	Enquire
1	220364	ENGINE COMPARTMENT CABLE	220364 ENGINE COMPARTMENT CABLE Optional; HGTC version; Applicable for GD	-	1	Enquire
1	224466	ENGINE COMPARTMENT CABLE	224466 ENGINE COMPARTMENT CABLE Applicable for GD; Applicable up to Ass. No. 66617	-	1	Enquire
1	233726	ENGINE COMPARTMENT CABLE	233726 ENGINE COMPARTMENT CABLE Enhanced version; Not for GD	-	1	Enquire
1	229832	ENGINE COMPARTMENT CABLE	229832 ENGINE COMPARTMENT CABLE Enhanced version; MY 08; Applicable for front parking sensors, CCM discs and sports exhaust; Not for USA, CDN, GD	-	1	Enquire
1	254924	ENGINE COMPARTMENT CABLE	254924 ENGINE COMPARTMENT CABLE Enhanced version; MY 09; Applicable for front parking sensors, CCM discs and sports exhaust; Applicable for USA, CDN; Not for GD	-	1	Enquire
1	234927	ENGINE COMPARTMENT CABLE	234927 ENGINE COMPARTMENT CABLE Enhanced version; Applicable for GD	-	1	Enquire
2	201332	INJECTOR CONNECTOR CABLES	201332 INJECTOR CONNECTOR CABLES	-	2	Enquire
3	192557	RH CYLINDER BANK CONNECTOR CABLES	192557 RH CYLINDER BANK CONNECTOR CABLES Not for USA, CDN, GD; Applicable up to Ass. No. 55824	-	1	Enquire
3	244075	RH CYLINDER BANK CONNECTOR CABLES	244075 RH CYLINDER BANK CONNECTOR CABLES Not for HGTC version; Not for USA, CDN, GD	-	1	Enquire
3	244075	RH CYLINDER BANK CONNECTOR CABLES	244075 RH CYLINDER BANK CONNECTOR CABLES Optional; Applicable for CINA	-	1	Enquire
3	244075	RH CYLINDER BANK CONNECTOR CABLES	244075 RH CYLINDER BANK CONNECTOR CABLES	-	1	Enquire
3	205694	RH CYLINDER BANK CONNECTOR CABLES	205694 RH CYLINDER BANK CONNECTOR CABLES Applicable for USA, CDN; Applicable up to Ass. No. 55824	-	1	Enquire
3	244076	RH CYLINDER BANK CONNECTOR CABLES	244076 RH CYLINDER BANK CONNECTOR CABLES HGTC version; Optional; Applicable for USA, CDN	-	1	Enquire
3	244077	RH CYLINDER BANK CONNECTOR CABLES	244077 RH CYLINDER BANK CONNECTOR CABLES Applicable for GD; Applicable up to Ass. No. 55824	-	1	Enquire
3	244077	RH CYLINDER BANK CONNECTOR CABLES	244077 RH CYLINDER BANK CONNECTOR CABLES HGTC version; Optional; Applicable for GD	-	1	Enquire
4	244079	LH CYLINDER BANK CONNECTOR CABLES	244079 LH CYLINDER BANK CONNECTOR CABLES Not for USA, CDN, GD	-	1	Enquire
4	244080	LH CYLINDER BANK CONNECTOR CABLES	244080 LH CYLINDER BANK CONNECTOR CABLES Applicable for USA, CDN	-	1	Enquire
4	244079	LH CYLINDER BANK CONNECTOR CABLES	244079 LH CYLINDER BANK CONNECTOR CABLES Applicable for GD	-	1	Enquire
5	205258	PASSENGER SIDE DOOR CONNECTOR CABLES	205258 PASSENGER SIDE DOOR CONNECTOR CABLES Not for GD	-	1	Enquire
5	191598	PASSENGER SIDE DOOR CONNECTOR CABLES	191598 PASSENGER SIDE DOOR CONNECTOR CABLES Not for GD	-	1	Enquire
5	201109	PASSENGER SIDE DOOR CONNECTOR CABLES	201109 PASSENGER SIDE DOOR CONNECTOR CABLES Applicable for GD	-	1	Enquire
5	191600	PASSENGER SIDE DOOR CONNECTOR CABLES	191600 PASSENGER SIDE DOOR CONNECTOR CABLES Applicable for GD	-	1	Enquire
6	205259	DRIVER SIDE DOOR CONNECTOR CABLES	205259 DRIVER SIDE DOOR CONNECTOR CABLES Not for GD	-	1	Enquire
6	191597	DRIVER SIDE DOOR CONNECTOR CABLES	191597 DRIVER SIDE DOOR CONNECTOR CABLES Not for GD	-	1	Enquire
6	201108	DRIVER SIDE DOOR CONNECTOR CABLES	201108 DRIVER SIDE DOOR CONNECTOR CABLES Applicable for GD	-	1	Enquire
6	191599	DRIVER SIDE DOOR CONNECTOR CABLES	191599 DRIVER SIDE DOOR CONNECTOR CABLES Applicable for GD	-	1	Enquire
7	194335	BATTERY POSITIVE CABLE	194335 BATTERY POSITIVE CABLE Not for GD	-	1	Enquire
7	205689	BATTERY POSITIVE CABLE	205689 BATTERY POSITIVE CABLE Applicable for GD	-	1	Enquire
8	205778	PASSENGER COMPARTMENT CABLE	205778 PASSENGER COMPARTMENT CABLE Not for GD; Applicable up to Ass. No. 55824	-	1	Enquire
8	191559	PASSENGER COMPARTMENT CABLE	191559 PASSENGER COMPARTMENT CABLE Not for GD; Applicable from Ass. No. 55825 up to Ass. No. 62116	-	1	Enquire
8	191592	PASSENGER COMPARTMENT CABLE	191592 PASSENGER COMPARTMENT CABLE Not for USA, CDN, GD; Applicable from Ass. No. 62117 up to Ass. No. 66184	-	1	Enquire
8	191592	PASSENGER COMPARTMENT CABLE	191592 PASSENGER COMPARTMENT CABLE Applicable for USA, CDN; Applicable from Ass. No. 62117 up to Ass. No. 66086	-	1	Enquire
8	191593	PASSENGER COMPARTMENT CABLE	191593 PASSENGER COMPARTMENT CABLE Applicable for USA; Applicable from Ass. No. 66087 up to Ass. No. 66184	-	1	Enquire
8	228429	PASSENGER COMPARTMENT CABLE	228429 PASSENGER COMPARTMENT CABLE Not for USA, GD	-	1	Enquire
8	230352	PASSENGER COMPARTMENT CABLE	230352 PASSENGER COMPARTMENT CABLE Not for USA, GD	-	1	Enquire
8	228430	PASSENGER COMPARTMENT CABLE	228430 PASSENGER COMPARTMENT CABLE Full house; Applicable for USA; Applicable from Ass. No. 66185	-	1	Enquire
8	230353	PASSENGER COMPARTMENT CABLE	230353 PASSENGER COMPARTMENT CABLE Base; Applicable for USA	-	1	Enquire
8	206659	PASSENGER COMPARTMENT CABLE	206659 PASSENGER COMPARTMENT CABLE Not applicable for satellite alarm system kit; Applicable for GD	-	1	Enquire
8	215912	PASSENGER COMPARTMENT CABLE	215912 PASSENGER COMPARTMENT CABLE Applicable for satellite alarm system kit; Applicable for UK	-	1	Enquire
8	191594	PASSENGER COMPARTMENT CABLE	191594 PASSENGER COMPARTMENT CABLE Applicable for GD; Applicable from Ass. No. 62117 up to Ass. No. 66931	-	1	Enquire
8	228431	PASSENGER COMPARTMENT CABLE	228431 PASSENGER COMPARTMENT CABLE Applicable for GD; Applicable from Ass. No. 66932	-	1	Enquire
8	233724	PASSENGER COMPARTMENT CABLE	233724 PASSENGER COMPARTMENT CABLE Enhanced version; Not for USA, CDN, GD	-	1	Enquire
8	226125	PASSENGER COMPARTMENT CABLE	226125 PASSENGER COMPARTMENT CABLE Enhanced version; Applicable for front parking sensors, electroc. mirrors and satellite alarm system kit; Not for USA, CDN, GD	-	1	Enquire
8	234929	PASSENGER COMPARTMENT CABLE	234929 PASSENGER COMPARTMENT CABLE Enhanced version; Applicable for GD	-	1	Enquire
8	243139	PASSENGER COMPARTMENT CABLE	243139 PASSENGER COMPARTMENT CABLE Enhanced version; Applicable for USA, CDN	-	1	Enquire
8	237848	PASSENGER COMPARTMENT CABLE	237848 PASSENGER COMPARTMENT CABLE Applicable for "60°anniversario"; Not for USA, CDN, GD	-	1	Enquire
8	237851	PASSENGER COMPARTMENT CABLE	237851 PASSENGER COMPARTMENT CABLE Applicable for "60°anniversario"; Applicable for GD	-	1	Enquire
8	237850	PASSENGER COMPARTMENT CABLE	237850 PASSENGER COMPARTMENT CABLE Applicable for "60°anniversario"; Applicable for USA, CDN	-	1	Enquire
8	243706	PASSENGER COMPARTMENT CABLE	243706 PASSENGER COMPARTMENT CABLE Applicable for "OTO"; Not for USA, CDN, GD	-	1	Enquire
8	243707	PASSENGER COMPARTMENT CABLE	243707 PASSENGER COMPARTMENT CABLE Applicable for "OTO"; Applicable for USA, CDN	-	1	Enquire
8	243708	PASSENGER COMPARTMENT CABLE	243708 PASSENGER COMPARTMENT CABLE Applicable for "OTO"; Applicable for GD	-	1	Enquire
9	205715	DASHBOARD CABLE	205715 DASHBOARD CABLE Not for GD; Applicable up to Ass. No. 55824	-	1	Enquire
9	191560	DASHBOARD CABLE	191560 DASHBOARD CABLE Not for GD; Applicable from Ass. No. 55825 up to Ass. No. 58485	-	1	Enquire
9	206650	DASHBOARD CABLE	206650 DASHBOARD CABLE Not for GD; Applicable from Ass. No. 58486 up to Ass. No. 65503	-	1	Enquire
9	228177	DASHBOARD CABLE	228177 DASHBOARD CABLE Not for GD; Applicable from Ass. No. 65504	-	1	Enquire
9	206657	DASHBOARD CABLE	206657 DASHBOARD CABLE Applicable for GD; Applicable up to Ass. No. 65503	-	1	Enquire
9	228178	DASHBOARD CABLE	228178 DASHBOARD CABLE Applicable for GD; Applicable from Ass. No. 65504	-	1	Enquire
9	229833	DASHBOARD CABLE	229833 DASHBOARD CABLE Enhanced version; Not for GD	-	1	Enquire
9	234928	DASHBOARD CABLE	234928 DASHBOARD CABLE Enhanced version; Applicable for GD	-	1	Enquire
9	237852	DASHBOARD CABLE	237852 DASHBOARD CABLE Applicable for "60°anniversario"; Not for GD	-	1	Enquire
9	237853	DASHBOARD CABLE	237853 DASHBOARD CABLE Applicable for "60°anniversario"; Applicable for GD	-	1	Enquire
9	243709	DASHBOARD CABLE	243709 DASHBOARD CABLE Applicable for "OTO"; Not for GD	-	1	Enquire
9	243710	DASHBOARD CABLE	243710 DASHBOARD CABLE Applicable for "OTO"; Applicable for GD	-	1	Enquire
10	213891	LUGGAGE COMPARTMENT CABLE	213891 LUGGAGE COMPARTMENT CABLE Applicable up to Ass. No. 58176; Applicable for F1 gearbox; Applicable up to engine No. 91306	-	1	Enquire
10	213178	LUGGAGE COMPARTMENT CABLE	213178 LUGGAGE COMPARTMENT CABLE Applicable from Ass. No. 58177 up to Ass. No. 62116; Applicable for F1 gearbox; Applicable from engine No. 91307	-	1	Enquire
10	191596	LUGGAGE COMPARTMENT CABLE	191596 LUGGAGE COMPARTMENT CABLE Applicable from Ass. No. 62117 up to Ass. No. 67787; Applicable for F1 gearbox	-	1	Enquire
10	213892	LUGGAGE COMPARTMENT CABLE	213892 LUGGAGE COMPARTMENT CABLE Applicable up to Ass. No. 62116; Not for F1 gearbox	-	1	Enquire
10	191595	LUGGAGE COMPARTMENT CABLE	191595 LUGGAGE COMPARTMENT CABLE Applicable from Ass. No. 62117 up to Ass. No. 67787; Not for F1 gearbox	-	1	Enquire
10	238592	LUGGAGE COMPARTMENT CABLE	238592 LUGGAGE COMPARTMENT CABLE Enhanced version; Not for F1 gearbox	-	1	Enquire
10	237854	LUGGAGE COMPARTMENT CABLE	237854 LUGGAGE COMPARTMENT CABLE Applicable for "60°anniversario"	-	1	Enquire
10	244074	LUGGAGE COMPARTMENT CABLE	244074 LUGGAGE COMPARTMENT CABLE Applicable for "OTO"	-	1	Enquire
11	192549	TAILGATE CABLE	192549 TAILGATE CABLE	-	1	Enquire
12	192553	PLATE LIGHT CABLES	192553 PLATE LIGHT CABLES Not for USA, CDN	-	1	Enquire
12	193985	PLATE LIGHT CABLES	193985 PLATE LIGHT CABLES Applicable for USA, CDN	-	1	Enquire
12	193984	BUMPER CABLE WITH PARKING SENSORS	193984 BUMPER CABLE WITH PARKING SENSORS With parking sensors; Optional; Not for USA, CDN	-	1	Enquire
12	193986	BUMPER CABLE WITH PARKING SENSORS	193986 BUMPER CABLE WITH PARKING SENSORS With parking sensors; Optional; Applicable for USA, CDN	-	1	Enquire
13	193988	TAILLIGHT CABLE	193988 TAILLIGHT CABLE Not applicable for Korea; Not for USA, CDN	-	2	Enquire
13	193989	TAILLIGHT CABLE	193989 TAILLIGHT CABLE Applicable for Korea; Applicable for USA, CDN	-	2	Enquire
14	194334	FUEL TANK CABLE	194334 FUEL TANK CABLE	-	1	Enquire
15	192556	ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES	192556 ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES Applicable for F1 gearbox	-	1	Enquire
15	225790	ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES	225790 ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES Applicable for "OTO"; Applicable for F1 gearbox	-	1	Enquire
16	191541	CHANNEL	191541 CHANNEL	-	1	Enquire
17	786406	GLOVE COMPARTMENT WIRING HARNESS	786406 GLOVE COMPARTMENT WIRING HARNESS	-	1	Enquire
18	221557	BRACKET	221557 BRACKET Enhanced version	-	2	Enquire
