REAR BRAKE CALLIPER of Ferrari Ferrari 599 SA Aperta

View All

Ferrari 599 SA Aperta - REAR BRAKE CALLIPER

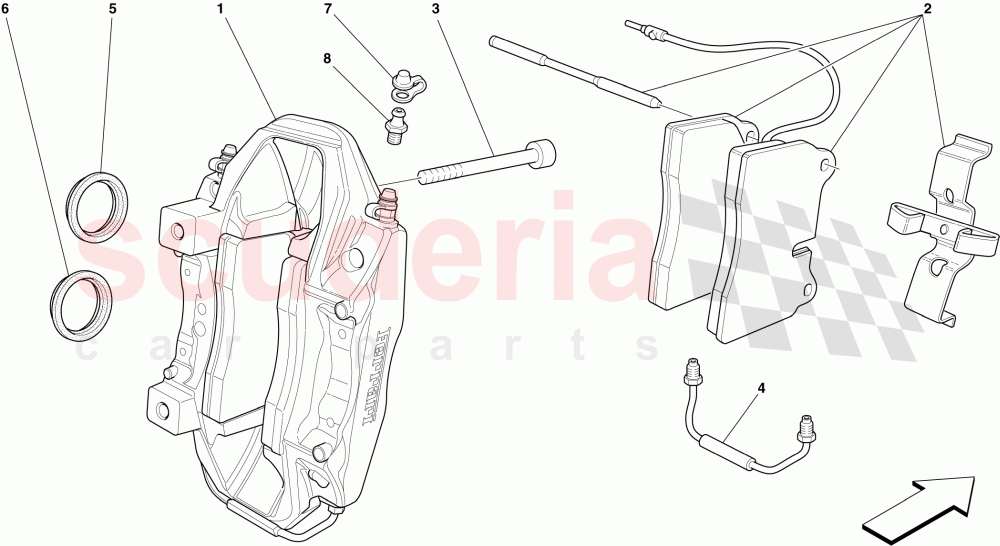

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	227810	REAR RH CALLIPER WITH PADS	Enquire	To Order
	227812	REAR RH CALLIPER WITH PADS	Enquire	To Order
	227814	REAR RH CALLIPER WITH PADS	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	70001120	REAR PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203993	RH CONNECTOR PIPE	Enquire	To Order
	203992	LH CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207222	GAITER FOR CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152953	GAITER FOR CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	227810	REAR RH CALLIPER WITH PADS	227810 REAR RH CALLIPER WITH PADS Black	-	1	Enquire
1	227812	REAR RH CALLIPER WITH PADS	227812 REAR RH CALLIPER WITH PADS Red	-	1	Enquire
1	227814	REAR RH CALLIPER WITH PADS	227814 REAR RH CALLIPER WITH PADS Grey	-	1	Enquire
1	227816	REAR RH CALLIPER WITH PADS	227816 REAR RH CALLIPER WITH PADS Modena Yellow	-	1	Enquire
1	234577	REAR RH CALLIPER WITH PADS	234577 REAR RH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	248522	REAR RH CALLIPER WITH PADS	248522 REAR RH CALLIPER WITH PADS Anodised black	-	1	Enquire
1	227809	REAR LH CALLIPER WITH PADS	227809 REAR LH CALLIPER WITH PADS Black	-	1	Enquire
1	227811	REAR LH CALLIPER WITH PADS	227811 REAR LH CALLIPER WITH PADS Red	-	1	Enquire
1	227813	REAR LH CALLIPER WITH PADS	227813 REAR LH CALLIPER WITH PADS Grey	-	1	Enquire
1	227815	REAR LH CALLIPER WITH PADS	227815 REAR LH CALLIPER WITH PADS Modena Yellow	-	1	Enquire
1	234576	REAR LH CALLIPER WITH PADS	234576 REAR LH CALLIPER WITH PADS Scuderia Red	-	1	Enquire
1	248523	REAR LH CALLIPER WITH PADS	248523 REAR LH CALLIPER WITH PADS Anodised black	-	1	Enquire
2	70001120	REAR PAD SET WITH SPRING	70001120 REAR PAD SET WITH SPRING	-	1	Enquire
3	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95	-	4	Enquire
4	203993	RH CONNECTOR PIPE	203993 RH CONNECTOR PIPE	-	1	Enquire
4	203992	LH CONNECTOR PIPE	203992 LH CONNECTOR PIPE	-	1	Enquire
5	207222	GAITER FOR CYLINDER	207222 GAITER FOR CYLINDER D. 32	-	2	Enquire
6	152953	GAITER FOR CYLINDER	152953 GAITER FOR CYLINDER D. 36	-	2	Enquire
7	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	2	Enquire
8	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	-	2	Enquire
