REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 599 SA Aperta

View All

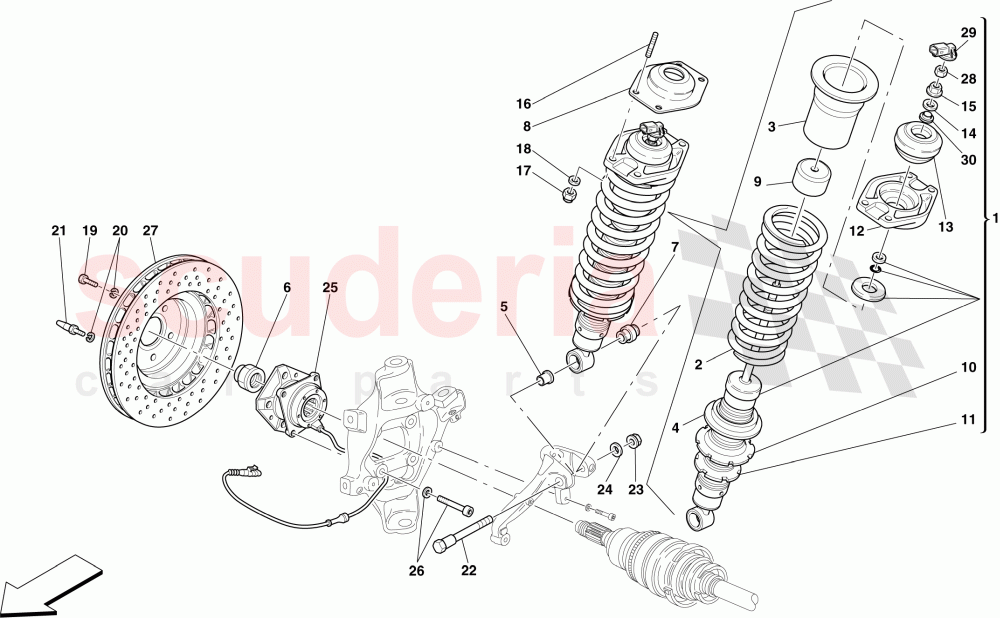

Ferrari 599 SA Aperta - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	257059	Rear Shock Absorber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221094	SUSPENSION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186489	UPPER SPACER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	186487	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190702	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	279627	UPPER STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256977	SHOCK ABSORBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220350	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220351	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190330	Lower Stop Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204606	Bush for Front Upper Shock Absorber	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	220377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220378	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543634	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190530	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155002	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197232	WHEEL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203135	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216835	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220382	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234671	UPPER CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220383	BUSH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	257059	Rear Shock Absorber	257059 Rear Shock Absorber	-	2	Enquire
2	221094	SUSPENSION SPRING	221094 SUSPENSION SPRING	-	2	Enquire
3	186489	UPPER SPACER ARRIVING SOON	186489 UPPER SPACER ARRIVING SOON	-	2	Enquire
4	186487	LOWER SPACER	186487 LOWER SPACER	-	2	Enquire
5	190702	SHIM	190702 SHIM	-	2	Enquire
6	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
7	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
8	279627	UPPER STOP CAP	279627 UPPER STOP CAP	-	2	Enquire
9	256977	SHOCK ABSORBER BUSHING	256977 SHOCK ABSORBER BUSHING	-	2	Enquire
10	220350	CAP	220350 CAP	-	2	Enquire
11	220351	RING NUT	220351 RING NUT	-	2	Enquire
12	190330	Lower Stop Cap	190330 Lower Stop Cap	-	2	Enquire
13	204606	Bush for Front Upper Shock Absorber ARRIVING SOON	204606 Bush for Front Upper Shock Absorber ARRIVING SOON	-	2	Enquire
14	220377	WASHER	220377 WASHER	-	2	Enquire
15	220378	NUT	220378 NUT	-	2	Enquire
16	13543634	STUD BOLT	13543634 STUD BOLT	-	8	Enquire
17	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
18	14496524	WASHER	14496524 WASHER	-	8	Enquire
19	14306924	SCREW	14306924 SCREW	-	2	Enquire
20	127496	WASHER	127496 WASHER	-	4	Enquire
21	104370	SCREW	104370 SCREW	-	2	Enquire
22	190530	SCREW	190530 SCREW	-	2	Enquire
23	255271	NUT	255271 NUT	-	2	Enquire
24	155002	Washer	155002 Washer	-	2	Enquire
25	197232	WHEEL BEARING	197232 WHEEL BEARING	-	2	Enquire
26	203135	SCREW WITH WASHER	203135 SCREW WITH WASHER	-	8	Enquire
27	216835	REAR BRAKE DISC	216835 REAR BRAKE DISC	-	2	Enquire
28	220382	NUT	220382 NUT	-	2	Enquire
29	234671	UPPER CONNECTOR	234671 UPPER CONNECTOR	-	2	Enquire
30	220383	BUSH	220383 BUSH	-	2	Enquire
