INTERNAL GEARBOX CONTROLS of Ferrari Ferrari 599 SA Aperta

View All

Ferrari 599 SA Aperta - INTERNAL GEARBOX CONTROLS

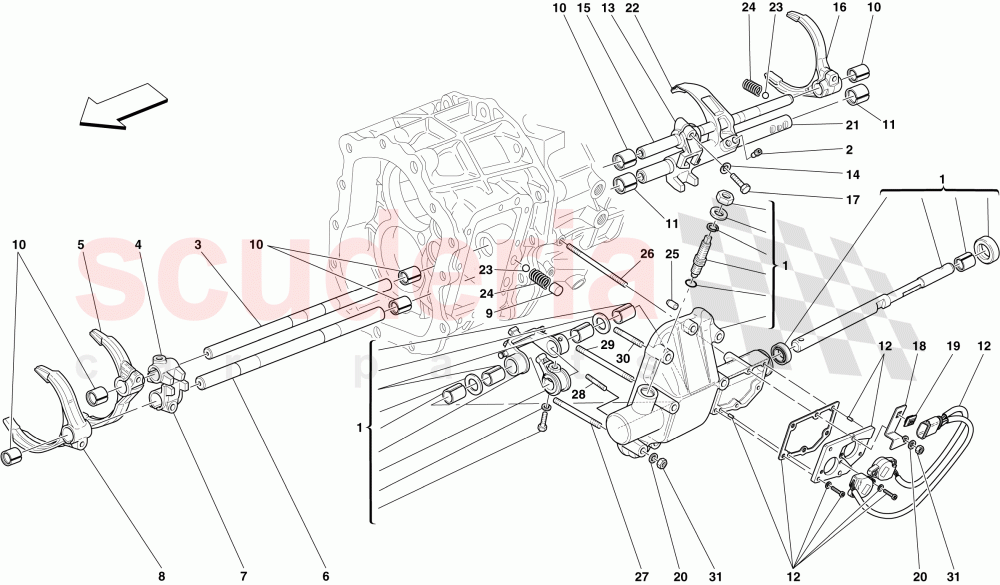

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	231040	COMPLETE INTERNAL GEARBOX CONTROL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142245	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158051	3rd AND 4th GEAR CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222832	3rd AND 4th GEAR CONTROL ROD FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261486	3rd AND 4th GEAR CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189533	5th AND 6th GEAR CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222833	5th AND 6th GEAR CONTROL ROD FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189534	5th AND 6th GEAR CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150173	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106500	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150093	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247238	POSITION SENSOR KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193901	REVERSE CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189527	REVERSE CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189528	REVERSE CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208419	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187161	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194379	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189531	1st AND 2nd GEAR CONTROL ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189530	1st AND 2nd GEAR CONTROL FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101612	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100750	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541924	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13542024	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13541624	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	231040	COMPLETE INTERNAL GEARBOX CONTROL COVER	231040 COMPLETE INTERNAL GEARBOX CONTROL COVER	-	1	Enquire
2	142245	SCREW	142245 SCREW	-	2	Enquire
3	158051	3rd AND 4th GEAR CONTROL ROD	158051 3rd AND 4th GEAR CONTROL ROD	-	1	Enquire
4	222832	3rd AND 4th GEAR CONTROL ROD FORK	222832 3rd AND 4th GEAR CONTROL ROD FORK	-	1	Enquire
5	261486	3rd AND 4th GEAR CONTROL FORK	261486 3rd AND 4th GEAR CONTROL FORK	-	1	Enquire
6	189533	5th AND 6th GEAR CONTROL ROD	189533 5th AND 6th GEAR CONTROL ROD	-	1	Enquire
7	222833	5th AND 6th GEAR CONTROL ROD FORK	222833 5th AND 6th GEAR CONTROL ROD FORK	-	1	Enquire
8	189534	5th AND 6th GEAR CONTROL FORK	189534 5th AND 6th GEAR CONTROL FORK	-	1	Enquire
9	150173	SHIM	150173 SHIM	-	1	Enquire
10	106500	BUSHING	106500 BUSHING	-	6	Enquire
11	150093	BUSHING	150093 BUSHING	-	2	Enquire
12	247238	POSITION SENSOR KIT	247238 POSITION SENSOR KIT	-	1	Enquire
13	193901	REVERSE CONTROL FORK	193901 REVERSE CONTROL FORK	-	1	Enquire
14	84653800	WASHER	84653800 WASHER	-	6	Enquire
15	189527	REVERSE CONTROL ROD	189527 REVERSE CONTROL ROD	-	1	Enquire
16	189528	REVERSE CONTROL FORK	189528 REVERSE CONTROL FORK	-	1	Enquire
17	16043634	SCREW	16043634 SCREW	-	6	Enquire
18	208419	CONNECTOR FASTENER BRACKET	208419 CONNECTOR FASTENER BRACKET	-	1	Enquire
19	187161	FASTENER CLIP	187161 FASTENER CLIP	-	1	Enquire
20	11194379	WASHER	11194379 WASHER	-	8	Enquire
21	189531	1st AND 2nd GEAR CONTROL ROD	189531 1st AND 2nd GEAR CONTROL ROD	-	1	Enquire
22	189530	1st AND 2nd GEAR CONTROL FORK	189530 1st AND 2nd GEAR CONTROL FORK	-	1	Enquire
23	101612	BALL	101612 BALL	-	3	Enquire
24	100750	SPRING	100750 SPRING	-	3	Enquire
25	125717	CENTRING DOWEL	125717 CENTRING DOWEL	-	2	Enquire
26	13541924	STUD BOLT	13541924 STUD BOLT	-	2	Enquire
27	13541524	STUD BOLT	13541524 STUD BOLT	-	2	Enquire
28	13541224	STUD BOLT	13541224 STUD BOLT M6 X 12; Shank length 22 mm	-	2	Enquire
29	13542024	STUD BOLT	13542024 STUD BOLT	-	2	Enquire
30	13541624	STUD BOLT	13541624 STUD BOLT	-	2	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	8	Enquire
