REAR SUSPENSION - ARMS AND STABILISER BAR

Find Your Part

Ferrari 599 GTO - REAR SUSPENSION - ARMS AND STABILISER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
226968 COMPLETE UPPER ARM $770.19 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 To Order
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $134.77 To Order
Photo Part No Description Price (each) Stock
190274 SHIM $14.68 To Order
Photo Part No Description Price (each) Stock
188581 SCREW $21.44 To Order
Photo Part No Description Price (each) Stock
209167 FLANBLOC $288.81 To Order
Photo Part No Description Price (each) Stock
170155 THREADED ROD $17.62 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
219344 WASHER $0.31 To Order
Photo Part No Description Price (each) Stock
13582271 INSERT $8.02 To Order
Photo Part No Description Price (each) Stock
190272 SCREW $31.33 To Order
Photo Part No Description Price (each) Stock
267229 RH REAR STUB AXLE $1,299.71 To Order
267228 LH REAR STUB AXLE $1,299.71 To Order
Photo Part No Description Price (each) Stock
207581 COMPLETE LOWER ARM $1,235.52 To Order
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $128.35 To Order
Photo Part No Description Price (each) Stock
190273 SHIM $39.17 To Order
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.92 To Order
Photo Part No Description Price (each) Stock

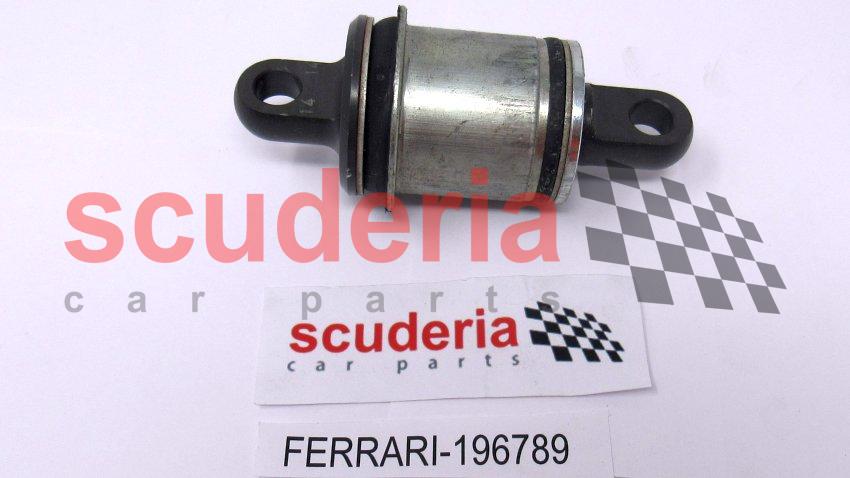

196789 Silentbloc Bush $320.90 To Order
Photo Part No Description Price (each) Stock
182215 SCREW $6.37 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
200938 SHIM $2.50 To Order
203312 SHIM $7.83 To Order
203313 SHIM $63.67 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock

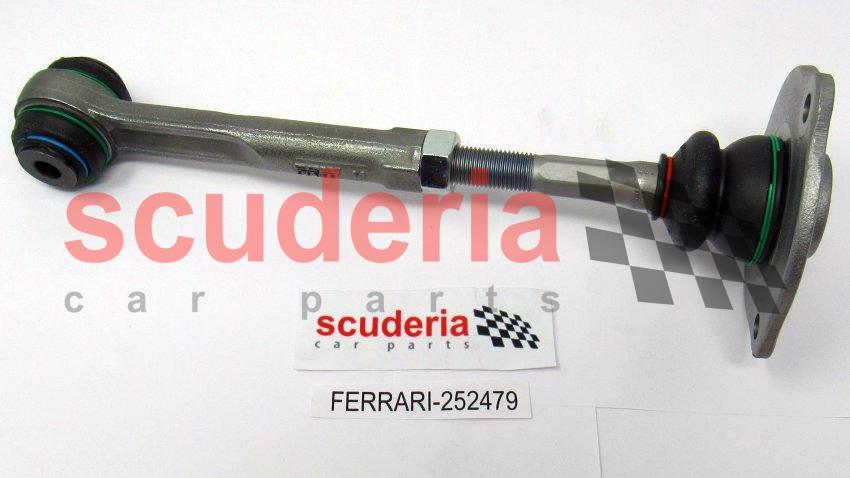

252479 Tie Rod $770.19 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
14058621 NUT $0.44 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
113113 WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
179556 SCREW $56.68 To Order
Photo Part No Description Price (each) Stock
168993 Roll Bar Link $96.26 To Order
Photo Part No Description Price (each) Stock
10791014 NUT $0.29 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
259549 STABILISER BAR $2,318.63 To Order
Photo Part No Description Price (each) Stock
264079 STABILISER BAR BUSH $53.02 To Order
Photo Part No Description Price (each) Stock
239775 PLATE $37.25 To Order
Photo Part No Description Price (each) Stock
113113 WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
205005 RH SHOCK ABSORBER MOUNT $224.63 To Order
205006 LH SHOCK ABSORBER MOUNT $224.63 To Order
Photo Part No Description Price (each) Stock
212601 SCREW $20.55 To Order
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $263.79 To Order
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $339.17 To Order
View All

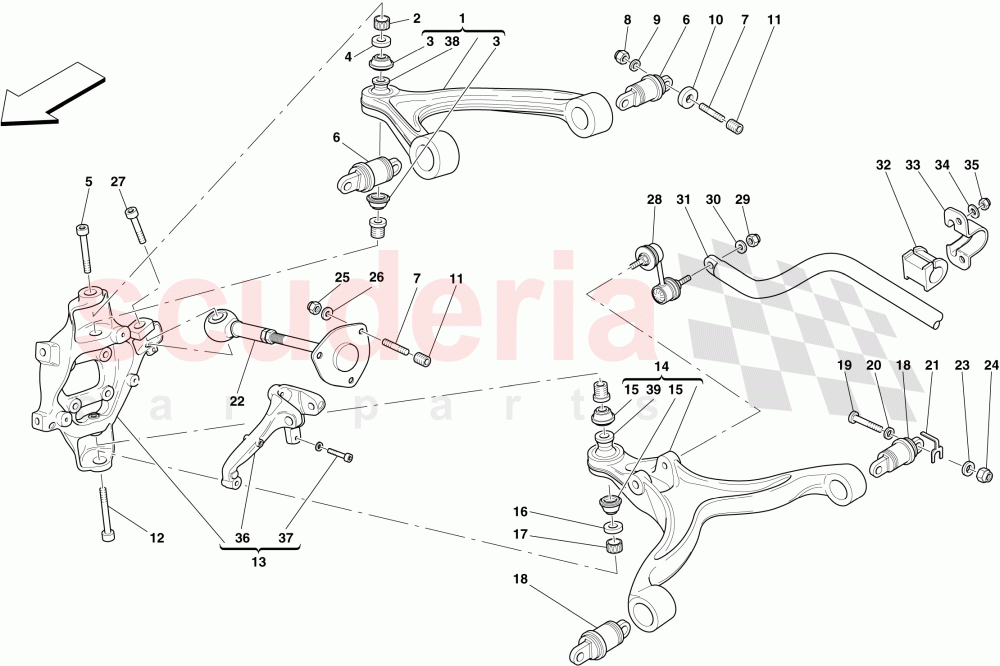

REAR SUSPENSION - ARMS AND STABILISER BAR of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 226968
COMPLETE UPPER ARM 		$770.19 2
2 179555
COMPENSATOR RING BUSHING 		$5.61 (11.9% off) 2
3 171848
Rubber Boot and Clip 		$134.77 (22.6% off) 4
4 190274
SHIM 		$14.68 2
5 188581
SCREW 		$21.44 2
6 209167
FLANBLOC 		$288.81 (24.1% off) 4
7 170155
THREADED ROD 		$17.62 14
8 104030
NUT 		$0.26 (74% off) 8
9 14496524
WASHER 		$0.11 (92.7% off) 8
10 219344
WASHER 		$0.31 8
11 13582271
INSERT 		$8.02 (21% off) 14
12 190272
SCREW 		$31.33 2
13 267229
RH REAR STUB AXLE
Version with CCM brakes 		$1,299.71 1
13 267228
LH REAR STUB AXLE
Version with CCM brakes 		$1,299.71 1
14 207581
COMPLETE LOWER ARM 		$1,235.52 2
15 171847
Rubber Boot And Clip 		$128.35 (26.3% off) 4
16 190273
SHIM 		$39.17 2
17 179554
COMPENSATOR RING 		$5.92 (11.4% off) 2
18 196789
Silentbloc Bush 		$320.90 (25.3% off) 4
19 182215
SCREW 		$6.37 8
20 126648
WASHER D.10.5-21 X 2 		$1.91 8
21 200938
SHIM
Installed if necessary 		$2.50 8
21 203312
SHIM
Th. 1 mm; Installed if necessary 		$7.83 8
21 203313
SHIM
Th. 1.5 mm; Installed if necessary 		$63.67 8
21 203314
SHIM
Th. 2 mm; Installed if necessary 		$2.50 8
21 203315
SHIM
Th. 2.5 mm; Installed if necessary 		$24.47 8
21 203316
SHIM
Th. 3 mm; Installed if necessary 		$63.67 8
22 252479
Tie Rod 		$770.19 (27% off) 2
23 126648
WASHER D.10.5-21 X 2 		$1.91 8
24 14058621
NUT 		$0.44 8
25 104030
NUT 		$0.26 (74% off) 6
26 113113
WASHER 		$1.07 (58.2% off) 6
27 179556
SCREW 		$56.68 2
28 168993
Roll Bar Link 		$96.26 2
29 10791014
NUT 		$0.29 2
30 12601474
WASHER 		$0.03 2
31 259549
STABILISER BAR 		$2,318.63 1
32 264079
STABILISER BAR BUSH 		$53.02 2
33 239775
PLATE 		$37.25 2
34 113113
WASHER 		$1.07 (58.2% off) 4
35 104030
NUT 		$0.26 (74% off) 4
36 205005
RH SHOCK ABSORBER MOUNT 		$224.63 1
36 205006
LH SHOCK ABSORBER MOUNT 		$224.63 1
37 212601
SCREW 		$20.55 2
38 203633
Upper Ball Joint 		$263.79 2
39 203632
Lower Ball Joint 		$339.17 2
