Name: HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM
Rating: 5.0 (1 reviews)

HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM of Ferrari Ferrari 599 GTO

View All

Ferrari 599 GTO - HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM

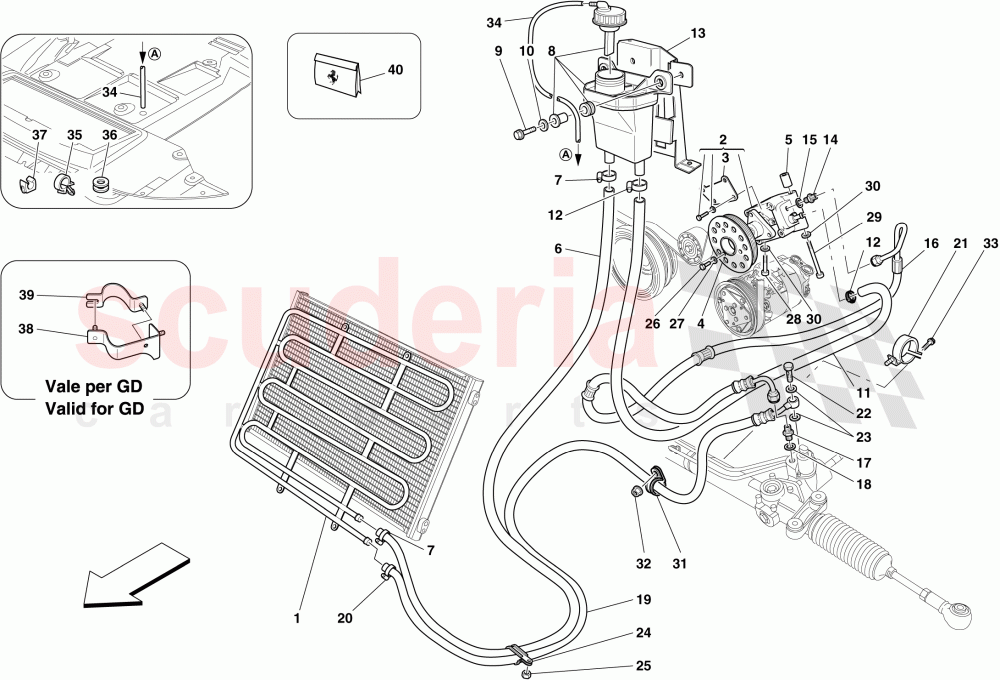

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	210354	COOLING COIL	$898.56	To Order

Photo	Part No	Description	Price (each)	Stock
	198036	POWER STEERING PUMP	$910.26	To Order

Photo	Part No	Description	Price (each)	Stock
	182833	PUMP MOUNTING BRACKET	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	195936	POWER STEERING PULLEY	$189.83	To Order

Photo	Part No	Description	Price (each)	Stock
	226087	SHIM	$32.17	To Order
	226087	SHIM	$32.17	To Order

Photo	Part No	Description	Price (each)	Stock
	169890	PIPE FROM SERPENTINE COIL TO TANK	$50.88	To Order
	275949	PIPE FROM SERPENTINE COIL TO TANK	$144.40	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	202824	PIPE FROM RESERVOIR TO POWER STEERING PUMP	$21.44	To Order
	276795	PIPE FROM RESERVOIR TO POWER STEERING PUMP	$46.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	226446	TANK MOUNT	$108.04	To Order

Photo	Part No	Description	Price (each)	Stock
	174091	CONNECTOR	$118.95	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	261115	PIPE FROM POWER STEERING PUMP TO STEERING BOX	$208.58	To Order
	269243	PIPE FROM POWER STEERING PUMP TO STEERING BOX	$290.06	To Order

Photo	Part No	Description	Price (each)	Stock
	205048	THREADED CONNECTOR	$89.84	To Order

Photo	Part No	Description	Price (each)	Stock
	10261360	GASKET	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	214729	PIPE FROM STEERING BOX-COIL	$272.77	To Order
	222118	PIPE FROM STEERING BOX-COIL	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203091	PIPE FASTENER BRACKET	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	$11.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139512	BRACKET WITH SHEATH	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	12604474	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	143873	SCREW	$15.48	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	239478	OIL BREATHER PIPE	$120.33	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	$0.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10397380	CABLE GROMMET	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	141546	CLIP	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	226210	MOUNTING	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	226209	PLATE	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	279664	RETROFIT KIT POWER STEERING	$157.23	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	210354	COOLING COIL	210354 COOLING COIL	$898.56	1
2	198036	POWER STEERING PUMP	198036 POWER STEERING PUMP	$910.26	1
3	182833	PUMP MOUNTING BRACKET	182833 PUMP MOUNTING BRACKET	$176.49	1
4	195936	POWER STEERING PULLEY	195936 POWER STEERING PULLEY	$189.83	1
5	226087	SHIM	226087 SHIM Die-cast	$32.17	1
5	226087	SHIM	226087 SHIM Alternative solution	$32.17	1
6	169890	PIPE FROM SERPENTINE COIL TO TANK	169890 PIPE FROM SERPENTINE COIL TO TANK Replaced by kit 279664; Applicable up to Ass. No. 97929; No longer supplied	$50.88	1
6	275949	PIPE FROM SERPENTINE COIL TO TANK	275949 PIPE FROM SERPENTINE COIL TO TANK Applicable from Ass. No. 97930	$144.40	1
7	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.64	2
9	13839224	SCREW	13839224 SCREW	$2.82	2
10	12604474	WASHER IN STOCK	12604474 WASHER IN STOCK	$0.06 MSRP: ~~0.10~~ (40% off)	2
11	202824	PIPE FROM RESERVOIR TO POWER STEERING PUMP	202824 PIPE FROM RESERVOIR TO POWER STEERING PUMP Replaced by kit 279664; Applicable up to Ass. No. 97929; No longer supplied	$21.44 MSRP: ~~28.15~~ (23.8% off)	1
11	276795	PIPE FROM RESERVOIR TO POWER STEERING PUMP IN STOCK	276795 PIPE FROM RESERVOIR TO POWER STEERING PUMP Applicable from Ass. No. 97930 IN STOCK	$46.52	1
12	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.64	2
13	226446	TANK MOUNT	226446 TANK MOUNT	$108.04	1
14	174091	CONNECTOR	174091 CONNECTOR	$118.95	1
15	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 IN STOCK	$0.36 MSRP: ~~1.00~~ (64% off)	1
16	261115	PIPE FROM POWER STEERING PUMP TO STEERING BOX	261115 PIPE FROM POWER STEERING PUMP TO STEERING BOX Not for GD	$208.58	1
16	269243	PIPE FROM POWER STEERING PUMP TO STEERING BOX	269243 PIPE FROM POWER STEERING PUMP TO STEERING BOX Applicable for GD	$290.06	1
17	205048	THREADED CONNECTOR	205048 THREADED CONNECTOR	$89.84	1
18	10261360	GASKET	10261360 GASKET	$0.24	1
19	214729	PIPE FROM STEERING BOX-COIL	214729 PIPE FROM STEERING BOX-COIL Not for GD	$272.77	1
19	222118	PIPE FROM STEERING BOX-COIL	222118 PIPE FROM STEERING BOX-COIL Applicable for GD	$256.72	1
20	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.64	1
21	203091	PIPE FASTENER BRACKET	203091 PIPE FASTENER BRACKET Not for GD	$33.68	1
22	277407	HOSE CONNECTOR IN STOCK	277407 HOSE CONNECTOR IN STOCK	$11.38	1
23	10280060	WASHER COPPER D14. 20 X 1.5 IN STOCK	10280060 WASHER COPPER D14. 20 X 1.5 IN STOCK	$0.21 MSRP: ~~1.00~~ (79% off)	2
24	139512	BRACKET WITH SHEATH	139512 BRACKET WITH SHEATH	$2.54	1
25	14059211	NUT IN STOCK	14059211 NUT IN STOCK	$0.06	1
26	86768100	SCREW	86768100 SCREW	$0.47	3
27	12604474	WASHER IN STOCK	12604474 WASHER IN STOCK	$0.06 MSRP: ~~0.10~~ (40% off)	3
28	14302234	SCREW	14302234 SCREW	$0.92	1
29	143873	SCREW	143873 SCREW	$15.48	1
30	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	2
31	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	$0.73 MSRP: ~~3.45~~ (78.8% off)	1
32	14059211	NUT IN STOCK	14059211 NUT IN STOCK	$0.06	1
33	16296934	SCREW 6 X 14MM IN STOCK	16296934 SCREW 6 X 14MM IN STOCK	$0.45	1
34	239478	OIL BREATHER PIPE	239478 OIL BREATHER PIPE	$120.33	1
35	140727	CLIP IN STOCK	140727 CLIP IN STOCK	$0.26 MSRP: ~~0.75~~ (65.3% off)	2
36	10397380	CABLE GROMMET	10397380 CABLE GROMMET	$1.54	1
37	141546	CLIP	141546 CLIP	$0.23	2
38	226210	MOUNTING	226210 MOUNTING Applicable for GD	$33.68	1
39	226209	PLATE	226209 PLATE Applicable for GD	$30.47	1
40	279664	RETROFIT KIT POWER STEERING IN STOCK	279664 RETROFIT KIT POWER STEERING Applicable up to Ass. No. 97929 IN STOCK	$157.23 MSRP: ~~218.51~~ (28% off)	1

Hydraulic Fluid Reservoir, Pump And Coil For Power Steering System

Ferrari 599 GTO

Ferrari 599 GTO - HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM
