FRONT SUSPENSION - ARMS AND STABILISER BAR

Find Your Part

Ferrari 599 GTO - FRONT SUSPENSION - ARMS AND STABILISER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
226965 Upper Front Suspension Arm $770.19 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 To Order
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $134.77 To Order
Photo Part No Description Price (each) Stock
190274 SHIM $14.68 To Order
Photo Part No Description Price (each) Stock
188581 SCREW $21.44 To Order
Photo Part No Description Price (each) Stock
209167 FLANBLOC $288.81 To Order
Photo Part No Description Price (each) Stock
170155 THREADED ROD $17.62 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
219344 WASHER $0.31 To Order
Photo Part No Description Price (each) Stock
13582271 INSERT $8.02 To Order
Photo Part No Description Price (each) Stock
190272 SCREW $31.33 To Order
Photo Part No Description Price (each) Stock
264336 FRONT RH STUB AXLE $1,299.71 To Order
264335 FRONT LH STUB AXLE $1,299.71 To Order
Photo Part No Description Price (each) Stock
207576 FRONT LOWER SUSPENSION ARM $1,235.52 To Order
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $128.35 To Order
Photo Part No Description Price (each) Stock
190273 SHIM $39.17 To Order
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.92 To Order
Photo Part No Description Price (each) Stock
196789 Silentbloc Bush $320.90 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
200938 SHIM $2.50 To Order
203312 SHIM $7.83 To Order
203313 SHIM $63.67 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
241298 THREADED ROD $95.03 To Order
Photo Part No Description Price (each) Stock
13582310 THREADED INSERT $13.70 To Order
Photo Part No Description Price (each) Stock
196068 RH STUB AXLE COVER $43.31 To Order
196066 LH STUB AXLE COVER $43.31 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
191613 SPHERICAL TIE-ROD $115.51 To Order
Photo Part No Description Price (each) Stock
10791014 NUT $0.29 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
259548 STABILISER BAR $1,556.44 To Order
Photo Part No Description Price (each) Stock
200656 STABILISER BAR BUSH $24.05 To Order
Photo Part No Description Price (each) Stock
239775 PLATE $37.25 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $263.79 To Order
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $339.17 To Order
View All

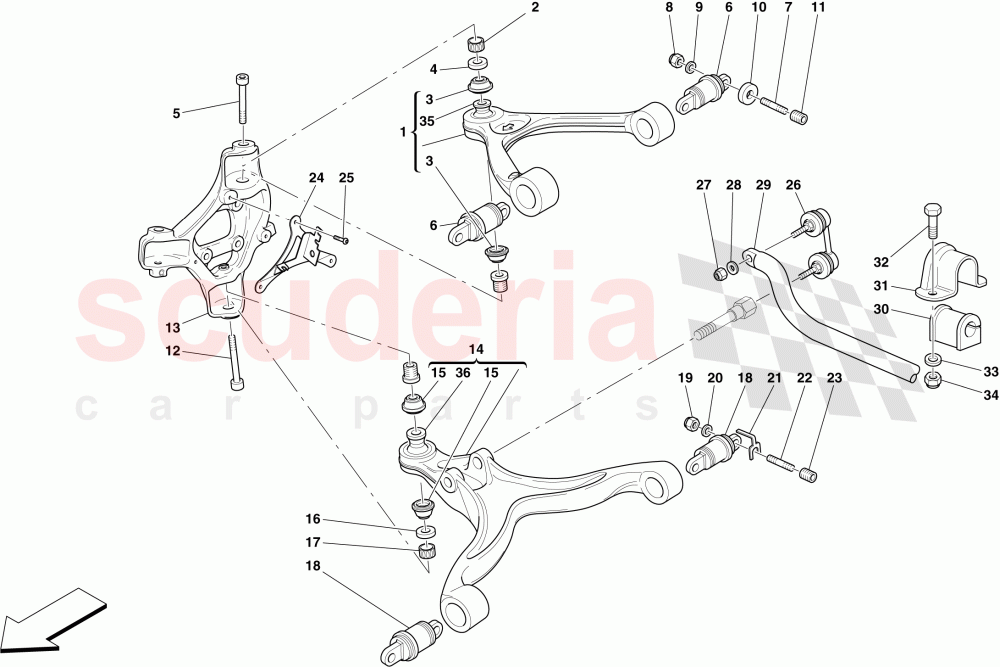

FRONT SUSPENSION - ARMS AND STABILISER BAR of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 226965
Upper Front Suspension Arm 		$770.19 (39.4% off) 2
2 179555
COMPENSATOR RING BUSHING 		$5.61 (11.9% off) 2
3 171848
Rubber Boot and Clip 		$134.77 (22.6% off) 4
4 190274
SHIM 		$14.68 2
5 188581
SCREW 		$21.44 2
6 209167
FLANBLOC 		$288.81 (24.1% off) 4
7 170155
THREADED ROD 		$17.62 8
8 104030
NUT 		$0.26 (74% off) 8
9 14496524
WASHER 		$0.11 (92.7% off) 8
10 219344
WASHER 		$0.31 8
11 13582271
INSERT 		$8.02 (21% off) 8
12 190272
SCREW 		$31.33 2
13 264336
FRONT RH STUB AXLE
Version with CCM brakes 		$1,299.71 1
13 264335
FRONT LH STUB AXLE
Version with CCM brakes 		$1,299.71 1
14 207576
FRONT LOWER SUSPENSION ARM 		$1,235.52 (32.8% off) 2
15 171847
Rubber Boot And Clip 		$128.35 (26.3% off) 4
16 190273
SHIM 		$39.17 2
17 179554
COMPENSATOR RING 		$5.92 (11.4% off) 2
18 196789
Silentbloc Bush 		$320.90 (25.3% off) 4
19 12574521
Nyloc Nut 		$0.92 (54% off) 8
20 126648
WASHER D.10.5-21 X 2 		$1.91 8
21 200938
SHIM
Installed if necessary 		$2.50 8
21 203312
SHIM
Th. 1 mm; Installed if necessary 		$7.83 8
21 203313
SHIM
Th. 1.5 mm; Installed if necessary 		$63.67 8
21 203314
SHIM
Th. 2 mm; Installed if necessary 		$2.50 8
21 203315
SHIM
Th. 2.5 mm; Installed if necessary 		$24.47 8
21 203316
SHIM
Th. 3 mm; Installed if necessary 		$63.67 8
22 241298
THREADED ROD 		$95.03 8
23 13582310
THREADED INSERT 		$13.70 8
24 196068
RH STUB AXLE COVER 		$43.31 1
24 196066
LH STUB AXLE COVER 		$43.31 1
25 250657
SCREW 		$7.60 6
26 191613
SPHERICAL TIE-ROD 		$115.51 2
27 10791014
NUT 		$0.29 2
28 12601474
WASHER 		$0.03 2
29 259548
STABILISER BAR 		$1,556.44 1
30 200656
STABILISER BAR BUSH 		$24.05 2
31 239775
PLATE 		$37.25 2
32 231629
SCREW 		$0.65 (31.6% off) 4
33 84653800
WASHER 		$5.75 4
34 104030
NUT 		$0.26 (74% off) 4
35 203633
Upper Ball Joint 		$263.79 2
36 203632
Lower Ball Joint 		$339.17 2
