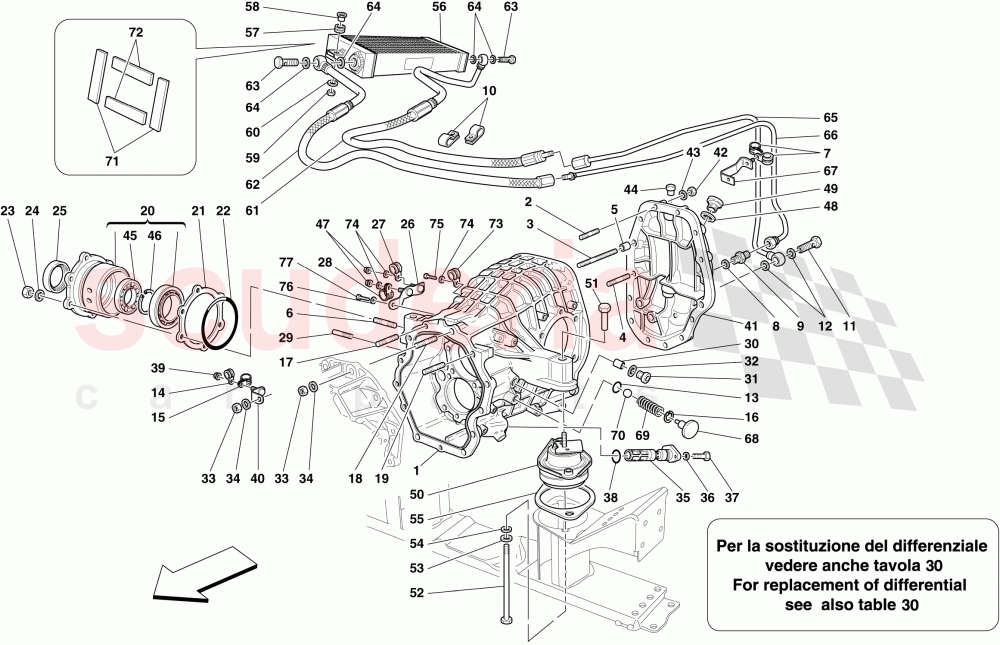

Ferrari 599 GTO - DIFFERENTIAL CASE AND GEARBOX COOLING RADIATOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
227410 4th SECTION OF GEARBOX HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.49 To Order
Photo Part No Description Price (each) Stock
13543724 STUD BOLT $1.77 To Order
Photo Part No Description Price (each) Stock
211936 STUD BOLT $9.64 To Order
211937 STUD BOLT $14.28 To Order
13543824 STUD BOLT $3.45 To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $3.13 To Order
Photo Part No Description Price (each) Stock
13546224 STUD BOLT $15.66 To Order
Photo Part No Description Price (each) Stock
10450690 BRACKET WITH SHEATH $0.70 To Order
Photo Part No Description Price (each) Stock
10259960 Copper Washer 18 - 24 x 1.5 $0.32 To Order
Photo Part No Description Price (each) Stock
217788 CONNECTOR $48.69 To Order
Photo Part No Description Price (each) Stock
10450290 BRACKET WITH SHEATH $4.31 To Order
10450390 BRACKET WITH SHEATH $2.25 To Order
Photo Part No Description Price (each) Stock
195589 PIPE UNION $20.84 To Order
Photo Part No Description Price (each) Stock
10259960 Copper Washer 18 - 24 x 1.5 $0.32 To Order
Photo Part No Description Price (each) Stock
14453381 O-RING $1.36 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $5.12 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
11057476 SEEGER RING $0.08 To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT $4.80 To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.49 To Order
Photo Part No Description Price (each) Stock
13543724 STUD BOLT $1.77 To Order
Photo Part No Description Price (each) Stock
189098 COMPLETE RH DIFFERENTIAL COVER $806.68 To Order
189100 COMPLETE LH DIFFERENTIAL COVER $806.68 To Order
Photo Part No Description Price (each) Stock
150099 DIFFERENTIAL COVER SHIM $118.71 To Order
150100 DIFFERENTIAL COVER SHIM $99.47 To Order
150101 DIFFERENTIAL COVER SHIM $99.47 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14461381 O-RING $14.15 To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.21 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
181618 RH GASKET $56.14 To Order
181617 LH Rotating Oil Sealing Ring $51.33 To Order
Photo Part No Description Price (each) Stock
227196 BRACKET $41.70 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
16183021 SCREW $0.79 To Order
Photo Part No Description Price (each) Stock
115376 BUSHING $21.54 To Order
Photo Part No Description Price (each) Stock
150731 CAP $4.00 To Order
Photo Part No Description Price (each) Stock
10282460 GASKET $0.96 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
251638 GEARBOX OIL FILTER $724.58 To Order
Photo Part No Description Price (each) Stock
11199277 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
182119 GEARBOX OIL FILTER O-RING $2.58 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
149694 PIPE FASTENER BRACKET $6.42 To Order
Photo Part No Description Price (each) Stock
222474 COMPL. REAR GEARBOX HOUSING COVER $380.39 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
197797 OIL BREATHER $31.95 To Order
Photo Part No Description Price (each) Stock
184995 BEARING $174.17 To Order
Photo Part No Description Price (each) Stock
185723 SEEGER RING $4.75 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.37 To Order
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.84 To Order
Photo Part No Description Price (each) Stock
235533 ELASTIC BUSHING $1,444.12 To Order
Photo Part No Description Price (each) Stock
196888 LOCATOR STUD $16.47 To Order
Photo Part No Description Price (each) Stock
232920 SCREW $15.66 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
12601474 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
249915 ENGINE BUSHING MOUNTING PLATE $15.80 To Order
Photo Part No Description Price (each) Stock
214259 GEARBOX OIL RADIATOR $1,315.75 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
221999 OIL DELIVERY PIPE $265.00 To Order
Photo Part No Description Price (each) Stock
221997 OIL RETURN PIPE $371.81 To Order
Photo Part No Description Price (each) Stock
10181911 PIPE UNION $7.13 To Order
Photo Part No Description Price (each) Stock
10261560 GASKET $0.78 To Order
Photo Part No Description Price (each) Stock
225419 OIL DELIVERY PIPE $166.73 To Order
Photo Part No Description Price (each) Stock
228642 OIL RETURN PIPE $337.79 To Order
Photo Part No Description Price (each) Stock
213934 BRACKET $25.15 To Order
Photo Part No Description Price (each) Stock
193578 BUSHING $28.96 To Order
Photo Part No Description Price (each) Stock
100750 SPRING $1.96 To Order
Photo Part No Description Price (each) Stock
101612 BALL $1.30 To Order
Photo Part No Description Price (each) Stock
225333 GASKET $25.41 To Order
Photo Part No Description Price (each) Stock
225335 GASKET $14.46 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
11635724 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
View All
DIFFERENTIAL CASE AND GEARBOX COOLING RADIATOR of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 227408
GEARBOX HOUSING ASSEMBLY 		$18,421.06 1
1 227410
4th SECTION OF GEARBOX HOUSING
Supplied with complete gearbox housing, 227408 		- 1 Enquire
2 13543624
STUD BOLT
M8 X 16; Shank length 30 		$0.49 3
3 13543724
STUD BOLT
M8 X 16; Shank length 35 		$1.77 5
4 211936
STUD BOLT
M8 X 65 		$9.64 3
4 211937
STUD BOLT
M8 X 70 		$14.28 1
4 13543824
STUD BOLT
M8 X 16; Shank length 40 		$3.45 1
5 102704
ALIGNMENT DOWEL 		$3.13 2
6 13546224
STUD BOLT 		$15.66 12
7 10450690
BRACKET WITH SHEATH 		$0.70 (58.8% off) 2
8 10259960
Copper Washer 18 - 24 x 1.5 		$0.32 (74.4% off) 1
9 217788
CONNECTOR 		$48.69 1
10 10450290
BRACKET WITH SHEATH
for D.12 pipe 		$4.31 1
10 10450390
BRACKET WITH SHEATH
for D.14 pipe 		$2.25 1
11 195589
PIPE UNION 		$20.84 1
12 10259960
Copper Washer 18 - 24 x 1.5 		$0.32 (74.4% off) 2
13 14453381
O-RING 		$1.36 (41.6% off) 1
14 291225
P clip Bracket With Sheath 		$5.12 1
15 10441290
BRACKET WITH SHEATH 		$0.57 (66.1% off) 1
16 11057476
SEEGER RING 		$0.08 1
17 13543524
STUD BOLT
M8 X 16; Shank length 25 		$4.80 1
18 13543624
STUD BOLT
M8 X 16; Shank length 30 		$0.49 2
19 13543724
STUD BOLT
M8 X 16; Shank length 35 		$1.77 1
20 189098
COMPLETE RH DIFFERENTIAL COVER 		$806.68 1
20 189100
COMPLETE LH DIFFERENTIAL COVER 		$806.68 1
21 150099
DIFFERENTIAL COVER SHIM
Th. 1.3 mm 		$118.71 2
21 150100
DIFFERENTIAL COVER SHIM
Th. 1.4 mm 		$99.47 -
21 150101
DIFFERENTIAL COVER SHIM
Th. 1.5 mm 		$99.47 -
21 150102
DIFFERENTIAL COVER SHIM
Th. 1.6 mm 		$99.47 -
21 150103
DIFFERENTIAL COVER SHIM
Th. 1.7 mm 		$229.33 -
21 150104
DIFFERENTIAL COVER SHIM
Th. 1.8 mm 		$118.71 -
21 150105
DIFFERENTIAL COVER SHIM
Th. 1.9 mm 		$114.14 -
21 150106
DIFFERENTIAL COVER SHIM
Th. 1.45 mm 		$102.35 -
21 150107
DIFFERENTIAL COVER SHIM
Th. 1.55 mm 		$167.41 -
21 150108
DIFFERENTIAL COVER SHIM
Th. 1.65 mm 		$99.47 -
21 175378
DIFFERENTIAL COVER SHIM
Th. 1.75 mm 		$56.31 -
22 14461381
O-RING 		$14.15 2
23 133988
HEX NUT M10 X 1.25 X 8 		$0.21 (40% off) 12
24 12601474
WASHER 		$0.03 12
25 181618
RH GASKET 		$56.14 (21.6% off) 1
25 181617
LH Rotating Oil Sealing Ring 		$51.33 (32.2% off) 1
26 227196
BRACKET 		$41.70 1
27 10441290
BRACKET WITH SHEATH 		$0.57 (66.1% off) 1
28 10441390
BRACKET WITH SHEATH 		$0.57 1
29 16183021
SCREW 		$0.79 1
30 115376
BUSHING 		$21.54 (61.4% off) 3
31 150731
CAP 		$4.00 1
32 10282460
GASKET 		$0.96 1
33 14040711
NUT 		$0.41 13
34 12601374
WASHER 		$0.02 (92% off) 13
35 251638
GEARBOX OIL FILTER 		$724.58 (27.2% off) 1
36 11199277
WASHER 		$0.11 2
37 10977624
SCREW 		$0.06 2
38 182119
GEARBOX OIL FILTER O-RING 		$2.58 (20.6% off) 1
39 14059290
FLANGED NUT M6 		$1.51 1
40 149694
PIPE FASTENER BRACKET 		$6.42 1
41 222474
COMPL. REAR GEARBOX HOUSING COVER 		$380.39 1
42 14040711
NUT 		$0.41 14
43 12601374
WASHER 		$0.02 (92% off) 14
44 197797
OIL BREATHER 		$31.95 1
45 184995
BEARING 		$174.17 2
46 185723
SEEGER RING 		$4.75 (30.1% off) 2
47 14059290
FLANGED NUT M6 		$1.51 2
48 10263460
COPPER GASKET D.28-22.3 X 1.5 		$0.37 (63% off) 1
49 307477
THREADED PLUG 		$3.84 1
50 235533
ELASTIC BUSHING 		$1,444.12 2
51 196888
LOCATOR STUD 		$16.47 2
52 232920
SCREW 		$15.66 4
53 126648
WASHER D.10.5-21 X 2 		$1.91 4
54 12601474
WASHER 		$0.03 4
55 249915
ENGINE BUSHING MOUNTING PLATE 		$15.80 2
56 214259
GEARBOX OIL RADIATOR 		$1,315.75 1
57 812273
CABLE GROMMET 		$1.65 3
58 149707
SPACER 		$1.17 (33.1% off) 3
59 14059290
FLANGED NUT M6 		$1.51 3
60 11197774
WASHER 		$0.06 (80% off) 3
61 221999
OIL DELIVERY PIPE
Radiator side 		$265.00 1
62 221997
OIL RETURN PIPE
Radiator side 		$371.81 1
63 10181911
PIPE UNION 		$7.13 2
64 10261560
GASKET 		$0.78 (22% off) 4
65 225419
OIL DELIVERY PIPE
Gearbox side 		$166.73 1
66 228642
OIL RETURN PIPE
Gearbox side 		$337.79 1
67 213934
BRACKET 		$25.15 1
68 193578
BUSHING 		$28.96 1
69 100750
SPRING 		$1.96 4
70 101612
BALL 		$1.30 (21.2% off) 4
71 225333
GASKET 		$25.41 2
72 225335
GASKET 		$14.46 2
73 10441390
BRACKET WITH SHEATH 		$0.57 1
74 11197774
WASHER 		$0.06 (80% off) 3
75 11635724
SCREW 		$0.16 1
76 127494
WASHER 		$0.08 (88.2% off) 1
77 81591700
SCREW 		$2.22 1

Haven't found what you're looking for?

More: Ferrari Radiators Tuning Parts Need help? Call us

View Cart / Checkout
