PEDAL BOARD of Ferrari Ferrari 599 GTB Fiorano

View All

Ferrari 599 GTB Fiorano - PEDAL BOARD

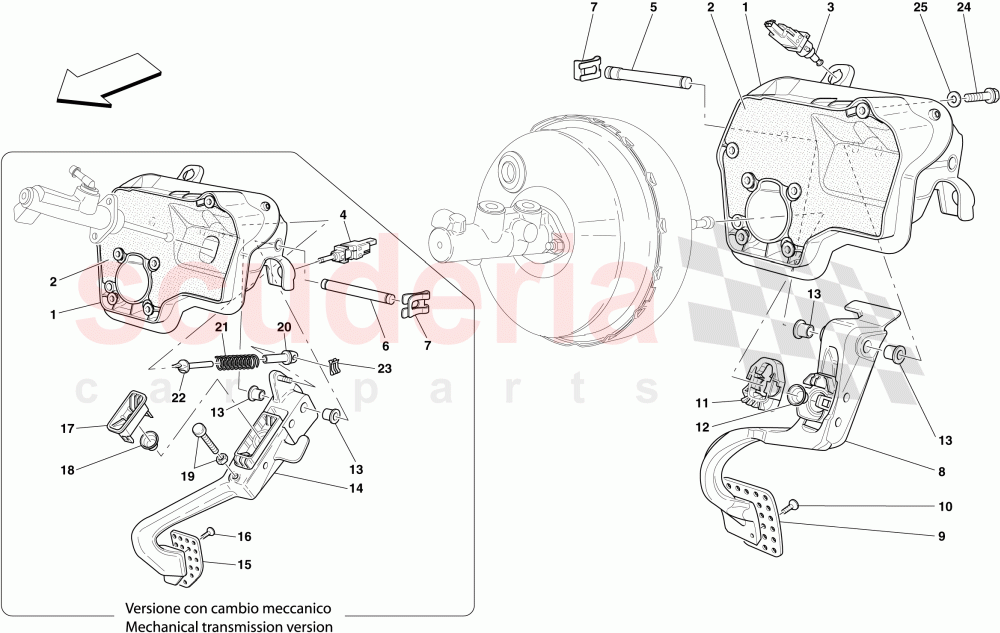

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	204192	PEDAL BOARD MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193886	SOUNDPROOFING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	201958	PUSHBUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189870	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189871	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11064474	CLIP	Enquire	To Order
	11064474	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191805	BRAKE PEDAL	Enquire	To Order
	201376	BRAKE PEDAL	Enquire	To Order
	190376	BRAKE PEDAL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	191401	DRILLED PLATE	Enquire	To Order
	188722	DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189863	BRAKE PEDAL RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189864	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189869	BUSHING	Enquire	To Order
	189869	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190377	CLUTCH PEDAL	Enquire	To Order
	201324	CLUTCH PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188723	DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189865	CLUTCH PEDAL RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189866	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199701	CLUTCH PEDAL END STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189872	UPPER SERVO SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189874	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189873	LOWER SERVO SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11064071	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	204192	PEDAL BOARD MOUNTING	204192 PEDAL BOARD MOUNTING Applicable for GD	-	1	Enquire
2	193886	SOUNDPROOFING	193886 SOUNDPROOFING	-	1	Enquire
3	958694	PUSH-BUTTON SWITCH	958694 PUSH-BUTTON SWITCH	-	1	Enquire
4	201958	PUSHBUTTON SWITCH	201958 PUSHBUTTON SWITCH Not for F1 gearbox	-	1	Enquire
5	189870	PIN	189870 PIN	-	1	Enquire
6	189871	PIN	189871 PIN Not for F1 gearbox	-	1	Enquire
7	11064474	CLIP	11064474 CLIP Not for Mechanical gearbox	-	2	Enquire
7	11064474	CLIP	11064474 CLIP Applicable for Mechanical gearbox	-	4	Enquire
8	191805	BRAKE PEDAL	191805 BRAKE PEDAL Not for GD; Applicable for F1 gearbox	-	1	Enquire
8	201376	BRAKE PEDAL	201376 BRAKE PEDAL Applicable for GD; Applicable for F1 gearbox	-	1	Enquire
8	190376	BRAKE PEDAL	190376 BRAKE PEDAL Not for GD; Not for F1 gearbox	-	1	Enquire
8	201323	BRAKE PEDAL	201323 BRAKE PEDAL Applicable for GD; Not for F1 gearbox	-	1	Enquire
9	191401	DRILLED PLATE	191401 DRILLED PLATE Applicable for F1 gearbox	-	1	Enquire
9	188722	DRILLED PLATE	188722 DRILLED PLATE Not for F1 gearbox	-	1	Enquire
10	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
11	189863	BRAKE PEDAL RETAINER	189863 BRAKE PEDAL RETAINER	-	1	Enquire
12	189864	STOP CAP	189864 STOP CAP	-	1	Enquire
13	189869	BUSHING	189869 BUSHING Not for Mechanical gearbox	-	2	Enquire
13	189869	BUSHING	189869 BUSHING Applicable for Mechanical gearbox	-	4	Enquire
14	190377	CLUTCH PEDAL	190377 CLUTCH PEDAL Not for GD; Not for F1 gearbox	-	1	Enquire
14	201324	CLUTCH PEDAL	201324 CLUTCH PEDAL Applicable for GD; Not for F1 gearbox	-	1	Enquire
15	188723	DRILLED PLATE	188723 DRILLED PLATE Not for F1 gearbox	-	1	Enquire
16	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 Not for F1 gearbox	-	2	Enquire
17	189865	CLUTCH PEDAL RETAINER	189865 CLUTCH PEDAL RETAINER Not for F1 gearbox	-	1	Enquire
18	189866	STOP CAP	189866 STOP CAP Not for F1 gearbox	-	1	Enquire
19	199701	CLUTCH PEDAL END STOP	199701 CLUTCH PEDAL END STOP Not for F1 gearbox	-	1	Enquire
20	189872	UPPER SERVO SPRING	189872 UPPER SERVO SPRING Not for F1 gearbox	-	1	Enquire
21	189874	SPRING	189874 SPRING Not for F1 gearbox	-	1	Enquire
22	189873	LOWER SERVO SPRING	189873 LOWER SERVO SPRING Not for F1 gearbox	-	1	Enquire
23	11064071	CLIP	11064071 CLIP Not for F1 gearbox	-	1	Enquire
24	16287524	SCREW	16287524 SCREW	-	2	Enquire
25	12601374	WASHER	12601374 WASHER	-	2	Enquire
