Find Your Part

FRONT SEAT - TRIM AND INTERNAL COMPONENTS of Ferrari Ferrari 599 GTB Fiorano

View All

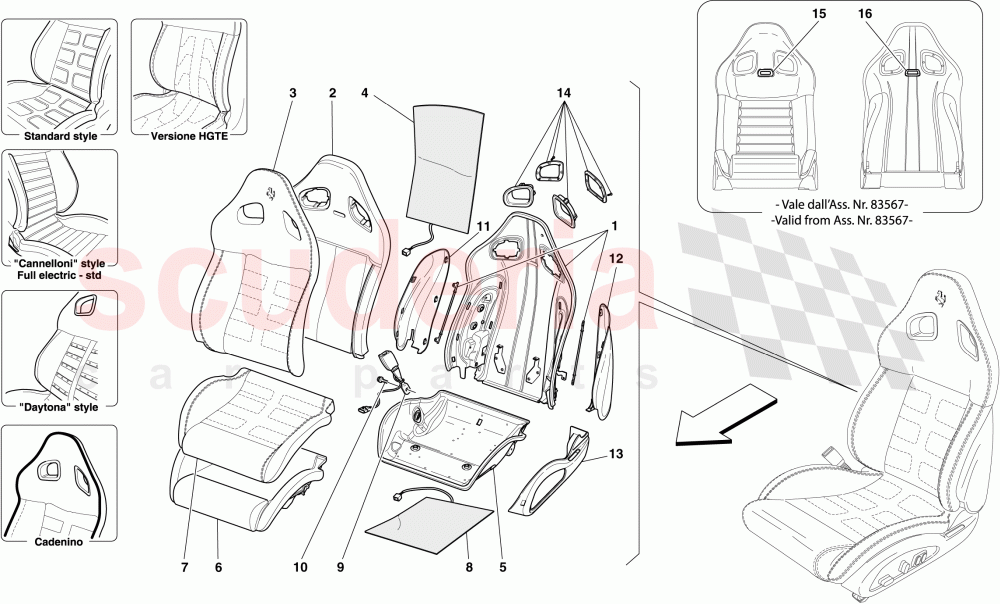

Ferrari 599 GTB Fiorano - FRONT SEAT - TRIM AND INTERNAL COMPONENTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69991000	RH BACKREST STRUCTURE WITH BARS	Enquire	To Order
	82038400	RH BACKREST STRUCTURE WITH BARS	Enquire	To Order
	69991100	RH BACKREST STRUCTURE WITH BARS	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69470400	BACKREST PADDING	Enquire	To Order
	69470400	BACKREST PADDING	Enquire	To Order
	69470400	BACKREST PADDING	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69779100	BACKREST LINING	Enquire	To Order
	69779100	BACKREST LINING	Enquire	To Order
	69779100	BACKREST LINING	Enquire	To Order

...and 48 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223018	BACKREST HEATING PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69472400	CUSHION STRUCTURE	Enquire	To Order
	66220300	CUSHION STRUCTURE	Enquire	To Order
	65962800	CUSHION STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69472800	CUSHION PADDING	Enquire	To Order
	66220400	CUSHION PADDING	Enquire	To Order
	65962900	CUSHION PADDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69777900	CUSHION COVER	Enquire	To Order
	80219000	CUSHION COVER	Enquire	To Order
	80997000	CUSHION COVER	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223019	CUSHION HEATING PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69728200	SEAT BELT BUCKLE STALK	Enquire	To Order
	80217600	SEAT BELT BUCKLE STALK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69738900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69471400	RH CUSHION SIDE PANEL WITH CLIPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69471500	LH CUSHION SIDE PANEL WITH CLIPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80957200	RH CUSHION SHELL	Enquire	To Order
	80957300	RH CUSHION SHELL	Enquire	To Order
	80957000	LH CUSHION SHELL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69991200	BELT LOOP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81602800	LOWER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81602700	REAR SURROUND	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69991000	RH BACKREST STRUCTURE WITH BARS	69991000 RH BACKREST STRUCTURE WITH BARS Not for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
1	82038400	RH BACKREST STRUCTURE WITH BARS	82038400 RH BACKREST STRUCTURE WITH BARS Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
1	69991100	RH BACKREST STRUCTURE WITH BARS	69991100 RH BACKREST STRUCTURE WITH BARS Top tether; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
1	82038500	RH BACKREST STRUCTURE WITH BARS	82038500 RH BACKREST STRUCTURE WITH BARS Top tether; Applicable for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
1	80062200	RH BACKREST STRUCTURE WITH BARS	80062200 RH BACKREST STRUCTURE WITH BARS Leather trimmed; Not for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
1	82038700	RH BACKREST STRUCTURE WITH BARS	82038700 RH BACKREST STRUCTURE WITH BARS Leather trimmed; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
1	80062300	RH BACKREST STRUCTURE WITH BARS	80062300 RH BACKREST STRUCTURE WITH BARS Top tether; Leather trimmed; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
1	82038800	RH BACKREST STRUCTURE WITH BARS	82038800 RH BACKREST STRUCTURE WITH BARS Top tether; Leather trimmed; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
1	82648300	RH BACKREST STRUCTURE WITH BARS	82648300 RH BACKREST STRUCTURE WITH BARS Top tether; Leather trimmed; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
1	80064200	LH BACKREST STRUCTURE WITH BARS	80064200 LH BACKREST STRUCTURE WITH BARS Applicable up to Ass. No. 74886	-	1	Enquire
1	82038600	LH BACKREST STRUCTURE WITH BARS	82038600 LH BACKREST STRUCTURE WITH BARS Applicable from Ass. No. 74887	-	1	Enquire
1	80064300	LH BACKREST STRUCTURE WITH BARS	80064300 LH BACKREST STRUCTURE WITH BARS Leather trimmed; Applicable up to Ass. No. 74886	-	1	Enquire
1	82038900	LH BACKREST STRUCTURE WITH BARS	82038900 LH BACKREST STRUCTURE WITH BARS Leather trimmed; Applicable from Ass. No. 74887	-	1	Enquire
1	82655100	RH BACKREST STRUCTURE WITH BARS	82655100 RH BACKREST STRUCTURE WITH BARS Carbon; HGTE version; Not for USA, CDN	-	1	Enquire
1	82655200	RH BACKREST STRUCTURE WITH BARS	82655200 RH BACKREST STRUCTURE WITH BARS Carbon; HGTE version; Top tether; Applicable for USA, CDN	-	1	Enquire
1	82655400	LH BACKREST STRUCTURE WITH BARS	82655400 LH BACKREST STRUCTURE WITH BARS Carbon; HGTE version	-	1	Enquire
2	69470400	BACKREST PADDING	69470400 BACKREST PADDING Not for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
2	69470400	BACKREST PADDING	69470400 BACKREST PADDING RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
2	69470400	BACKREST PADDING	69470400 BACKREST PADDING LH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
2	80998800	BACKREST PADDING	80998800 BACKREST PADDING LH seat; Applicable from Ass. No. 74887	-	1	Enquire
2	80999200	BACKREST PADDING	80999200 BACKREST PADDING RH seat; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
2	69472300	BACKREST PADDING	69472300 BACKREST PADDING Top tether; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
2	80999500	BACKREST PADDING	80999500 BACKREST PADDING Top tether; RH seat; Full electric; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
2	80984400	BACKREST PADDING	80984400 BACKREST PADDING Top tether; RH seat; Full electric; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
2	80999400	BACKREST PADDING	80999400 BACKREST PADDING Top tether; RH seat; Standard; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
2	80984400	BACKREST PADDING	80984400 BACKREST PADDING Top tether; RH seat; Standard; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
3	69779100	BACKREST LINING	69779100 BACKREST LINING Standard; Not for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779100	BACKREST LINING	69779100 BACKREST LINING Standard; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779100	BACKREST LINING	69779100 BACKREST LINING Standard; LH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	80218900	BACKREST LINING	80218900 BACKREST LINING Standard; RH seat; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
3	80996900	BACKREST LINING	80996900 BACKREST LINING Standard; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
3	69779400	BACKREST LINING	69779400 BACKREST LINING Standard; Seat piping; Not for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779400	BACKREST LINING	69779400 BACKREST LINING Standard; Seat piping; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779400	BACKREST LINING	69779400 BACKREST LINING Standard; Seat piping; LH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	80219700	BACKREST LINING	80219700 BACKREST LINING Standard; Seat piping; RH seat; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
3	80997700	BACKREST LINING	80997700 BACKREST LINING Standard; Seat piping; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
3	69779500	BACKREST LINING	69779500 BACKREST LINING Seat piping + Daytona; Not for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779500	BACKREST LINING	69779500 BACKREST LINING Seat piping + Daytona; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779500	BACKREST LINING	69779500 BACKREST LINING Seat piping + Daytona; LH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	80995100	BACKREST LINING	80995100 BACKREST LINING Seat piping + Daytona; RH seat; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
3	80998100	BACKREST LINING	80998100 BACKREST LINING Seat piping + Daytona; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
3	69779200	BACKREST LINING	69779200 BACKREST LINING Daytona; Not for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779200	BACKREST LINING	69779200 BACKREST LINING Daytona; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779200	BACKREST LINING	69779200 BACKREST LINING Daytona; LH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	80219500	BACKREST LINING	80219500 BACKREST LINING Daytona; RH seat; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
3	80997500	BACKREST LINING	80997500 BACKREST LINING Daytona; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
3	69779300	BACKREST LINING	69779300 BACKREST LINING Full electric; Not for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779300	BACKREST LINING	69779300 BACKREST LINING Full electric; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779300	BACKREST LINING	69779300 BACKREST LINING Full electric; LH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	80219300	BACKREST LINING	80219300 BACKREST LINING Full electric; RH seat; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
3	80997300	BACKREST LINING	80997300 BACKREST LINING Full electric; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
3	69779600	BACKREST LINING	69779600 BACKREST LINING Full electric; Seat piping; Not for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779600	BACKREST LINING	69779600 BACKREST LINING Full electric; Seat piping; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	2	Enquire
3	69779600	BACKREST LINING	69779600 BACKREST LINING Full electric; Seat piping; LH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	80219900	BACKREST LINING	80219900 BACKREST LINING Full electric; Seat piping; RH seat; Not for USA, CDN; Applicable from Ass. No. 74887	-	1	Enquire
3	80997900	BACKREST LINING	80997900 BACKREST LINING Full electric; Seat piping; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
3	69778500	BACKREST LINING	69778500 BACKREST LINING Top tether; Standard; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	69778800	BACKREST LINING	69778800 BACKREST LINING Top tether; Standard; Seat piping; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	69778900	BACKREST LINING	69778900 BACKREST LINING Top tether; Seat piping + Daytona; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	69778600	BACKREST LINING	69778600 BACKREST LINING Top tether; Daytona; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	69778700	BACKREST LINING	69778700 BACKREST LINING Top tether; Full electric; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	69779000	BACKREST LINING	69779000 BACKREST LINING Top tether; Full electric; Seat piping; RH seat; Applicable for USA, CDN; Applicable up to Ass. No. 74886	-	1	Enquire
3	80995900	BACKREST LINING	80995900 BACKREST LINING Top tether; Standard; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
3	80983800	BACKREST LINING	80983800 BACKREST LINING Top tether; Standard; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
3	80996400	BACKREST LINING	80996400 BACKREST LINING Top tether; Standard; Seat piping; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
3	80984100	BACKREST LINING	80984100 BACKREST LINING Top tether; Standard; Seat piping; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
3	80996500	BACKREST LINING	80996500 BACKREST LINING Top tether; Full electric; Seat piping; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
3	80984200	BACKREST LINING	80984200 BACKREST LINING Top tether; Full electric; Seat piping; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
3	80996300	BACKREST LINING	80996300 BACKREST LINING Top tether; Daytona; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
3	80984000	BACKREST LINING	80984000 BACKREST LINING Top tether; Daytona; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
3	80996200	BACKREST LINING	80996200 BACKREST LINING Top tether; Full electric; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
3	80983900	BACKREST LINING	80983900 BACKREST LINING Top tether; Full electric; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
3	80996600	BACKREST LINING	80996600 BACKREST LINING Top tether; Seat piping + Daytona; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 74887 up to Ass. No. 83566	-	1	Enquire
3	80984300	BACKREST LINING	80984300 BACKREST LINING Top tether; Seat piping + Daytona; RH seat; Applicable for USA, CDN; Applicable from Ass. No. 83567	-	1	Enquire
3	82655600	BACKREST LINING	82655600 BACKREST LINING RH seat; HGTE version; Not for USA, CDN	-	2	Enquire
3	82655700	BACKREST LINING	82655700 BACKREST LINING LH seat; HGTE version	-	2	Enquire
3	82655800	BACKREST LINING	82655800 BACKREST LINING Top tether; RH seat; HGTE version; Applicable for USA, CDN	-	1	Enquire
4	223018	BACKREST HEATING PAD	223018 BACKREST HEATING PAD Full electric	-	2	Enquire
5	69472400	CUSHION STRUCTURE	69472400 CUSHION STRUCTURE Applicable up to Ass. No. 74886	-	2	Enquire
5	66220300	CUSHION STRUCTURE	66220300 CUSHION STRUCTURE RH seat; Applicable from Ass. No. 74887	-	1	Enquire
5	65962800	CUSHION STRUCTURE	65962800 CUSHION STRUCTURE LH seat; Applicable from Ass. No. 74887	-	1	Enquire
6	69472800	CUSHION PADDING	69472800 CUSHION PADDING Applicable up to Ass. No. 74886	-	2	Enquire
6	66220400	CUSHION PADDING	66220400 CUSHION PADDING RH seat; Applicable from Ass. No. 74887	-	1	Enquire
6	65962900	CUSHION PADDING	65962900 CUSHION PADDING LH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	69777900	CUSHION COVER	69777900 CUSHION COVER Standard; Applicable up to Ass. No. 74886	-	2	Enquire
7	80219000	CUSHION COVER	80219000 CUSHION COVER Standard; RH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	80997000	CUSHION COVER	80997000 CUSHION COVER Standard; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	69778200	CUSHION COVER	69778200 CUSHION COVER Standard; Seat piping; Applicable up to Ass. No. 74886	-	2	Enquire
7	80219800	CUSHION COVER	80219800 CUSHION COVER Standard; Seat piping; RH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	80997800	CUSHION COVER	80997800 CUSHION COVER Standard; Seat piping; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	69778300	CUSHION COVER	69778300 CUSHION COVER Seat piping + Daytona; Applicable up to Ass. No. 74886	-	2	Enquire
7	80995200	CUSHION COVER	80995200 CUSHION COVER Seat piping + Daytona; RH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	80998200	CUSHION COVER	80998200 CUSHION COVER Seat piping + Daytona; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	69778000	CUSHION COVER	69778000 CUSHION COVER Daytona; Applicable up to Ass. No. 74886	-	2	Enquire
7	80219600	CUSHION COVER	80219600 CUSHION COVER Daytona; RH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	80997600	CUSHION COVER	80997600 CUSHION COVER Daytona; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	69778100	CUSHION COVER	69778100 CUSHION COVER Full electric; Applicable up to Ass. No. 74886	-	2	Enquire
7	80219400	CUSHION COVER	80219400 CUSHION COVER Full electric; RH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	80997400	CUSHION COVER	80997400 CUSHION COVER Full electric; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	69778400	CUSHION COVER	69778400 CUSHION COVER Full electric; Seat piping; Applicable up to Ass. No. 74886	-	2	Enquire
7	80220000	CUSHION COVER	80220000 CUSHION COVER Full electric; Seat piping; RH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	80998000	CUSHION COVER	80998000 CUSHION COVER Full electric; Seat piping; LH seat; Applicable from Ass. No. 74887	-	1	Enquire
7	82656000	CUSHION COVER	82656000 CUSHION COVER RH seat; HGTE version	-	1	Enquire
7	82656100	CUSHION COVER	82656100 CUSHION COVER LH seat; HGTE version	-	1	Enquire
8	223019	CUSHION HEATING PAD	223019 CUSHION HEATING PAD Full electric	-	2	Enquire
9	69728200	SEAT BELT BUCKLE STALK	69728200 SEAT BELT BUCKLE STALK Applicable up to Ass. No. 74886	-	2	Enquire
9	80217600	SEAT BELT BUCKLE STALK	80217600 SEAT BELT BUCKLE STALK Applicable from Ass. No. 74887	-	2	Enquire
10	69738900	SCREW	69738900 SCREW Not supplied; Supplied with buckle stalk ref. 10	-	2	Enquire
11	69471400	RH CUSHION SIDE PANEL WITH CLIPS	69471400 RH CUSHION SIDE PANEL WITH CLIPS	-	2	Enquire
12	69471500	LH CUSHION SIDE PANEL WITH CLIPS	69471500 LH CUSHION SIDE PANEL WITH CLIPS	-	2	Enquire
13	80957200	RH CUSHION SHELL	80957200 RH CUSHION SHELL Standard	-	1	Enquire
13	80957300	RH CUSHION SHELL	80957300 RH CUSHION SHELL Full electric	-	1	Enquire
13	80957000	LH CUSHION SHELL	80957000 LH CUSHION SHELL Standard	-	1	Enquire
13	80957100	LH CUSHION SHELL	80957100 LH CUSHION SHELL Full electric	-	1	Enquire
14	69991200	BELT LOOP KIT	69991200 BELT LOOP KIT	-	2	Enquire
15	81602800	LOWER SURROUND	81602800 LOWER SURROUND Applicable from Ass. No. 83567	-	1	Enquire
16	81602700	REAR SURROUND	81602700 REAR SURROUND Applicable from Ass. No. 83567	-	1	Enquire
