FRONT RACING SEAT - RAILS AND MECHANISM -Not for USA and CDN- of Ferrari Ferrari 599 GTB Fiorano

View All

Ferrari 599 GTB Fiorano - FRONT RACING SEAT - RAILS AND MECHANISM -Not for USA and CDN-

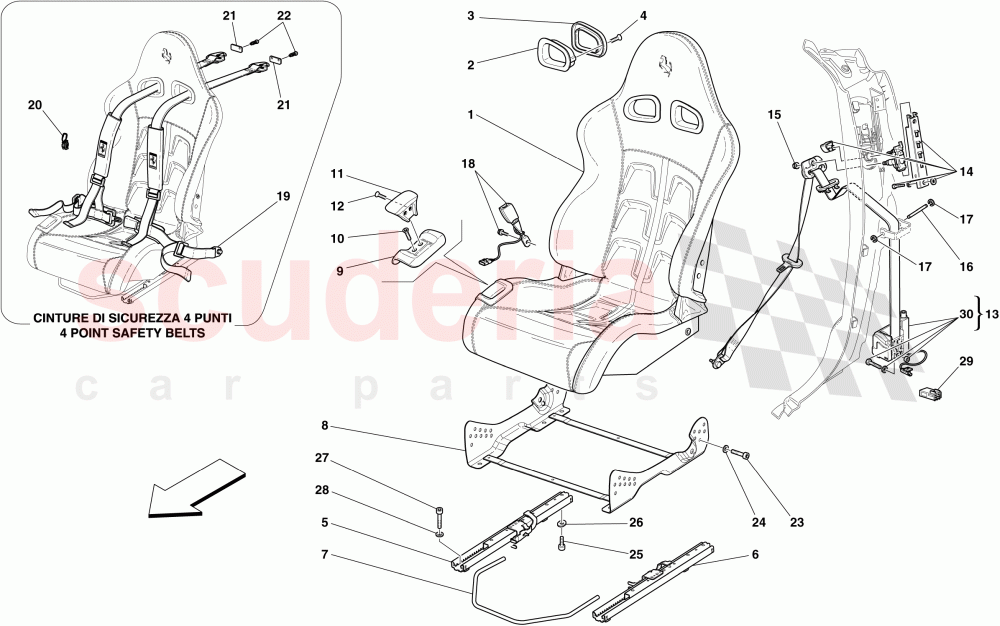

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69957400	COMPLETE RH SEAT	Enquire	To Order
	69957500	COMPLETE RH SEAT	Enquire	To Order
	69957300	COMPLETE RH SEAT	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67593300	RH SEAT BELT LOOP	Enquire	To Order
	67593500	LH SEAT BELT LOOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67593400	RH FRAME	Enquire	To Order
	67593600	LH FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67594600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81239300	RH GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81239400	LH GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81239500	SEAT HOOK LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81239600	SEAT CRADLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67594000	FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67594200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67593900	RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67594100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69361200	3-POINT SEAT BELT KIT	Enquire	To Order
	68576700	3-POINT SEAT BELT KIT	Enquire	To Order
	80215800	3-POINT SEAT BELT KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67365500	BELT HEIGHT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65408700	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69129500	BELT LOOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087776	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80217600	SEAT BELT BUCKLE STALK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69918700	4-POINT SEAT HARNESS KIT	Enquire	To Order
	69918800	4-POINT SEAT HARNESS KIT	Enquire	To Order
	69918900	4-POINT SEAT HARNESS KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	217878	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63605100	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15900270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81537300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67594800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81239900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65806500	SPRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80203200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180966	RESISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69366700	LH SEAT BELT	Enquire	To Order
	69366400	LH SEAT BELT	Enquire	To Order
	69366700	LH SEAT BELT	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69957400	COMPLETE RH SEAT	69957400 COMPLETE RH SEAT Medium; Not for USA, CDN; No longer supplied	-	1	Enquire
1	69957500	COMPLETE RH SEAT	69957500 COMPLETE RH SEAT Large; Not for USA, CDN	-	1	Enquire
1	69957300	COMPLETE RH SEAT	69957300 COMPLETE RH SEAT Extra large; Not for USA, CDN	-	1	Enquire
1	84677200	COMPLETE RH SEAT	84677200 COMPLETE RH SEAT Small; HGTE 60 F1 version; Not for USA, CDN, GD	-	1	Enquire
1	84828800	COMPLETE RH SEAT	84828800 COMPLETE RH SEAT Medium; HGTE 60 F1 version; Not for USA, CDN, GD	-	1	Enquire
1	84828900	COMPLETE RH SEAT	84828900 COMPLETE RH SEAT Large; HGTE 60 F1 version; Not for USA, CDN, GD	-	1	Enquire
1	84836500	COMPLETE RH SEAT	84836500 COMPLETE RH SEAT Small; HGTE 60 F1 version; Applicable for GD	-	1	Enquire
1	84836600	COMPLETE RH SEAT	84836600 COMPLETE RH SEAT Medium; HGTE 60 F1 version; Applicable for GD	-	1	Enquire
1	84836700	COMPLETE RH SEAT	84836700 COMPLETE RH SEAT Large; HGTE 60 F1 version; Applicable for GD	-	1	Enquire
1	69957700	COMPLETE LH SEAT	69957700 COMPLETE LH SEAT Medium; Not for USA, CDN; No longer supplied	-	1	Enquire
1	69957800	COMPLETE LH SEAT	69957800 COMPLETE LH SEAT Large; Not for USA, CDN	-	1	Enquire
1	69957600	COMPLETE LH SEAT	69957600 COMPLETE LH SEAT Extra large; Not for USA, CDN	-	1	Enquire
1	84677300	COMPLETE LH SEAT	84677300 COMPLETE LH SEAT Small; HGTE 60 F1 version; Not for USA, CDN, GD	-	1	Enquire
1	84829000	COMPLETE LH SEAT	84829000 COMPLETE LH SEAT Medium; HGTE 60 F1 version; Not for USA, CDN, GD	-	1	Enquire
1	84829100	COMPLETE LH SEAT	84829100 COMPLETE LH SEAT Large; HGTE 60 F1 version; Not for USA, CDN, GD	-	1	Enquire
1	84836800	COMPLETE LH SEAT	84836800 COMPLETE LH SEAT Small; HGTE 60 F1 version; Applicable for GD	-	1	Enquire
1	84836900	COMPLETE LH SEAT	84836900 COMPLETE LH SEAT Medium; HGTE 60 F1 version; Applicable for GD	-	1	Enquire
1	84837000	COMPLETE LH SEAT	84837000 COMPLETE LH SEAT Large; HGTE 60 F1 version; Applicable for GD	-	1	Enquire
2	67593300	RH SEAT BELT LOOP	67593300 RH SEAT BELT LOOP Not for USA, CDN	-	2	Enquire
2	67593500	LH SEAT BELT LOOP	67593500 LH SEAT BELT LOOP Not for USA, CDN	-	2	Enquire
3	67593400	RH FRAME	67593400 RH FRAME Not for USA, CDN	-	2	Enquire
3	67593600	LH FRAME	67593600 LH FRAME Not for USA, CDN	-	2	Enquire
4	67594600	SCREW	67594600 SCREW Not for USA, CDN	-	8	Enquire
5	81239300	RH GUIDE	81239300 RH GUIDE Not for USA, CDN	-	2	Enquire
6	81239400	LH GUIDE	81239400 LH GUIDE Not for USA, CDN	-	2	Enquire
7	81239500	SEAT HOOK LEVER	81239500 SEAT HOOK LEVER Not for USA, CDN	-	2	Enquire
8	81239600	SEAT CRADLE	81239600 SEAT CRADLE Not for USA, CDN	-	2	Enquire
9	67594000	FIXING PLATE	67594000 FIXING PLATE Not for USA, CDN	-	2	Enquire
10	67594200	SCREW	67594200 SCREW Not for USA, CDN	-	4	Enquire
11	67593900	RELEASE LEVER	67593900 RELEASE LEVER Not for USA, CDN	-	2	Enquire
12	67594100	SCREW	67594100 SCREW Not for USA, CDN	-	4	Enquire
13	69361200	3-POINT SEAT BELT KIT	69361200 3-POINT SEAT BELT KIT After depletion, order ref. 30; Not for USA, CDN, GD; Applicable until depletion	-	1	Enquire
13	68576700	3-POINT SEAT BELT KIT	68576700 3-POINT SEAT BELT KIT After depletion, order ref. 30; Applicable for GD; Applicable until depletion	-	1	Enquire
13	80215800	3-POINT SEAT BELT KIT	80215800 3-POINT SEAT BELT KIT Coloured; After depletion, order ref. 30; Not for USA, CDN, GD; Applicable until depletion	-	1	Enquire
13	80215900	3-POINT SEAT BELT KIT	80215900 3-POINT SEAT BELT KIT Coloured; After depletion, order ref. 30; Applicable for GD; Applicable until depletion	-	1	Enquire
14	67365500	BELT HEIGHT ADJUSTER	67365500 BELT HEIGHT ADJUSTER	-	2	Enquire
15	65408700	NUT	65408700 NUT Not for USA, CDN	-	2	Enquire
16	69129500	BELT LOOP	69129500 BELT LOOP Not for USA, CDN	-	2	Enquire
17	11087776	SNAP RING	11087776 SNAP RING Not for USA, CDN	-	4	Enquire
18	80217600	SEAT BELT BUCKLE STALK	80217600 SEAT BELT BUCKLE STALK Not for USA, CDN	-	2	Enquire
19	69918700	4-POINT SEAT HARNESS KIT	69918700 4-POINT SEAT HARNESS KIT Black; Not for USA, CDN	-	1	Enquire
19	69918800	4-POINT SEAT HARNESS KIT	69918800 4-POINT SEAT HARNESS KIT Red; Not for USA, CDN	-	1	Enquire
19	69918900	4-POINT SEAT HARNESS KIT	69918900 4-POINT SEAT HARNESS KIT Blue; Not for USA, CDN	-	1	Enquire
19	84674400	4-POINT SEAT HARNESS KIT	84674400 4-POINT SEAT HARNESS KIT HGTE 60 F1 version; Not for AUS, USA, CDN, J	-	1	Enquire
20	217878	CONNECTOR	217878 CONNECTOR Not for USA, CDN	-	1	Enquire
21	63605100	BRACKET	63605100 BRACKET Not for USA, CDN	-	4	Enquire
22	15900270	SCREW	15900270 SCREW Not for USA, CDN	-	8	Enquire
23	81537300	SCREW	81537300 SCREW Not for USA, CDN	-	8	Enquire
24	67594800	WASHER	67594800 WASHER Not for USA, CDN	-	8	Enquire
25	81239900	SCREW	81239900 SCREW Not for USA, CDN	-	6	Enquire
26	65806500	SPRING PLATE	65806500 SPRING PLATE Not for USA, CDN	-	6	Enquire
27	80203200	SCREW	80203200 SCREW Not for USA, CDN	-	8	Enquire
28	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM Not for USA, CDN	-	8	Enquire
29	180966	RESISTOR	180966 RESISTOR Applicable for versions with 4-point seat harnesses; Not for USA, CDN	-	2	Enquire
30	69366700	LH SEAT BELT	69366700 LH SEAT BELT Not for USA, CDN, GD	-	1	Enquire
30	69366400	LH SEAT BELT	69366400 LH SEAT BELT Applicable for GD	-	1	Enquire
30	69366700	LH SEAT BELT	69366700 LH SEAT BELT Coloured; Not for USA, CDN, GD	-	1	Enquire
30	69366400	LH SEAT BELT	69366400 LH SEAT BELT Coloured; Applicable for GD	-	1	Enquire
30	69366500	RH SEAT BELT	69366500 RH SEAT BELT Not for USA, CDN, GD	-	1	Enquire
30	69371200	RH SEAT BELT	69371200 RH SEAT BELT Applicable for GD	-	1	Enquire
30	80216400	RH SEAT BELT	80216400 RH SEAT BELT Coloured; Not for USA, CDN, GD	-	1	Enquire
30	80216600	RH SEAT BELT	80216600 RH SEAT BELT Coloured; Applicable for GD	-	1	Enquire
