INSTRUMENTATION of Ferrari Ferrari 599 GTB Fiorano

View All

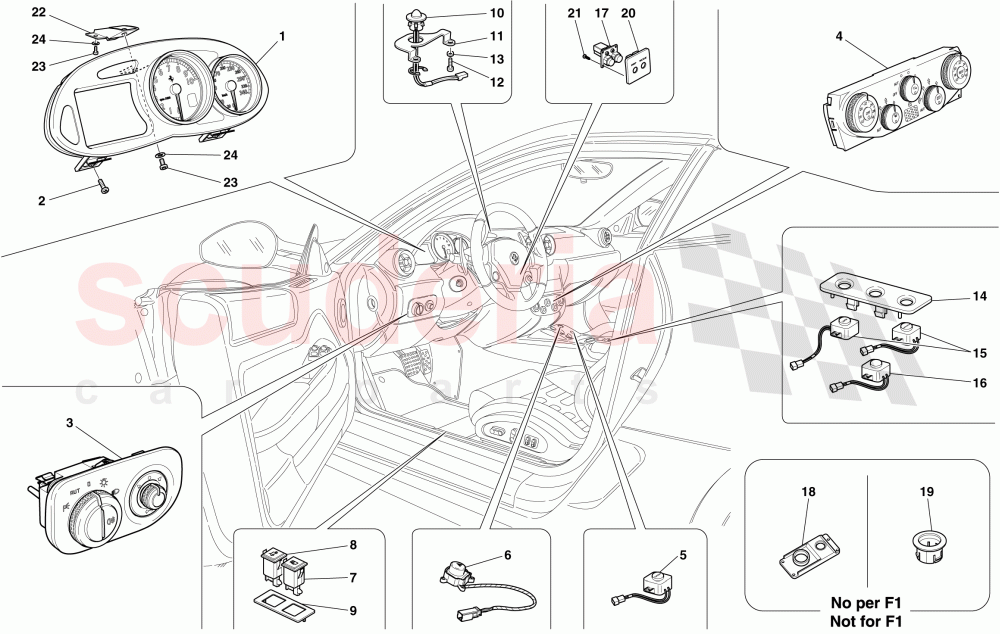

Ferrari 599 GTB Fiorano - INSTRUMENTATION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	224683	COMPLETE INSTRUMENTS	Enquire	To Order
	249122	COMPLETE INSTRUMENTS	Enquire	To Order
	224687	COMPLETE INSTRUMENTS	Enquire	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227031	Light and Rear View Mirror Switch Mounting Panel	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	69717500	AC CONTROL PANEL	Enquire	To Order
	69717600	AC CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195849	Glove Compartment Open Button	Enquire	To Order
	195849	Glove Compartment Open Button	Enquire	To Order
	222032	GLOVE COMPARTMENT OPEN BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191356	HAZARD LIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210983	Fuel Filler Flap Release Button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210982	Luggage Compartment Lid Button	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	67433400	INTERNAL SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199212	SUNLIGHT SENSOR	Enquire	To Order
	237174	SUNLIGHT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69156800	SENSOR FASTENER BRACKET	Enquire	To Order
	69716700	SENSOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69156200	BUTTON PANEL	Enquire	To Order
	69354600	BUTTON PANEL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	191971	Door Lock/Unlock Buttons	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215293	Front Parking Sensor Disable Button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177902	INSTRUMENT FUNCTION BUTTON SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69246500	FRONT BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69375300	GLOVE COMPARTMENT OPEN BUTTON SURROUND	Enquire	To Order
	67628700	FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69164800	BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15686101	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69162100	UPPER DASHBOARD INSTRUMENTATION MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13273977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	224683	COMPLETE INSTRUMENTS	224683 COMPLETE INSTRUMENTS Carbon version; With odometer; Red rev counter; Not for USA, UK; Applicable until depletion	-	1	Enquire
1	249122	COMPLETE INSTRUMENTS	249122 COMPLETE INSTRUMENTS Carbon version; With odometer; Red rev counter; Not for USA, UK; Applicable after depletion of 224683	-	1	Enquire
1	224687	COMPLETE INSTRUMENTS	224687 COMPLETE INSTRUMENTS Carbon version; With odometer in miles; Red rev counter; Applicable for UK; Applicable until depletion	-	1	Enquire
1	249126	COMPLETE INSTRUMENTS	249126 COMPLETE INSTRUMENTS Carbon version; With odometer in miles; Red rev counter; Applicable for UK; Applicable after depletion of 224687	-	1	Enquire
1	256755	COMPLETE INSTRUMENTS	256755 COMPLETE INSTRUMENTS Carbon version; With odometer; White rev counter; Applicable for HGTE version; Not for USA, UK	-	1	Enquire
1	256757	COMPLETE INSTRUMENTS	256757 COMPLETE INSTRUMENTS Carbon version; With odometer in miles; White rev counter; Applicable for HGTE version; Applicable for UK	-	1	Enquire
1	256759	COMPLETE INSTRUMENTS	256759 COMPLETE INSTRUMENTS Carbon version; With odometer in miles; White rev counter; Applicable from MY 10; Applicable for HGTE version; Applicable for USA; Applicable from Ass. No. 86365	-	1	Enquire
1	260227	COMPLETE INSTRUMENTS	260227 COMPLETE INSTRUMENTS Special trim version; Applicable for CINA	-	1	Enquire
1	256744	COMPLETE INSTRUMENTS	256744 COMPLETE INSTRUMENTS HGTE 60 F1 version; White rev counter; With odometer; Not for USA, CDN, UK	-	1	Enquire
1	256749	COMPLETE INSTRUMENTS	256749 COMPLETE INSTRUMENTS HGTE 60 F1 version; White rev counter; With odometer in miles; Applicable for UK	-	1	Enquire
1	285560	COMPLETE INSTRUMENTS	285560 COMPLETE INSTRUMENTS HGTE 60 F1 version; White rev counter; With odometer in miles; Applicable for USA	-	1	Enquire
1	285557	COMPLETE INSTRUMENTS	285557 COMPLETE INSTRUMENTS HGTE 60 F1 version; White rev counter; With odometer; Applicable for USA, CDN	-	1	Enquire
2	13273911	SCREW	13273911 SCREW	-	3	Enquire
3	227031	Light and Rear View Mirror Switch Mounting Panel ARRIVING SOON	227031 Light and Rear View Mirror Switch Mounting Panel ARRIVING SOON	-	1	Enquire
4	69717500	AC CONTROL PANEL	69717500 AC CONTROL PANEL With Centigrade scale	-	1	Enquire
4	69717600	AC CONTROL PANEL	69717600 AC CONTROL PANEL With Fahrenheit scale	-	1	Enquire
5	195849	Glove Compartment Open Button	195849 Glove Compartment Open Button Applicable for F1 gearbox	-	1	Enquire
5	195849	Glove Compartment Open Button	195849 Glove Compartment Open Button Not for F1 gearbox	-	1	Enquire
5	222032	GLOVE COMPARTMENT OPEN BUTTON	222032 GLOVE COMPARTMENT OPEN BUTTON Version in leather; Not for F1 gearbox	-	1	Enquire
6	191356	HAZARD LIGHT BUTTON	191356 HAZARD LIGHT BUTTON	-	1	Enquire
7	210983	Fuel Filler Flap Release Button	210983 Fuel Filler Flap Release Button	-	1	Enquire
8	210982	Luggage Compartment Lid Button ARRIVING SOON	210982 Luggage Compartment Lid Button ARRIVING SOON	-	1	Enquire
9	67433400	INTERNAL SURROUND	67433400 INTERNAL SURROUND	-	1	Enquire
10	199212	SUNLIGHT SENSOR	199212 SUNLIGHT SENSOR Applicable up to Ass. No. 91899	-	1	Enquire
10	237174	SUNLIGHT SENSOR	237174 SUNLIGHT SENSOR Applicable from Ass. No. 91900	-	1	Enquire
11	69156800	SENSOR FASTENER BRACKET	69156800 SENSOR FASTENER BRACKET Not for GD	-	1	Enquire
11	69716700	SENSOR FASTENER BRACKET	69716700 SENSOR FASTENER BRACKET Applicable for GD	-	1	Enquire
12	13273911	SCREW	13273911 SCREW	-	2	Enquire
13	12637824	WASHER	12637824 WASHER	-	2	Enquire
14	69156200	BUTTON PANEL	69156200 BUTTON PANEL Not for parking sensors	-	1	Enquire
14	69354600	BUTTON PANEL ARRIVING SOON	69354600 BUTTON PANEL Parking sensors ARRIVING SOON	-	1	Enquire
15	191971	Door Lock/Unlock Buttons	191971 Door Lock/Unlock Buttons	-	1	Enquire
16	215293	Front Parking Sensor Disable Button	215293 Front Parking Sensor Disable Button Parking sensors	-	1	Enquire
17	177902	INSTRUMENT FUNCTION BUTTON SET	177902 INSTRUMENT FUNCTION BUTTON SET	-	1	Enquire
18	69246500	FRONT BUTTON PANEL	69246500 FRONT BUTTON PANEL Carbon version; Not for F1 gearbox	-	1	Enquire
19	69375300	GLOVE COMPARTMENT OPEN BUTTON SURROUND	69375300 GLOVE COMPARTMENT OPEN BUTTON SURROUND Version in leather; Not for F1 gearbox	-	1	Enquire
19	67628700	FIXING PLATE	67628700 FIXING PLATE Version in leather; Not for F1 gearbox	-	1	Enquire
20	69164800	BUTTON PANEL	69164800 BUTTON PANEL	-	1	Enquire
21	15686101	SCREW	15686101 SCREW	-	4	Enquire
22	69162100	UPPER DASHBOARD INSTRUMENTATION MOUNTING BRACKET	69162100 UPPER DASHBOARD INSTRUMENTATION MOUNTING BRACKET	-	1	Enquire
23	13273977	SCREW	13273977 SCREW Carbon version	-	2	Enquire
24	12637824	WASHER	12637824 WASHER	-	2	Enquire
